Single Story Living With Expansion Below

Plan 81629AB

  • 1,719

    Heated s.f.

  • 3-5

    Beds

  • 2 - 3

    Baths

  • 1

    Stories

  • 3

    Cars

  • Enjoy one-story living with this attractive 3 bedroom home plan. It comes with a an optional finished lower level giving you two more bedrooms plus recreation space and more.
  • A covered porch shelters you as you enter the home where, once inside, you have views extending through to the back of the home.
  • The great room is wide open and has 9' ceilings that extend to the kitchen and dining room.
  • A sundeck off the eating nook is huge and a great place to enjoy the views.
  • The master suite comes complete with a walk-in closet and his and her vanities. Two more bedrooms share a bath.
  • Options for Right Hand & Left Hand Garage

Plans include the following:

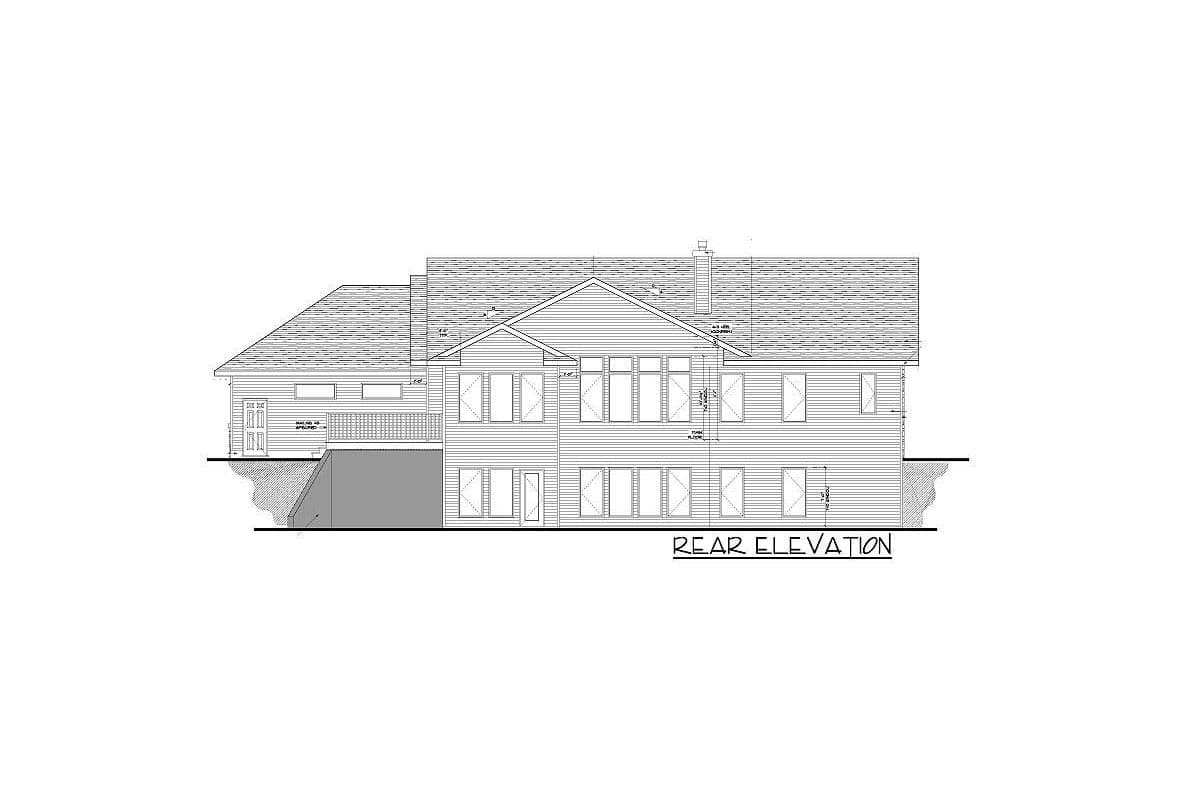

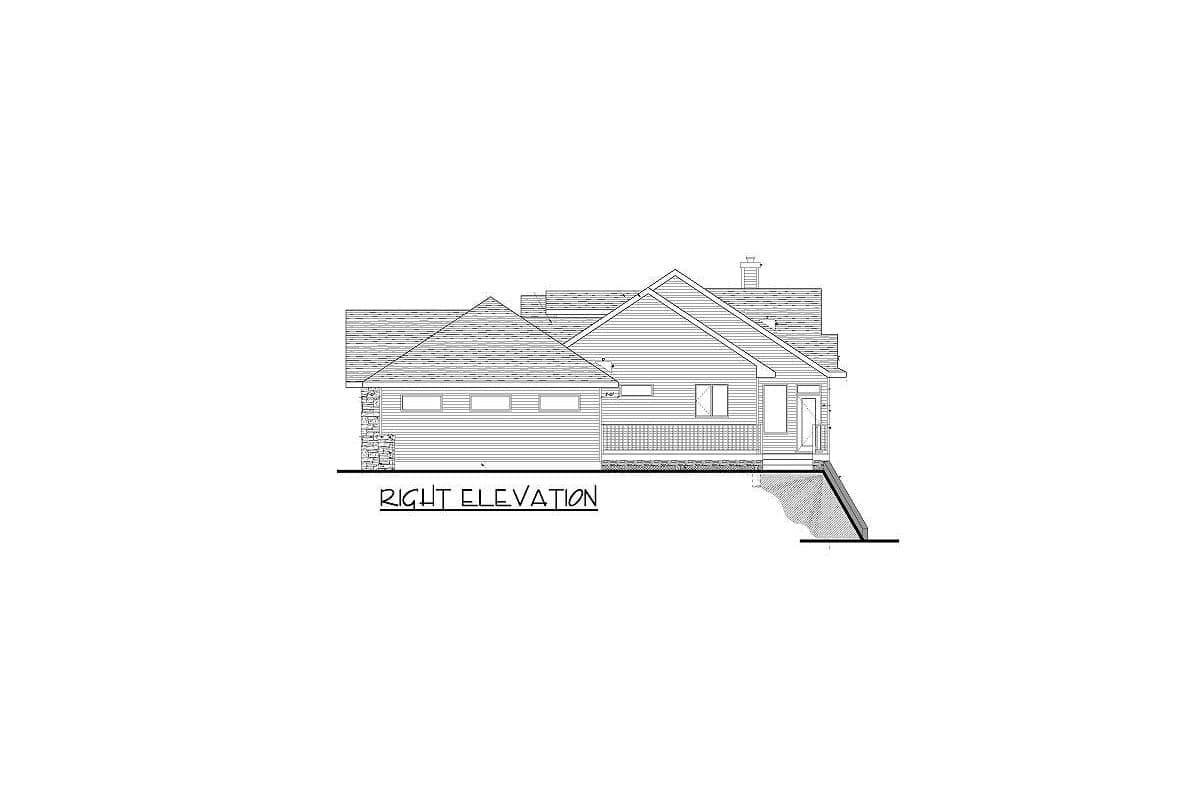

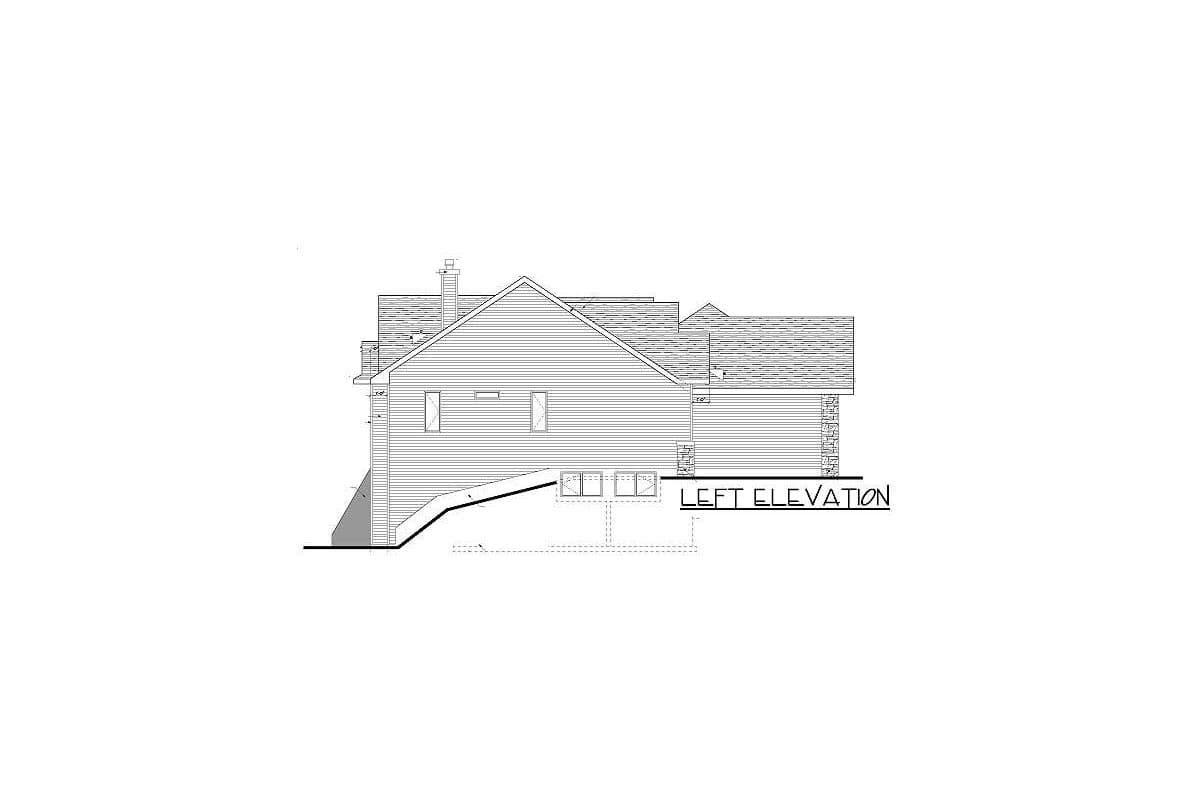

  • 4 elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

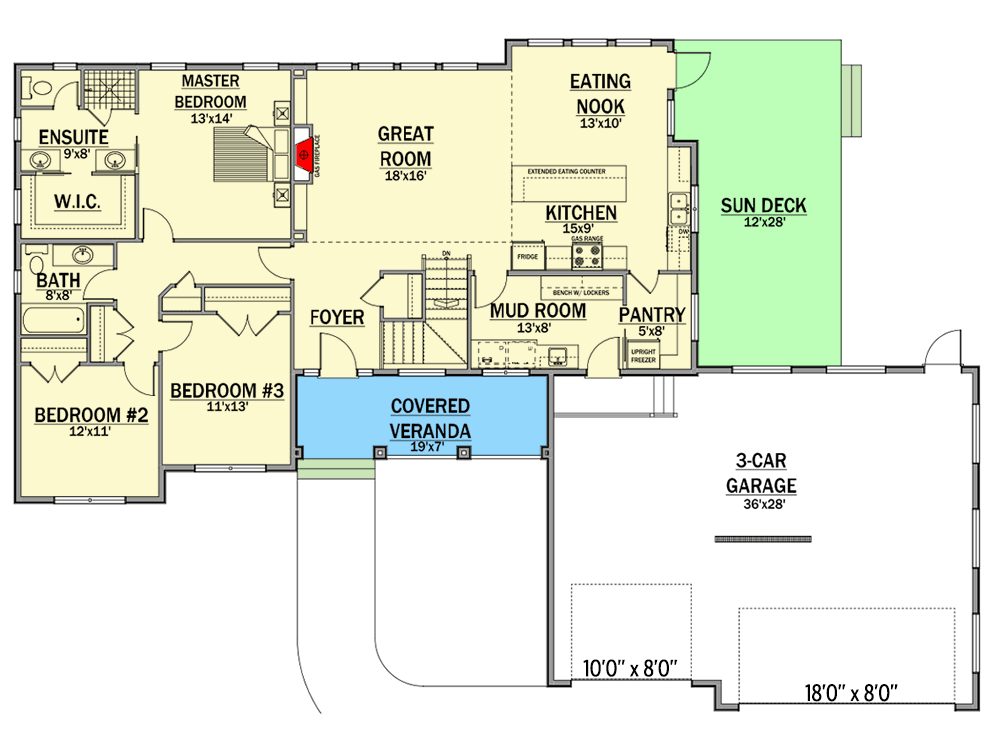

Single Story Living With Expansion Below - 81629AB floor plan - Main Level

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

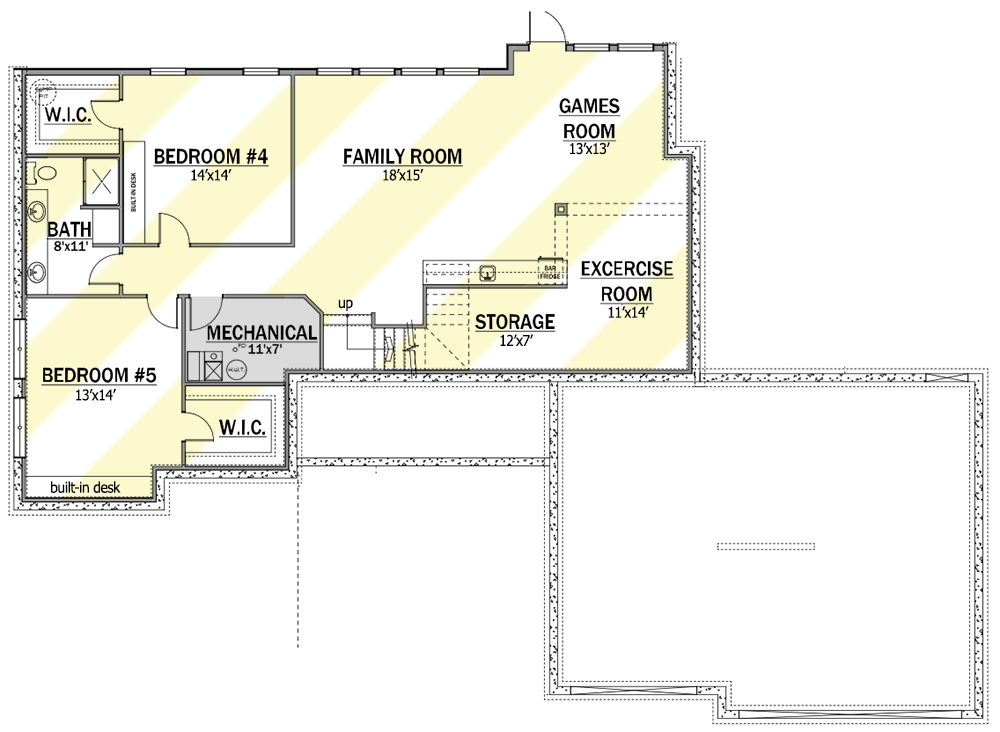

Single Story Living With Expansion Below - 81629AB floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,719 sq. ft.
  • 1st Floor: 1,719 sq. ft.
  • Deck: 336 sq. ft.
  • Porch, Front: 133 sq. ft.
  • Optional Lower Level: 1,480 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 2 or 3

Foundation Type

  • Standard Foundations: Walkout
  • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 82' 0"
  • Depth: 60' 0"

Garage

  • Type: Attached
  • Area: 1008 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard, Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Single Story Living With Expansion Below

  • 1,719

    Heated s.f.

  • 3-5

    Beds

  • 2 - 3

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,300
  • CAD + PDF - Single Build $2,000
  • CAD Unlimited + PDF $2,500
  • View all purchase option online

About This Plan

  • Enjoy one-story living with this attractive 3 bedroom home plan. It comes with a an optional finished lower level giving you two more bedrooms plus recreation space and more.
  • A covered porch shelters you as you enter the home where, once inside, you have views extending through to the back of the home.
  • The great room is wide open and has 9' ceilings that extend to the kitchen and dining room.
  • A sundeck off the eating nook is huge and a great place to enjoy the views.
  • The master suite comes complete with a walk-in closet and his and her vanities. Two more bedrooms share a bath.
  • Options for Right Hand & Left Hand Garage

Floor Plans

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,719 sq. ft.
  • 1st Floor: 1,719 sq. ft.
  • Deck: 336 sq. ft.
  • Porch, Front: 133 sq. ft.
  • Optional Lower Level: 1,480 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 2 or 3

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 82' 0"
  • Depth: 60' 0"

Garage

  • Type: Attached
  • Area: 1008 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard, Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Truss
Plan 81629AB
View this and more for this plan by visiting www.architechtecturaldesigns.com/81629AB
|
Need Help? 800-854-7852
|
Plan 81629AB
