Plan 36512TX

Six Bedroom Mediterranean Mansion

Six Bedroom Mediterranean Mansion

Plan 36512TX

  • 6,840

    Heated s.f.

  • 6

    Beds

  • 5.5+

    Baths

  • 2

    Stories

  • 3

    Cars

  • Every luxurious amenity you can think of has been packed into this Mediterranean mansion, from the media room, wine fridge in the kitchen, gorgeous curved staircase and a residential elevator.
  • A large study has an elegant coffered ceiling and is lined with built-ins on three walls.
  • The guest suite at the front of the house is ideal for in-laws, giving them privacy, a large walk-in closet and a luxurious bathroom.
  • Outdoor living space is vaulted and comes with an outdoor fireplace to warm you on chilly nights.
  • The stunning master suite has all the bells and whistles from a sitting room to a fireplace to an elegant tray ceiling.
  • Soak in that stunning master tub set in a circular bay, designed to soothe.
  • An open rail balcony bridge in the second floor hallway has views on either side.
  • Four huge bedroom suites are just a few steps away from the enormous game room with its walk-in storage closet.

Plan set includes the following:


1.       Cover sheet

2.       Foundation Plan

3.       First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4.       Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5.       First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6.       Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

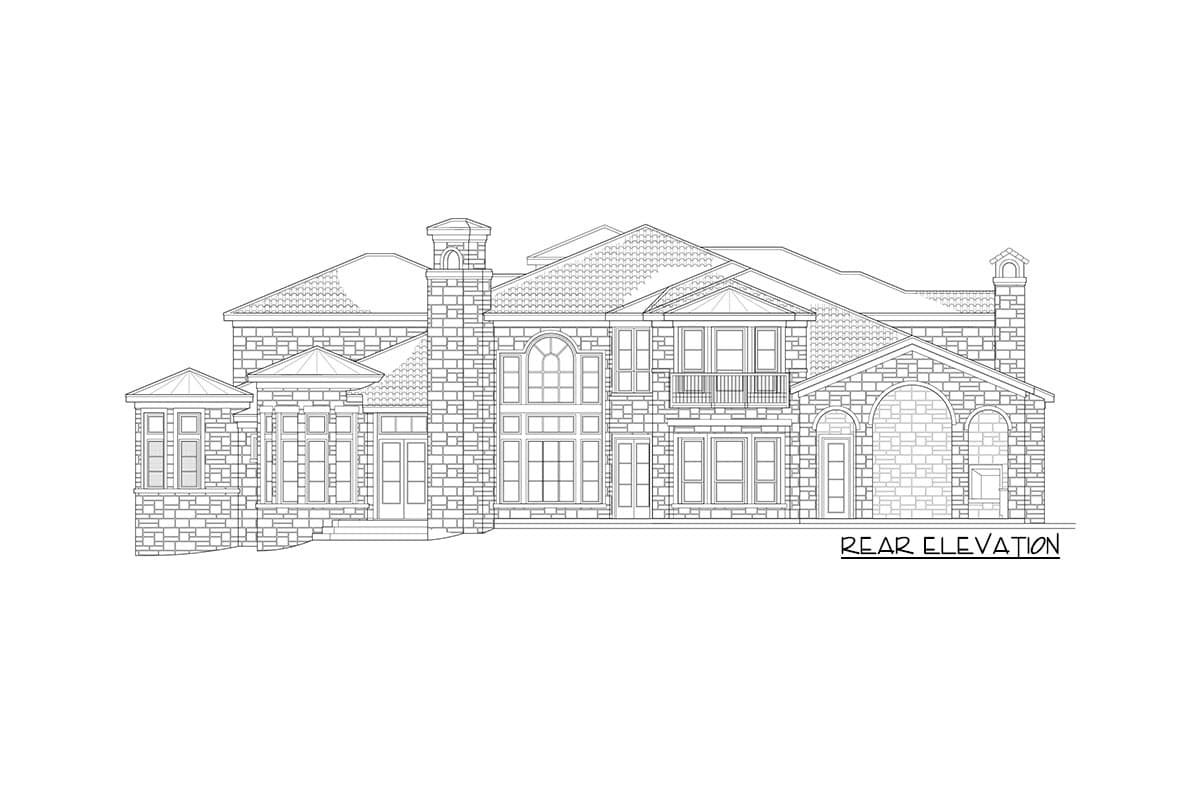

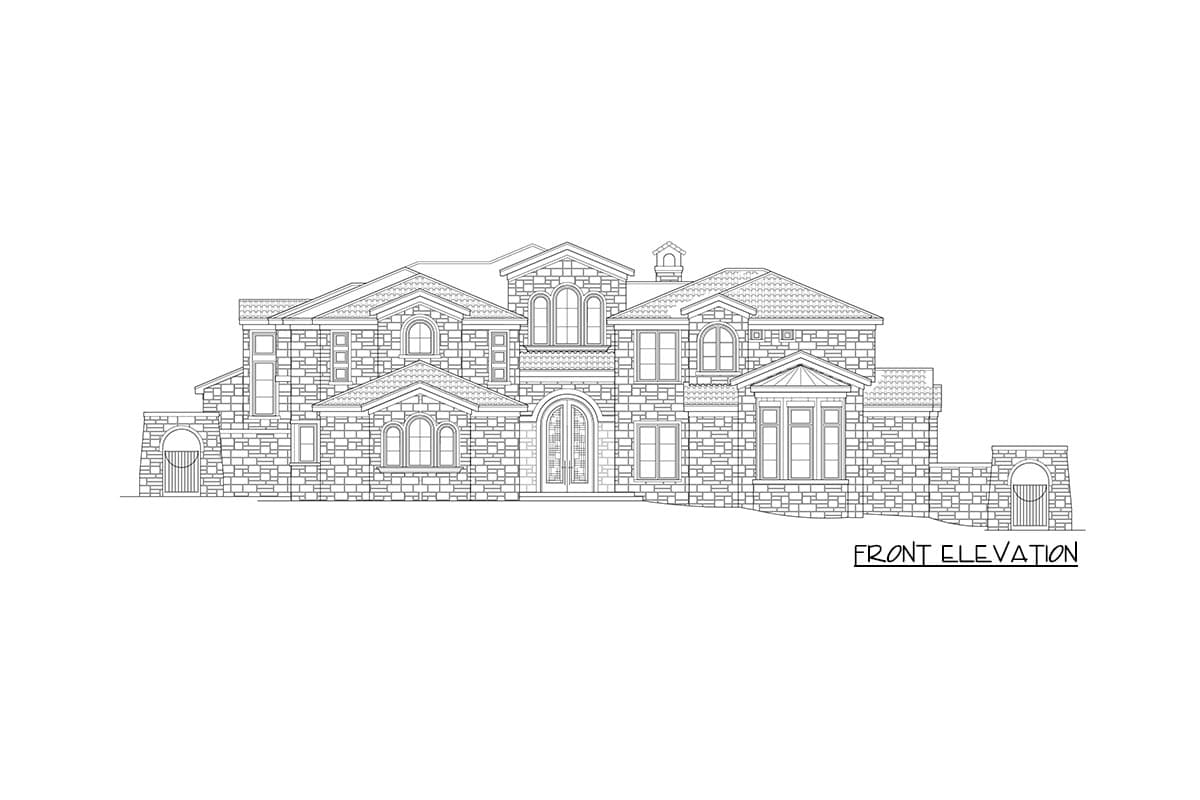

7.       Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

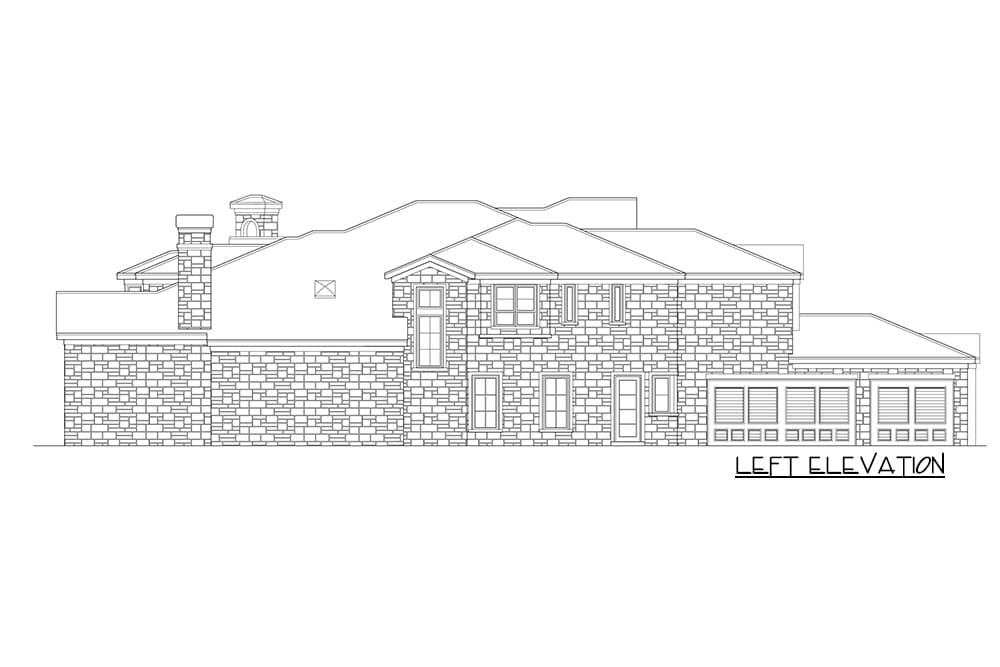

8.       Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9.       Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10.   Sections page

11.   Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

Floor Plan

Plan details



Six Bedroom Mediterranean Mansion

  • 6,840

    Heated s.f.

  • 6

    Beds

  • 7

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $2,860
  • 5 Sets $3,060
  • CAD $4,290
  • View all purchase option online

About This Plan

  • Every luxurious amenity you can think of has been packed into this Mediterranean mansion, from the media room, wine fridge in the kitchen, gorgeous curved staircase and a residential elevator.
  • A large study has an elegant coffered ceiling and is lined with built-ins on three walls.
  • The guest suite at the front of the house is ideal for in-laws, giving them privacy, a large walk-in closet and a luxurious bathroom.
  • Outdoor living space is vaulted and comes with an outdoor fireplace to warm you on chilly nights.
  • The stunning master suite has all the bells and whistles from a sitting room to a fireplace to an elegant tray ceiling.
  • Soak in that stunning master tub set in a circular bay, designed to soothe.
  • An open rail balcony bridge in the second floor hallway has views on either side.
  • Four huge bedroom suites are just a few steps away from the enormous game room with its walk-in storage closet.

Floor Plans

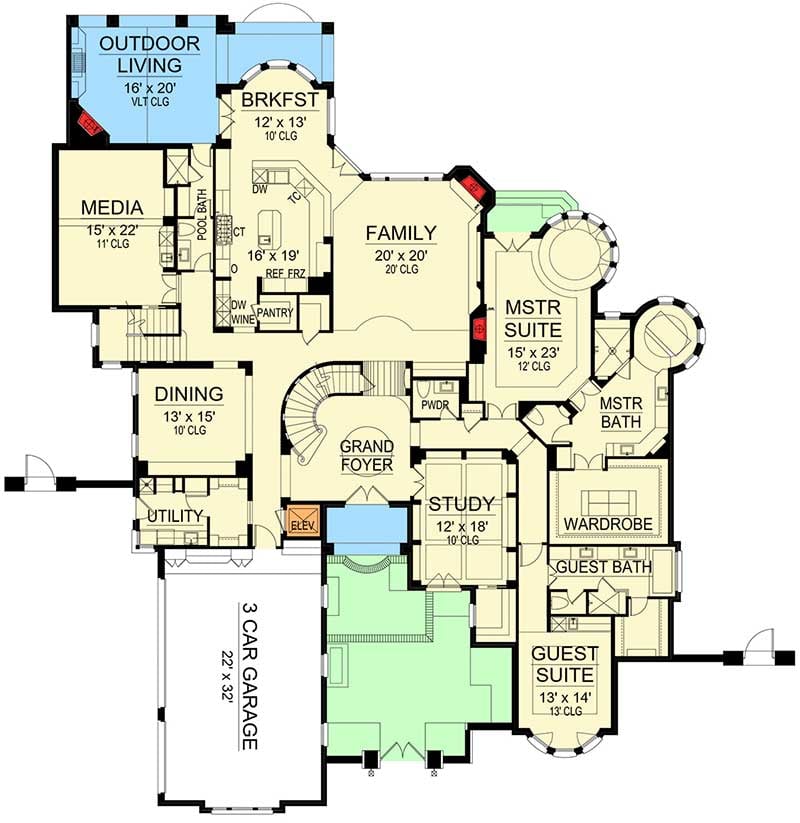

  • Main Level

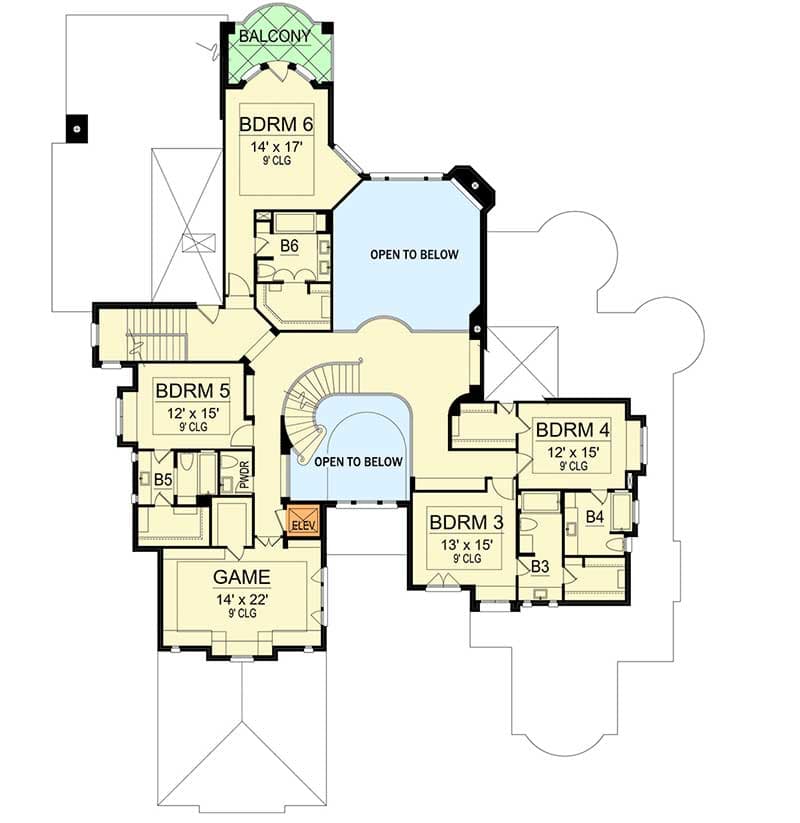

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 6,840 sq. ft.
  • 1st Floor: 4,700 sq. ft.
  • 2nd Floor: 2,140 sq. ft.

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 5
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 92' 0"
  • Depth: 112' 0"
  • Max ridge height: 31' 0"

Garage

  • Type: Attached
  • Area: 878 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
