Plan 23612JD
Six Bedroom Mountain Retreat
Heated S.F.
8,450
Beds
6
Baths
5.5+
Stories
2
Cars
3
Plan Details
  • Have all the guests and family you want in this huge six bedroom Mountain retreat - there's room for one and all.

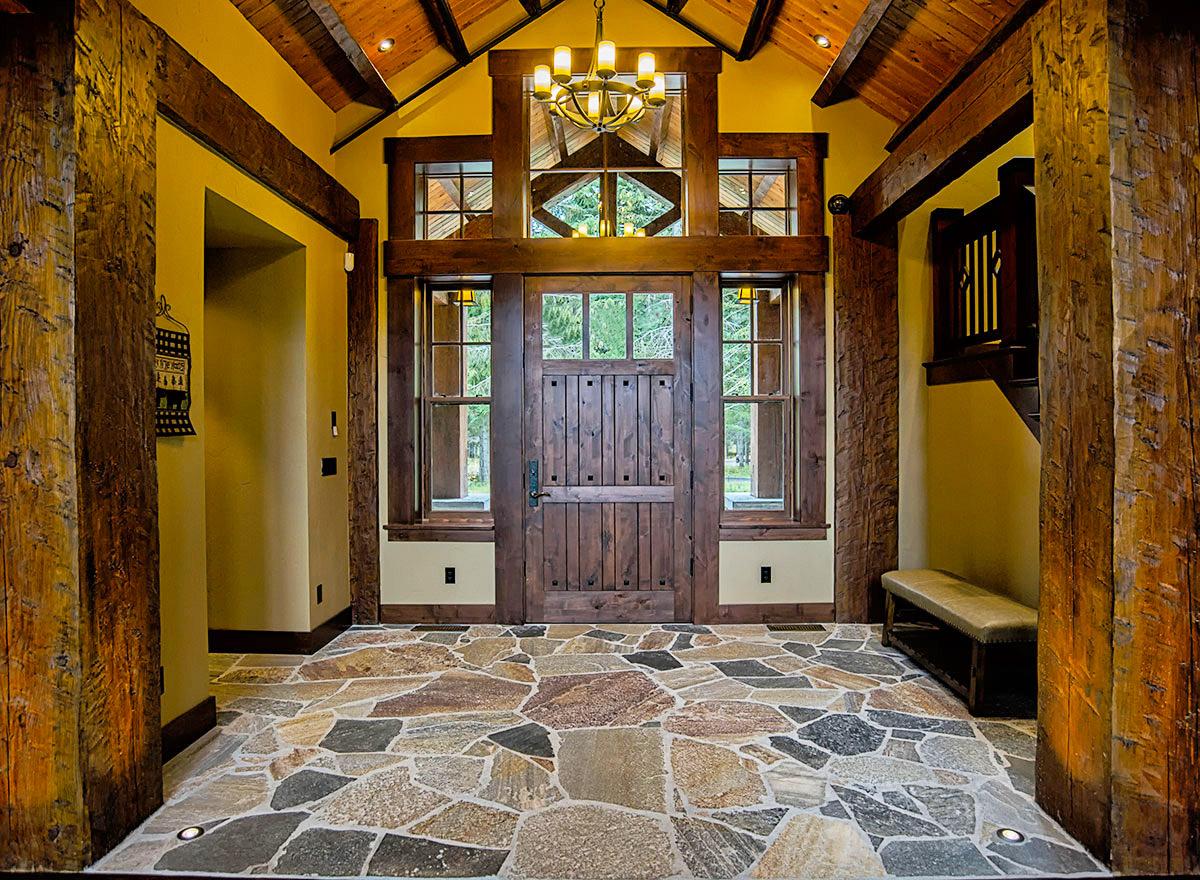

  • Views from the foyer go straight back, over 48' from the front door.
  • With an open floor plan, the sightlines go on forever from room to room.

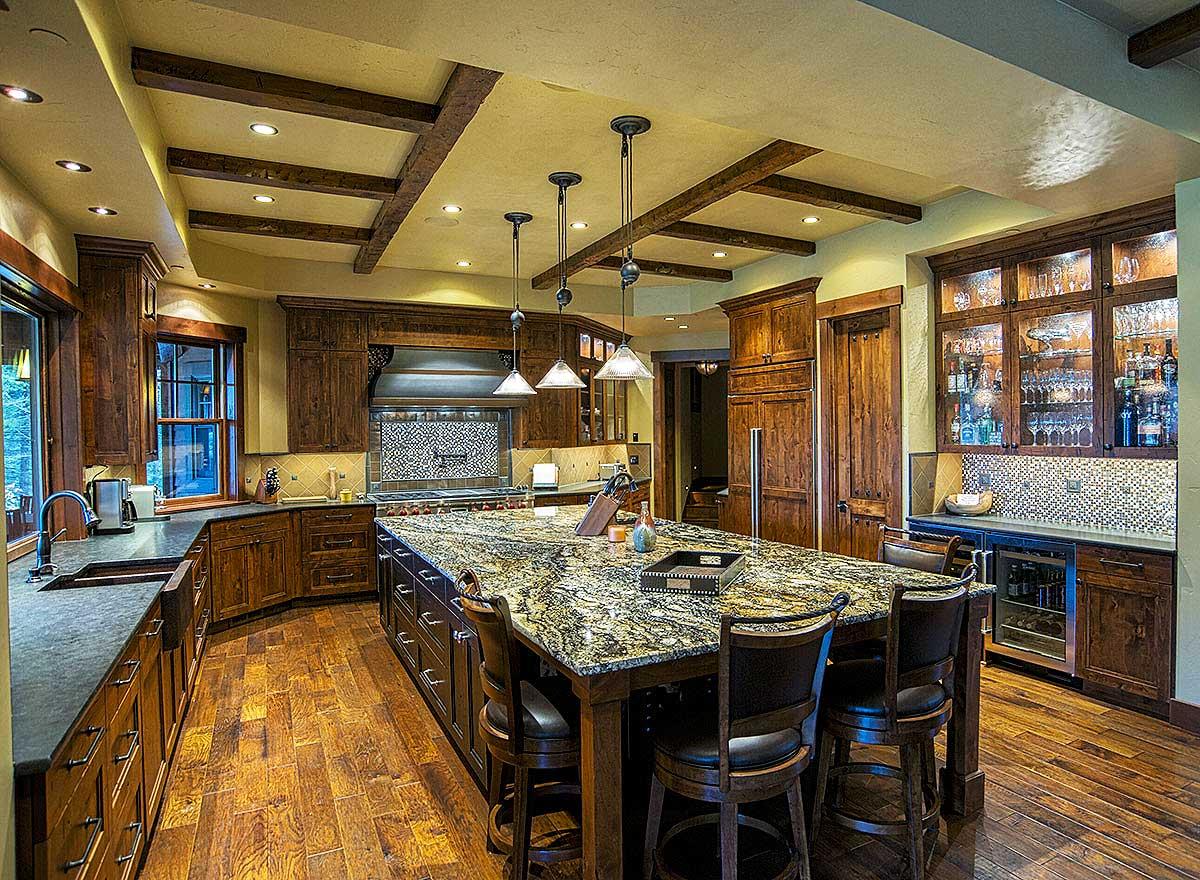

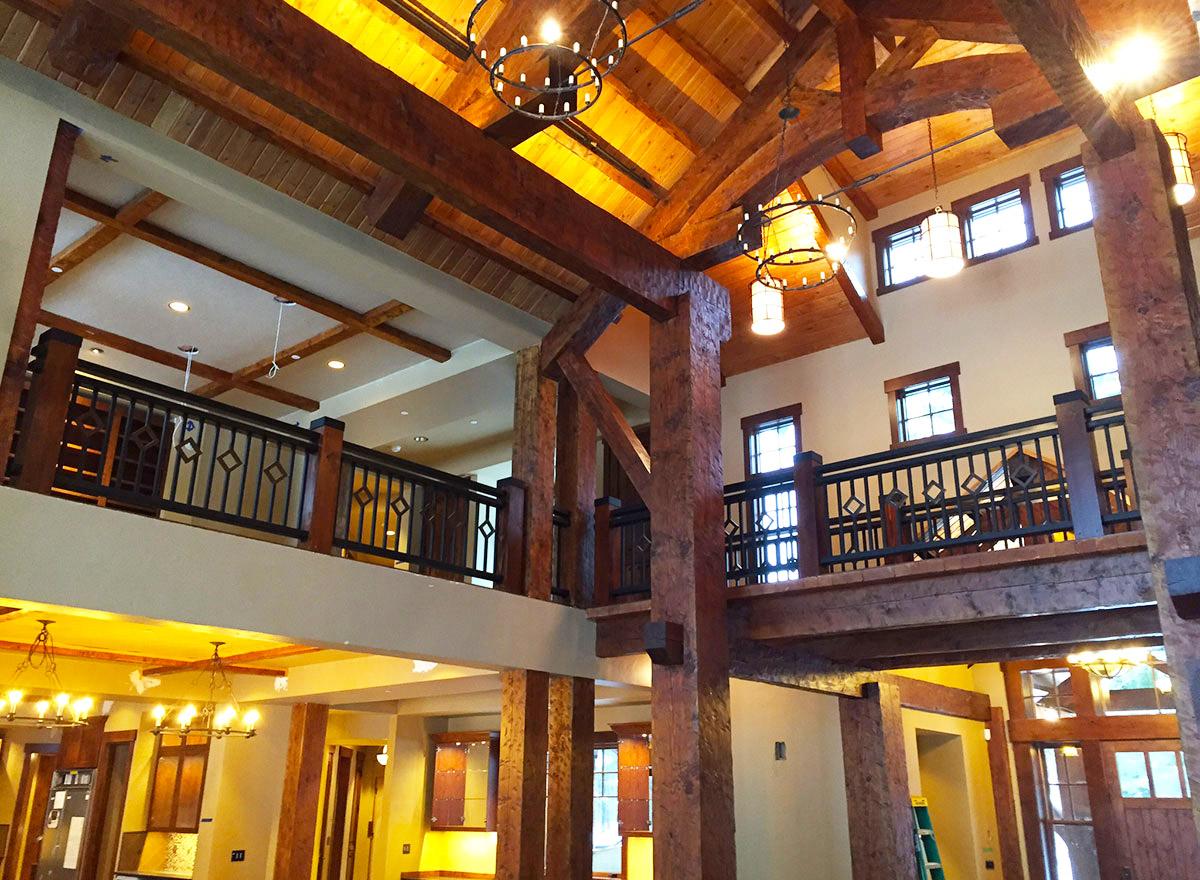

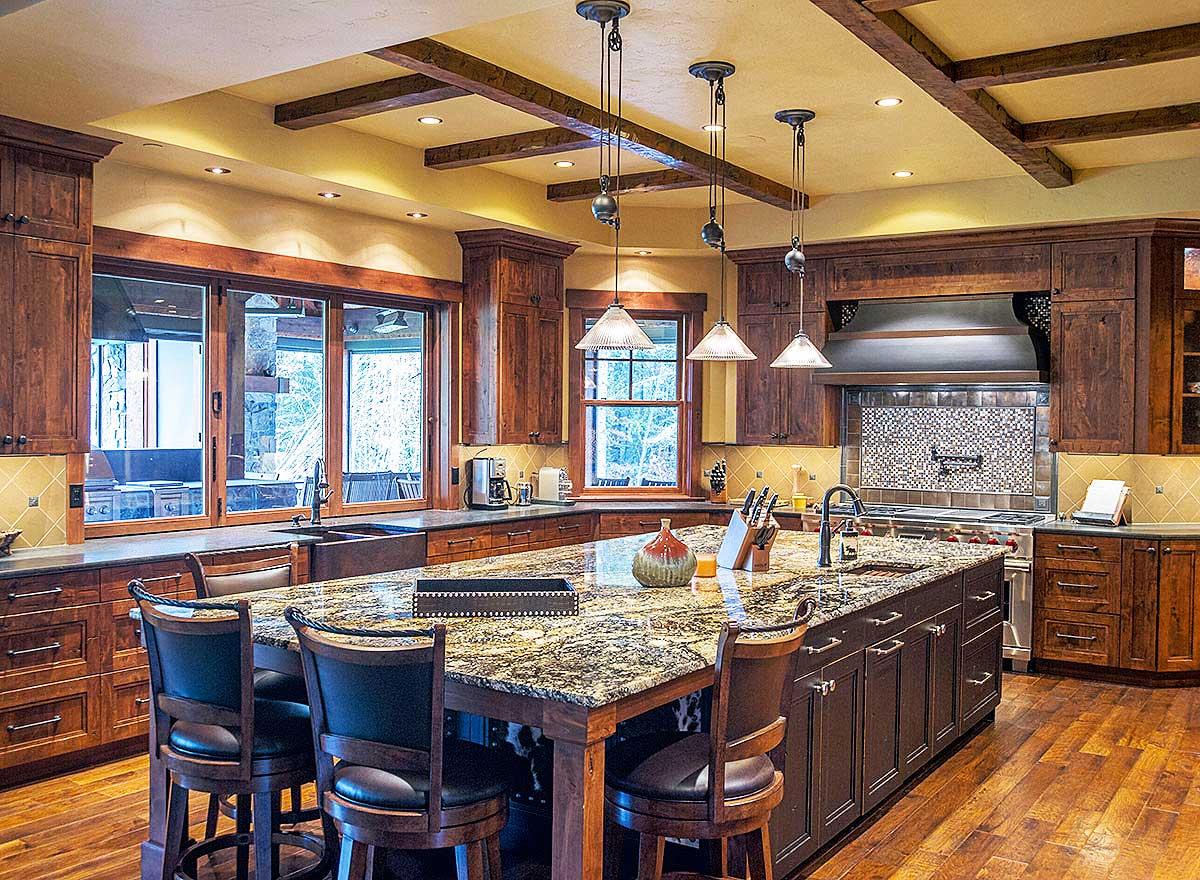

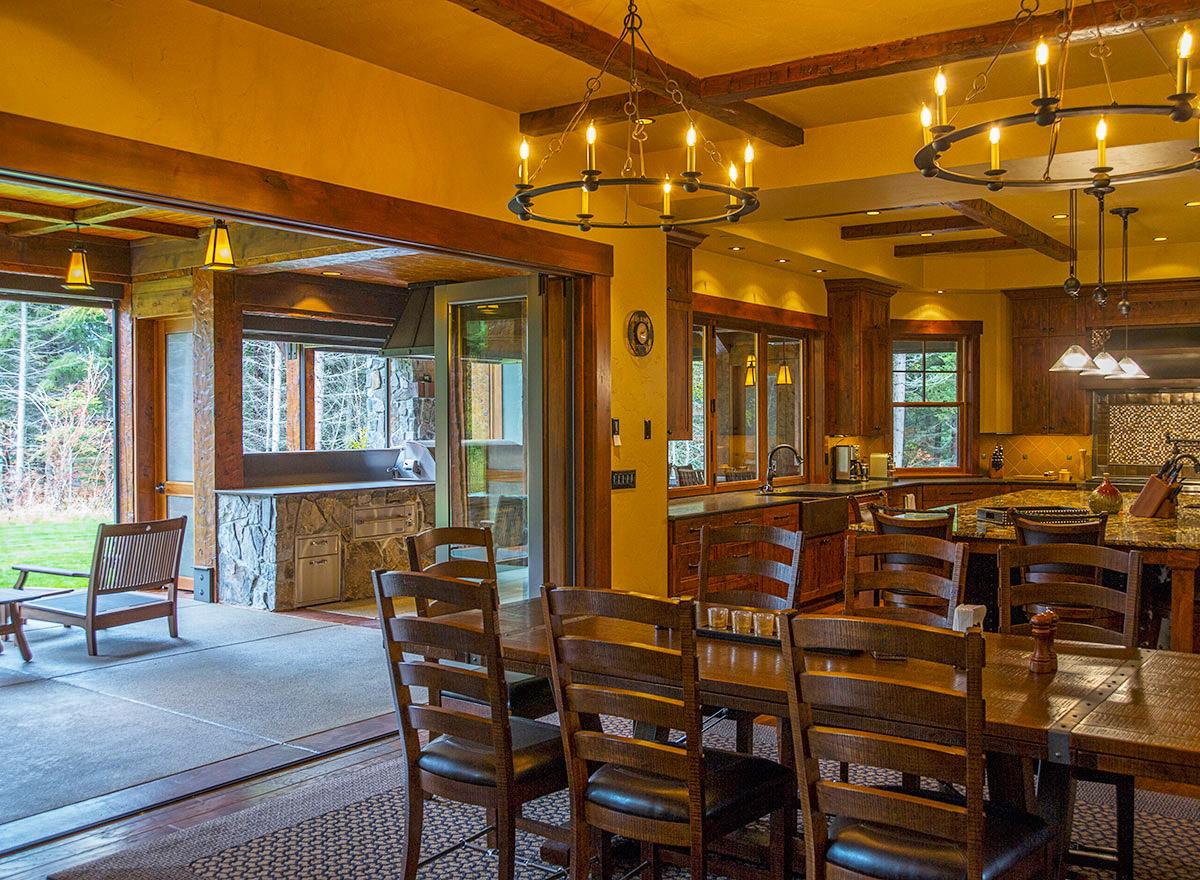

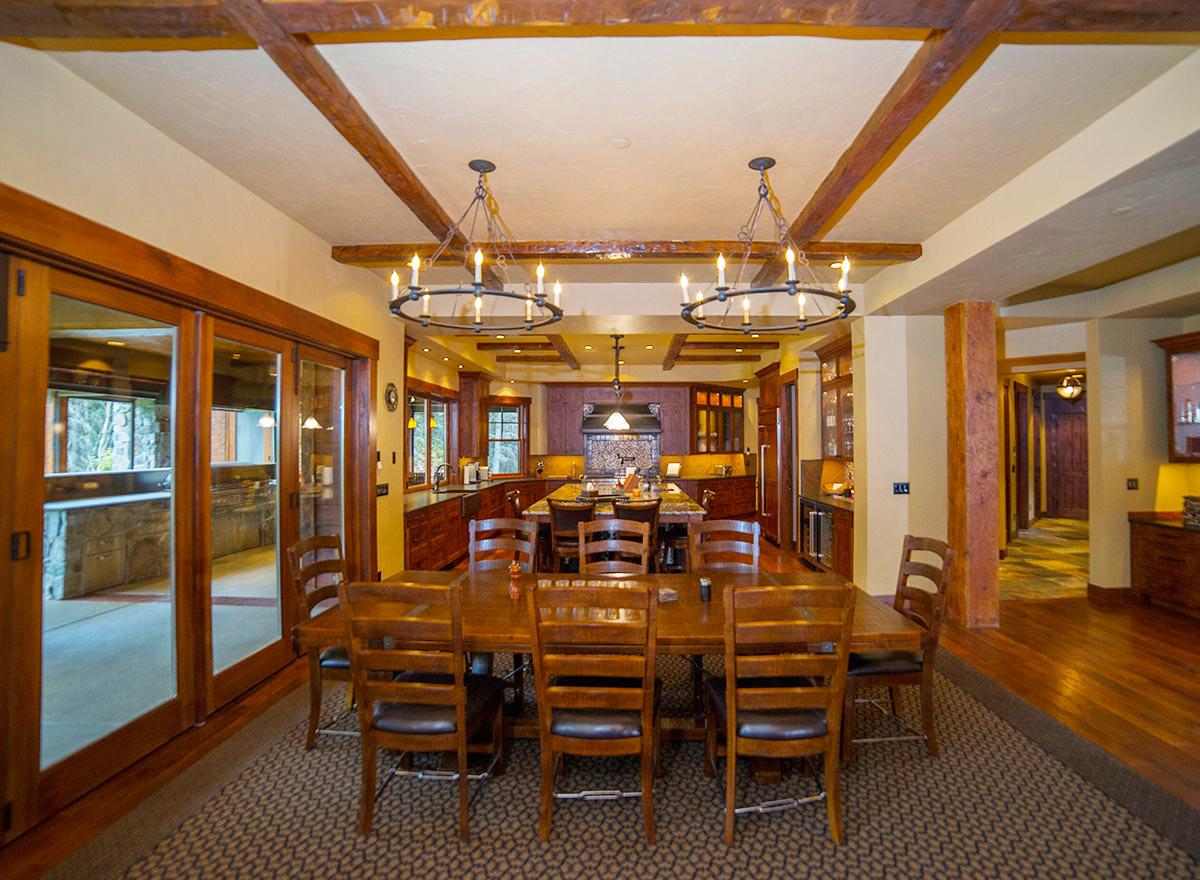

  • Stunning coffered ceilings top the huge kitchen and dining room.

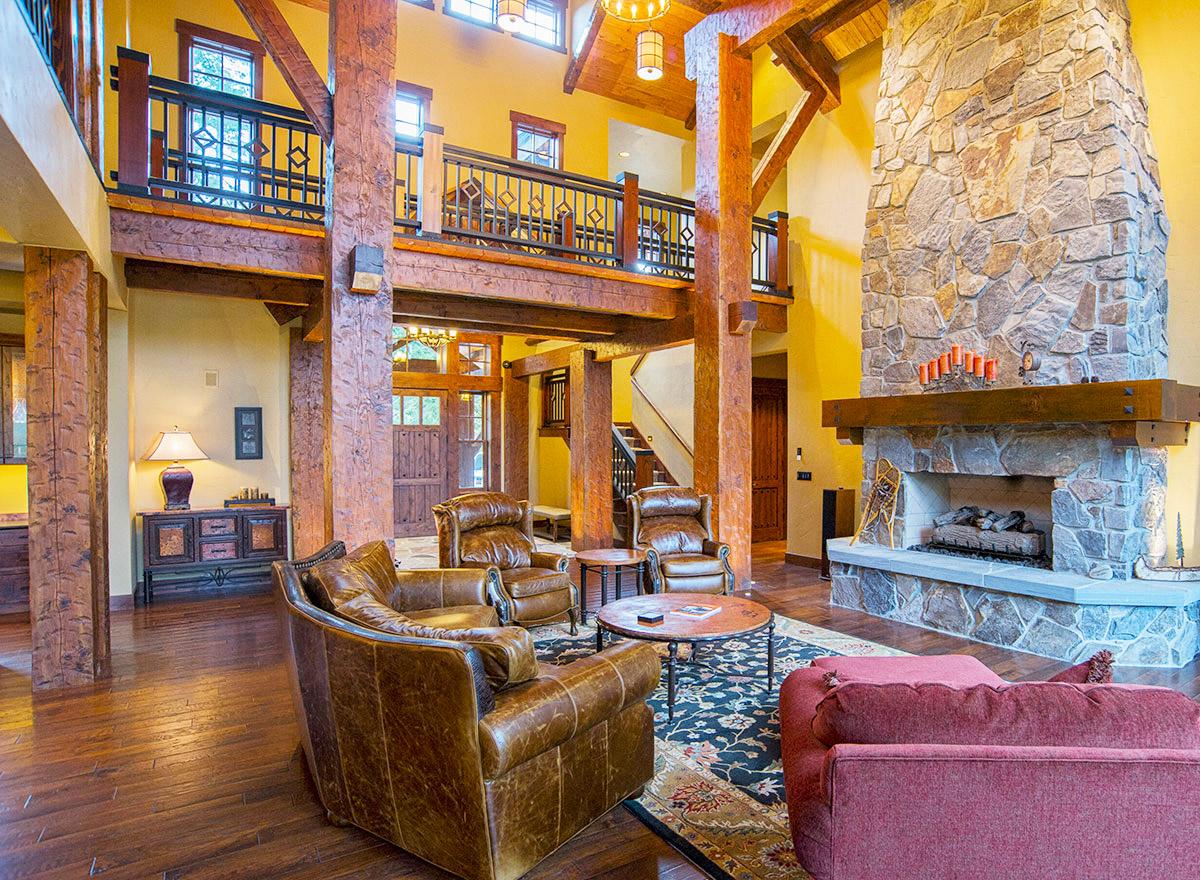

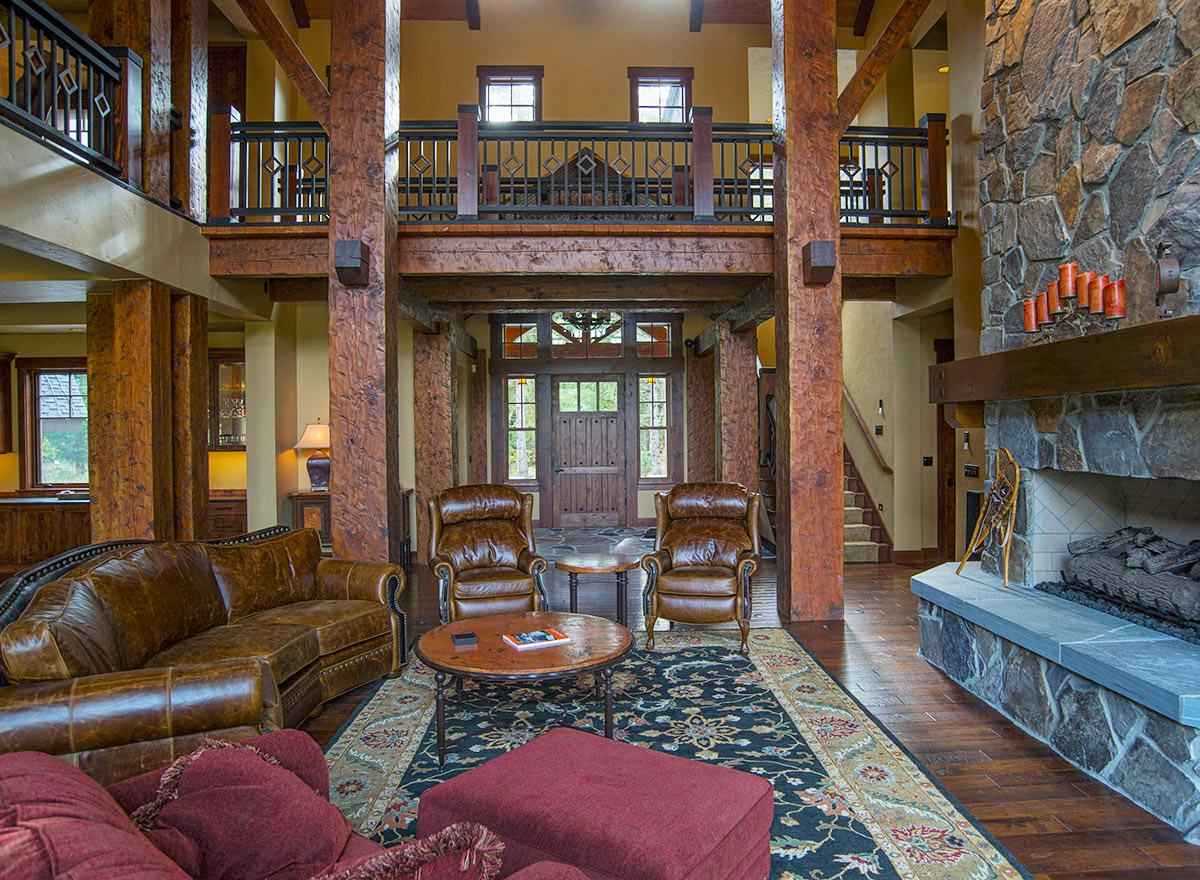

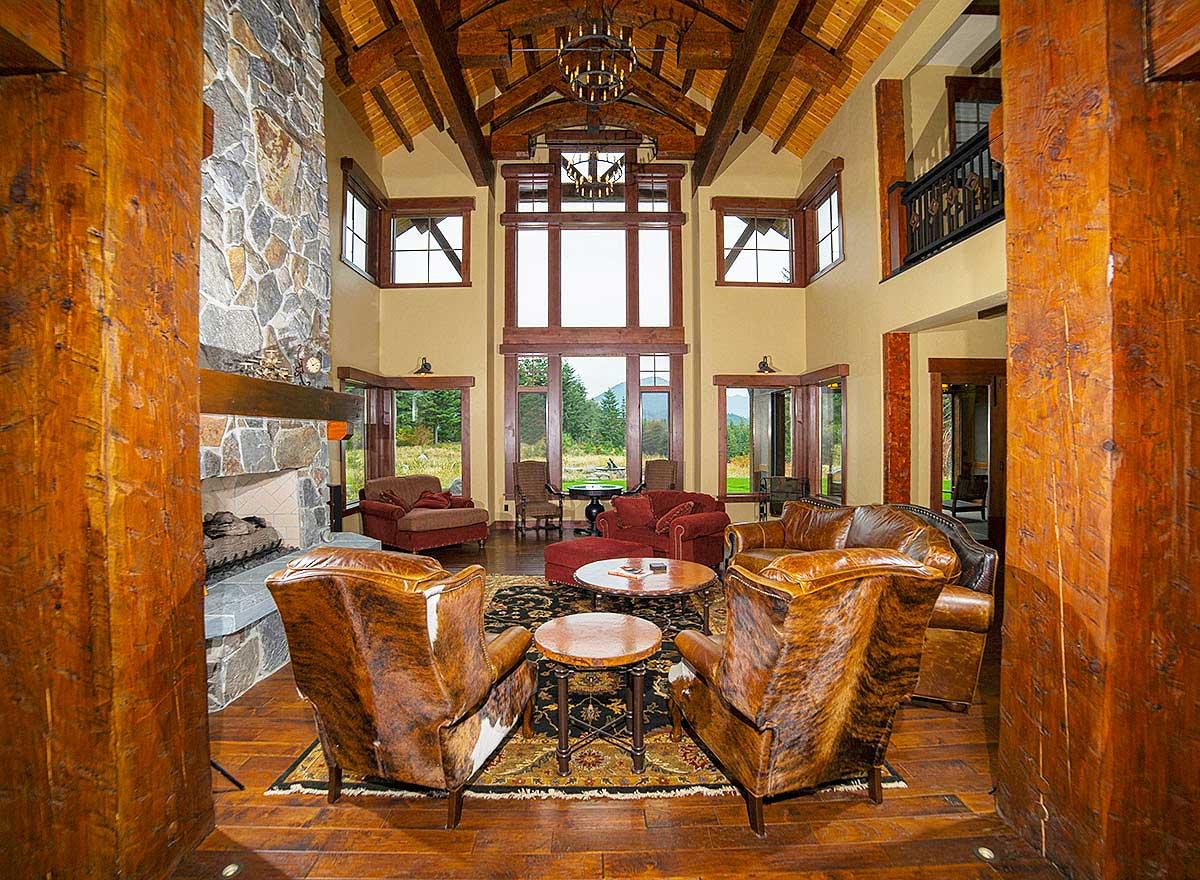

  • Send the kids to play in the vaulted great room off to one side where the noise won't disturb the rest of the house.

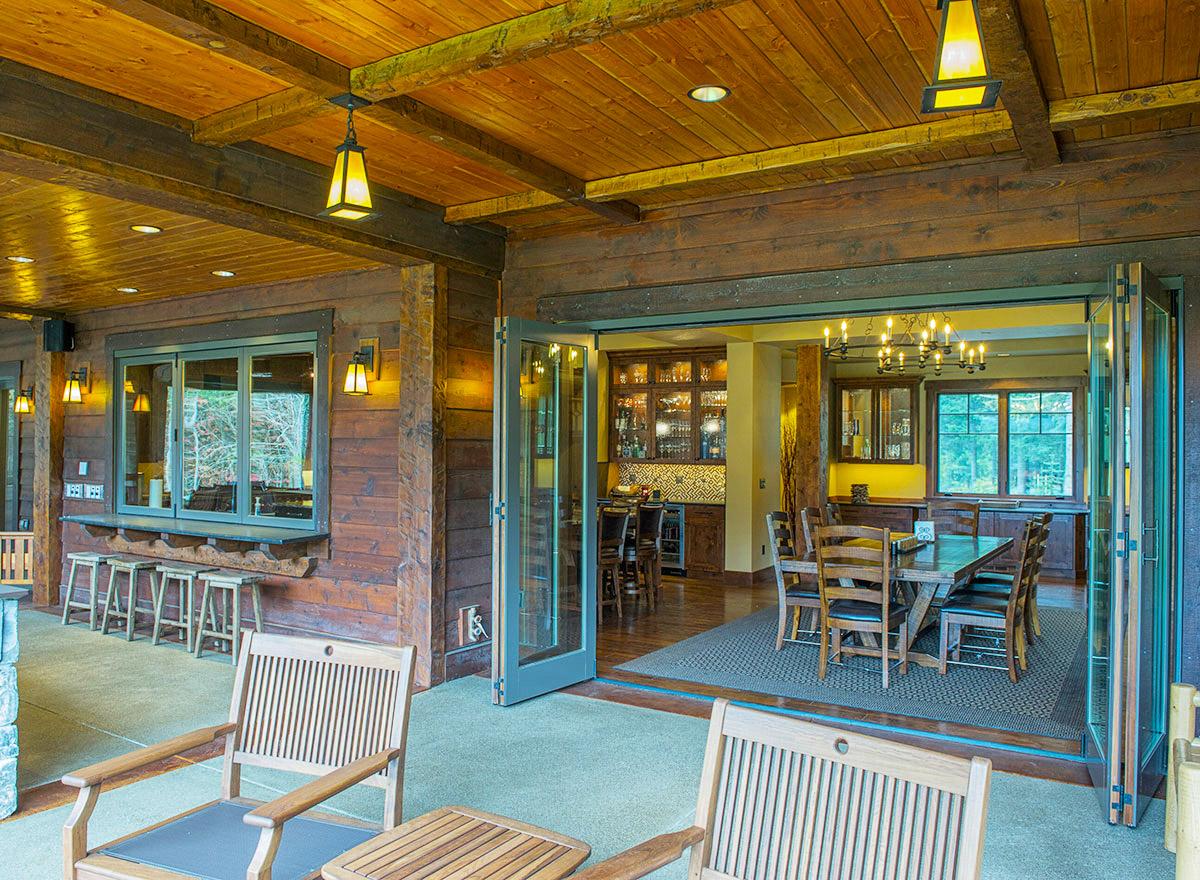

  • The covered outdoor area includes an outdoor kitchen and folding windows from the inside kitchen so you can hand out snacks to those sitting on three bar stools.

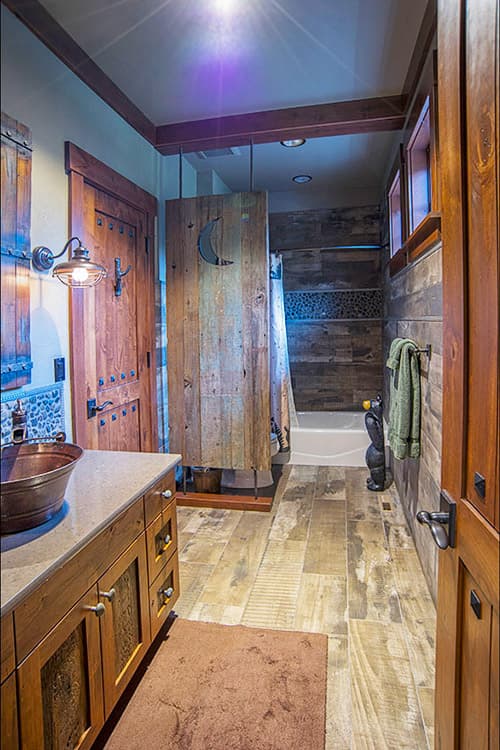

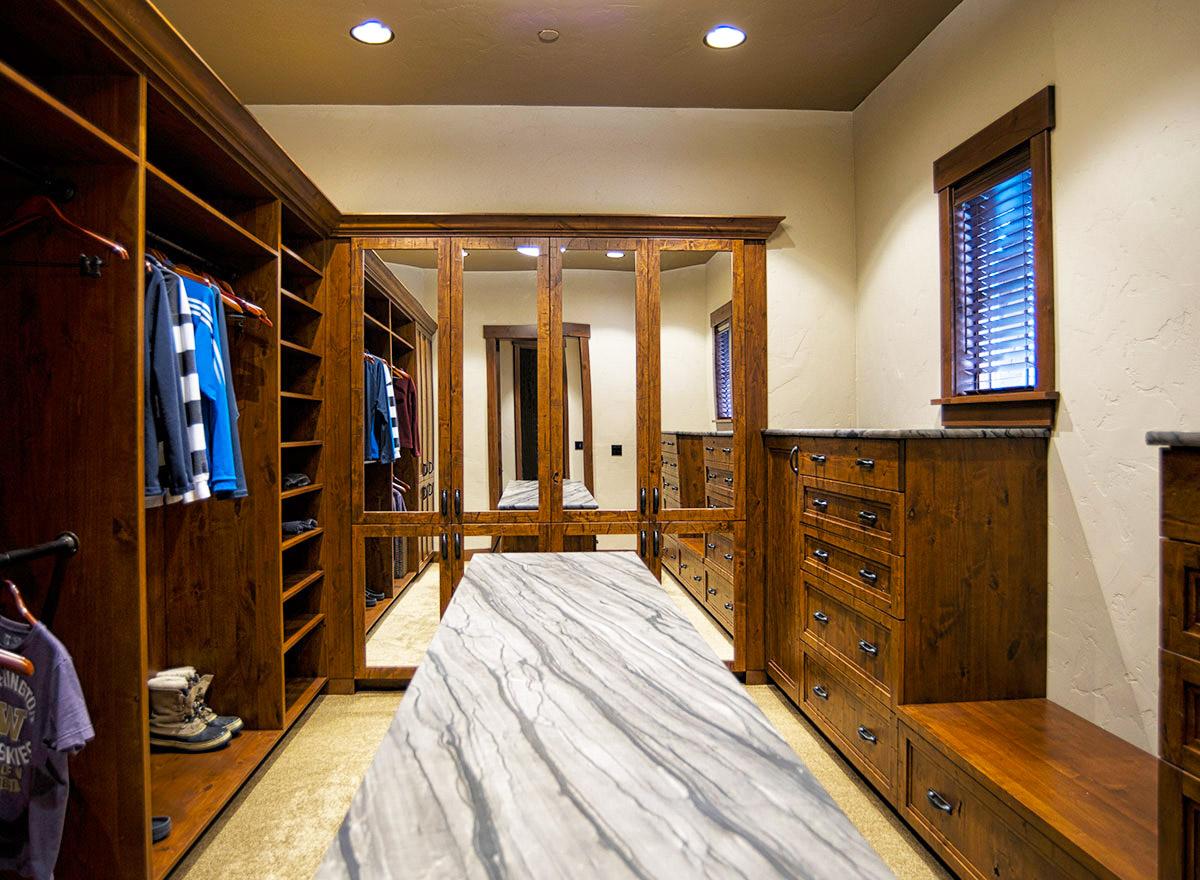

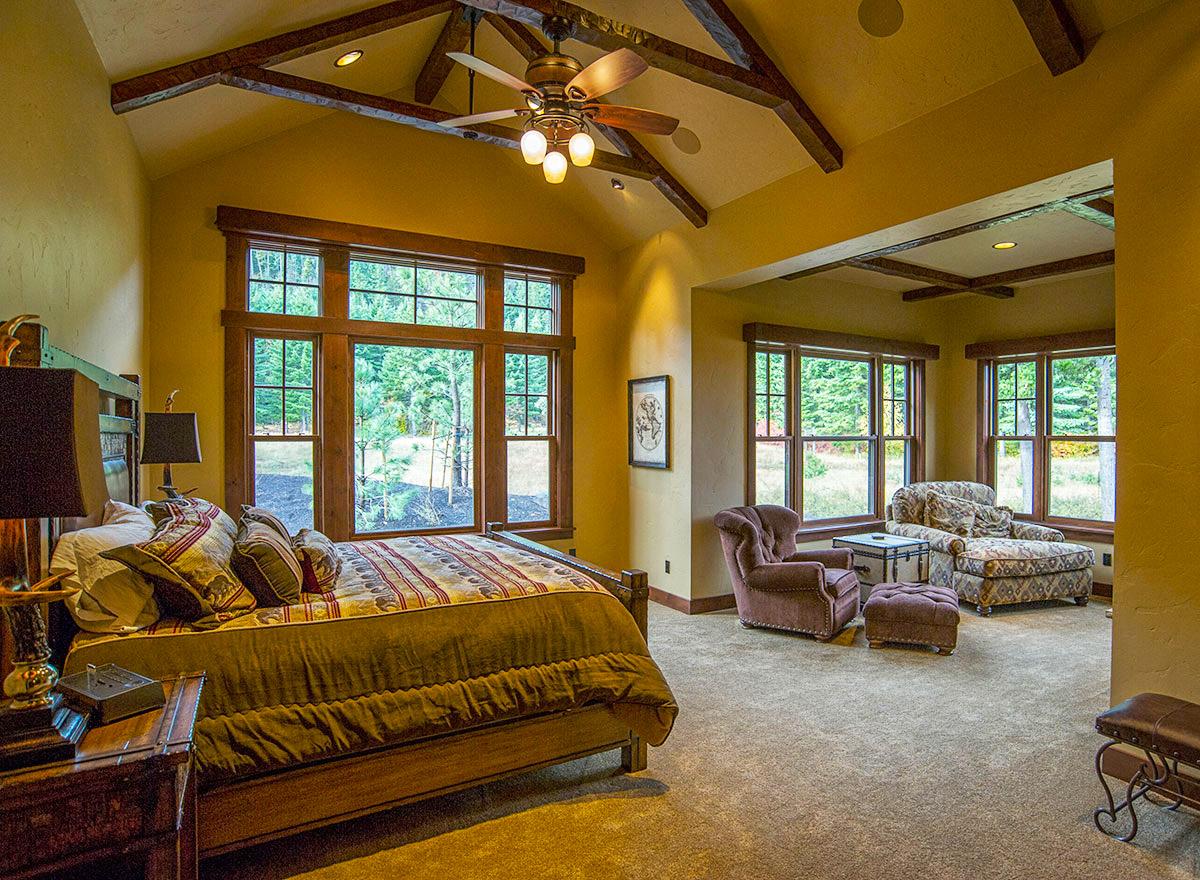

  • The master suite is a self-contained complex with a cozy sitting room with a fireplace, a gorgeous bathroom and a room-size walk-in closet with a center island chest of drawers.

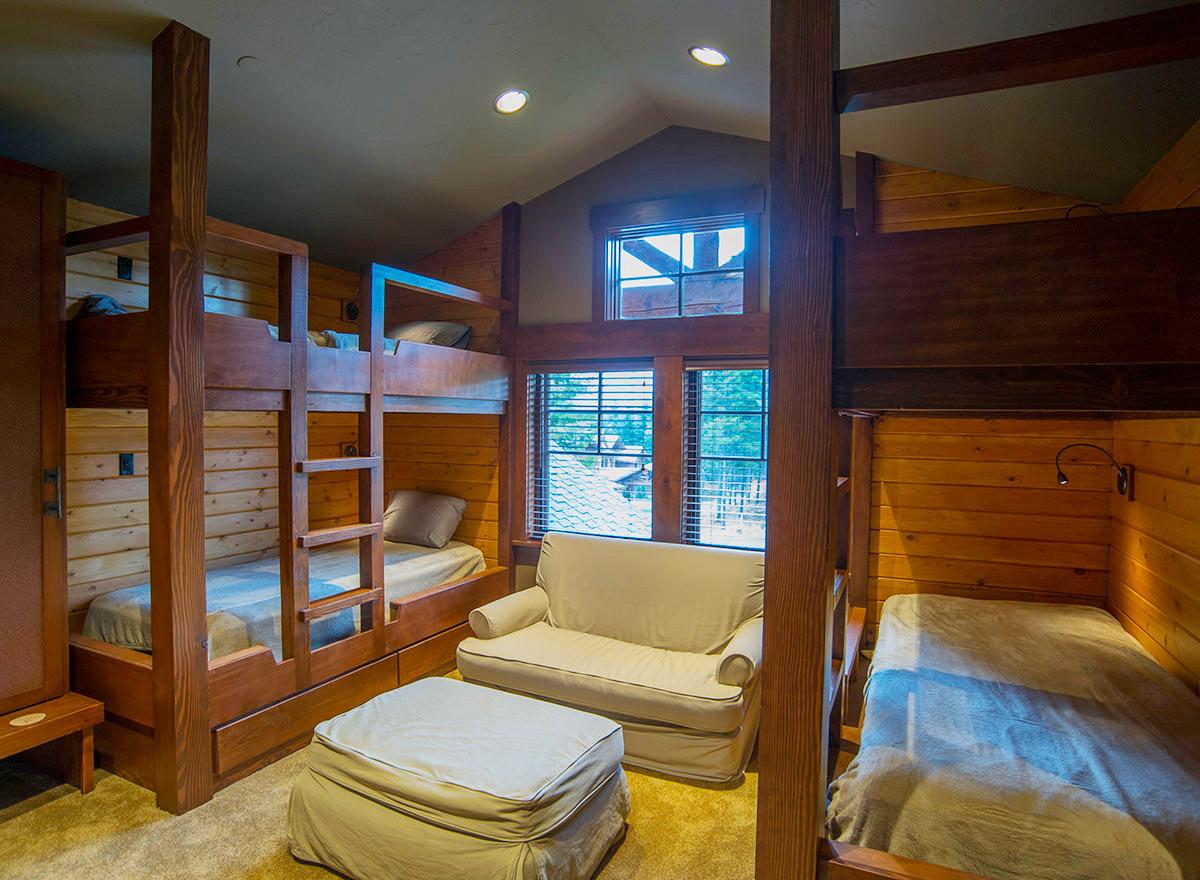

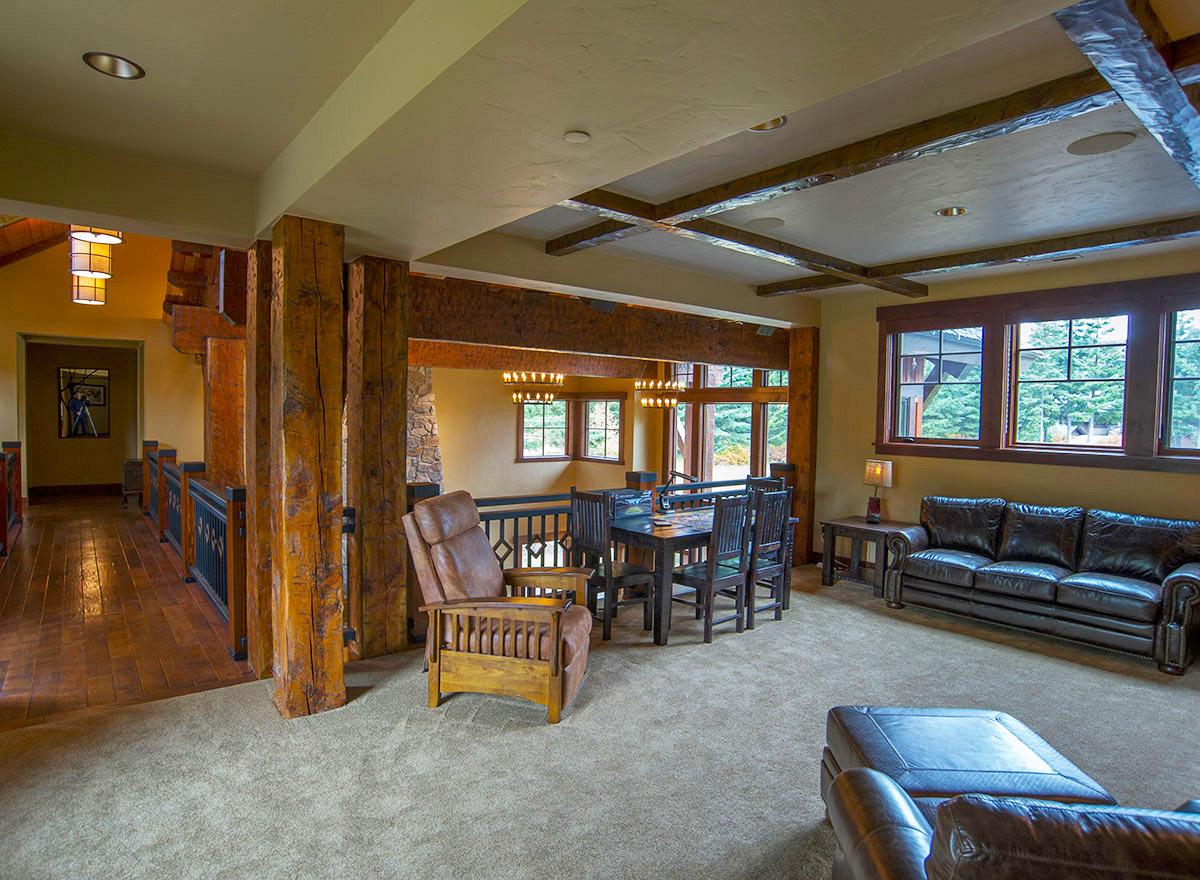

  • On the second floor, a bunk room with private bathroom can handle any guest overflow.

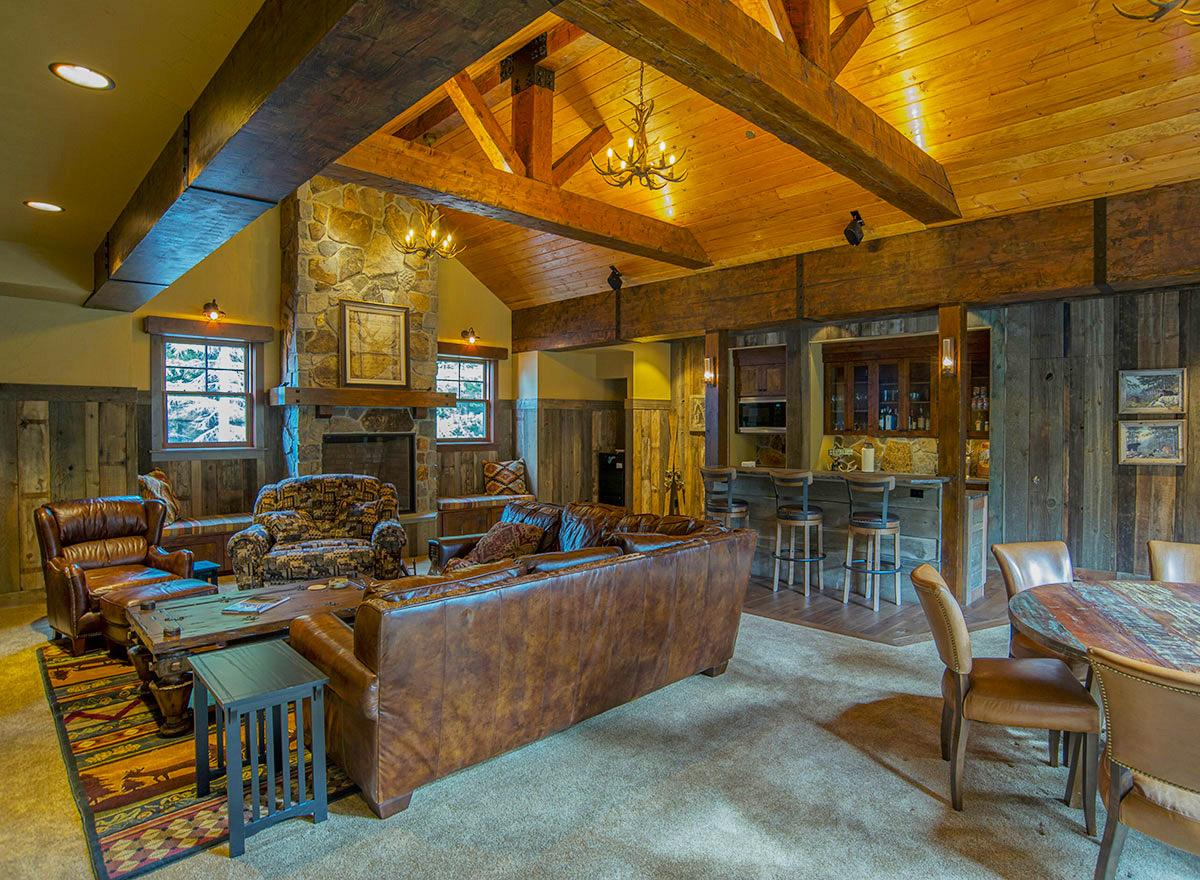

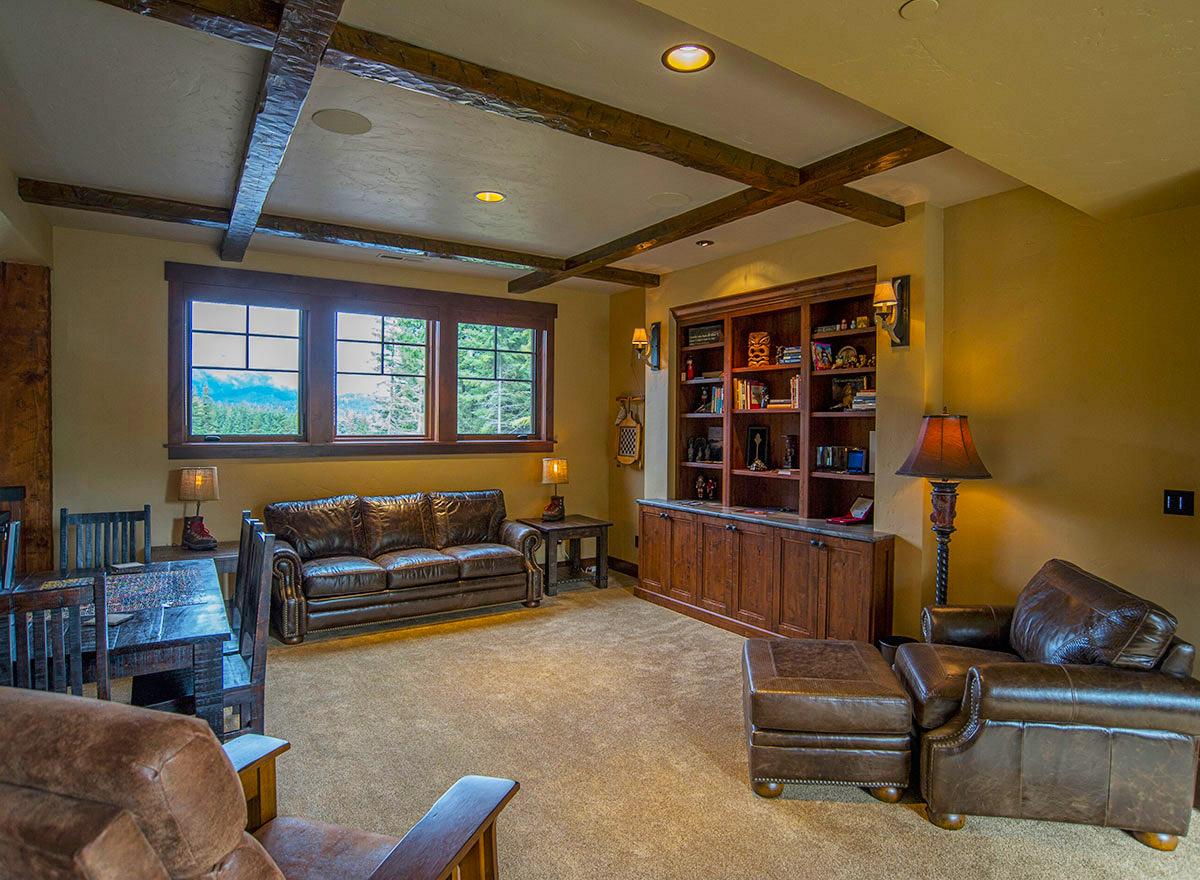

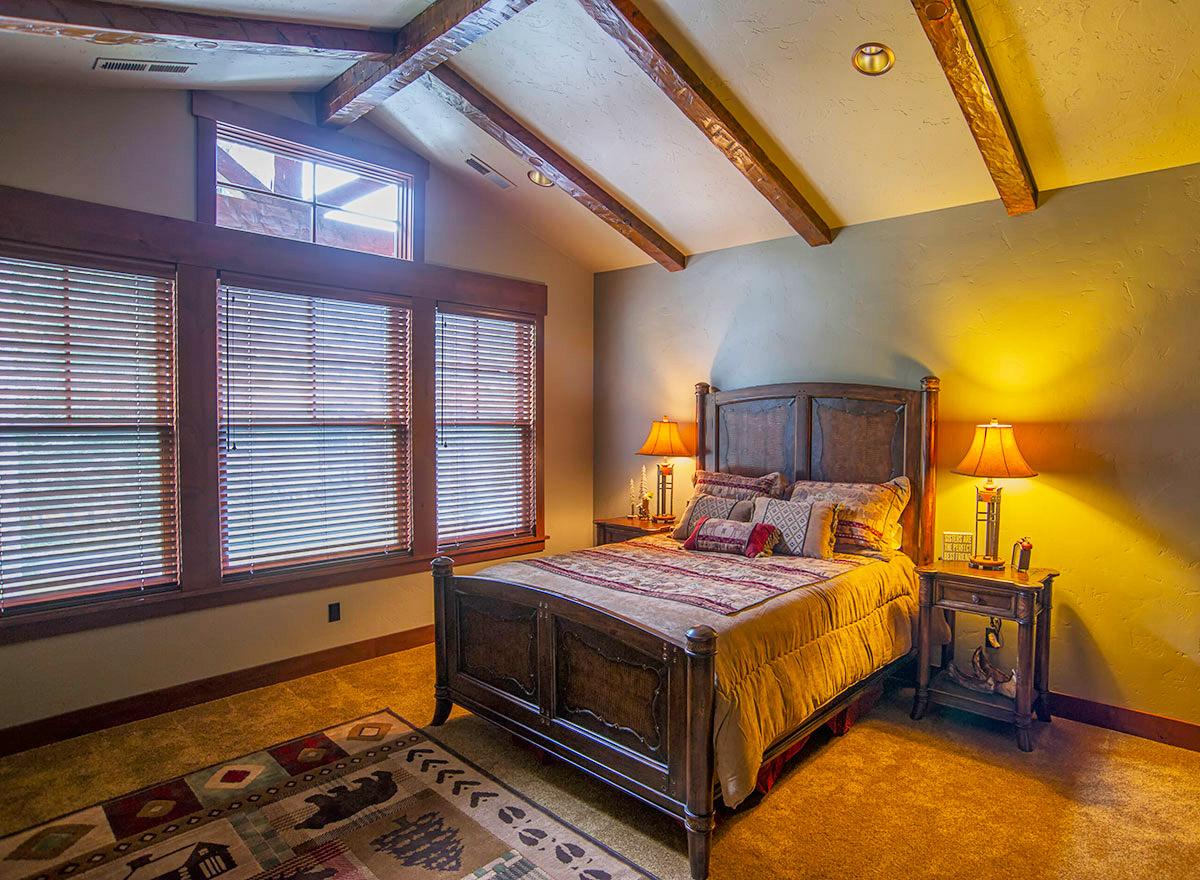

  • Four large bedrooms share the loft and there's an enormous bonus room.

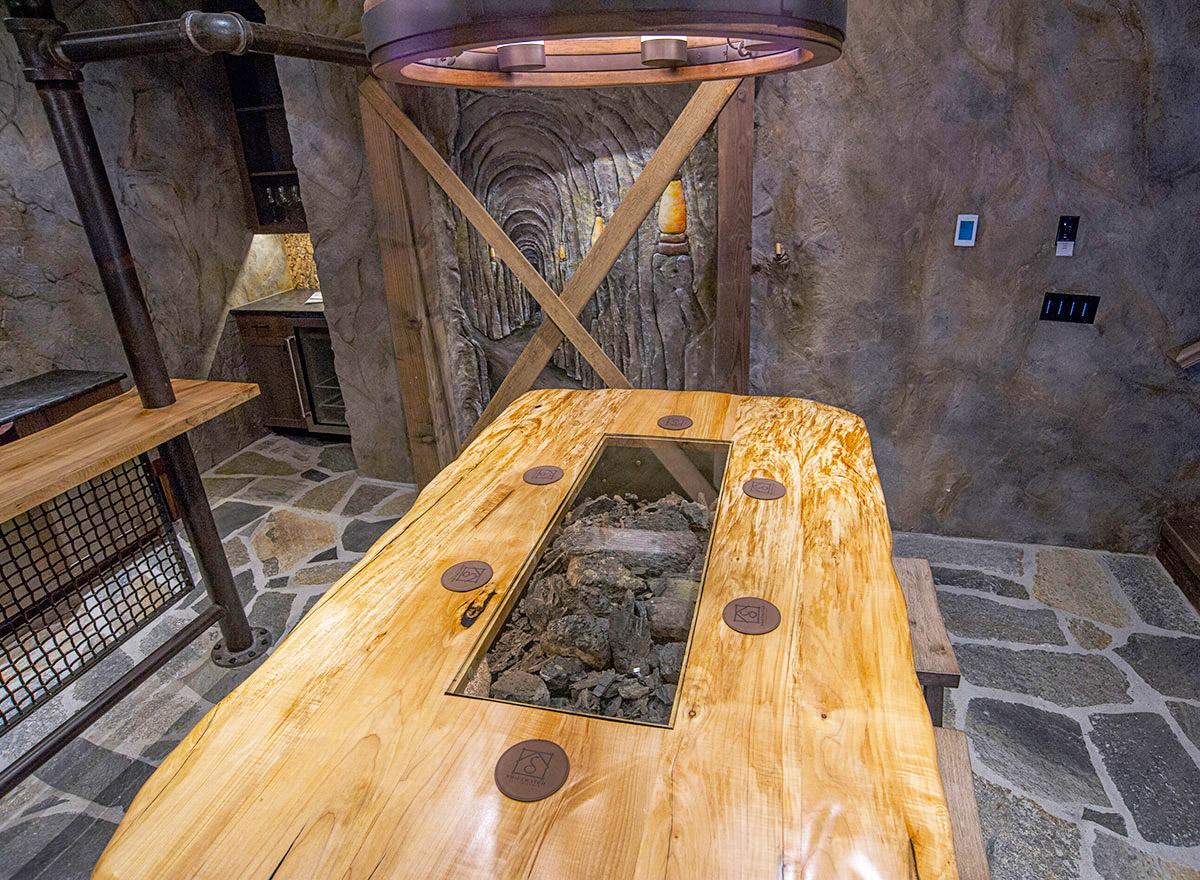

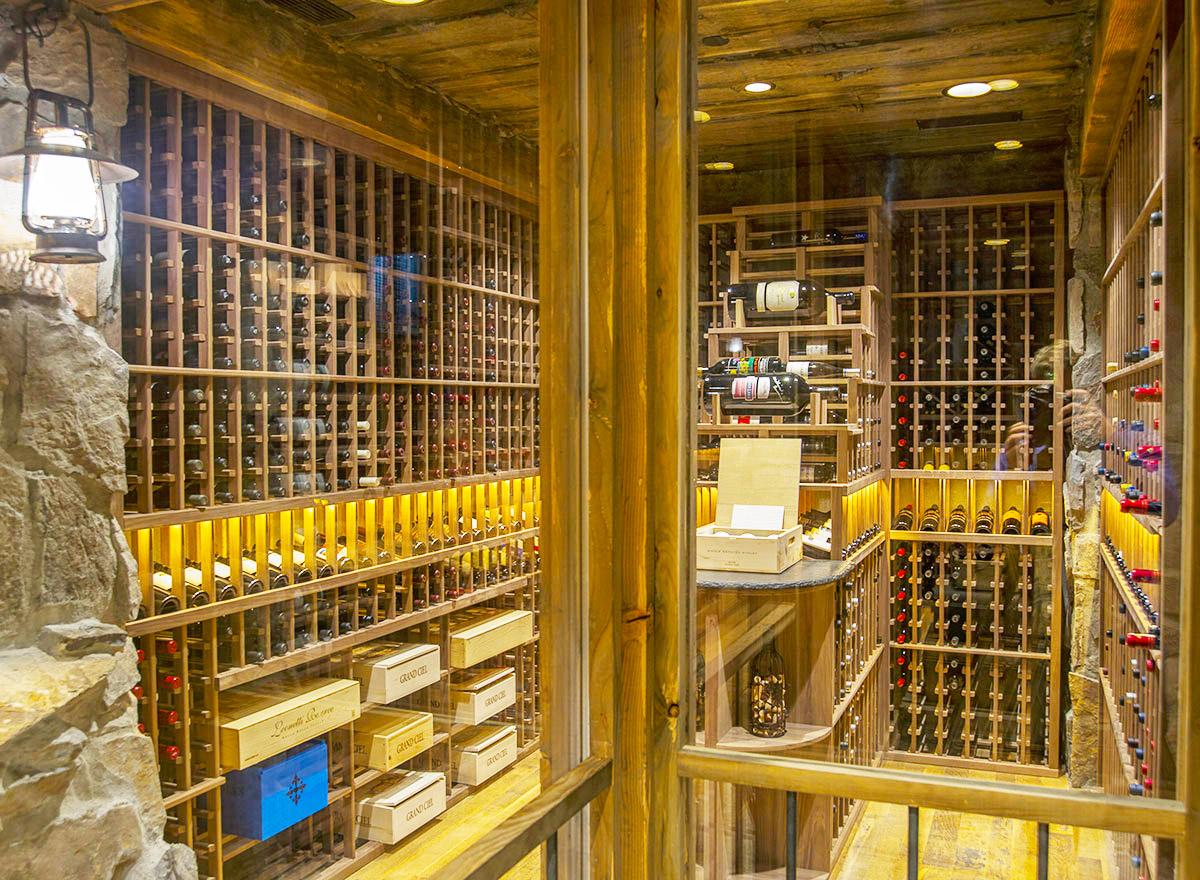

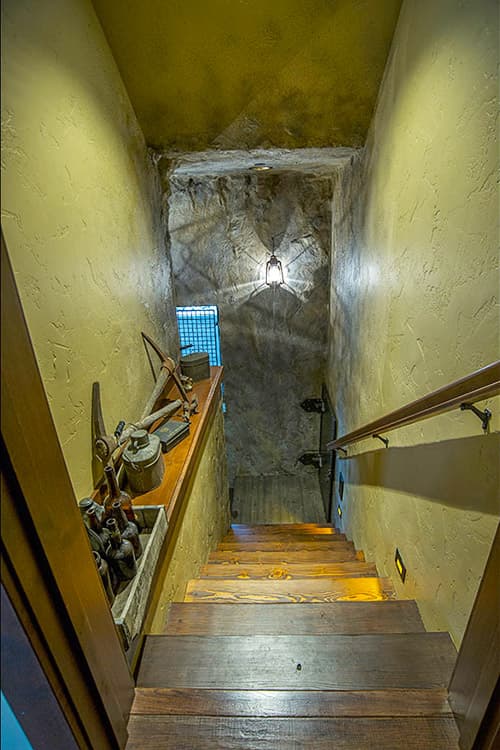

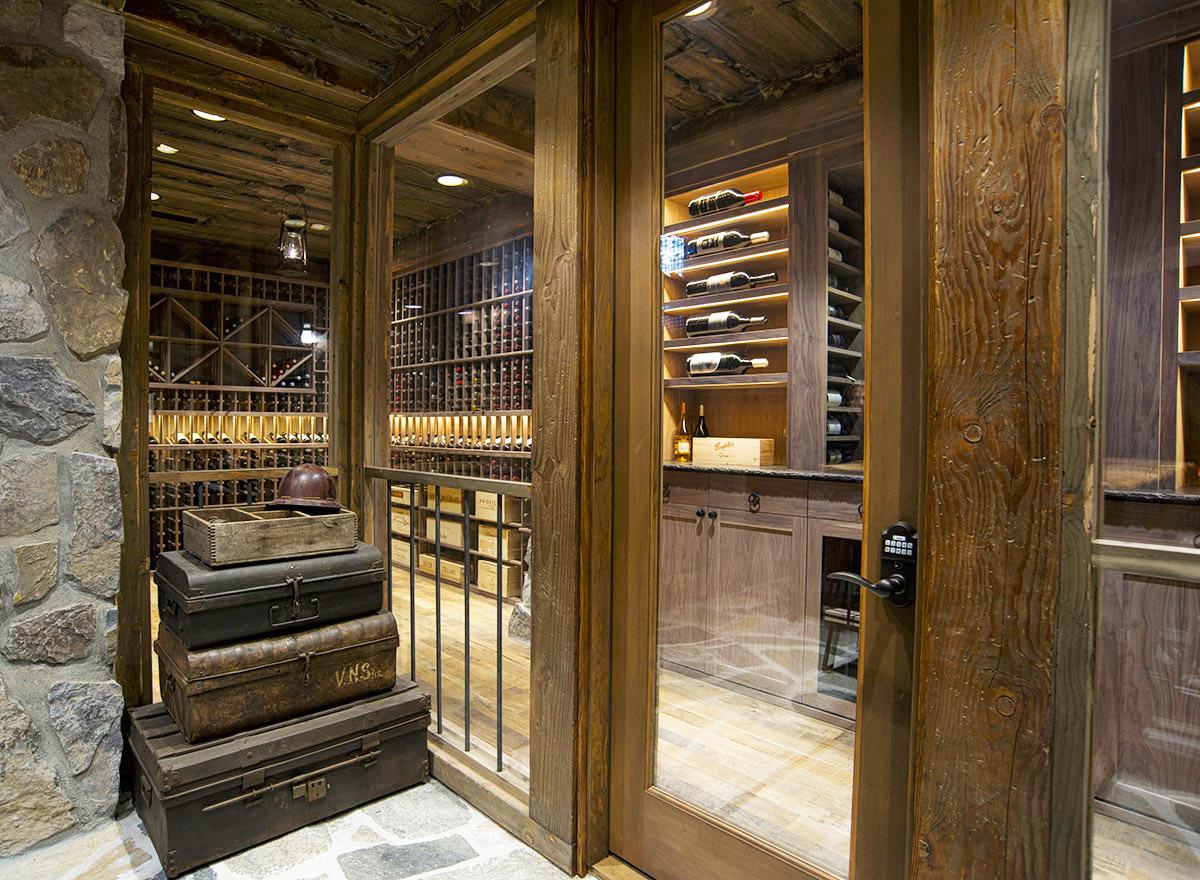

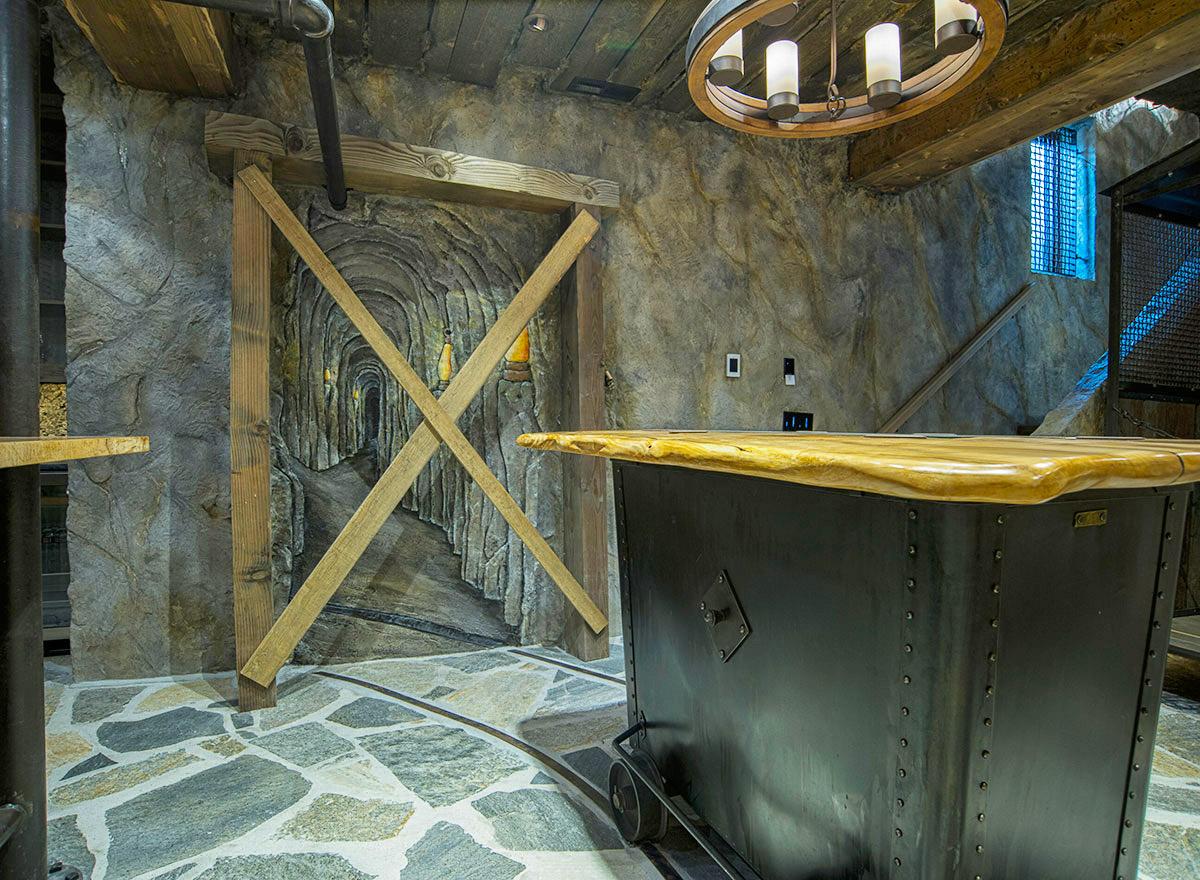

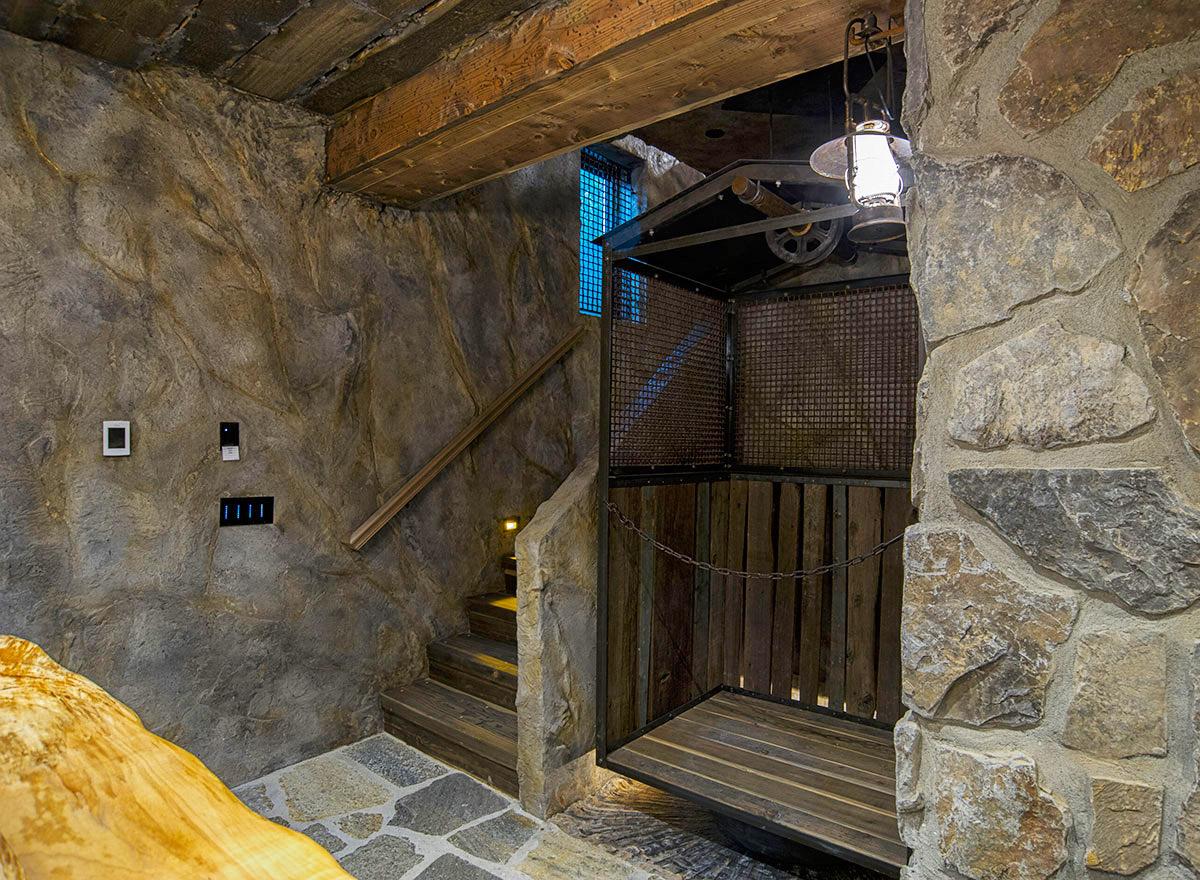

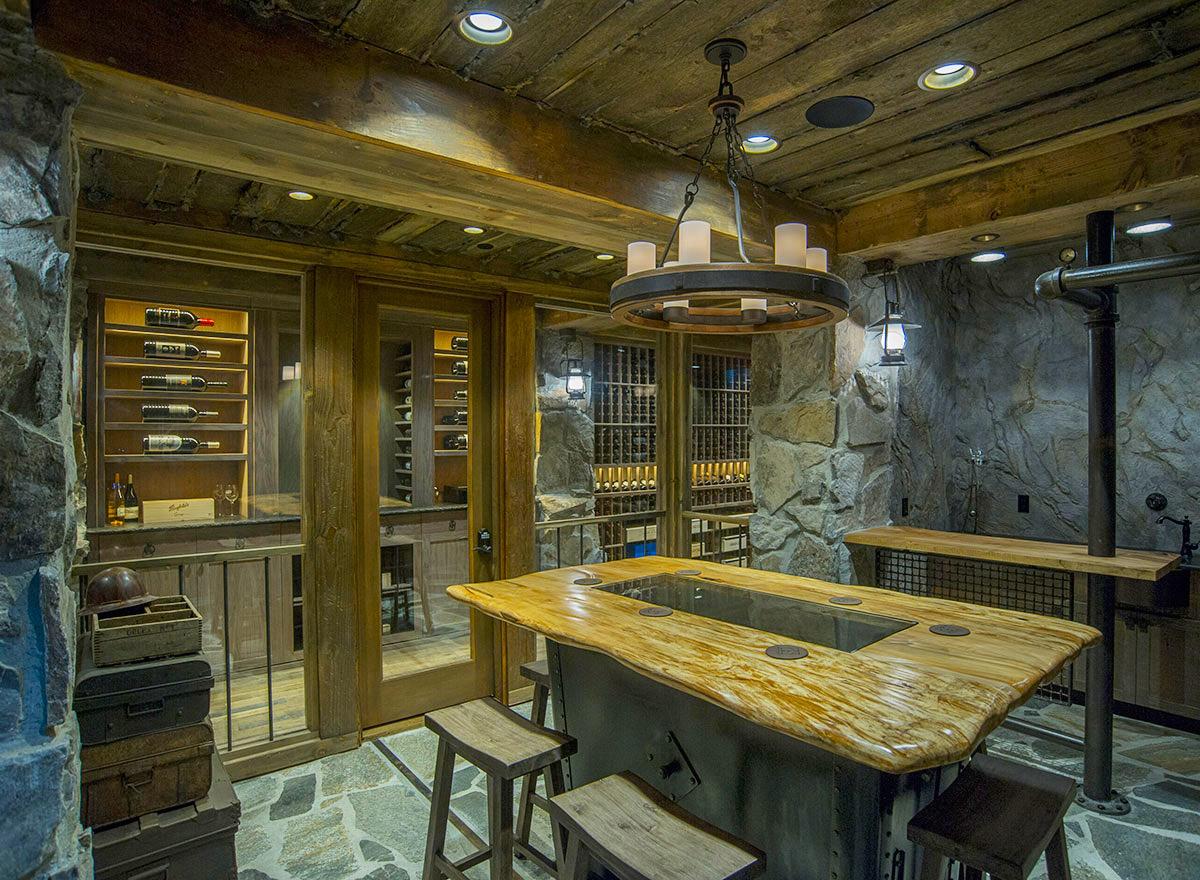

  • Capping it all off is a lower level wine cellar with a tasting room.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.
What's Included
  • Cover Sheet - The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
  • Schedule Sheet - The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
  • Detail Sheet - The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • Foundation Plan Sheet - The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
  • Floor Plan Sheet - Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
  • Roof Framing Plan Sheet - The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

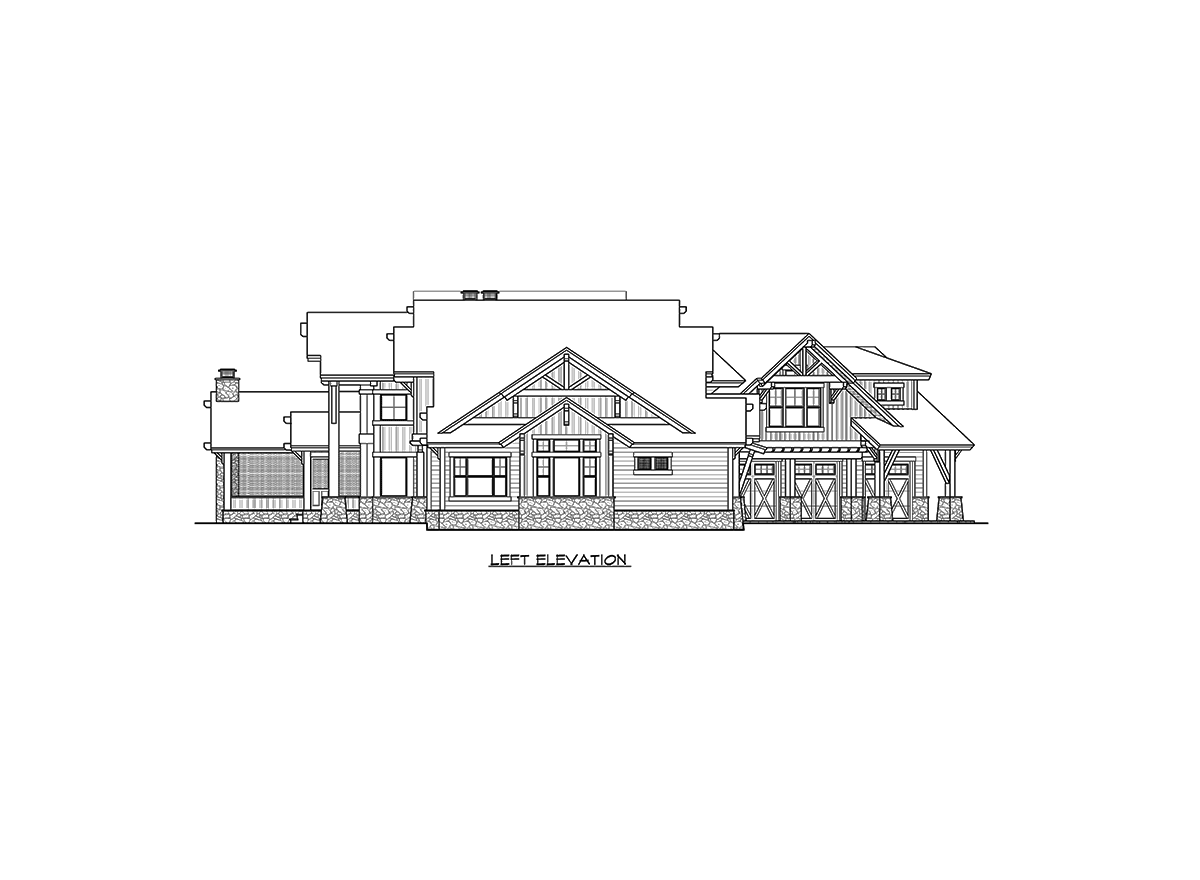

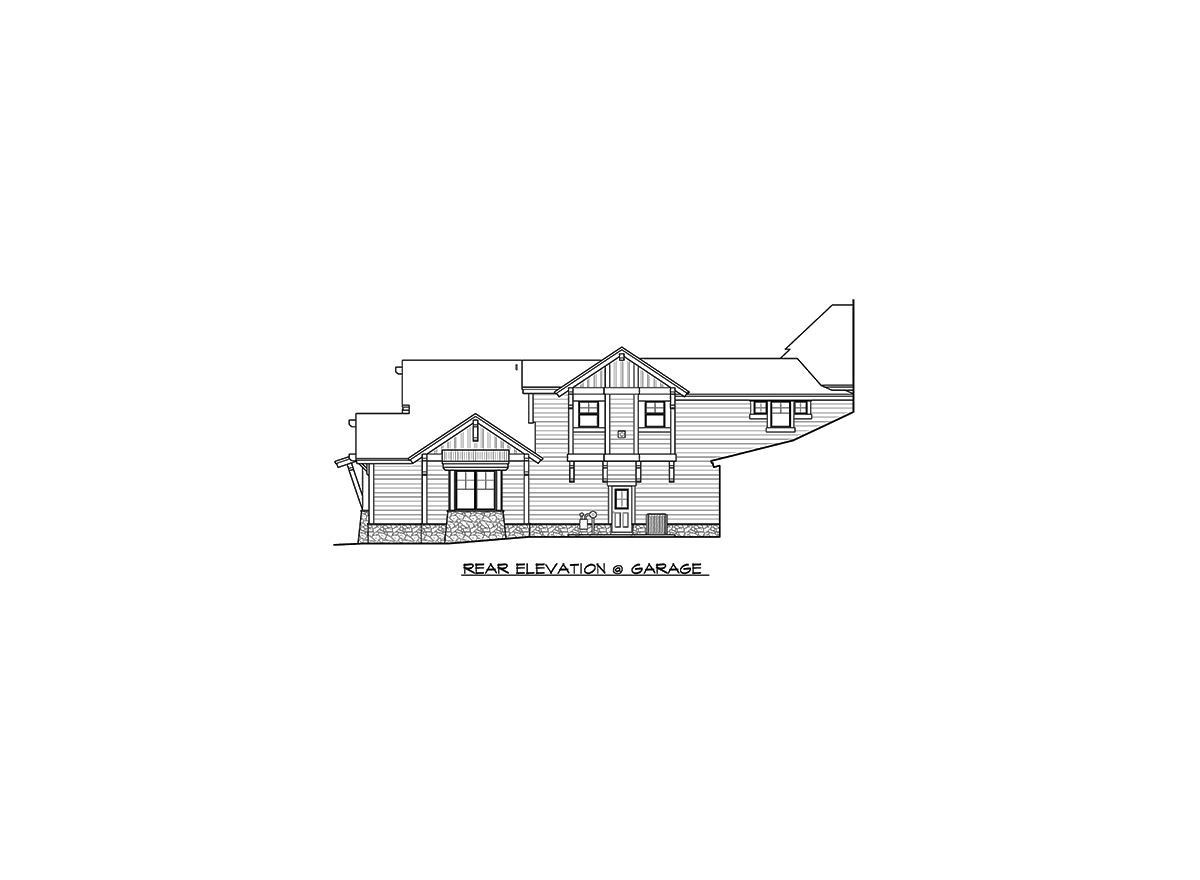

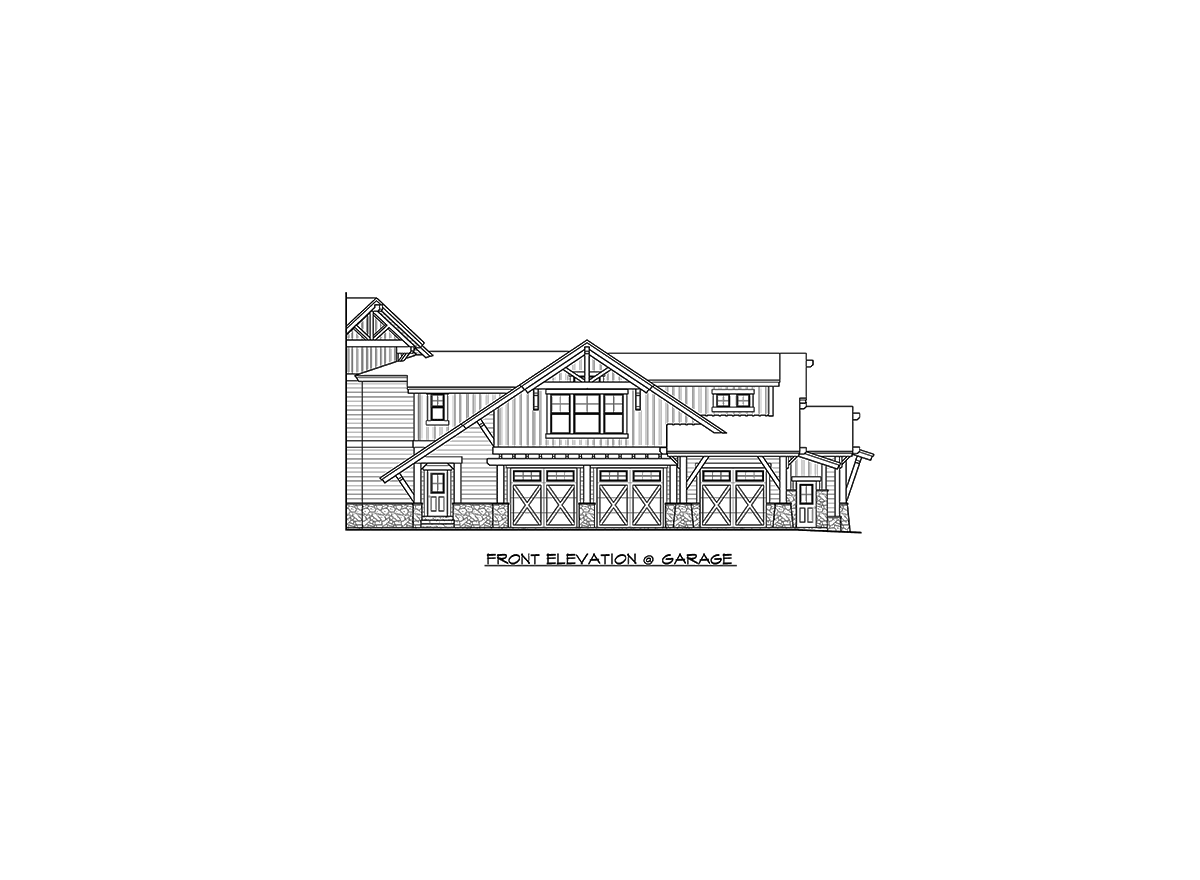

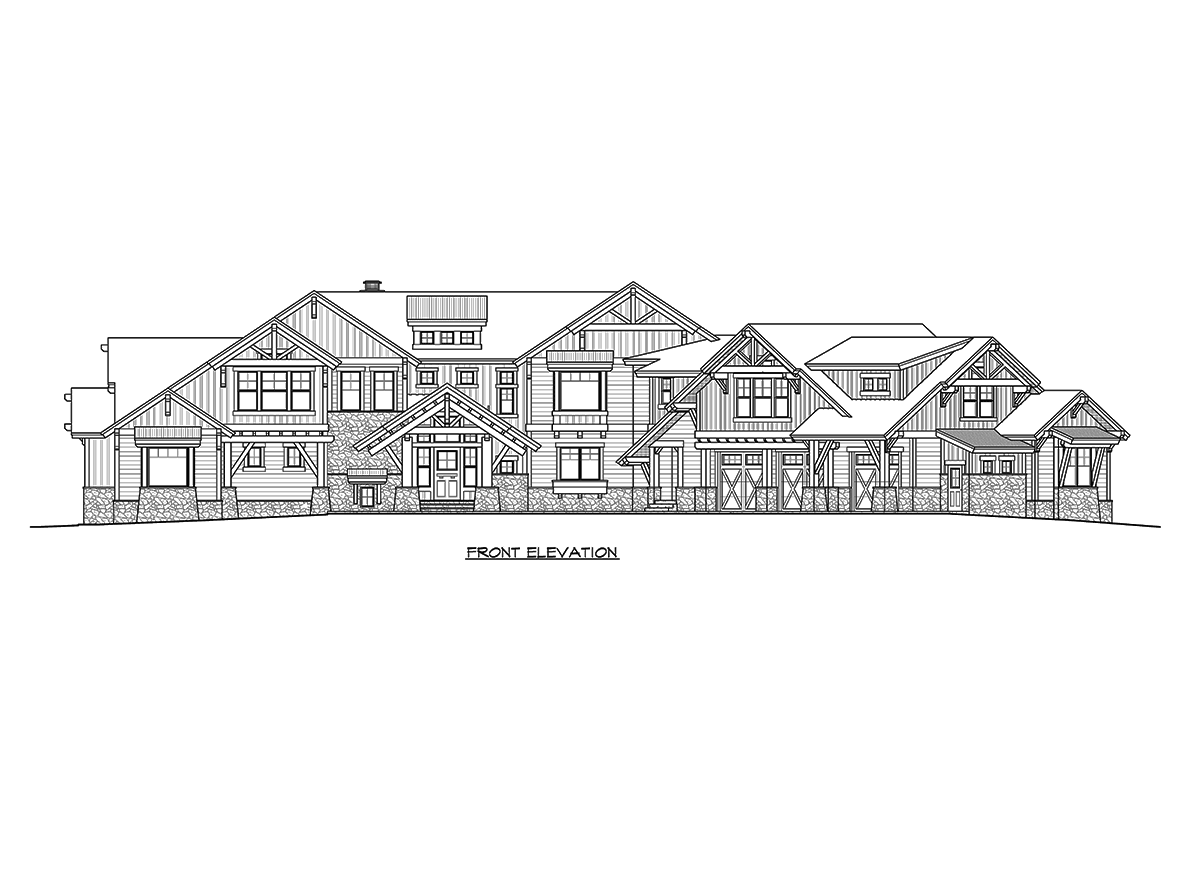

  • Elevation Sheet - Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • Building Section Sheet - Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
What's Not Included
  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Six Bedroom Mountain Retreat

  • 8,450

    Heated s.f.

  • 6

    Beds

  • 5.5+

    Baths

  • 2

    Floors

  • 3

    Car garage

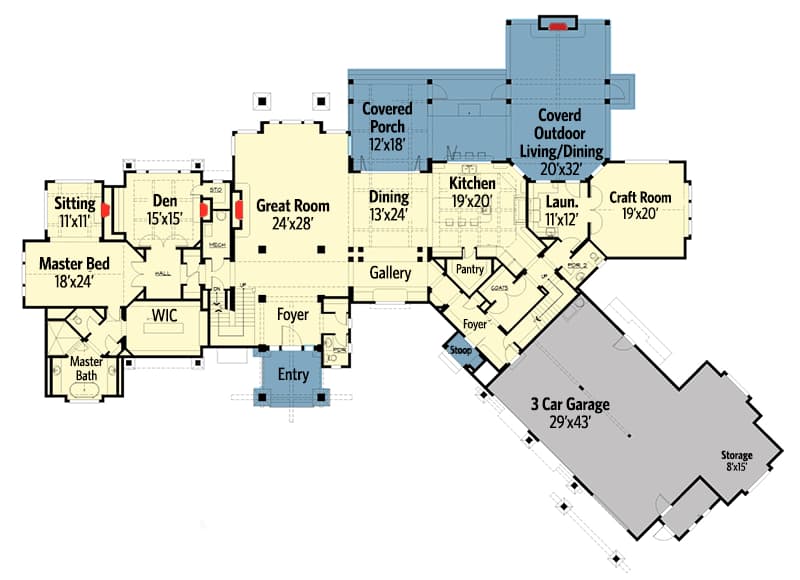

Floor Plan

  • Main Level

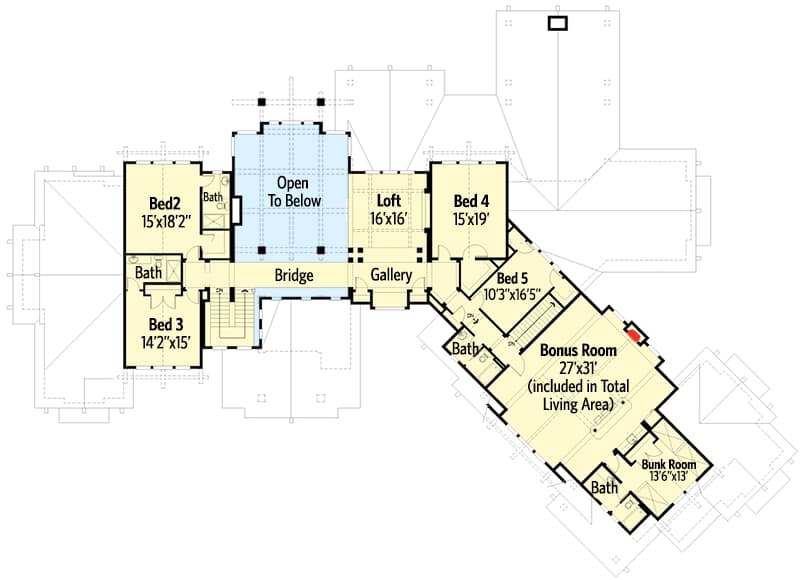

  • 2nd Floor

  • Wine Cellar

Plan Details

Square Footage Breakdown

  • Total: 8,450 sq. ft.
  • Lower Level: 650 sq. ft.
  • 1st Floor: 4,468 sq. ft.
  • 2nd Floor: 3,332 sq. ft.

Dimensions

  • Width: 154' 0"
  • Depth: 112' 0"
  • Max ridge height: 33' 0"

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 5
  • Half bathrooms: 2

Garage

  • Type: Attached
  • Area: 1575 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front, Courtyard

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss
