Sleek Contemporary 3-Bedroom House Plan with Upstairs Master Suite

Heated S.F.
1,775
Beds
3
Baths
2.5
Stories
2
Cars
1

Floor Plan

Plan 100357GHR

Main Level
Main Level
2nd Floor
2nd Floor

Plan 100357GHR

M-F 9am-5pm EST |

1-203-761-8500

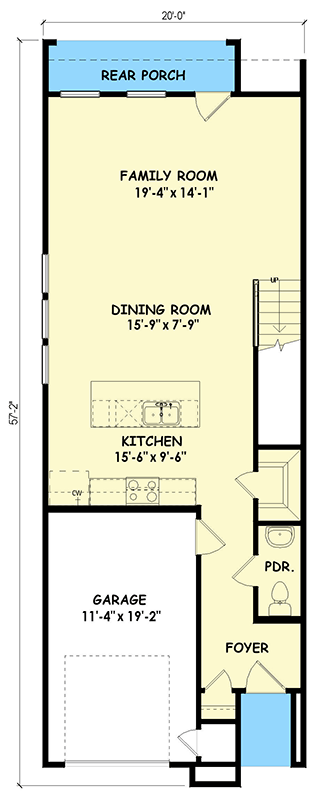

Main Level

Plan 100357GHR: Sleek Contemporary 3-Bedroom House Plan with Upstairs Master Suite - Floor Plan - Main Level - Contemporary, Modern

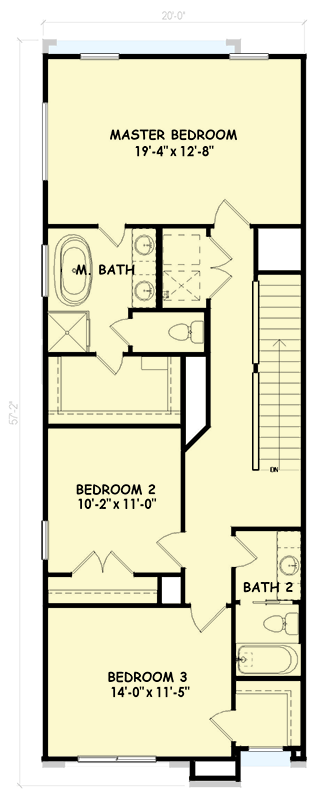

2nd Floor

Plan 100357GHR: Sleek Contemporary 3-Bedroom House Plan with Upstairs Master Suite - Floor Plan - 2nd Floor - Contemporary, Modern

Plan Details

  • This striking 1,775 sq. ft. Contemporary Modern House Plan offers 3 bedrooms, 2.5 bathrooms, and an integrated 228 sq. ft. 1-car garage, embodying sophisticated urban living.
  • Upon entering through the inviting foyer, guests are greeted by a discreet powder room before the space unfolds into an expansive open-concept layout, perfect for seamless daily life and intimate gatherings.
  • The gourmet kitchen, featuring a central island, flows effortlessly into the dining room, creating an ideal setting for meals, while the spacious family room at the rear provides a comfortable retreat with direct access to the outdoor porch.
  • The private sleeping quarters are thoughtfully located on the second floor, with the luxurious master suite offering a tranquil escape complete with a full master bath. Two additional well-appointed bedrooms, a convenient upstairs laundry, and a shared full bathroom are clustered nearby, ensuring comfort and privacy for all.
  • Enjoy moments of quiet contemplation or alfresco dining on the charming rear porch, offering a seamless extension of the indoor living space to the outdoors.

What's Included

  • Cover sheet with area, door & window schedules
  • Dimensioned floorplans with general notes, window & door sizes
  • Interior cabinet elevation
  • Foundation outline (perimeter dimensions only. All other construction details to be handled locally based on site and soil conditions)
  • Roof plan (Birdseye view with pitches)
  • Cornice details

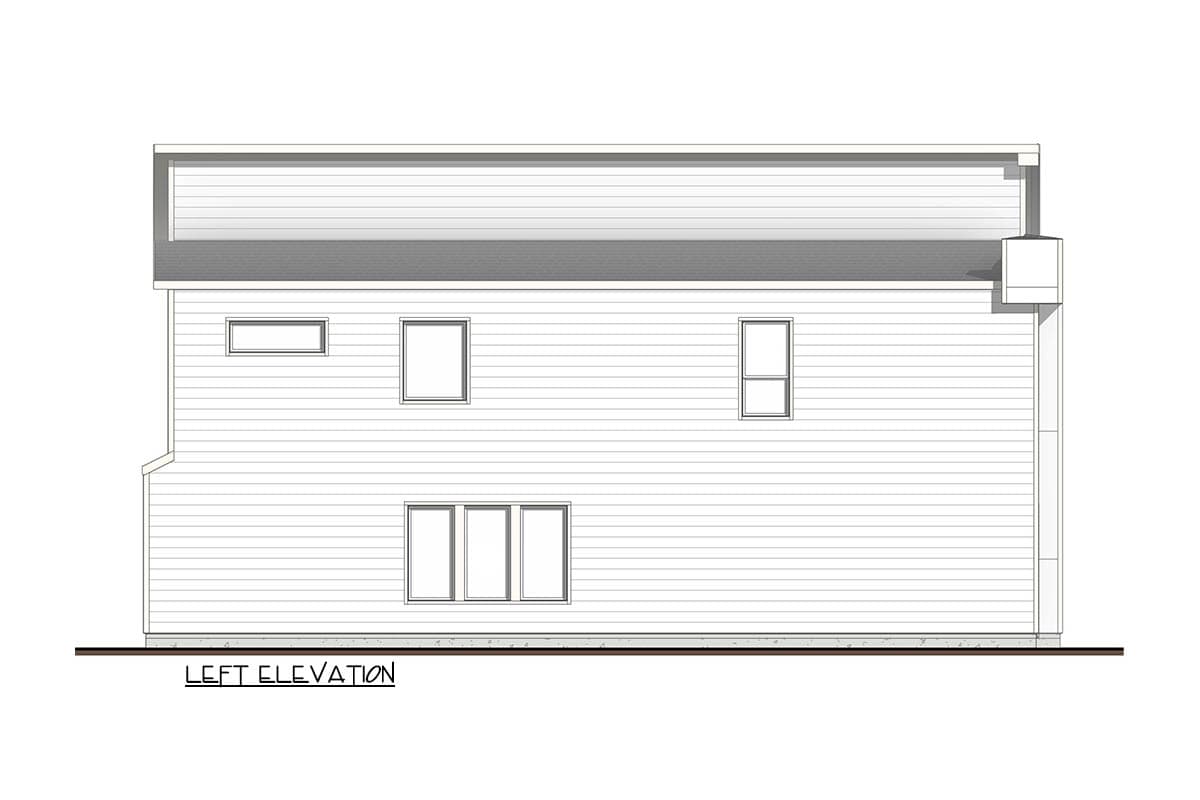

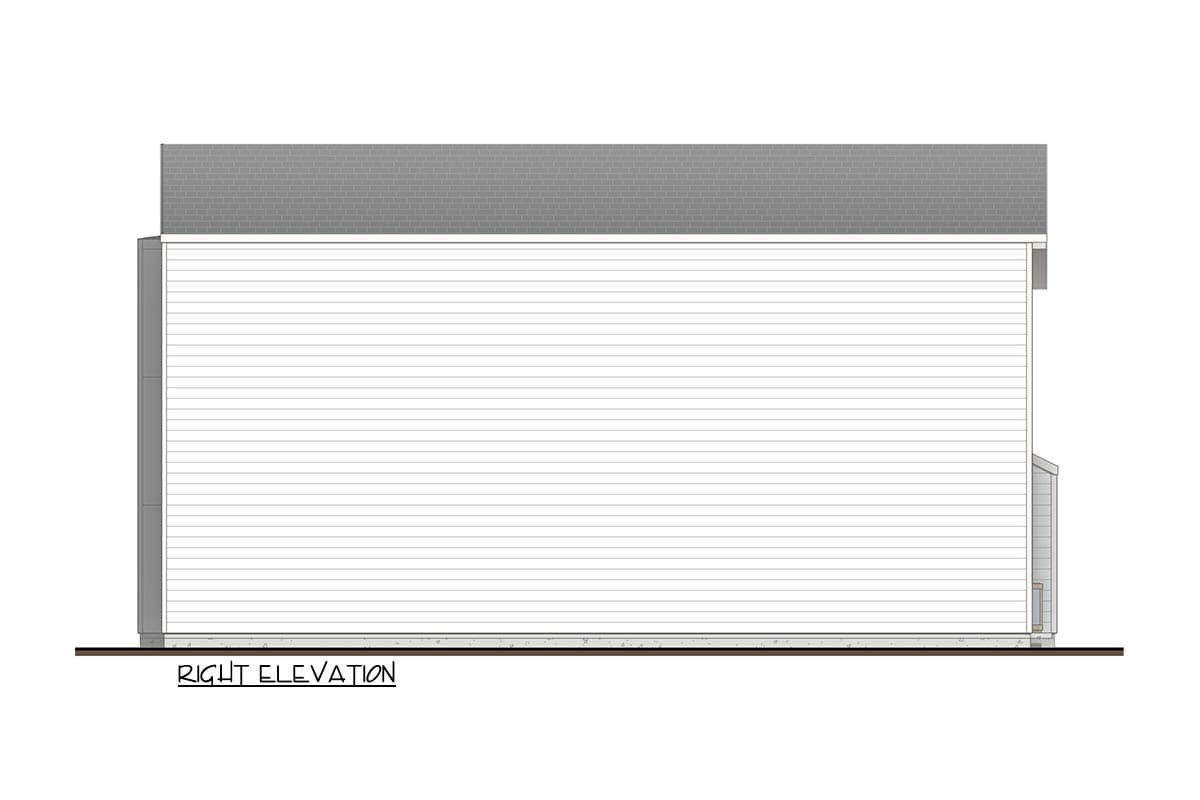

  • Exterior elevations (4 sides)
  • Building sections (if applicable)
  • Electrical plans
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,775 sq. ft.

1st Floor

777 sq. ft.

2nd Floor

998 sq. ft.

Porch, Front

28 sq. ft.

Porch, Rear

60 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

20' 0"

Depth

57' 2"

Max Ridge Height

30' 7"

Garage

Type

Attached

Area

228 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

10' 1"

Second Floor

10' 1"

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

3 on 12

Framing Type

Stick

Architectural Style

Contemporary

Modern

Special Features

Bedrooms - Clustered

Laundry - Upstairs

Master Suite - Upstairs

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

1,775 sq. ft.

1st Floor

777 sq. ft.

2nd Floor

998 sq. ft.

Porch, Front

28 sq. ft.

Porch, Rear

60 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

20' 0"

Depth

57' 2"

Max Ridge Height

30' 7"

Garage

Type

Attached

Area

228 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

10' 1"

Second Floor

10' 1"

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

3 on 12

Framing Type

Stick

Architectural Style

Contemporary

Modern

Special Features

Bedrooms - Clustered

Laundry - Upstairs

Master Suite - Upstairs

Plan Collections

Exclusive
