Sleek Contemporary Quadplex House Plan with 8 Beds 3711 Sq Ft

Heated S.F.
3,711
Units
4
Width
Depth

Floor Plan

Plan 100360GHR

Main Level
Main Level
2nd Floor
2nd Floor

Plan 100360GHR

M-F 9am-5pm EST |

1-203-761-8500

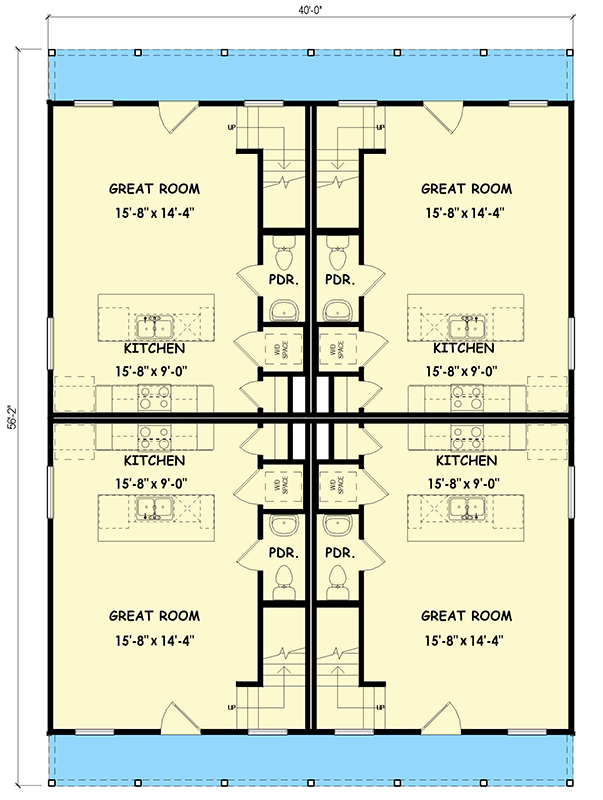

Main Level

Plan 100360GHR: Sleek Contemporary Quadplex House Plan with 8 Beds 3711 Sq Ft - Floor Plan - Main Level - Contemporary

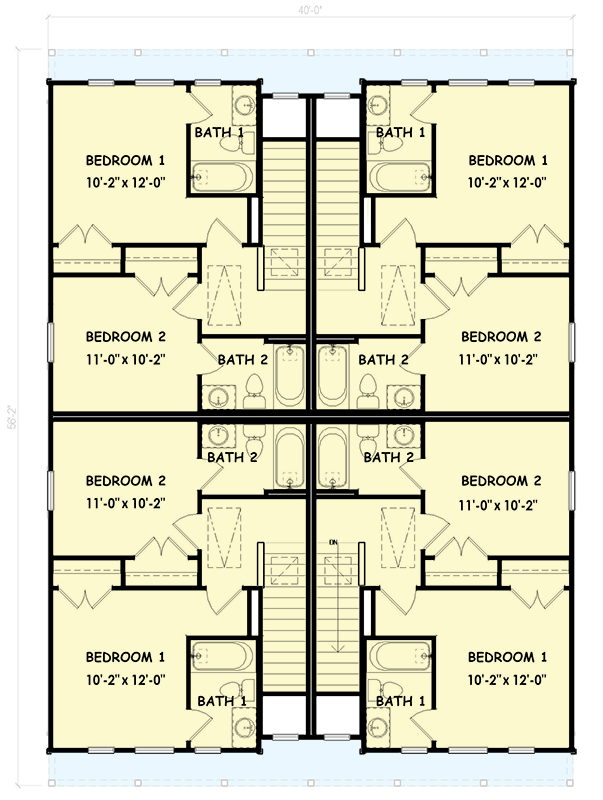

2nd Floor

Plan 100360GHR: Sleek Contemporary Quadplex House Plan with 8 Beds 3711 Sq Ft - Floor Plan - 2nd Floor - Contemporary

Plan Details

  • This efficient 3,711 sq. ft. Contemporary quadplex plan presents 8 bedrooms, 8 full bathrooms, and 4 half bathrooms, offering a harmonious blend of style and functionality across its two stories for multi-family living.
  • Upon entering each of the four distinct units, residents are welcomed into a thoughtfully designed open-concept living area, optimized for modern lifestyles. Each unit thoughtfully integrates a convenient main-level laundry area.
  • The main level of each unit is meticulously crafted for an effortless flow, seamlessly connecting the kitchen, dining, and living areas into a cohesive social hub. Large windows invite abundant natural light, creating an airy and welcoming atmosphere for both daily routines and intimate gatherings.
  • Ascending to the second floor of each unit reveals a private master suite, designed as a tranquil sanctuary. The secondary bedrooms are thoughtfully clustered, ensuring privacy and comfort for all residents within their respective units.
  • Enhancing the living experience, each unit boasts both a welcoming covered front porch and a private rear porch, providing serene outdoor spaces ideal for morning coffee or evening relaxation.
Unit A
Heated Area
928Sq. Ft.
478 Sq. Ft. 1st
450 Sq. Ft. 2nd
Beds
2Beds
Baths
2Full Baths
1Half Bath
Dimensions
20'width
24'depth
28'height
Unfinished Areas
80 Sq. Ft. Porch, Front
Unit B
Heated Area
928Sq. Ft.
478 Sq. Ft. 1st
450 Sq. Ft. 2nd
Beds
2Beds
Baths
2Full Baths
1Half Bath
Dimensions
20'width
28'depth
Unfinished Areas
80 Sq. Ft. Porch, Front
Unit C
Heated Area
928Sq. Ft.
478 Sq. Ft. 1st
450 Sq. Ft. 2nd
Beds
2Beds
Baths
2Full Baths
1Half Bath
Dimensions
20'width
24'depth
28'height
Unfinished Areas
80 Sq. Ft. Porch, Rear
Unit D
Heated Area
928Sq. Ft.
478 Sq. Ft. 1st
450 Sq. Ft. 2nd
Beds
2Beds
Baths
2Full Baths
1Half Bath
Dimensions
20'width
24'depth
28'height
Unfinished Areas
80 Sq. Ft. Porch, Rear

What's Included

  • Cover sheet with area, door & window schedules
  • Dimensioned floorplans with general notes, window & door sizes
  • Interior cabinet elevation
  • Foundation outline (perimeter dimensions only. All other construction details to be handled locally based on site and soil conditions)
  • Roof plan (Birdseye view with pitches)
  • Cornice details

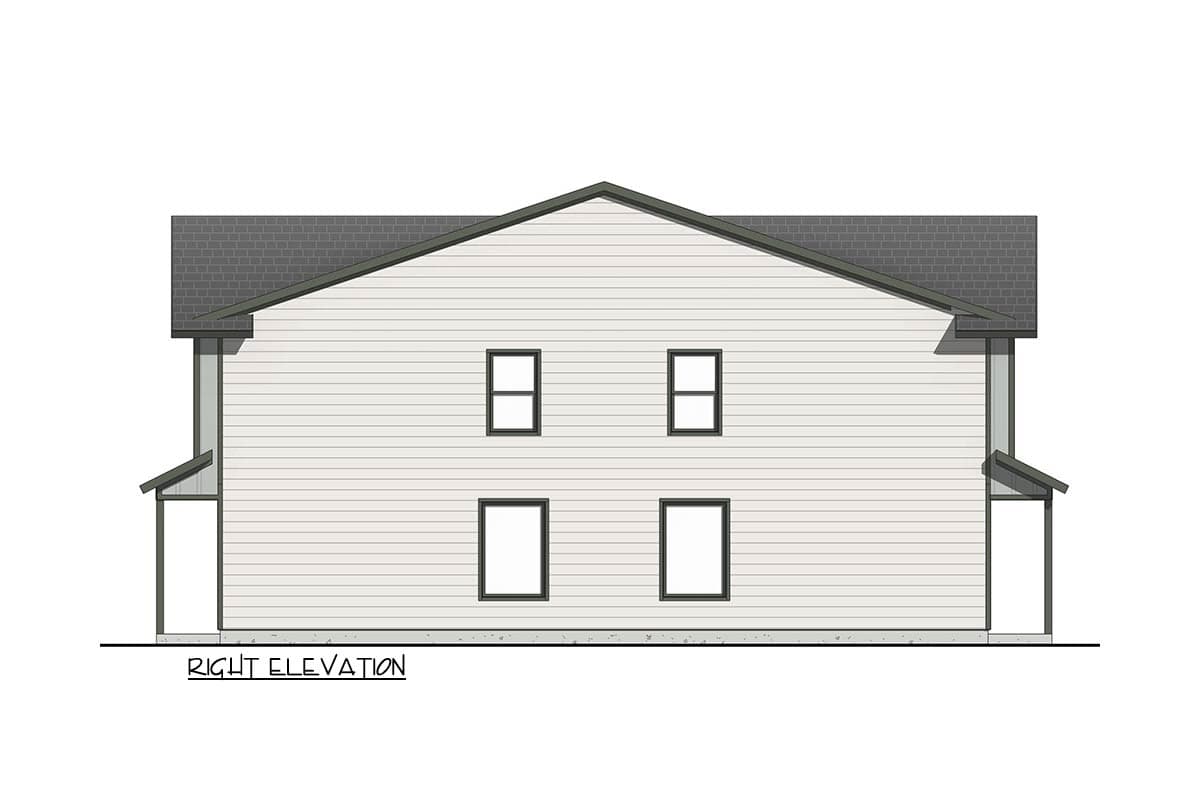

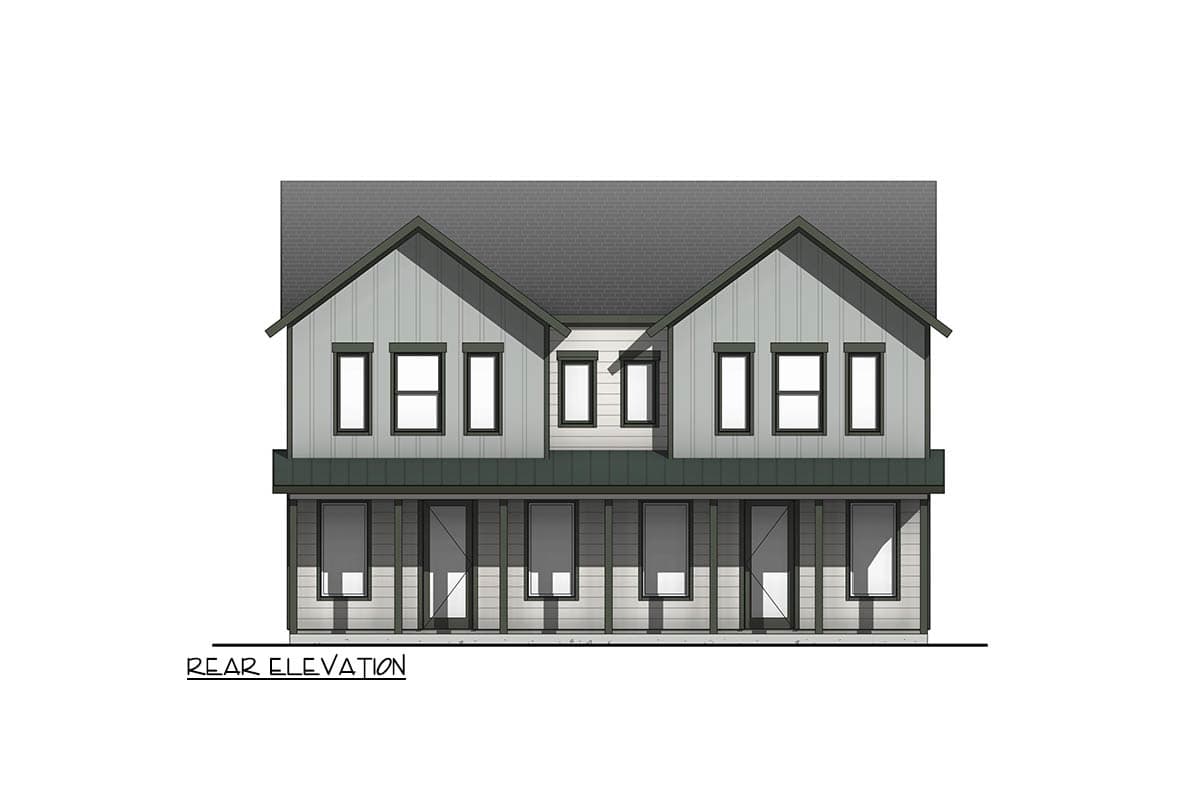

  • Exterior elevations (4 sides)
  • Building sections (if applicable)
  • Electrical plans
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,711 sq. ft.

1st Floor

1,912 sq. ft.

2nd Floor

1,800 sq. ft.

Porch, Front

160 sq. ft.

Porch, Rear

160 sq. ft.

Beds/Baths

Bedrooms

8

Full bathrooms

8

Half bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

40' 0"

Depth

56' 2"

Max Ridge Height

28' 1"

Ceiling Heights

First Floor

9' 1"

Second Floor

9' 1"

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

9 on 12

Architectural Style

Contemporary

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - Upstairs

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

3,711 sq. ft.

1st Floor

1,912 sq. ft.

2nd Floor

1,800 sq. ft.

Porch, Front

160 sq. ft.

Porch, Rear

160 sq. ft.

Beds/Baths

Bedrooms

8

Full bathrooms

8

Half bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

40' 0"

Depth

56' 2"

Max Ridge Height

28' 1"

Ceiling Heights

First Floor

9' 1"

Second Floor

9' 1"

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

9 on 12

Architectural Style

Contemporary

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - Upstairs

Plan Collections

Exclusive
