Plan 623600DJ

Sleek Northwest Modern House Plan with 4 Beds and Upstairs Master Suite

Heated S.F.
2,190
Beds
4
Baths
2.5
Stories
2
Cars
2
Tour

Floor Plan

Plan 623600DJ

Main Level
Main Level
2nd Floor
2nd Floor

Plan 623600DJ

M-F 9am-5pm EST |

1-203-761-8500

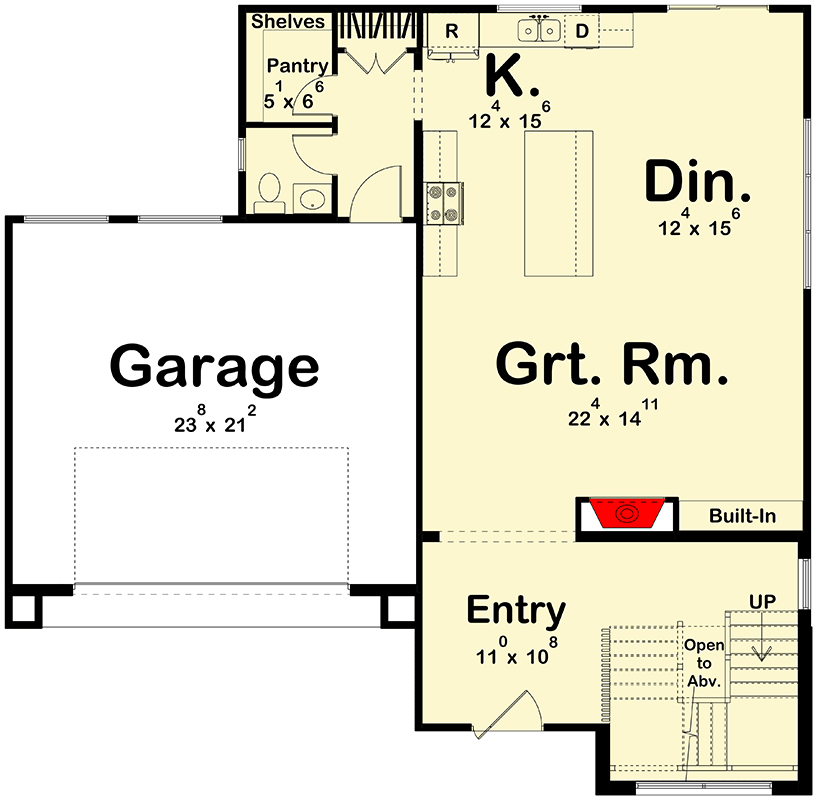

Main Level

Plan 623600DJ: Sleek Northwest Modern House Plan with 4 Beds and Upstairs Master Suite - Floor Plan - Main Level - Contemporary, Modern, Northwest

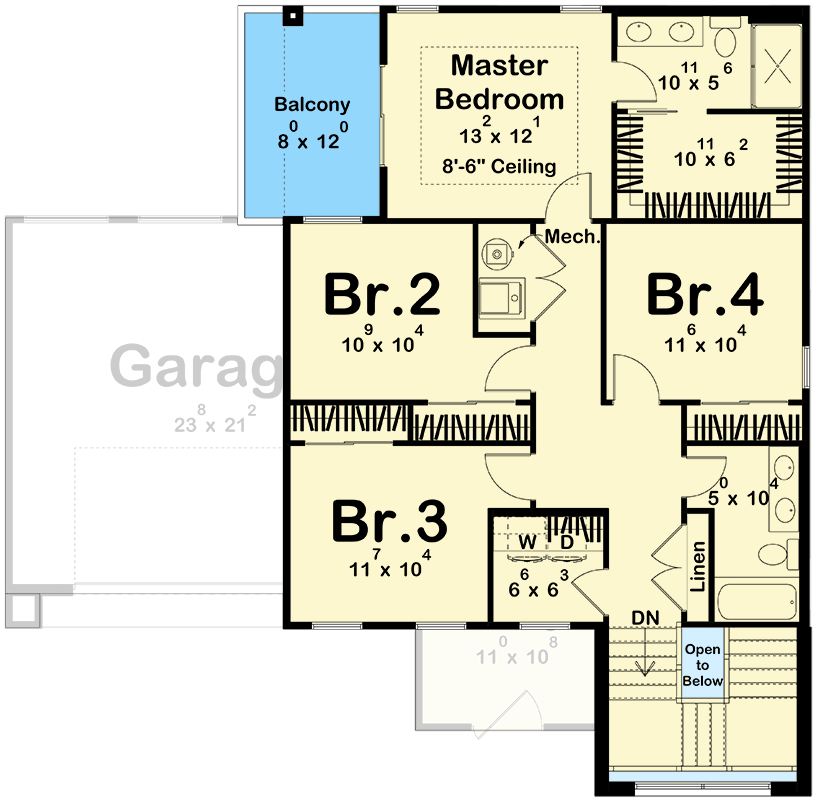

2nd Floor

Plan 623600DJ: Sleek Northwest Modern House Plan with 4 Beds and Upstairs Master Suite - Floor Plan - 2nd Floor - Contemporary, Modern, Northwest

Plan Details

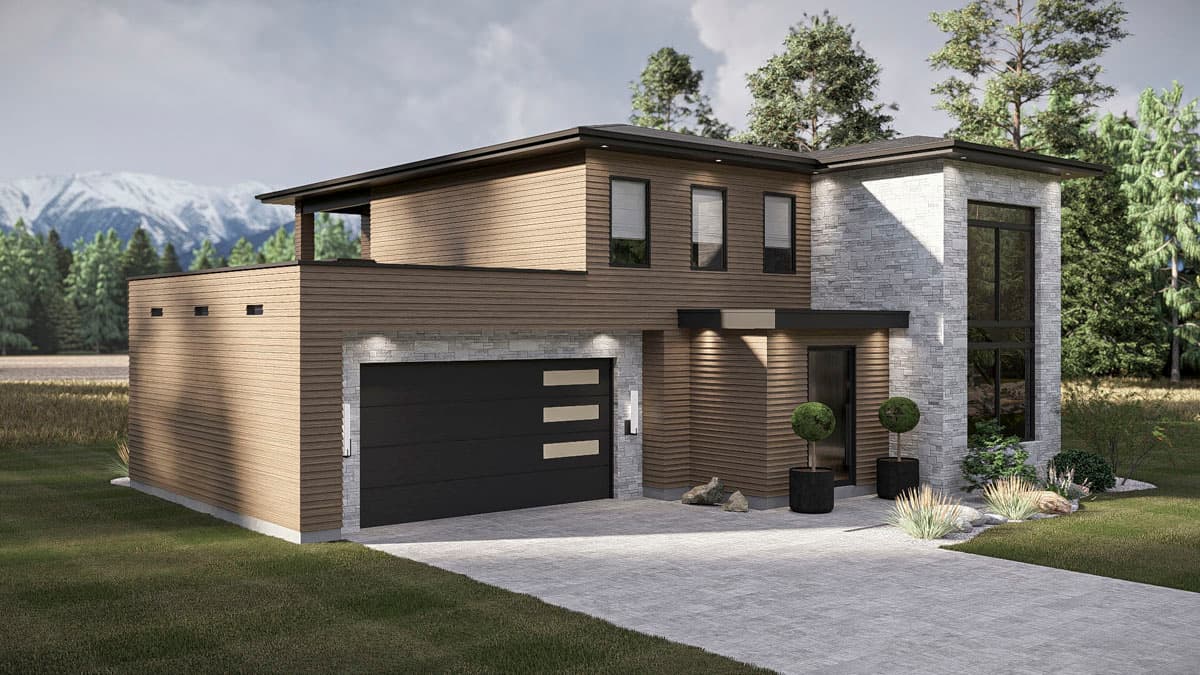

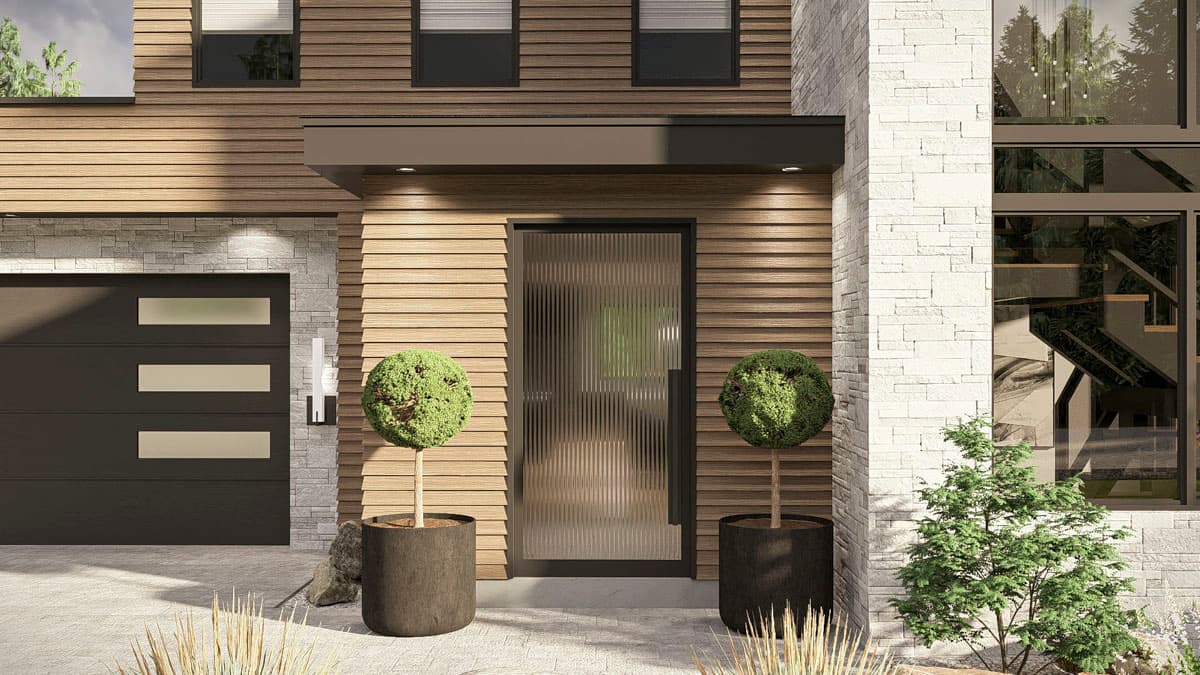

  • This 2,190 sq. ft. contemporary Northwest Modern House Plan features 4 bedrooms, 2.5 bathrooms, and an integrated 533 sq. ft. two-car garage, all wrapped in a striking facade of natural wood and stone.

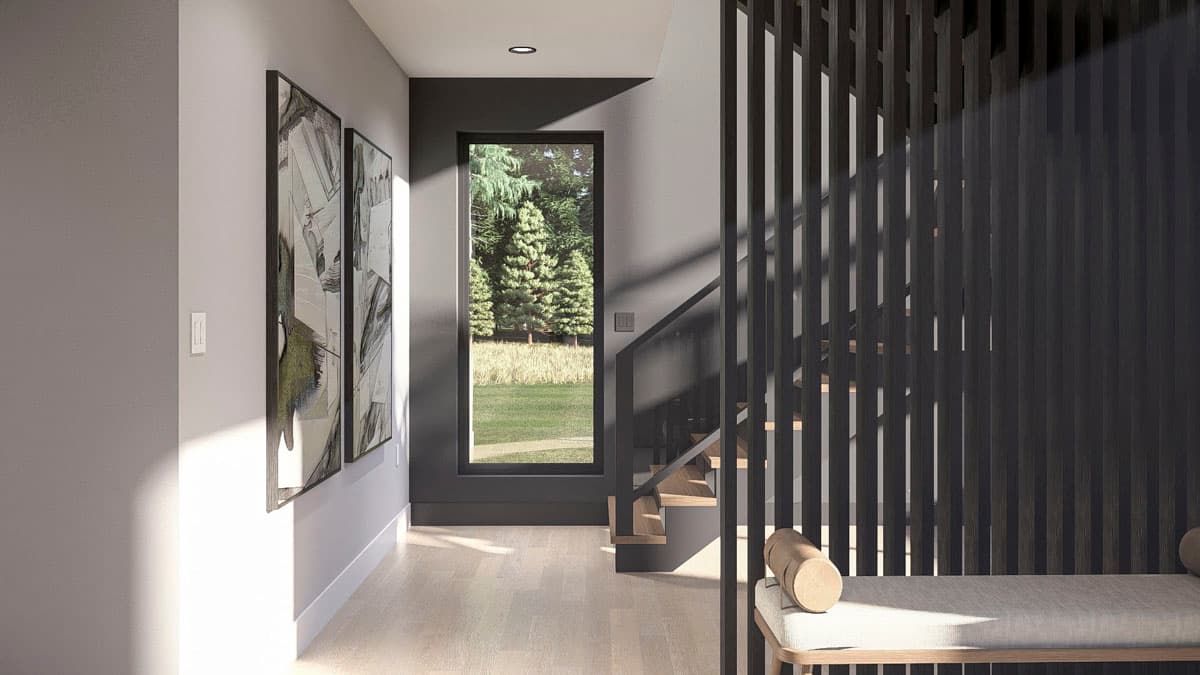

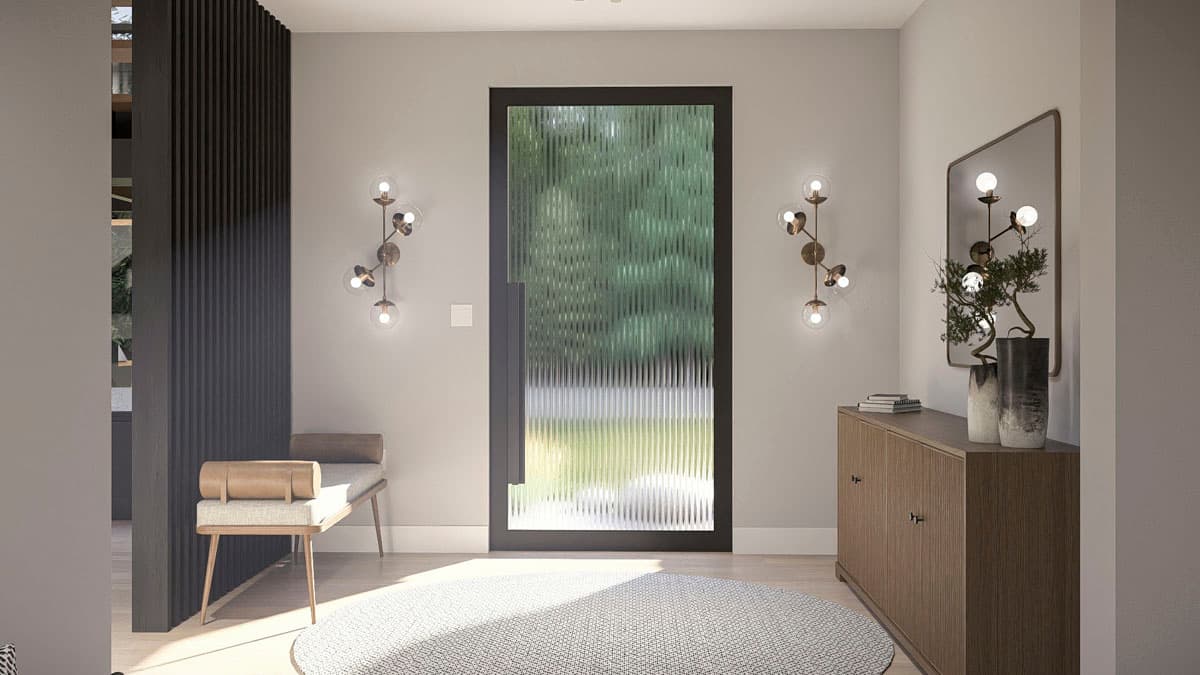

  • Upon entering, guests are welcomed into a bright foyer with a soaring two-story window, leading directly into an expansive open-concept living area designed for both intimate gatherings and lively entertaining.

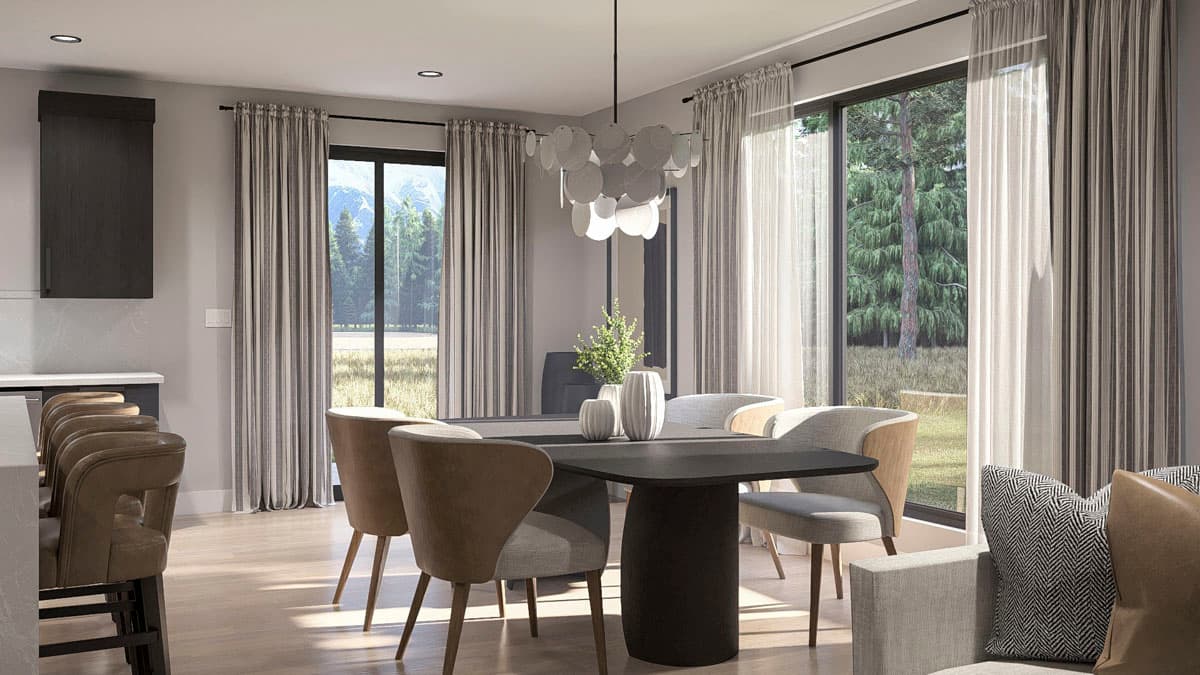

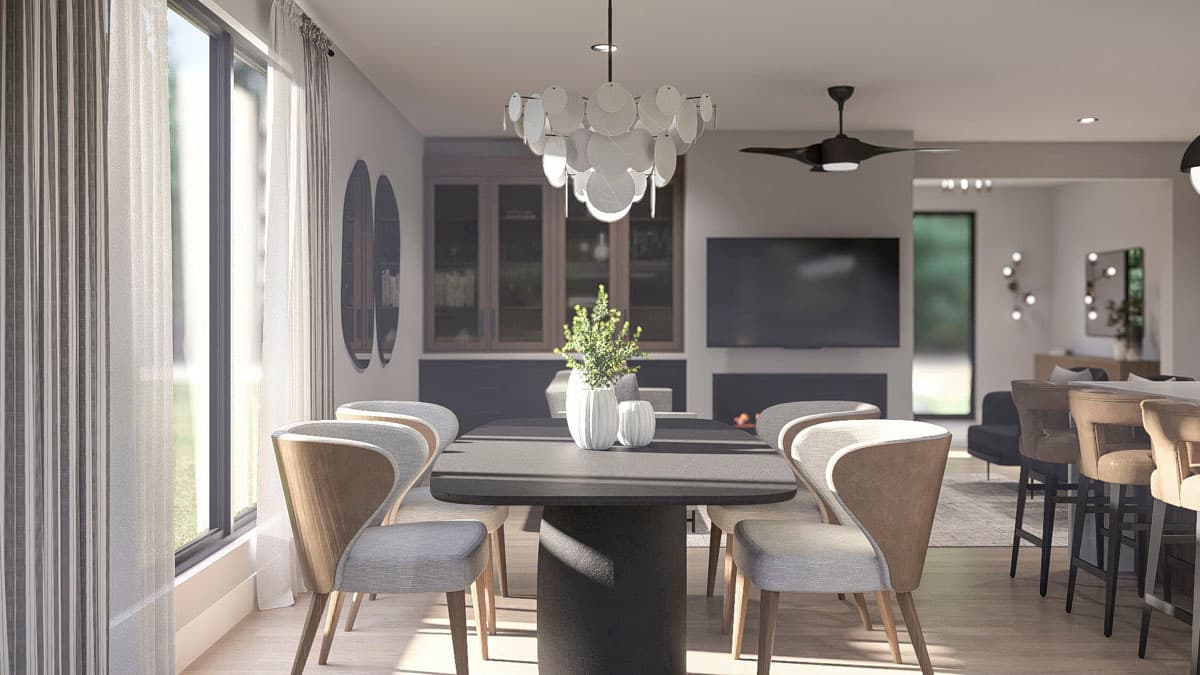

  • The main floor seamlessly connects a gourmet kitchen, complete with a convenient butler's walk-in pantry, to the dining area and a spacious great room, fostering an effortless flow for daily living and social events.

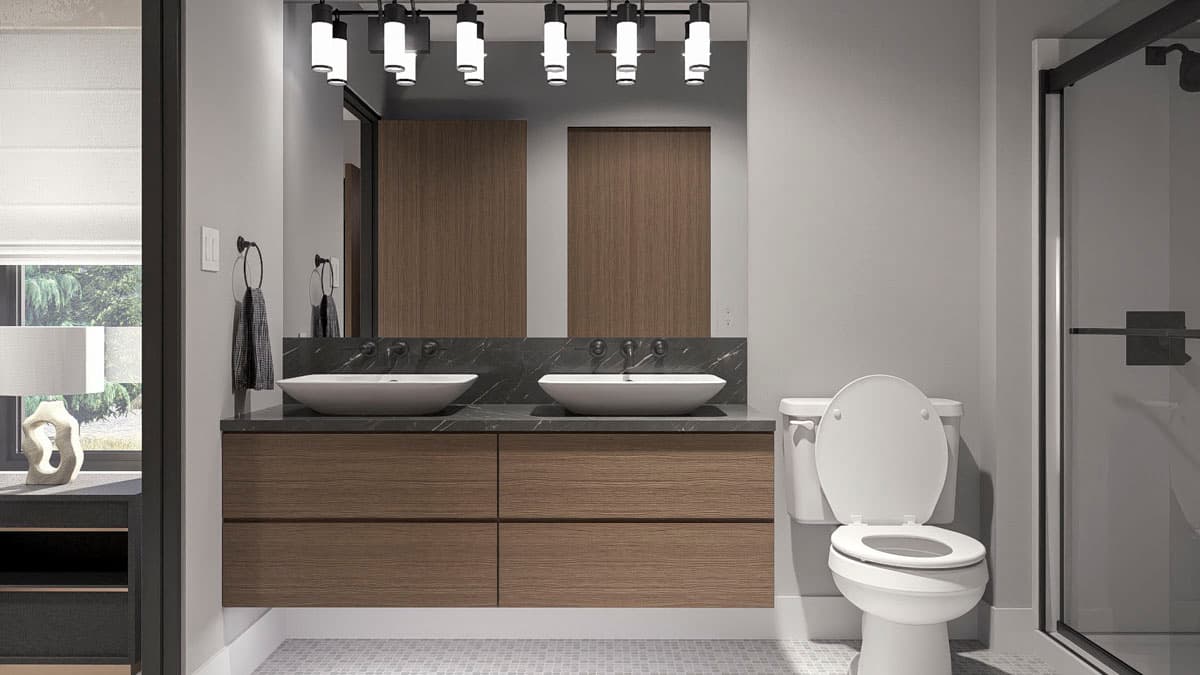

  • Upstairs, the luxurious master suite serves as a private retreat, featuring ample space and privacy, while three additional clustered bedrooms and an upstairs laundry room provide practical living for family or guests.
  • A practical mudroom, located conveniently off the garage entry, offers an organized transition space, keeping daily clutter at bay.

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,190 sq. ft.

1st Floor

1,150 sq. ft.

2nd Floor

1,040 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

47' 0"

Depth

46' 0"

Max Ridge Height

23' 9"

Garage

Type

Standard, Attached

Area

533 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

3 on 12

Secondary Pitch

1 on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern

Northwest

Special Features

Bedrooms - Clustered

Laundry - Upstairs

Master Suite - Upstairs

Mudroom

Walk-in Pantry
