Sloped Lot Plan with 4 Car Garage

Plan 69305AM

  • 2,672

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Stories

  • 4

    Cars

  • This multilevel residence melds traditional dignity with contemporary convenience. To the left of the 4-car garage, the front walkway is charmed by exterior terracing and flower boxes. Inside, the foyer is aligned with the dining room windows, so the guest is treated to a back-yard view.
  • Step up from the foyer into the dining room or into the awesome two-story great room, bathed with light from a floor-to-ceiling wall of windows. A fireplace on the adjacent wall can be viewed from the kitchen sink and cooktop.
  • Enveloped by windows, the breakfast nook is another special place in this house. French doors lead to a terrace that wraps across the front and side of the house.
  • The marvelous master suite is sited on the top floor. The large bedroom is graced with a tall tray ceiling, a corner fireplace, a bumped out wall of windows, and a private balcony. The adjoining bath is equipped for two with a whirlpool tub and shower. Across the hall, the den also is furnished with a fireplace as well as built-in storage units and a wet bar. A half wall in the den overlooks the great room.

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.

Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Sloped Lot Plan with 4 Car Garage - 69305AM floor plan - Basement

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

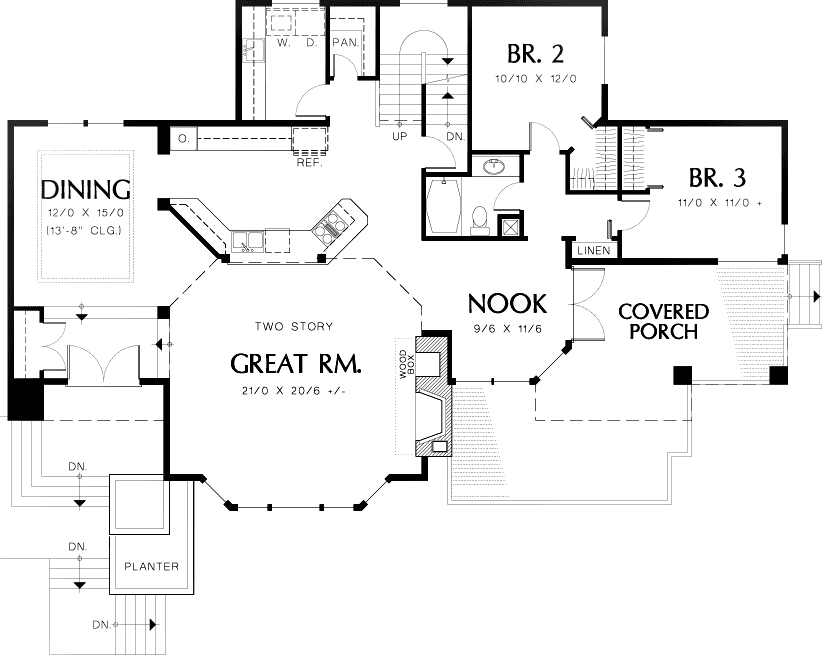

Sloped Lot Plan with 4 Car Garage - 69305AM floor plan - Main Level
