Sloping Lot Beauty
Heated S.F.
3,350
Beds
4
Baths
2.5
Stories
2
What's Included
Plan Details
  • This 4 bedroom house plan makes the most of your sloping lot and gives you three level of living including one below grade. If your lot slopes, enjoy the walkout. If not, you still get a great level with game room and two beds.
  • The back of the home is the main attraction with floor to ceiling windows giving you great natural light. A deck spans the back and is deep enough to accomodate furniture for an outdoor living room.
  • The living room has an angled fireplace and has views to the 2-story dining room and nook.
  • The kitchen has a peninsula where you can sit and enjoy a casual meal.
  • Two bedrooms are on the upper floor as well as a balcony overlook and full bath.
What's Included

Please note this plan is designed to the National Building Code of Canada.

Plan sets include the following:

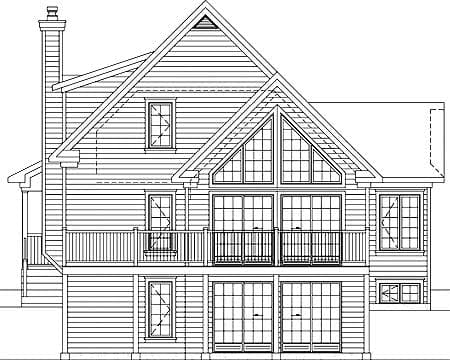

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.

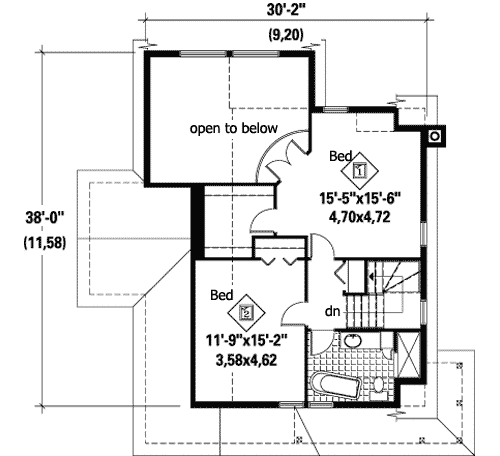

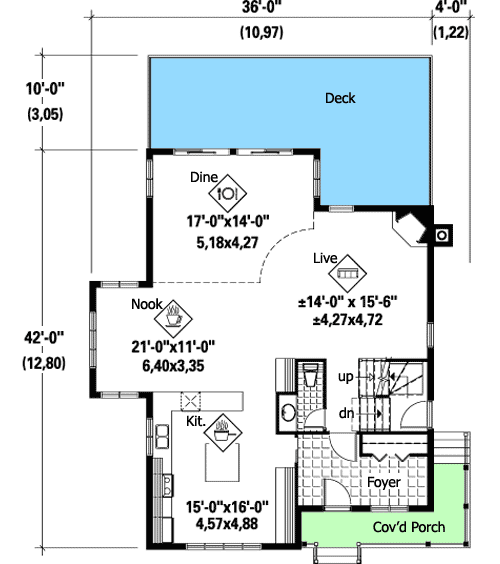

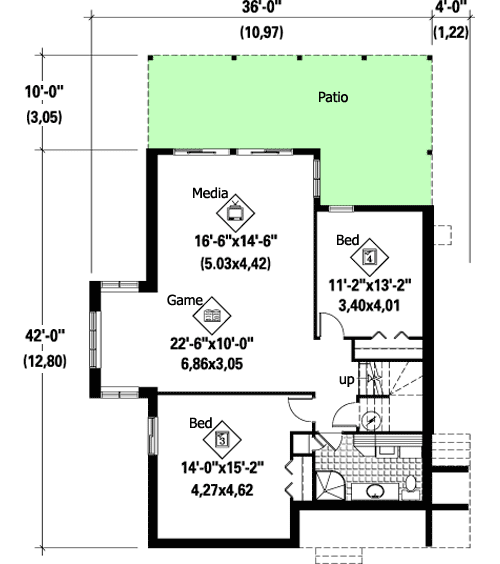

  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
