Small Modern Home Plan with Detached 1-Car Garage

Plan 280097JWD

  • 1,039

    Heated s.f.

  • 2

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 1

    Cars

  • The simple footprint of this modern home plan helps stay within budget, while providing a sleek exterior design, 1,039 square feet of living space, two bedrooms, and an open concept layout.
  • The main level consists of the shared living spaces, completely open to one another for easy interactions between family and friends. A fireplace can be enjoyed throughout the main level, and a central kitchen island increases available space for meal prep.
  • Upstairs, the master bedroom includes a full bath, and neighbors a second bedroom.
  • A home office completes the second level, and is located across from a full bath.
  • The garage is detached from the home, with a single garage bay and matching modern style.

This house plan includes the following details:
  • Four Exterior Elevations
  • Main Floor Plan
  • Second level floor plan - if applicable
  • Bonus Floor Plan - if applicable
  • Building Sections
  • Typical Wall Detail
  • Main Floor Framing Plan & Details
  • Bonus Room & Roof Framing Plan
  • Electrical Plan

These items are NOT included:

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

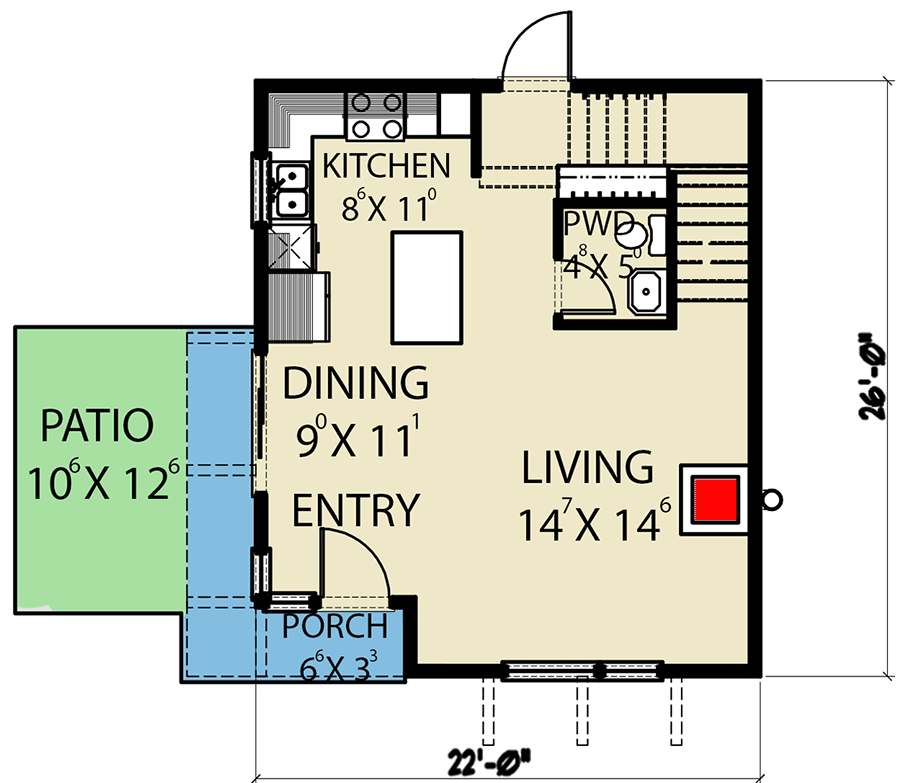

Small Modern Home Plan with Detached 1-Car Garage - 280097JWD floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

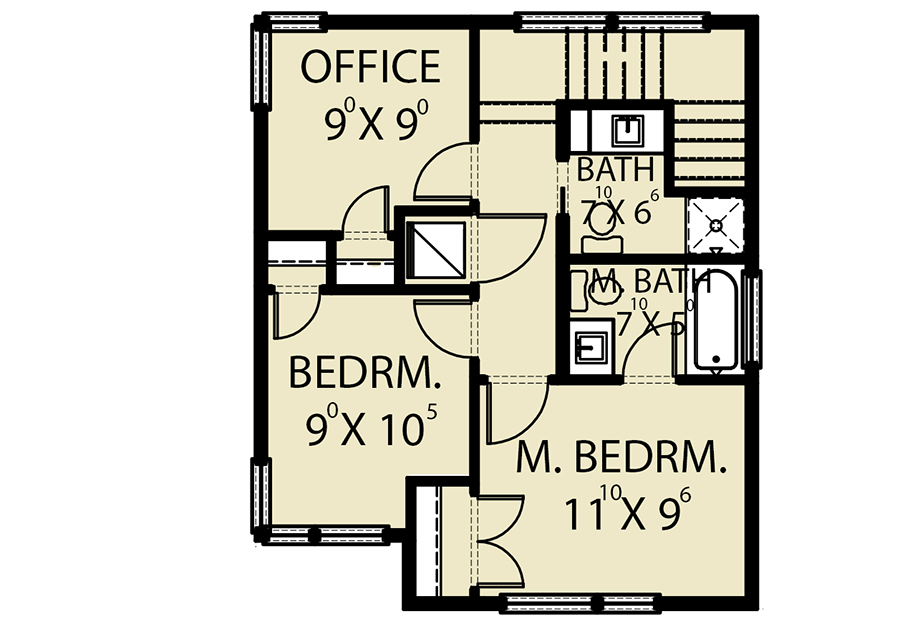

Small Modern Home Plan with Detached 1-Car Garage - 280097JWD floor plan - 2nd Floor

Detached Garage

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

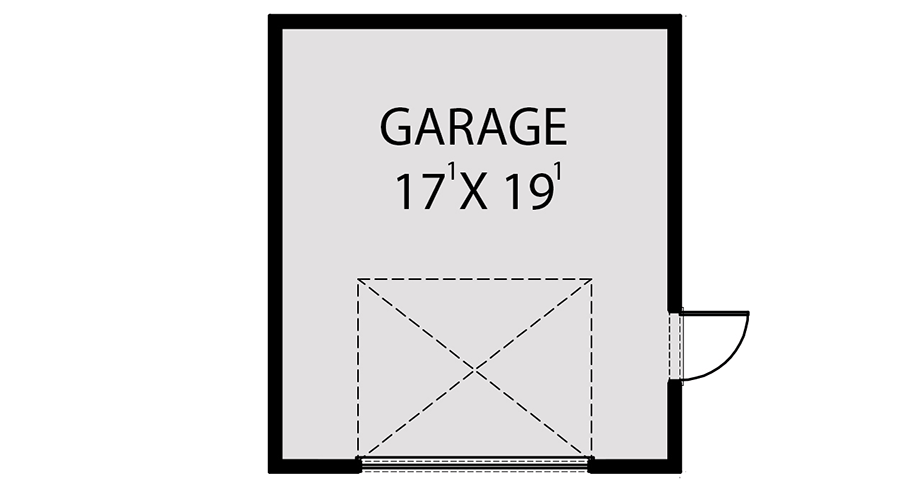

Small Modern Home Plan with Detached 1-Car Garage - 280097JWD floor plan - Detached Garage

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,039 sq. ft.
  • 1st Floor: 553 sq. ft.
  • 2nd Floor: 486 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 22' 0"
  • Depth: 26' 0"
  • Max ridge height: 24' 3"

Garage

  • Type: Detached
  • Area: 360 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 1 on 12
  • Secondary Pitch: 1 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Small Modern Home Plan with Detached 1-Car Garage

  • 1,039

    Heated s.f.

  • 2

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 1

    Car garage

Buy This Plan
  • Study Set - Digital $875
  • PDF - Single-Build $1,750
  • 5 Sets + PDF $2,200
  • CAD + PDF - Single-Build $2,250
  • View all purchase option online

About This Plan

  • The simple footprint of this modern home plan helps stay within budget, while providing a sleek exterior design, 1,039 square feet of living space, two bedrooms, and an open concept layout.
  • The main level consists of the shared living spaces, completely open to one another for easy interactions between family and friends. A fireplace can be enjoyed throughout the main level, and a central kitchen island increases available space for meal prep.
  • Upstairs, the master bedroom includes a full bath, and neighbors a second bedroom.
  • A home office completes the second level, and is located across from a full bath.
  • The garage is detached from the home, with a single garage bay and matching modern style.

Floor Plans

  • Main Level

  • 2nd Floor

  • Detached Garage

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,039 sq. ft.
  • 1st Floor: 553 sq. ft.
  • 2nd Floor: 486 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 22' 0"
  • Depth: 26' 0"
  • Max ridge height: 24' 3"

Garage

  • Type: Detached
  • Area: 360 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 1 on 12
  • Secondary Pitch: 1 on 12
  • Framing Type: Truss
