Smashing Coastal Retreat

Plan 66323WE

  • 4,435

    Heated s.f.

  • 5

    Beds

  • 5.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • High style and good looks with lots of thoughtful details both inside and out characterize this smashing Beach house.
  • The raised island foundation gives you a lower level entry with lots of storage plus room for two cars.
  • Raised up high, the main floor has four large bedrooms, two of which have private covered balconies.
  • Tray ceilings run straight back through the wide hallways that give you a glimpse of the huge dining room.
  • All three rooms in back have special ceiling treatments with two sliding glass doors to get you out to the rear covered lanai.
  • In the kitchen, your family will love the large walk-in pantry and the pass-through window that lets you hand snacks out to those on the covered lanai.
  • The upper floor is devoted to the master suite that gets the best views being highest up.
  • A laundry room and study with a second balcony complete this level, giving you the luxurious Beach home of your dreams.

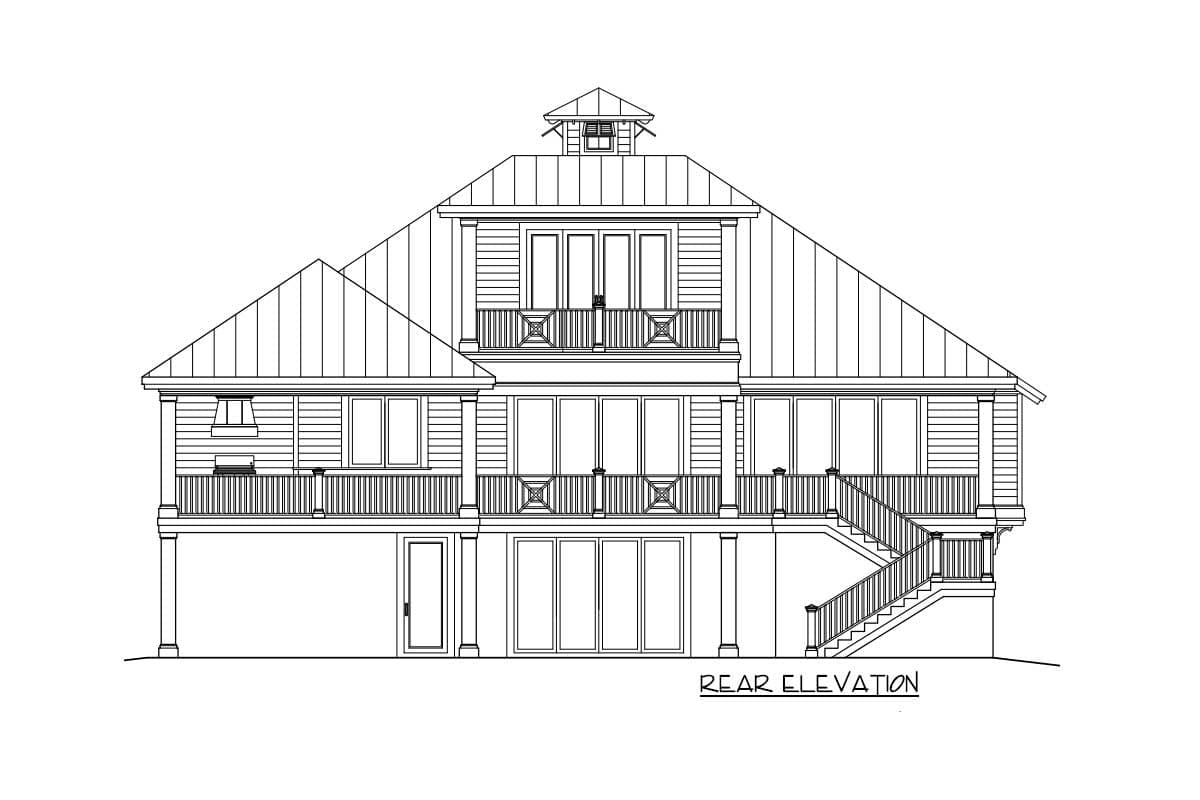

Elevations

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  Material Labels
  Floor-to-Floor Heights
  Roof Slope Indicators


Floor Plans

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  Door and Window Sizes
  Completely Dimensioned Floor Plan
  Room Labels and Interior Room Sizes


Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching


*Slab Plan

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor and Deck Joist Size and Spacing
Rough-in Plumbing Location (if applicable)
Mechanical Equipment Locations (if applicable)
Electrical Locations (if applicable)



Roof Design Plan

Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers


Building Sections

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated


Typical Wall Sections

Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness


Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)



*We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.


These items are NOT included:


Architectural or Engineering Stamp - handled locally if required

Site Plan - handled locally when required

Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this

Energy calculations - handled locally when required

Floor Plan

Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

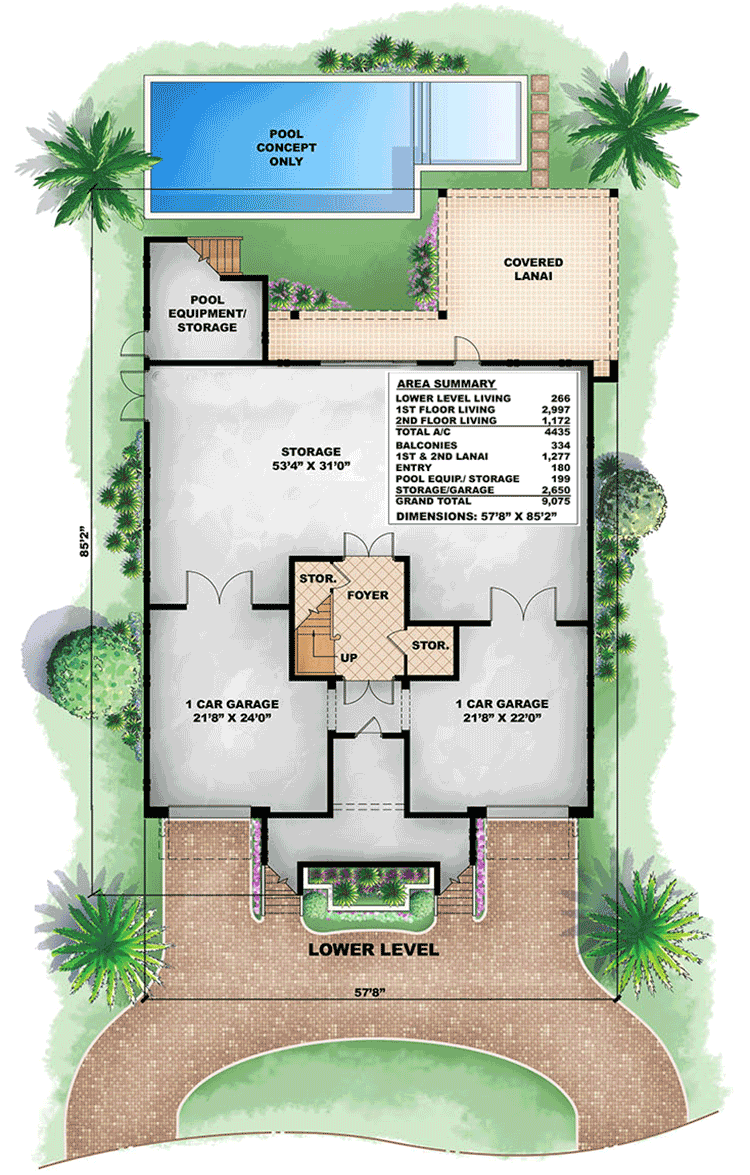

Smashing Coastal Retreat - 66323WE floor plan - Basement

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

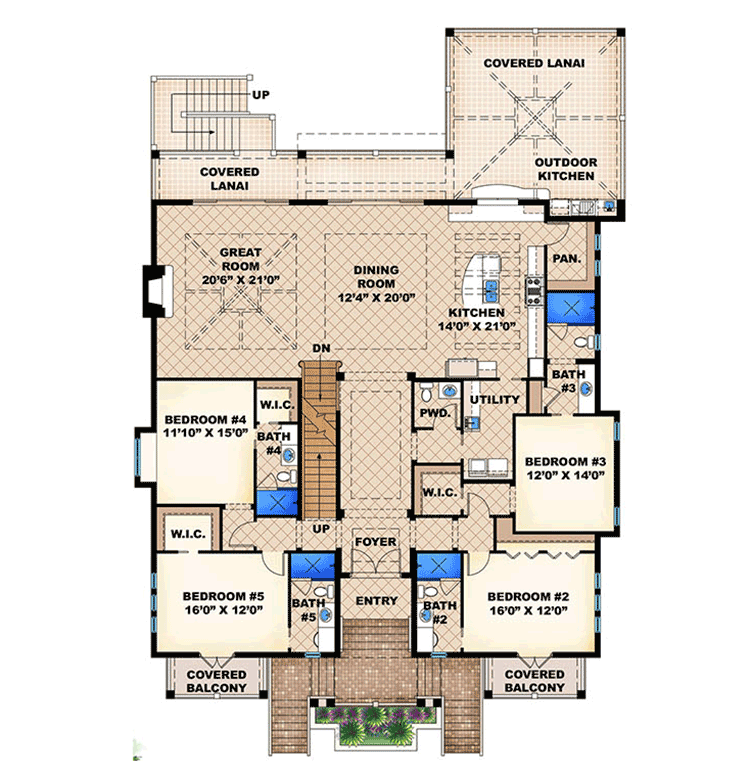

Smashing Coastal Retreat - 66323WE floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

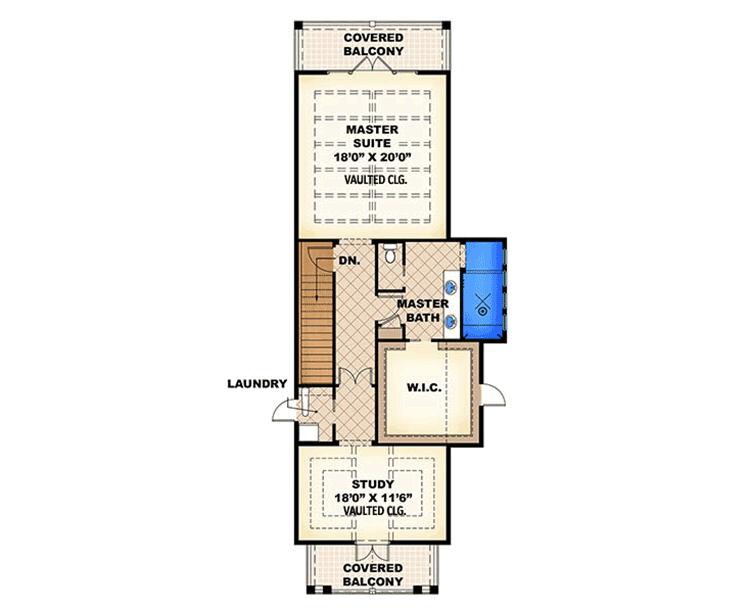

Smashing Coastal Retreat - 66323WE floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,435 sq. ft.
  • Lower Level: 266 sq. ft.
  • 1st Floor: 2,997 sq. ft.
  • 2nd Floor: 1,172 sq. ft.
  • Storage: 1,696 sq. ft.
  • Lanai: 1,277 sq. ft.
  • Balcony / Veranda: 334 sq. ft.
  • Entry: 180 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Piling

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 57' 8"
  • Depth: 85' 2"
  • Max ridge height: 39' 2"

Garage

  • Type: Drive Under
  • Area: 954 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Framing Type: Truss

Architectural Style

Special features

Smashing Coastal Retreat

  • 4,435

    Heated s.f.

  • 5

    Beds
