Plan 36317TX

Southern Country in Style

Pageloader

Southern Country in Style

Plan 36317TX

  • 3,660

    Heated s.f.

  • 3

    Beds

  • 2.5+

    Baths

  • 2

    Stories

  • 2

    Cars

  • Enjoy southern country living with your deep covered porches front (10' deep) and rear (12' deep" in this house plan that is available in multiple versions.
  • The foyer gives you views straight through the 2-story family room beyond. It features a fireplace, built-ins, access to the rear porch and views to the breakfast room.
  • The kitchen easily serves guests in the dining room and unloading groceries is a breeze with the help of your breezeway.
  • The master suite is on the main floor and has a luxurious bath with a walk-in wardrobe.
  • The upstairs gives you two bedrooms plus a media and game room.
  • Related Plans: Save money with a smaller upper floor with house plan 36315TX (3,045 sq. ft.).
  • Build in reverse with these 3-car versions - house plans 36316TX (3,192 sq. ft.) and 36318TX (4,902 sq. ft.).

Plan set includes the following:


1.       Cover sheet

2.       Foundation Plan

3.       First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4.       Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5.       First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6.       Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

7.       Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

8.       Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9.       Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10.   Sections page - NOT all of our house plans include sections because they may not have been required with the original design.

11.   Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

Floor Plan

Plan details



Southern Country in Style

  • 3,660

    Heated s.f.

  • 3

    Beds

  • 4

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - single-use $1,250
  • 5 Sets $1,450
  • CAD $1,875
  • View all purchase option online

About This Plan

  • Enjoy southern country living with your deep covered porches front (10' deep) and rear (12' deep" in this house plan that is available in multiple versions.
  • The foyer gives you views straight through the 2-story family room beyond. It features a fireplace, built-ins, access to the rear porch and views to the breakfast room.
  • The kitchen easily serves guests in the dining room and unloading groceries is a breeze with the help of your breezeway.
  • The master suite is on the main floor and has a luxurious bath with a walk-in wardrobe.
  • The upstairs gives you two bedrooms plus a media and game room.
  • Related Plans: Save money with a smaller upper floor with house plan 36315TX (3,045 sq. ft.).
  • Build in reverse with these 3-car versions - house plans 36316TX (3,192 sq. ft.) and 36318TX (4,902 sq. ft.).

Floor Plans

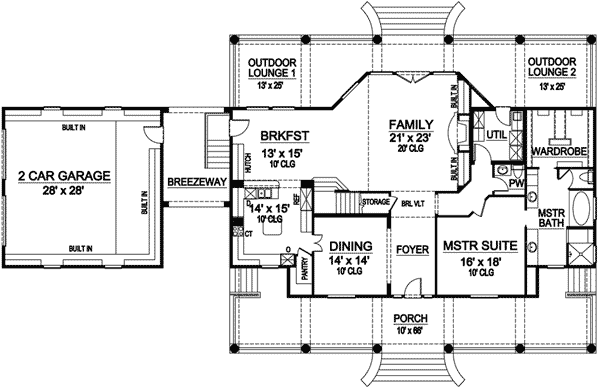

  • Main Level

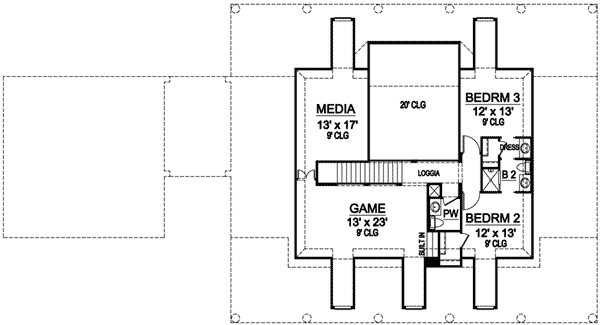

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,660 sq. ft.
  • 1st Floor: 2,301 sq. ft.
  • 2nd Floor: 1,359 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 107' 0"
  • Depth: 58' 0"
  • Max ridge height: 35' 0"

Garage

  • Type: Attached
  • Area: 841 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
