  • Enjoy southern country living with your 10' deep front and rear covered porches in this house plan that is available in multiple versions.
  • The foyer has an 11' raised ceiling and gives you views straight through the family room beyond. It features a fireplace, bar and seating at the kitchen counter. Two sets of double doors gain access to the rear porch.
  • The kitchen has a great deal of storage an access to the patio and screened lounge.
  • The master suite is on the main floor and has a luxurious bath with a walk-in wardrobe and patio access. Two bedrooms share a bath across the home.
  • Upstairs, gain an extra bedroom and a game and media area.
  • And don't miss the cellar storage - a great place for your wine collection.
  • Related Plans: Finish the upstairs later with house plan 36316TX (4,902 sq. ft.).
  • Build in reverse with these 2-car versions - house plans 36315TX (3,045 sq. ft.) and 36317TX (3,660 sq. ft.).

Plan set includes the following:


1.       Cover sheet

2.       Foundation Plan

3.       First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4.       Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5.       First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6.       Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

7.       Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

8.       Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9.       Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10.   Sections page - NOT all of our house plans include sections because they may not have been required with the original design.

11.   Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

Plan details



Southern Splendor

  • 4,902

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $1,650
  • 5 Sets $1,850
  • CAD $2,475
  • View all purchase option online

About This Plan

  • Enjoy southern country living with your 10' deep front and rear covered porches in this house plan that is available in multiple versions.
  • The foyer has an 11' raised ceiling and gives you views straight through the family room beyond. It features a fireplace, bar and seating at the kitchen counter. Two sets of double doors gain access to the rear porch.
  • The kitchen has a great deal of storage an access to the patio and screened lounge.
  • The master suite is on the main floor and has a luxurious bath with a walk-in wardrobe and patio access. Two bedrooms share a bath across the home.
  • Upstairs, gain an extra bedroom and a game and media area.
  • And don't miss the cellar storage - a great place for your wine collection.
  • Related Plans: Finish the upstairs later with house plan 36316TX (4,902 sq. ft.).
  • Build in reverse with these 2-car versions - house plans 36315TX (3,045 sq. ft.) and 36317TX (3,660 sq. ft.).

Floor Plans

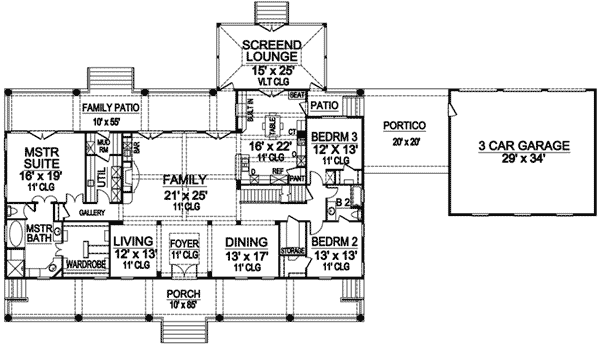

  • Basement

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,902 sq. ft.
  • 1st Floor: 3,192 sq. ft.
  • 2nd Floor: 1,710 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 140' 0"
  • Depth: 71' 0"
  • Max ridge height: 33' 0"

Garage

  • Type: Attached
  • Area: 1050 sq. ft.
  • Count: 3 Cars
  • Entry Location: Rear

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 11' 0" Second Floor / 9' 0"
