Plan 64334BT
Southern Duplex House Plan with 2 Bed Units - 1066 Sq Ft Each
Heated S.F.
2,132
Units
2
Width
53' 4"
Depth
48'
What's Included
Plan Details
  • This duplex house plan gives you matching 2 bed, 2 bath units with 1,066 square feet of heated living.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in building them. Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
Unit A
1,066 Sq. Ft.
1066 Sq. Ft. 1st Floor
2 Beds
2 Full Baths
26' 8" w 48' d 15' 2" h
Unit B
1,066 Sq. Ft.
1066 Sq. Ft. 1st Floor
2 Beds
2 Full Baths
26' 8" w 48' d 15' 2" h
What's Included
  • Cover Sheet
  • Sections and Plan Details
  • Foundation Plan and Details
  • Floor Plan
  • Exterior Elevations
  • Electrical Plan
  • Roof Plan
What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Southern Duplex House Plan with 2 Bed Units - 1066 Sq Ft Each

  • 2,132

    Heated s.f.

  • 2

    Units

  • 53' 4"

    Width

  • 48'

    Depth

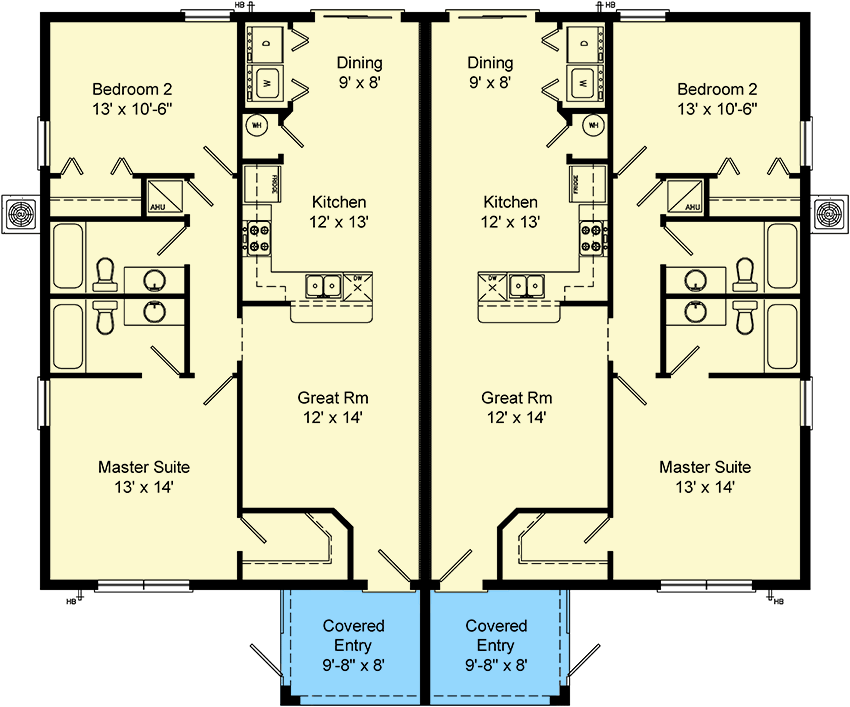

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,132 sq. ft.
  • 1st Floor: 2,132 sq. ft.

Dimensions

  • Width: 53' 4"
  • Depth: 48' 0"
  • Max ridge height: 15' 2"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4

Foundation Type

    • Standard Foundations: Stem Wall

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 4 on 12
  • Framing Type: Truss
