Plan 510007WDY
Southern House Plan with Home Office and Bonus Room
Heated S.F.
3,024
Beds
5
Baths
4
Stories
2
Cars
3
Flyer
What's Included
Plan Details

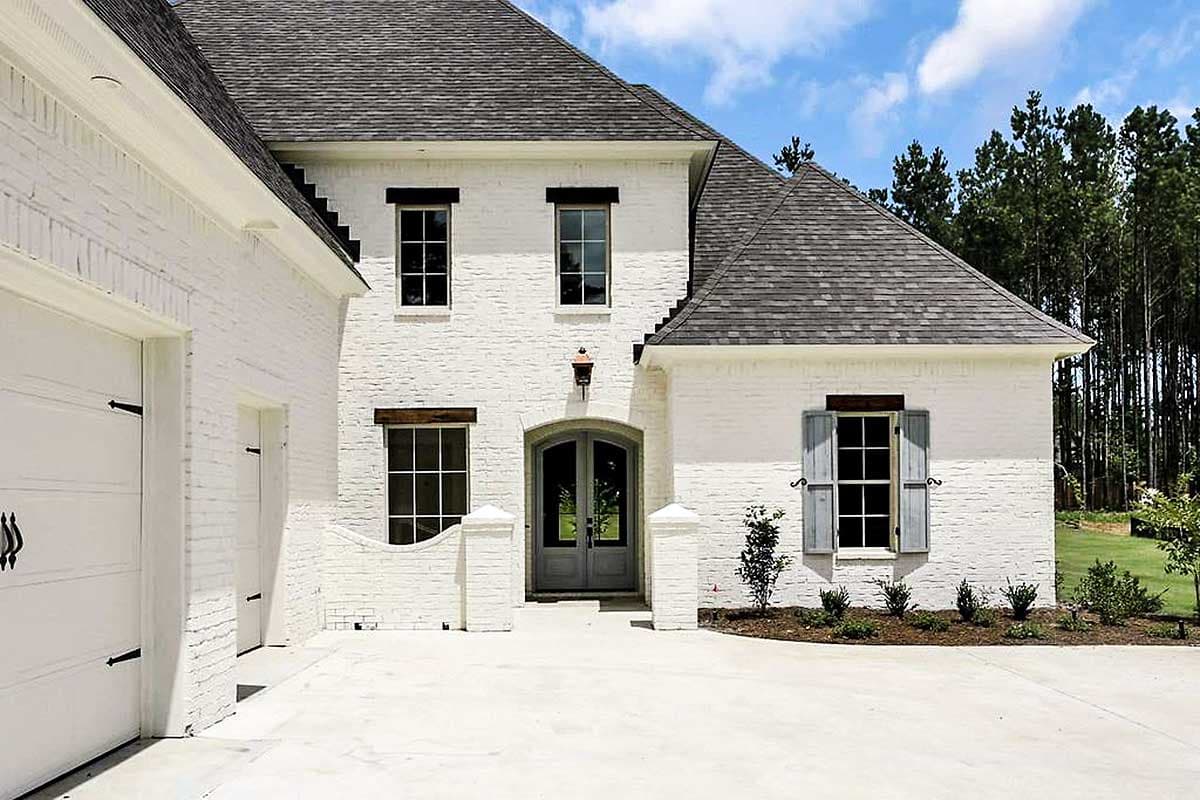

  • A front courtyard ushers you to the double door entry of this elegant Southern house plan.
  • With its five bedrooms, the home is well-suited for a large family.

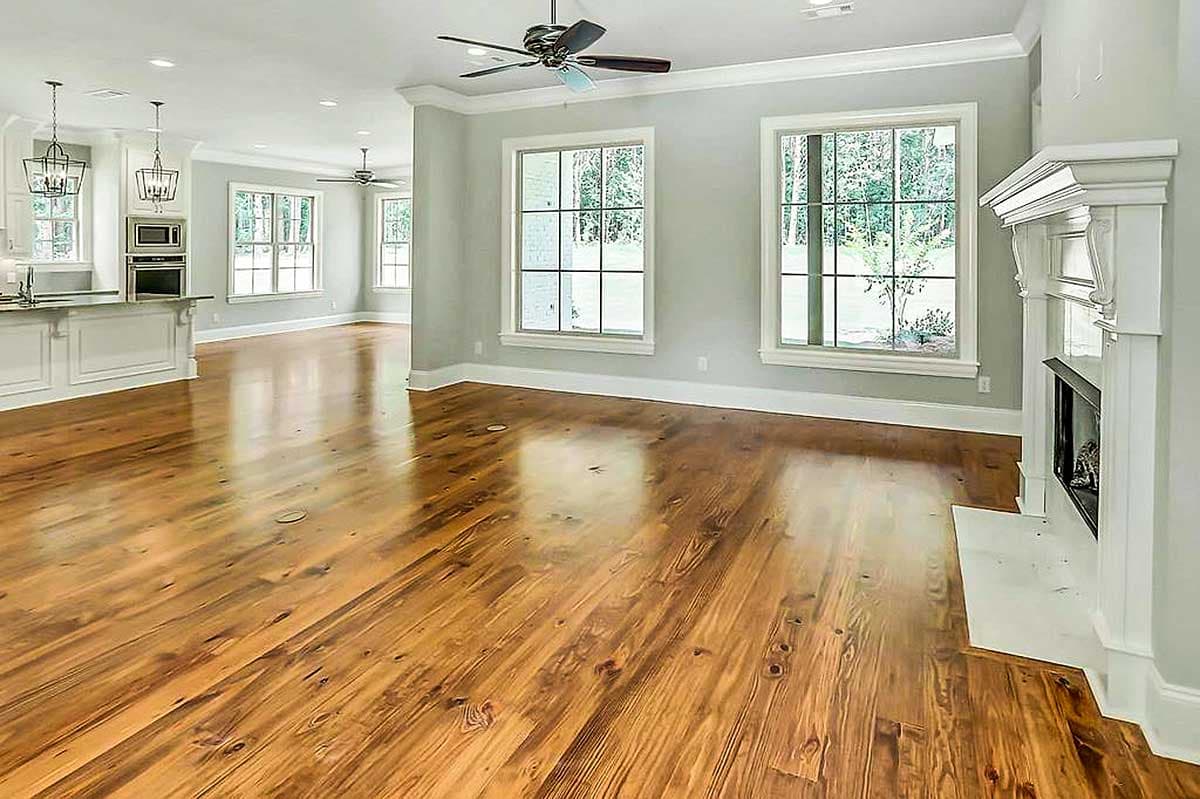

  • The open floor plan creates lovely sight lines from the dining area to the kitchen to the living room.

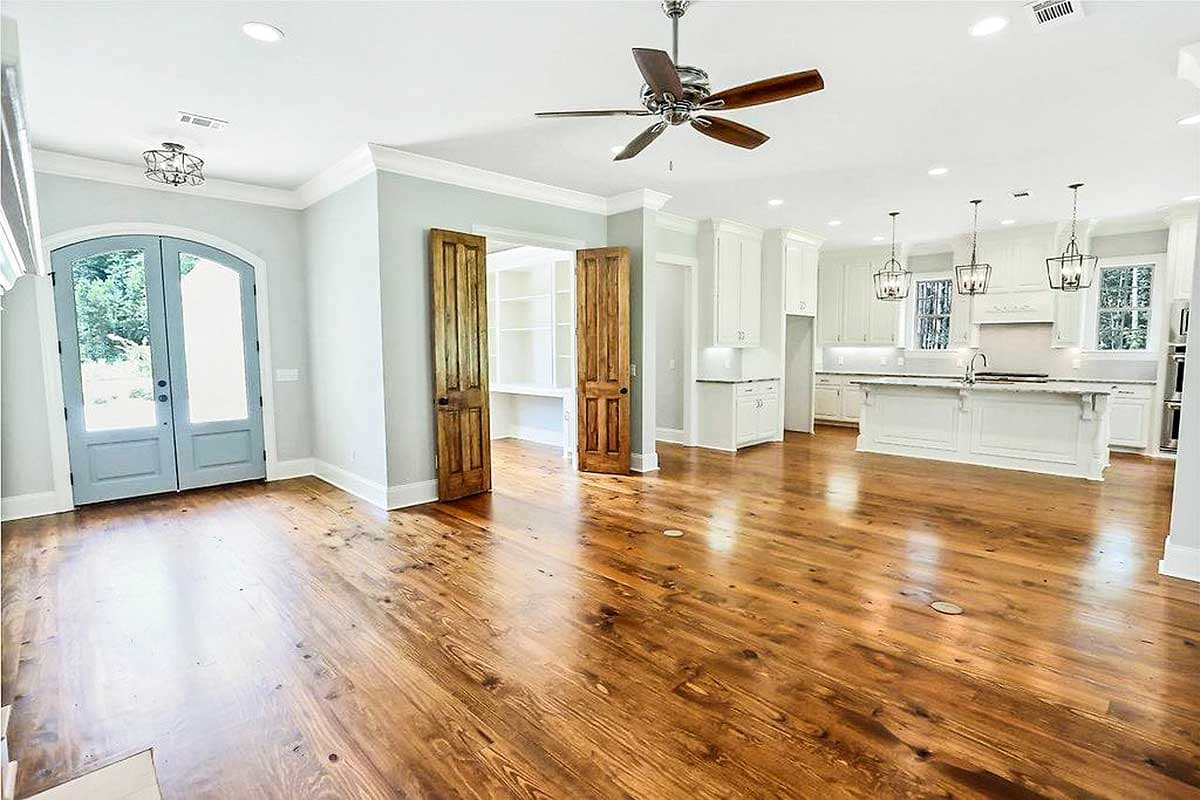

  • The huge kitchen island is positioned to enjoy fireplace views.
  • Cook outside on the rear covered porch that comes with an outdoor kitchen.
  • Homeowners get a spacious master bathroom with double sinks and a large walk-in closet.
  • The two bedrooms on the second floor are just steps away from the bonus room that is included in the total living area square footage.
What's Included

This plan has 9 sheets as follows:

  1. Coversheet Color Rendering
  2. Floor Plan with Dimensions, Notes, Door and Window Sizes, Beam Sizing
  3. 2nd Floor and Rafter Schedule

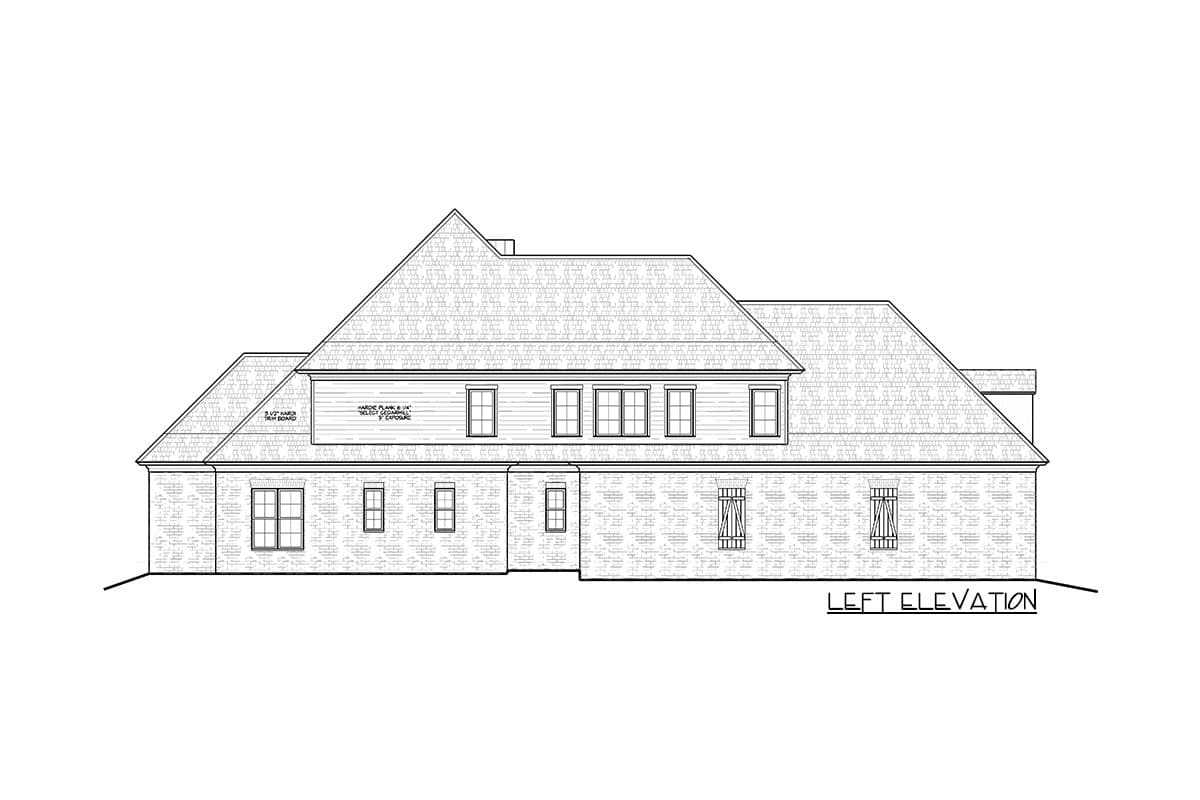

  4. Front and Leftside Elevations , Cornice Detail

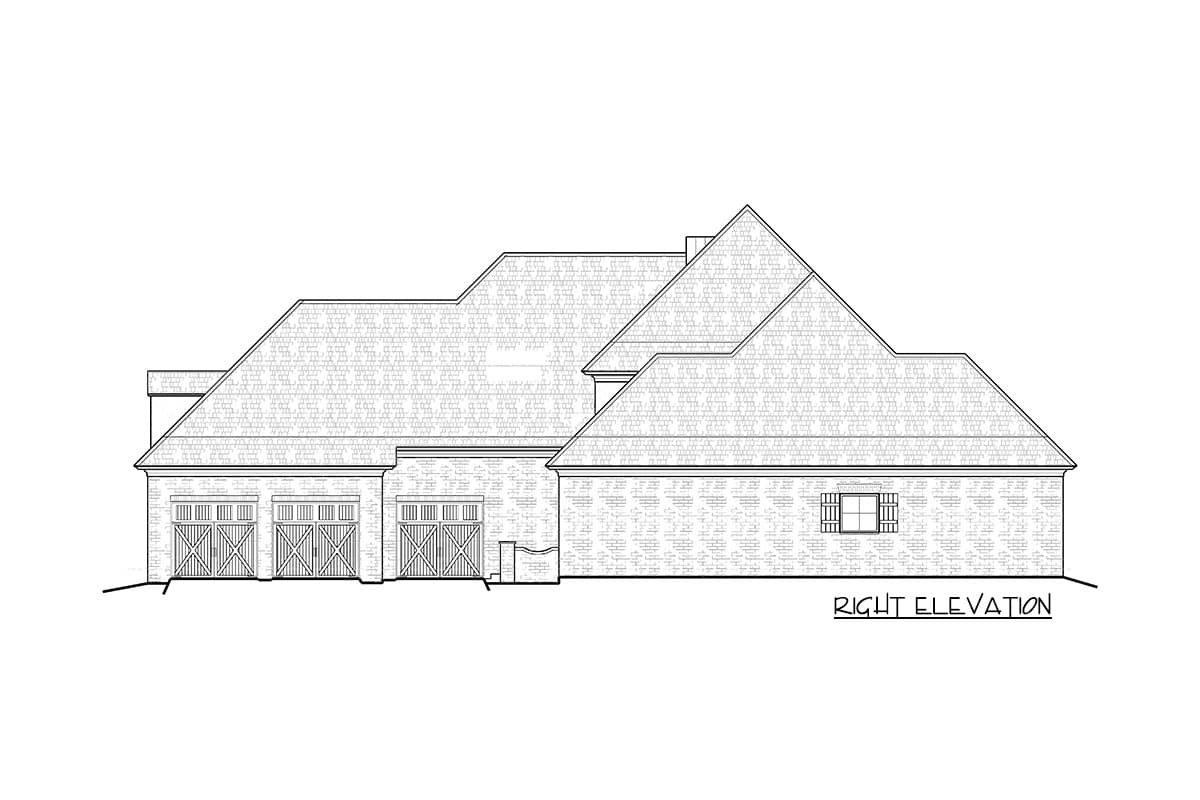

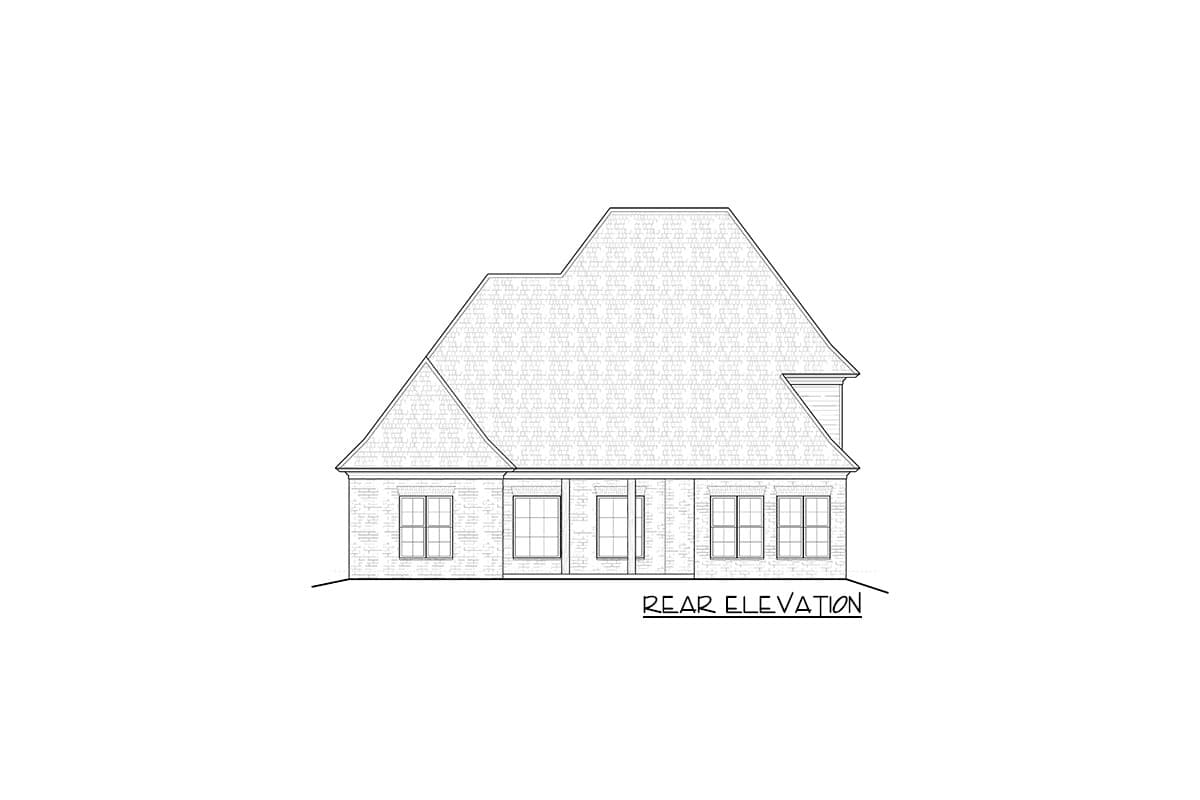

  5. Rear and Rightside Elevations, Cornice Detail
  6. Roof Plan and Building Sections, Misc Details
  7. 1st and 2nd Floor Electrical Plans
  8. Slab Foundation
  9. Slab Footing Details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Southern House Plan with Home Office and Bonus Room

  • 3,024

    Heated s.f.

  • 5

    Beds

  • 4

    Baths

  • 2

    Floors

  • 3

    Car garage

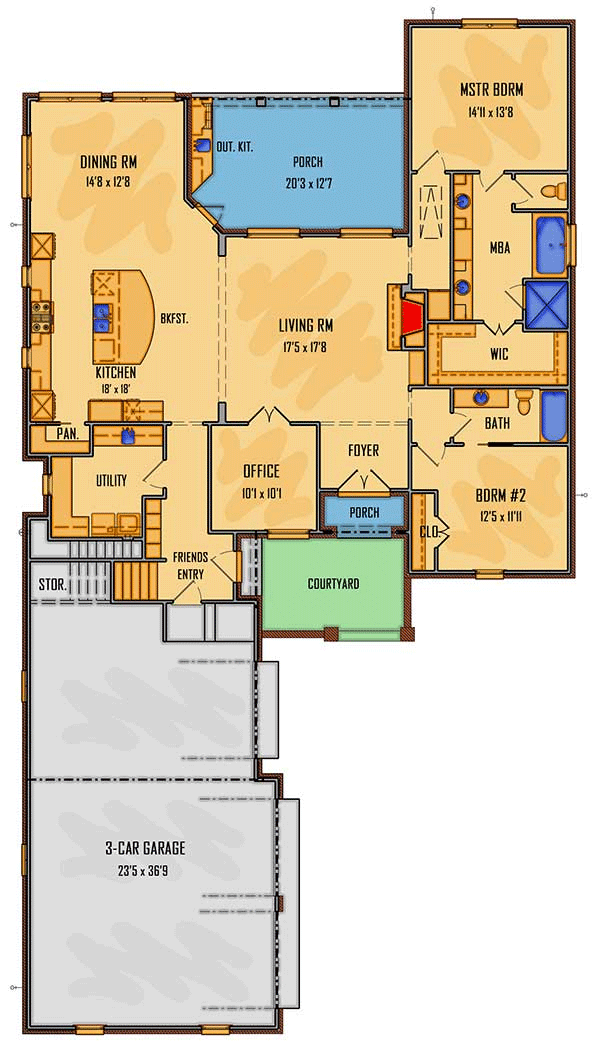

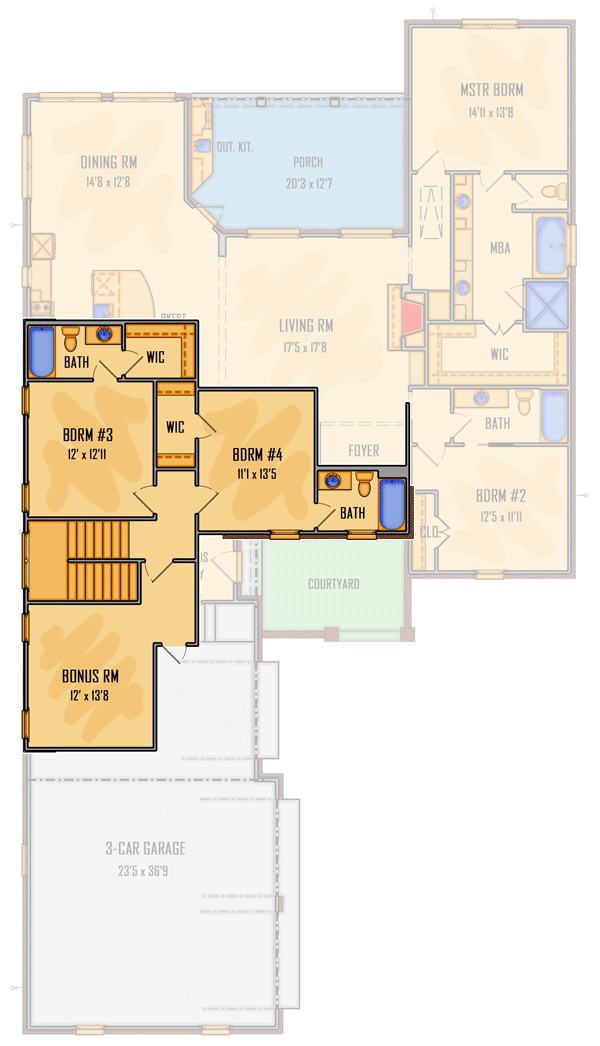

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,024 sq. ft.
  • 1st Floor: 2,249 sq. ft.
  • 2nd Floor: 775 sq. ft.

Dimensions

  • Width: 52' 9"
  • Depth: 96' 10"
  • Max ridge height: 38' 0"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4

Garage

  • Type: Attached
  • Area: 944 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 16 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
