Southern House Plan with Stacked Porches

Plan 83886JW

  • 2,638

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Stories

  • 3

    Cars

  • Lovely stacked porches grace the front of this Southern house plan.
  • There's a third porch in back on the ground floor, just right for grilling and relaxing.
  • The open floor plan is immediately visible as you enter the home and 10' ceilings make the whole space seem larger.
  • The two first floor bedrooms are split apart so you have an isolated master suite off the the right.
  • Stairs near the utility room lead up to the second floor where you have two more bedrooms and bonus space (included in the total living area square footage).
  • Two sets of double doors open up to the front-facing porch.

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

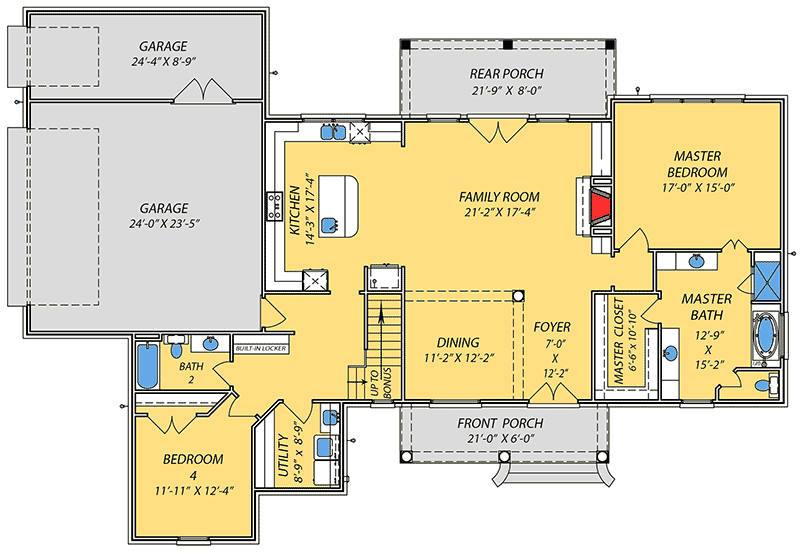

Southern House Plan with Stacked Porches - 83886JW floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

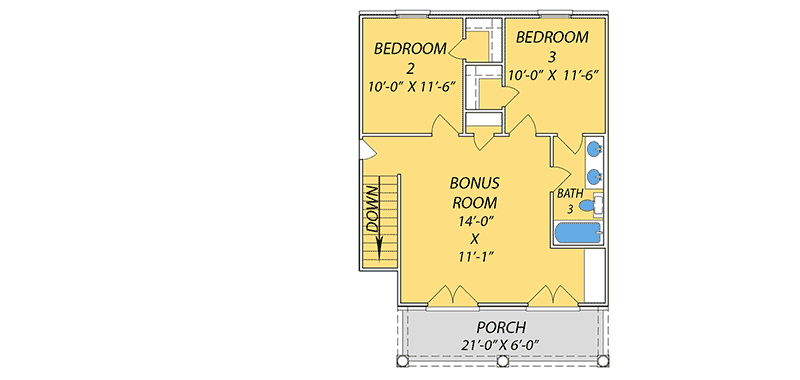

Southern House Plan with Stacked Porches - 83886JW floor plan - 2nd Floor
