Southern Influenced Estate

Plan 66231WE

  • 6,720

    Heated s.f.

  • 5-6

    Beds

  • 5.5+

    Baths

  • 2

    Stories

  • 3

    Cars

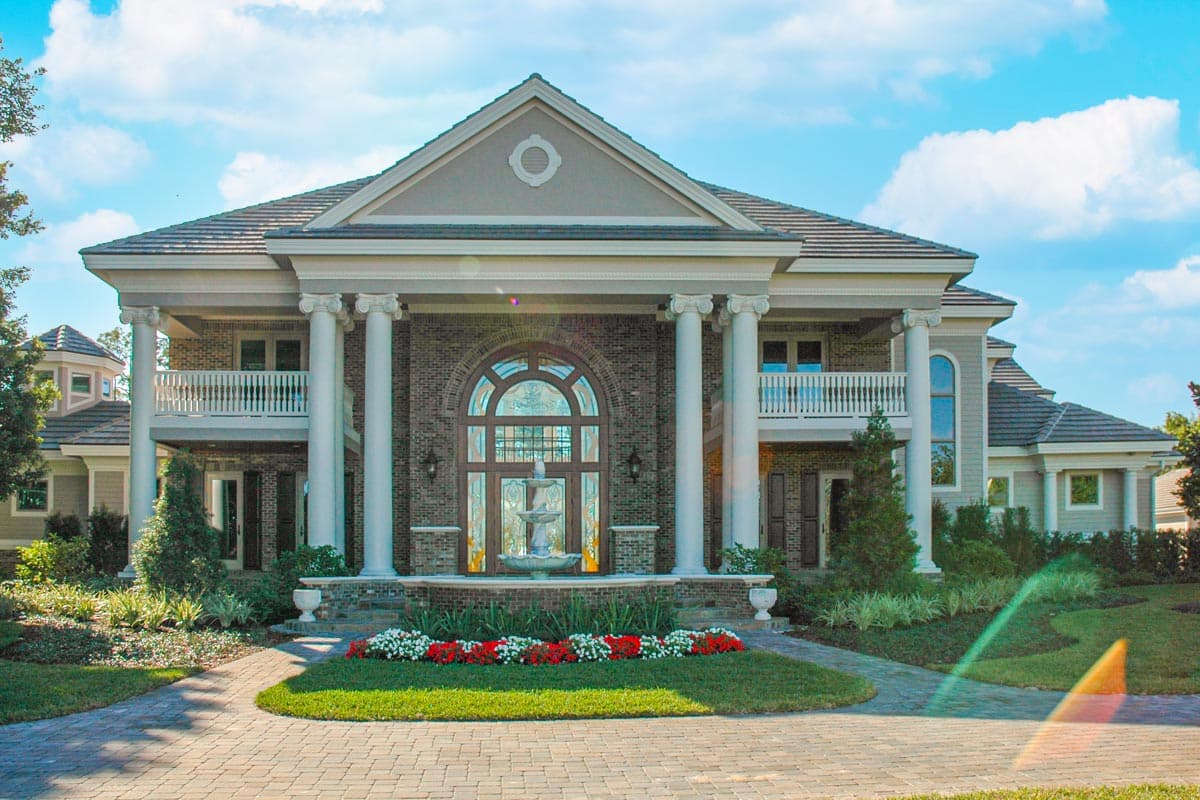

  • This southern influenced plantation estate possesses a perfect balance of timeless styling with a modern and open floor plan. The circular front fountain combined with two-story columns, elegant trim work, and beautiful masonry details create a breathtaking exterior.

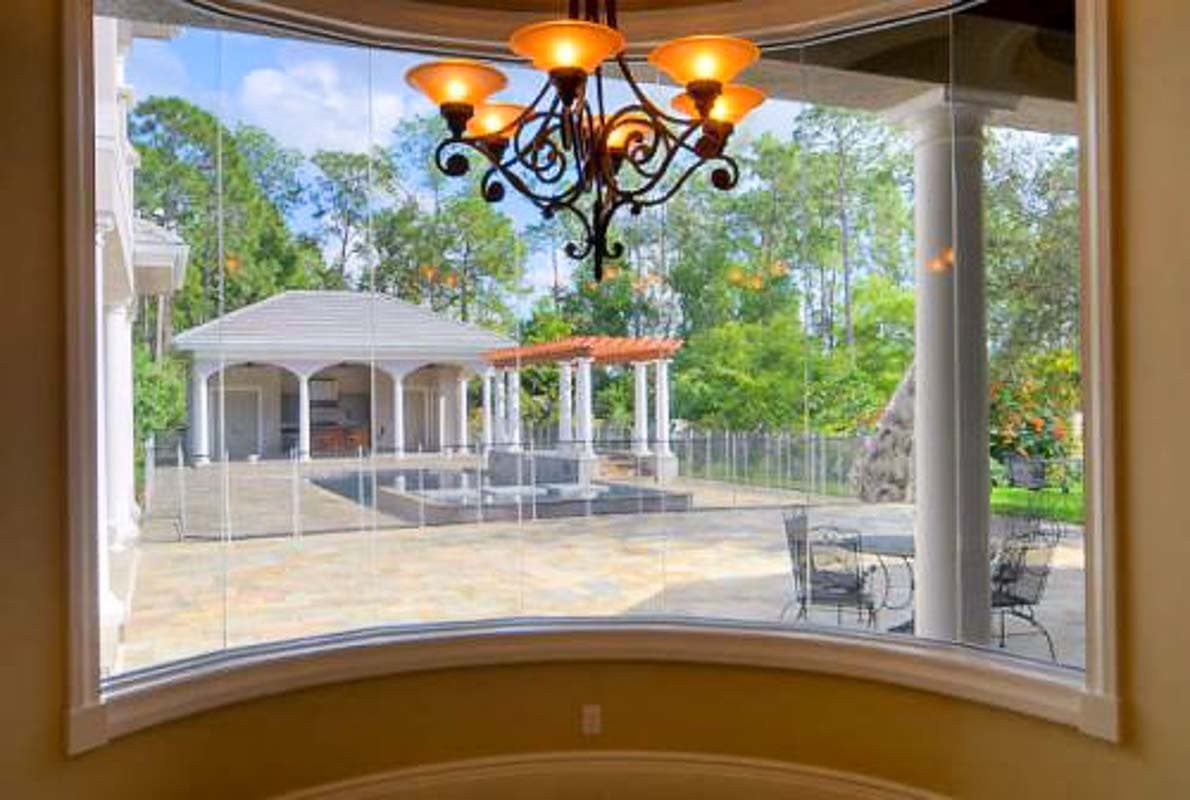

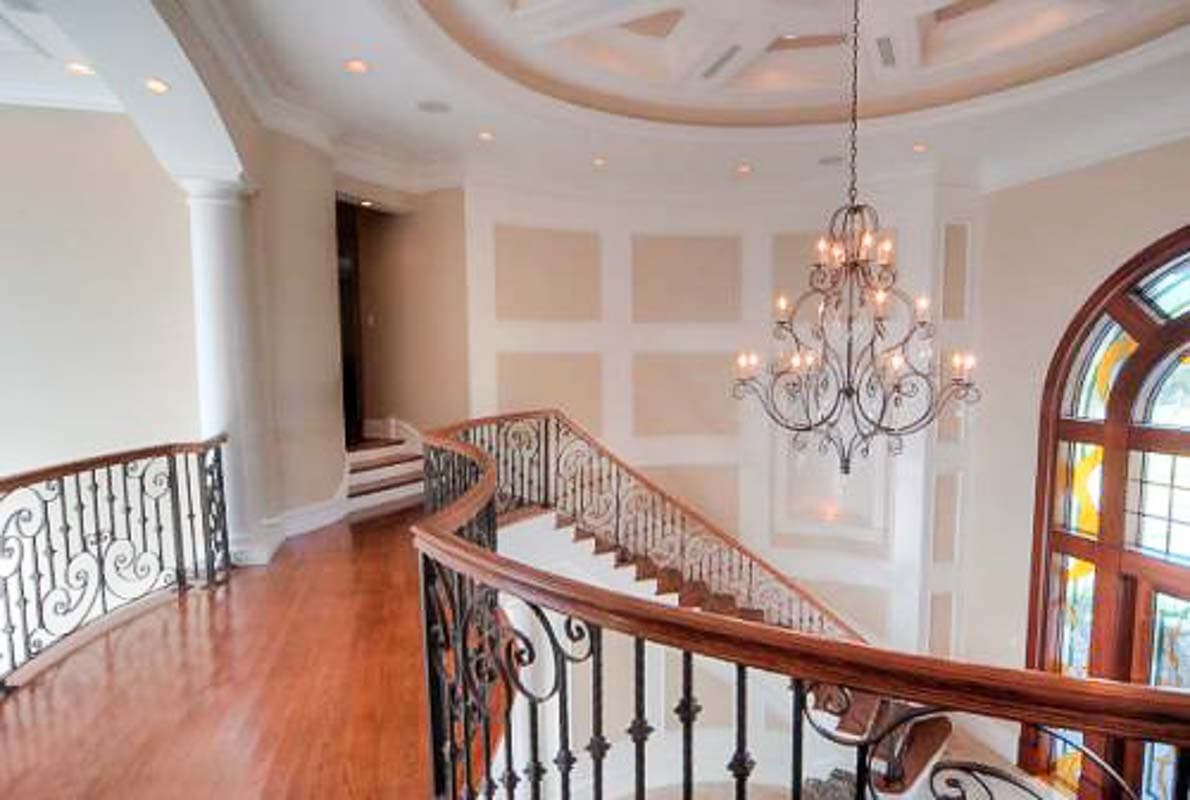

  • Upon entering the home, the foyer greets you with a pair of grand circular staircases that connect to a floating bridge at the second floor, all centered on an elaborate ceiling design that features an ornate dome. The great room entices you further with its alluring view of the reflection pond.
  • The master suite features poolside views, an oversized sitting area and considerable closet space. The master bath is transformed into a luxurious personal spa with his and her showers overlooking the central whirlpool tub and fireplace, all of which are situated under the cupola that bathes the room in natural light.

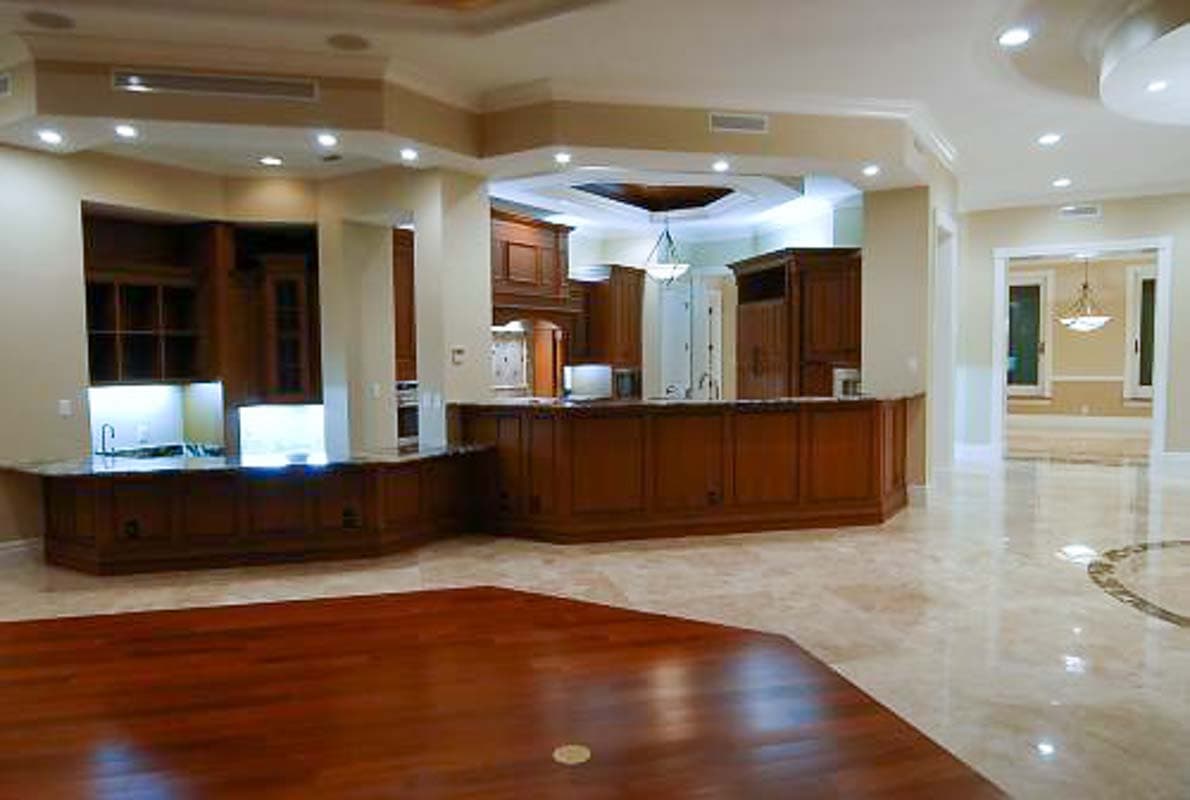

  • The elegant dining room with coffered ceilings is steps away from a wet bar and spacious kitchen. This modern kitchen provides ample counter space and a large central island which flows into a sunken full service bar overlooking the family room. A unique vaulted ceiling design, corner fireplace and French doors accentuate the family room.
  • The circular stairs in the foyer, elevator or informal stairs provide you with multiple ways to access the second floor. Walk-in closets and private baths adorn each of the bedrooms. A large loft and four balconies provide excellent space for any size family.

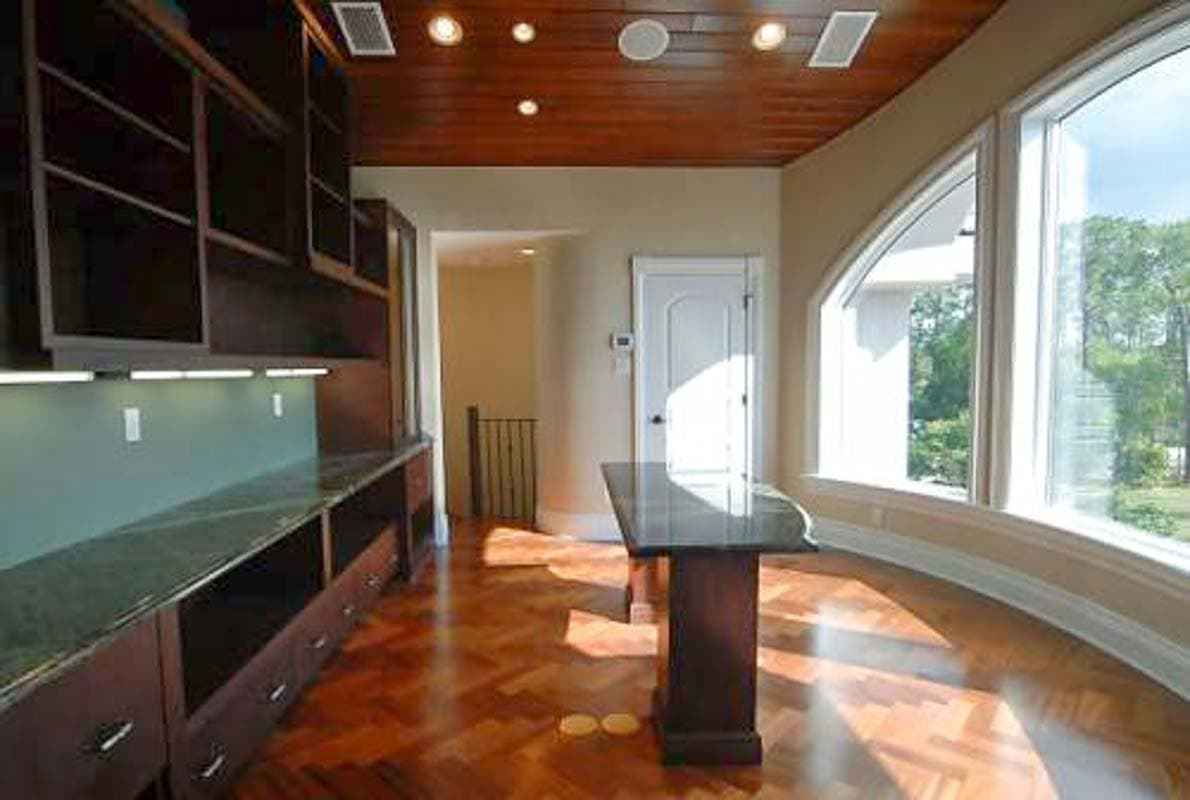

  • To top things off, retreat to the third floor study complete with a wet bar, elevator access and an awe-inspiring view of the estate grounds.

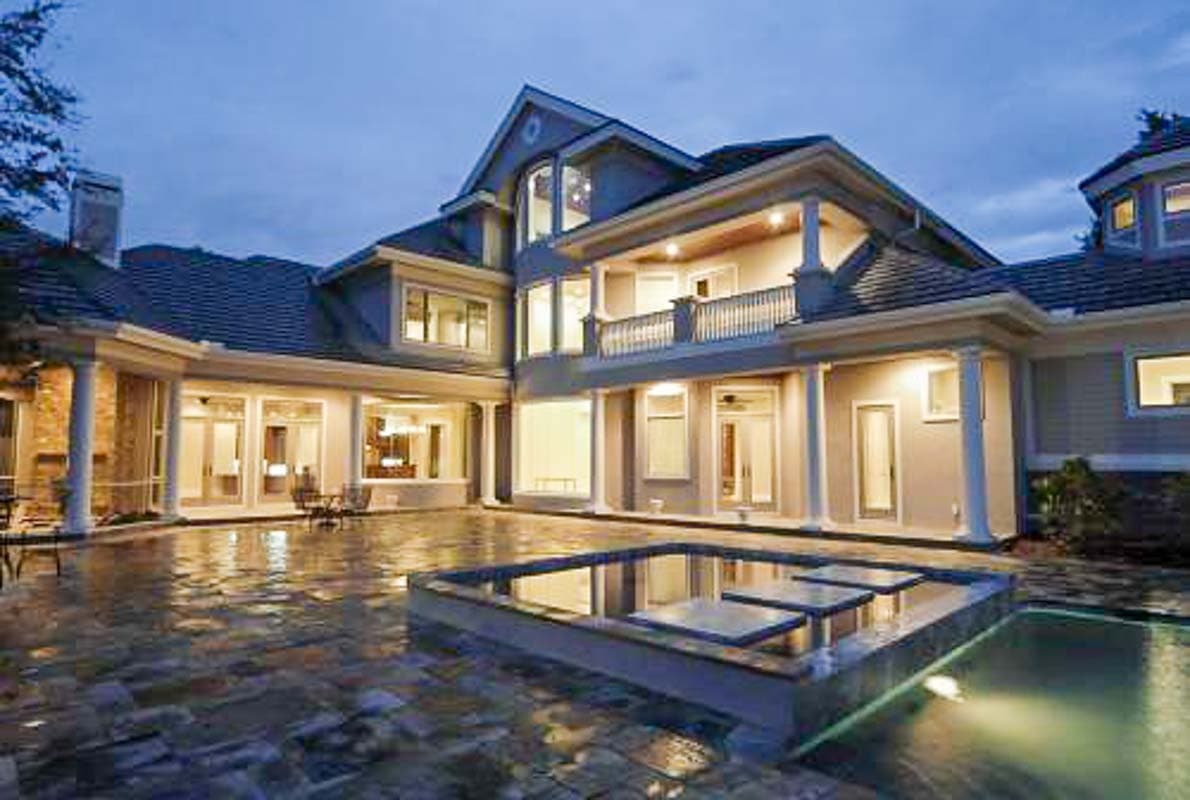

  • The covered lanai is complete with an outdoor kitchen and exterior fireplace.

Elevations

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  Material Labels
  Floor-to-Floor Heights
  Roof Slope Indicators


Floor Plans

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  Door and Window Sizes
  Completely Dimensioned Floor Plan
  Room Labels and Interior Room Sizes


Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching


*Slab Plan

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor and Deck Joist Size and Spacing
Rough-in Plumbing Location (if applicable)
Mechanical Equipment Locations (if applicable)
Electrical Locations (if applicable)



Roof Design Plan

Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers


Building Sections

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated


Typical Wall Sections

Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness


Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)



*We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.


These items are NOT included:


Architectural or Engineering Stamp - handled locally if required

Site Plan - handled locally when required

Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this

Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

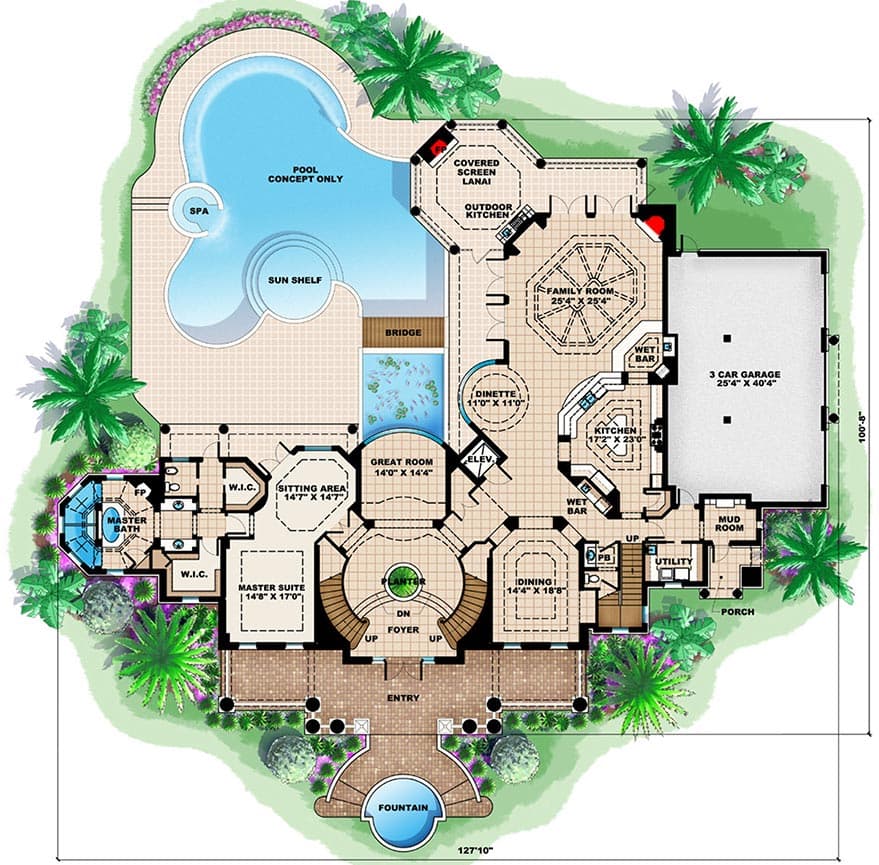

Southern Influenced Estate - 66231WE floor plan - Main Level

Second Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

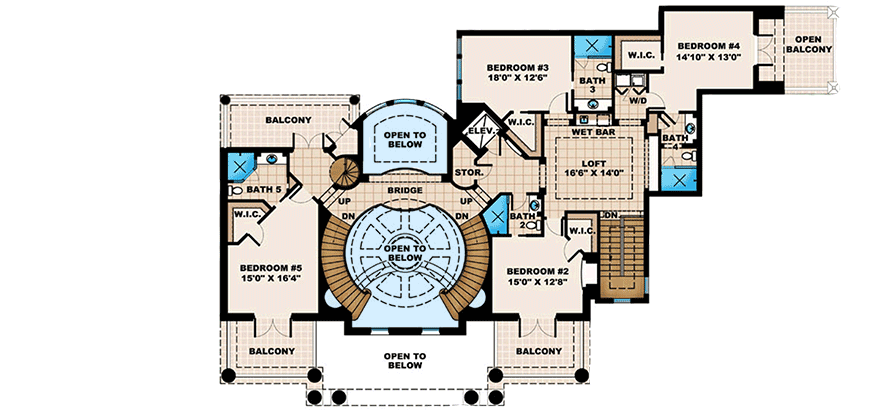

Southern Influenced Estate - 66231WE floor plan - Second Floor

Third Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Southern Influenced Estate - 66231WE floor plan - Third Floor

Optional

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Southern Influenced Estate - 66231WE floor plan - Optional

Plan details

Square Footage Breakdown

  • Total Heated Area: 6,720 sq. ft.
  • 1st Floor: 4,170 sq. ft.
  • 2nd Floor: 2,268 sq. ft.
  • 3rd Floor: 282 sq. ft.
  • Lanai: 979 sq. ft.
  • Entry: 678 sq. ft.
  • Deck: 540 sq. ft.

Beds/Baths

  • Bedrooms: 5 or 6
  • Full bathrooms: 5
  • Half bathrooms: 2

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 127' 10"
  • Depth: 100' 8"
  • Max ridge height: 41' 7"

Garage

  • Type: Attached
  • Area: 1075 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

Room Details Ceiling Type Width Depth Height
All Bedrooms Flat 10' 0"
Dinette Coffered 11' 8"
Entry Flat 21' 11"
Family Room Vaulted 15' 5"
Study Vaulted 12' 0"
Master Bedroom Coffered 12' 4"
Loft Coffered 11' 0"
Lanai Coffered 13' 0"
Foyer Vaulted 25' 4"
Master Bath Vaulted 22' 8"
Great Room Coffered 23' 4"
Dining Room Coffered 12' 4"
Kitchen Coffered 12' 4"

Roof Details

  • Primary Pitch: 8 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Southern Influenced Estate

  • 6,720

    Heated s.f.

  • 5-6

    Beds

  • 5.5+

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • Reproducible Set $3,500
  • PDF - Single-Build $3,500
  • CAD - Single-Build $3,500
  • View all purchase option online

About This Plan

  • This southern influenced plantation estate possesses a perfect balance of timeless styling with a modern and open floor plan. The circular front fountain combined with two-story columns, elegant trim work, and beautiful masonry details create a breathtaking exterior.
  • Upon entering the home, the foyer greets you with a pair of grand circular staircases that connect to a floating bridge at the second floor, all centered on an elaborate ceiling design that features an ornate dome. The great room entices you further with its alluring view of the reflection pond.
  • The master suite features poolside views, an oversized sitting area and considerable closet space. The master bath is transformed into a luxurious personal spa with his and her showers overlooking the central whirlpool tub and fireplace, all of which are situated under the cupola that bathes the room in natural light.
  • The elegant dining room with coffered ceilings is steps away from a wet bar and spacious kitchen. This modern kitchen provides ample counter space and a large central island which flows into a sunken full service bar overlooking the family room. A unique vaulted ceiling design, corner fireplace and French doors accentuate the family room.
  • The circular stairs in the foyer, elevator or informal stairs provide you with multiple ways to access the second floor. Walk-in closets and private baths adorn each of the bedrooms. A large loft and four balconies provide excellent space for any size family.
  • To top things off, retreat to the third floor study complete with a wet bar, elevator access and an awe-inspiring view of the estate grounds.
  • The covered lanai is complete with an outdoor kitchen and exterior fireplace.

Floor Plans

  • Main Level

  • Second Floor

  • Third Floor

  • Optional

Plan Details

Square Footage Breakdown

  • Total Heated Area: 6,720 sq. ft.
  • 1st Floor: 4,170 sq. ft.
  • 2nd Floor: 2,268 sq. ft.
  • 3rd Floor: 282 sq. ft.
  • Lanai: 979 sq. ft.
  • Entry: 678 sq. ft.
  • Deck: 540 sq. ft.

Beds/Baths

  • Bedrooms: 5 or 6
  • Full bathrooms: 5
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 127' 10"
  • Depth: 100' 8"
  • Max ridge height: 41' 7"

Garage

  • Type: Attached
  • Area: 1075 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Truss
Plan 66231WE
View this and more for this plan by visiting www.architechtecturaldesigns.com/66231WE
|
Need Help? 800-854-7852
|
Plan 66231WE
