Plan 16867WG
Southern Ranch Home
Heated S.F.
2,995
Beds
4
Baths
3.5
Stories
1
Cars
2
What's Included
Plan Details
  • Spacious and elegant, this big Southern Ranch home has four bedrooms plus a study.
  • The formal dining room has only two walls so you can see through to the huge great room.
  • Built-ins and a corner fireplace are featured in the great room.
  • The large gourmet kitchen has two islands and a walk-in pantry with views that overlook the nook and great room.
  • A separate foyer leads to the master suite with its tray ceiling and huge walk-in closet.
  • Homeowners are treated to double sinks and a corner soaking tub in the master bathroom.
  • The other side of the home holds the remaining three bedrooms.
  • Plans come with the option of a third garage bay.
What's Included

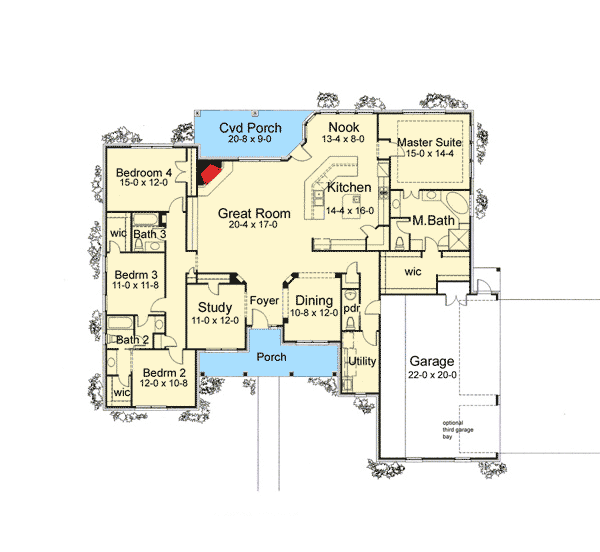

  • Floor Plans – ¼”=1’-0” scale floor plan indicating location of frame and masonry walls, support members, doors, windows, plumbing fixtures, cabinets, shelving, ceiling conditions and notes deemed relevant to this plan.

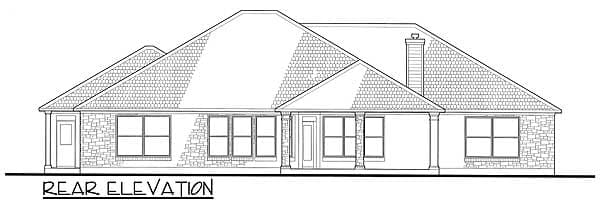

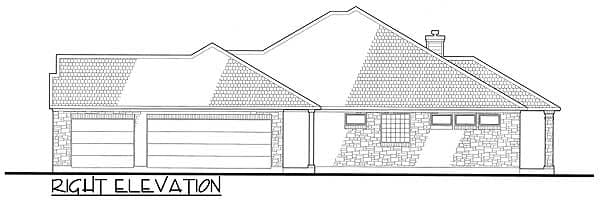

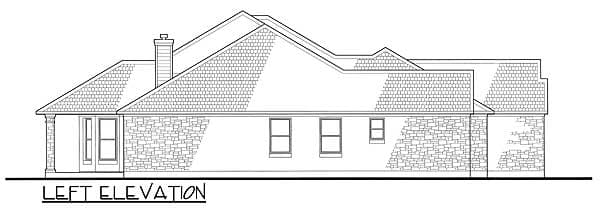

  • Exterior Elevations – All elevations at ¼” = 1’-0” scale in most cases.  Some older designs may contain 1/8” scale side and rear elevations. Drawing will indicate overall configuration of home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and extent to which they are used and enlargement of any details we feel necessary to explain the construction.
  • Building Sections – ¼” = 1’-0” building sections are included when there is no other reasonable way to indicate the volumetric/height conditions in the home.  Most of this information can usually be determined from the exterior elevations.
  • Cabinet Elevations – 3/8” = 1’-0” scale elevations indicating configuration of cabinets, heights, widths, type of components used, cabinet material and finish, counter surfaces, appliances,
  • Framing Plans – ¼” – 1’-0” scale framing plans indicating size and spacing of members as well as bracing and blocking required for structural purposes. Local codes will most likely need to be consulted.
  • Foundation Plans – ¼” = 1’-0” scale foundation plans indicating location of structural walls, grade beams, reinforcing steel and structural columns.  Consulting a local engineer is advisable as well as is analysis of soil conditions on site.
  • Electrical Plans – ¼” = 1’-0” scale schematic plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched.  Plans do not include circuiting or wire sizing.  Plans will also include specialty items such as hose bibbs, gas connections, location of a/c equipment, return air vents or other mechanical/electrical/plumbing items which need to be located.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
