Southern Ranch Home Plan with Vaulted Master Suite
Heated S.F.
2,437
Beds
3
Baths
2.5
Stories
1
Cars
2
What's Included
Plan Details
  • With a central living space that expands onto a covered porch, complete with an outdoor kitchen, all of your entertaining dreams are made possible with this Southern Ranch home plan.
  • The kitchen is supported by a large walk-in pantry and the adjoining dining nook is lined with windows that overlook the rear porch.
  • The vaulted master bedroom is at the rear of the house with an attached bath and his / hers closets that provide additional privacy between the owner's oasis and remainder of the home.
  • Considerate of curb appeal, the double garage offers entry from the side with an additional bay for storage or a third car.
  • Other notable features include a mudroom, quiet study, and Jack-and-Jill bathroom between the family bedrooms.
What's Included
  • Exterior elevations
  • Roof Plan
  • Floor plan(s)
  • Window, door and finish schedules
  • Slab foundation plan
  • Footing details
  • Building section
  • Wall Sections
  • Electrical plan
  • General notes
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Southern Ranch Home Plan with Vaulted Master Suite

  • 2,437

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

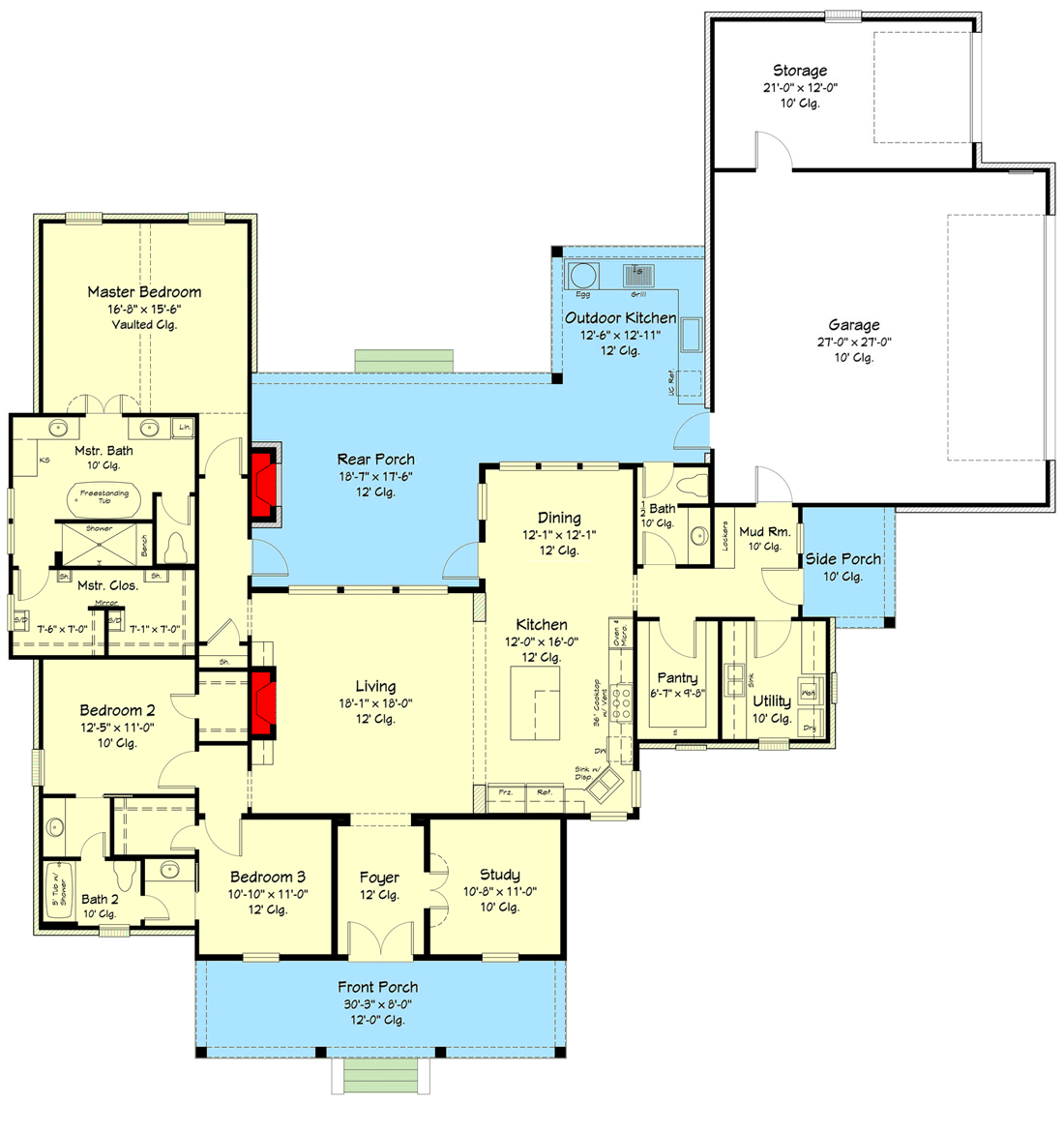

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,437 sq. ft.
  • 1st Floor: 2,437 sq. ft.

Dimensions

  • Width: 85' 3"
  • Depth: 85' 4"
  • Max ridge height: 30' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1079 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 18 on 12
  • Framing Type: Stick
