Plan 56375SM

Southern Splendor With Great Porches

3,240 4 3.5 1-2 3
Pageloader

Southern Splendor With Great Porches

Plan 56375SM

  • 3,240

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1-2

    Stories

  • 3

    Cars

  • This Acadian style house has a beautiful brick and stucco facade with two dormers centered over the 35' long and 8' deep porch.
  • The foyer gives you views straight through to the back of the family room and across the rear porch beyond.
  • The open floorplan gives you views from the kitchen to the dining room and family room. The kitchen features a large island with sink and seating for casual meals and a huge walk-in pantry.
  • The room with large walk-in closet/storage space right off the foyer makes for a great area for a home-office or just for your family's study space.
  • The master suite has views to the back and the bath has a corner pedestal tub, walk-in shower with a tile seat, separate vanities and a massive walk-in closet.
  • The large screened rear porch has a fireplace and has room to put an outdoor kitchen at the far end.
  • Expand upstairs with a bonus room and half bath over the garage.
  • The roof has a 9:12 pitch.
  • Related Plan: Get an alternate layout with house plan 56376SM (3,176 sq. ft.).

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
  • DOOR, WINDOW AND ROOF FINISH SCHEDULES: Window & Door schedules as well as room finish schedules showing flooring specs, crown molding, cabinets, countertop materials, & ceiling heights.
  • FOUNDATION PLAN AND CEILING JOISTS LAYOUT: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, smoke detectors, cable TV and telephones.
  • HVAC / MECHANICAL PLAN: Specifications, notes, air handler details and plans showing the locations and size of HVAC units, compressors, vents, grills, cfm flows, attic access and clearances.

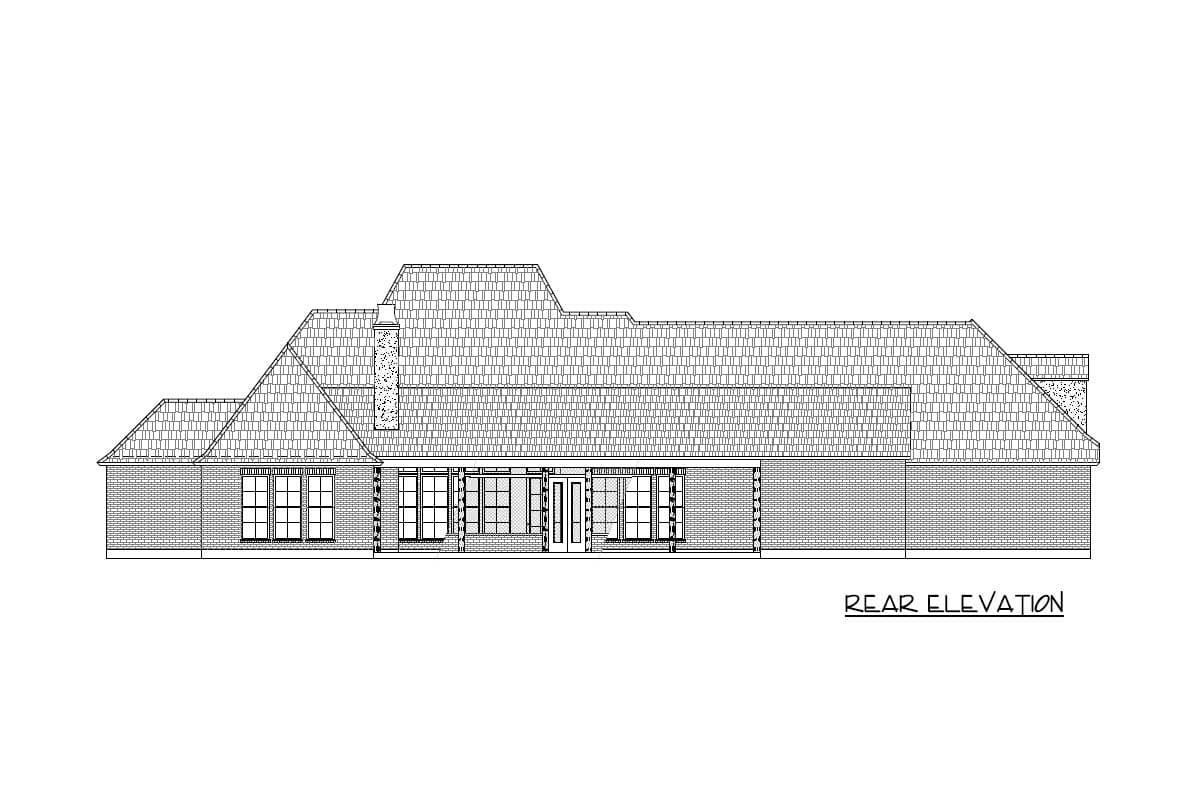

  • FRONT AND REAR ELEVATIONS: The front and rear elevation of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
  • SIDE ELEVATIONS, ROOF PLANS, WALL SECTIONS AND FRAMING DETAILS: Side views of house, and necessary framing and roofing details. Also included are wall sections, and any other necessary details for your framer or other subcontractors.

Plan details



Southern Splendor With Great Porches

  • 3,240

    Heated s.f.

  • 4

    Beds

  • 3 +

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $1,250
  • 6 Sets $1,350
  • CAD $2,150
  • View all purchase option online

About This Plan

  • This Acadian style house has a beautiful brick and stucco facade with two dormers centered over the 35' long and 8' deep porch.
  • The foyer gives you views straight through to the back of the family room and across the rear porch beyond.
  • The open floorplan gives you views from the kitchen to the dining room and family room. The kitchen features a large island with sink and seating for casual meals and a huge walk-in pantry.
  • The room with large walk-in closet/storage space right off the foyer makes for a great area for a home-office or just for your family's study space.
  • The master suite has views to the back and the bath has a corner pedestal tub, walk-in shower with a tile seat, separate vanities and a massive walk-in closet.
  • The large screened rear porch has a fireplace and has room to put an outdoor kitchen at the far end.
  • Expand upstairs with a bonus room and half bath over the garage.
  • The roof has a 9:12 pitch.
  • Related Plan: Get an alternate layout with house plan 56376SM (3,176 sq. ft.).

Floor Plans

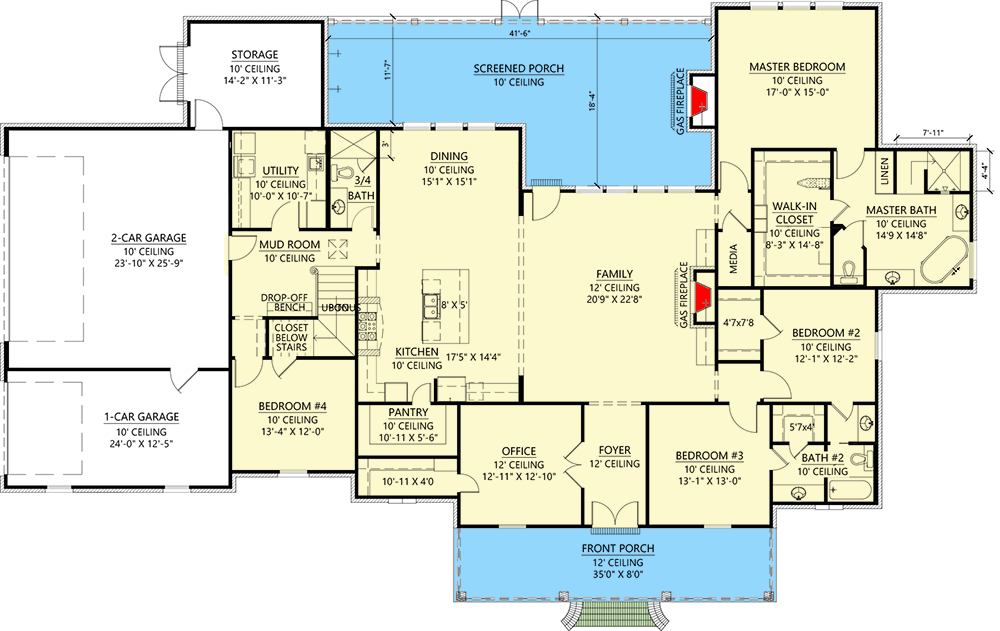

  • Main Level

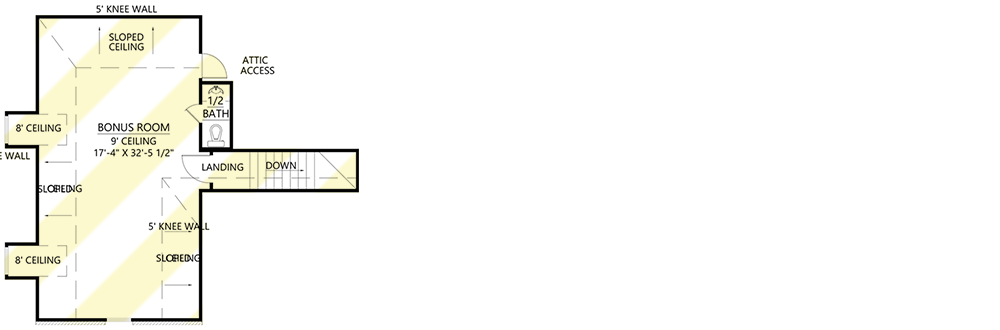

  • Bonus

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,240 sq. ft.
  • 1st Floor: 3,240 sq. ft.
  • Bonus: 679 sq. ft.
  • Porch, Combined: 892 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 0 or 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 105' 9"
  • Depth: 64' 11"
  • Max ridge height: 30' 0"

Garage

  • Type: Attached
  • Area: 1177 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
