Plan 56445SM
Southern-Style Acadian with Outdoor Kitchen and Wrap-Around Porch
Heated S.F.
2,860
Beds
4
Baths
3.5
Stories
1
Cars
3
Floor Plan

Plan 56445SM

Main Level
slide image 0
Bonus Room
slide image 1

Plan 56445SM

1-800-854-7852

1-262-521-4596

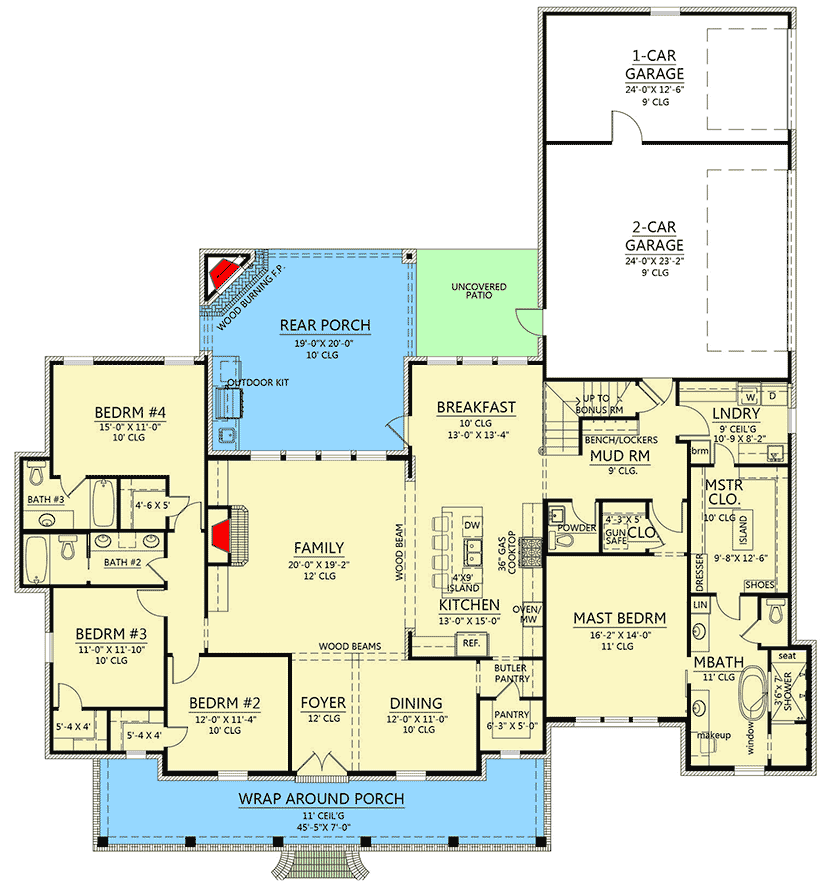

Main Level
floor plan image Main Level

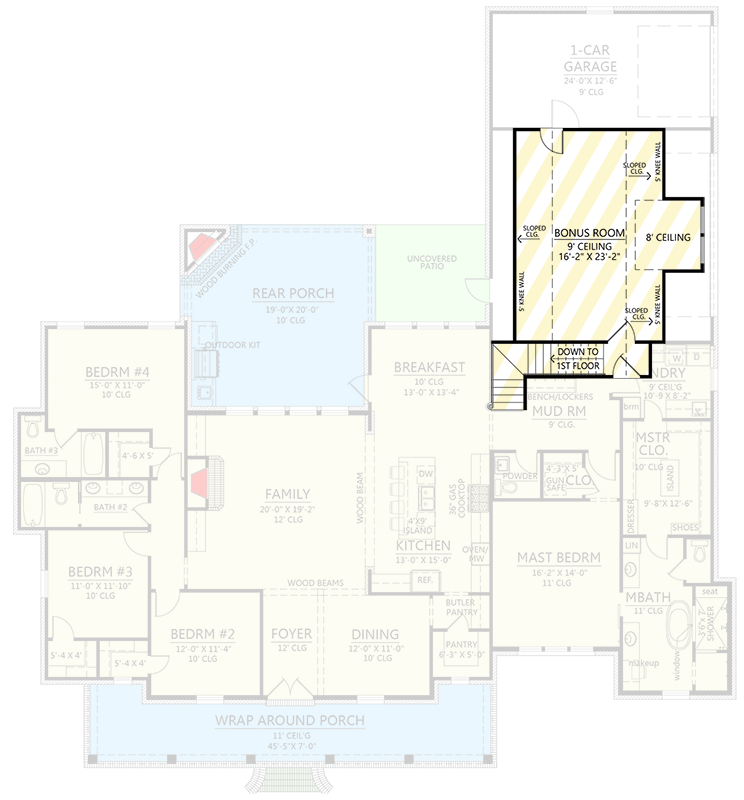

Bonus Room
floor plan image Bonus Room
Plan Details

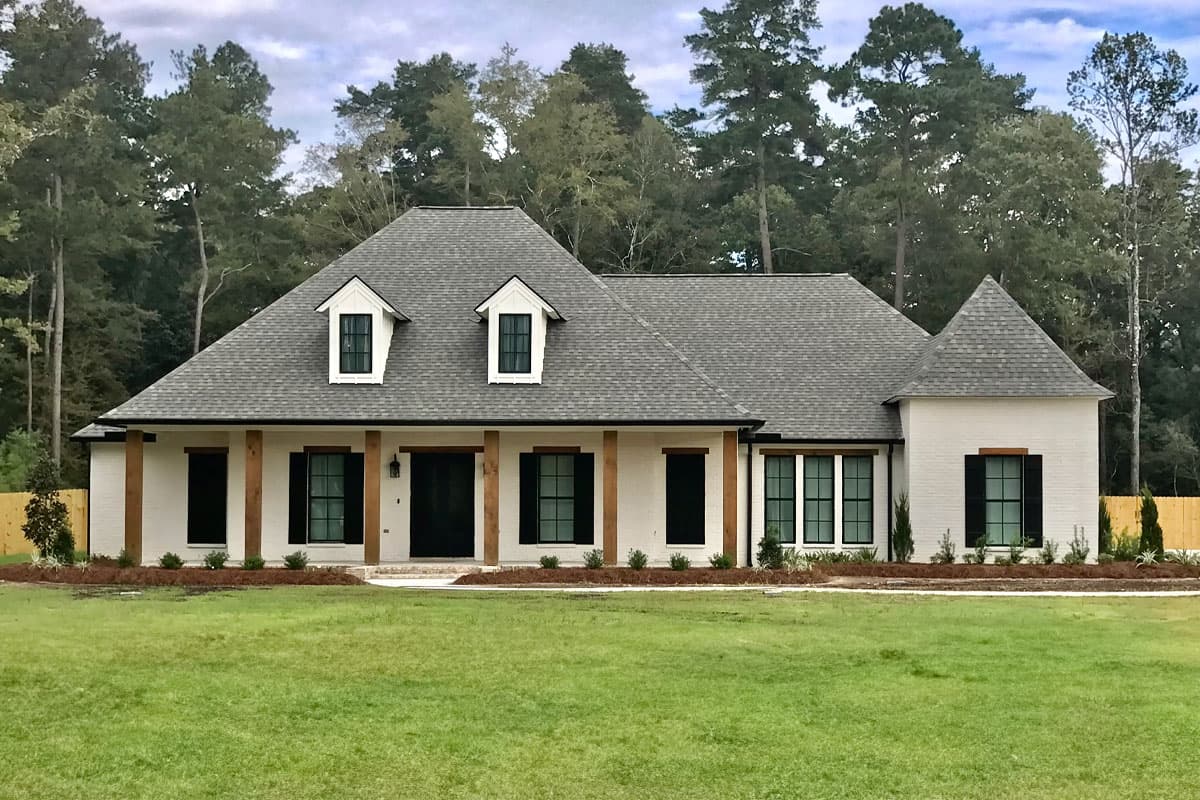

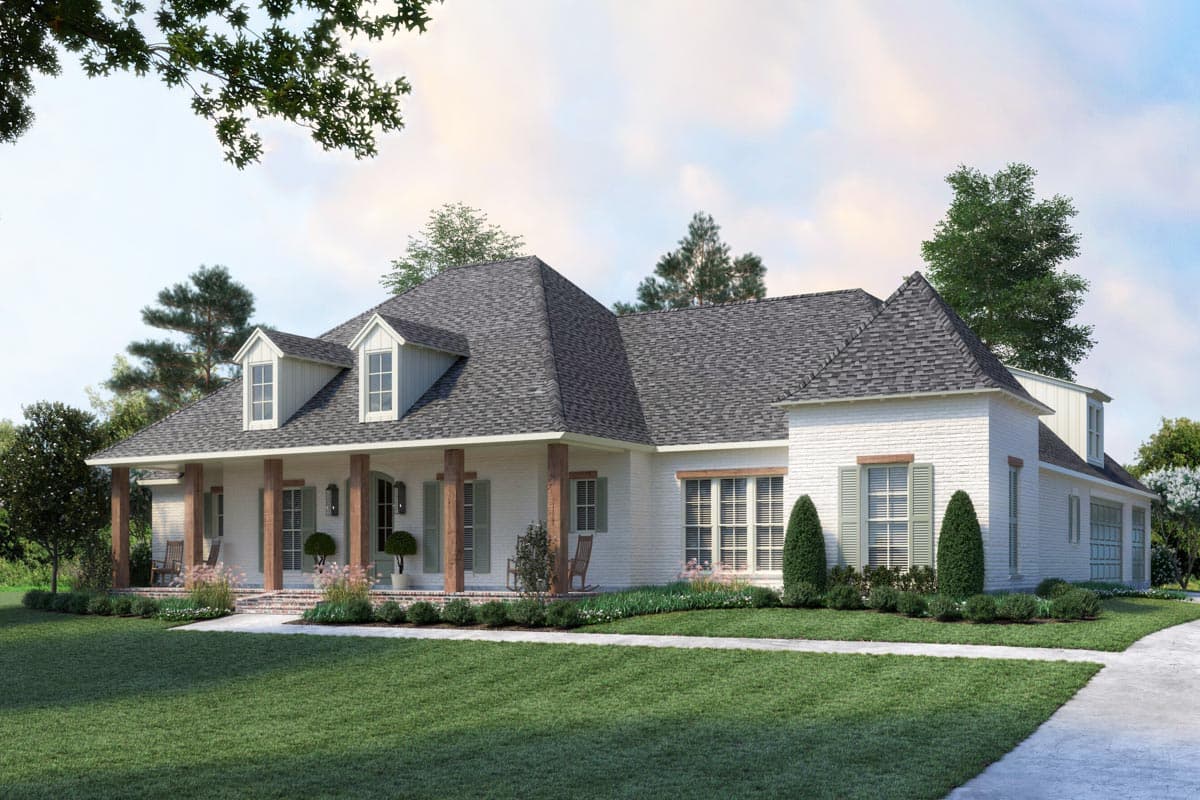

  • Two dormers sit above the broad front porch supported by six square columns of this 4-bed house plan with an easy-to-maintain brick exterior.
  • French doors open to the reveal beams separating the foyer from the great room and the dining room.
  • Ahead, the family room has a fireplace flanked by built-ins on the left wall and windows look out on the large rear porch. The family room is open to the kitchen which has a large island with great workspace and room for four chairs. From behind the island you can see all the way across the home to the family room fireplace.
  • A door from the breakfast room opens to the rear porch with its own fireplace and an outdoor kitchen. Make this your outdoor living room if building in the right climate. The entire space opens to an uncovered patio which has access to the garage.
  • The master suite occupies the entire right side of the home. You'll like having a large walk-in closet. The fact that it has access to the laundry room is something you'll like as well.
  • Three bedrooms and two baths are located across the home. Each bedroom has a walk-in closet.
  • Stairs take you to the large bonus room over the garage.
What's Included
  • FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
  • DOOR, WINDOW AND ROOF FINISH SCHEDULES: Window & Door schedules as well as room finish schedules showing flooring specs, crown molding, cabinets, countertop materials, & ceiling heights.
  • FOUNDATION PLAN AND CEILING JOISTS LAYOUT: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, smoke detectors, cable TV and telephones.

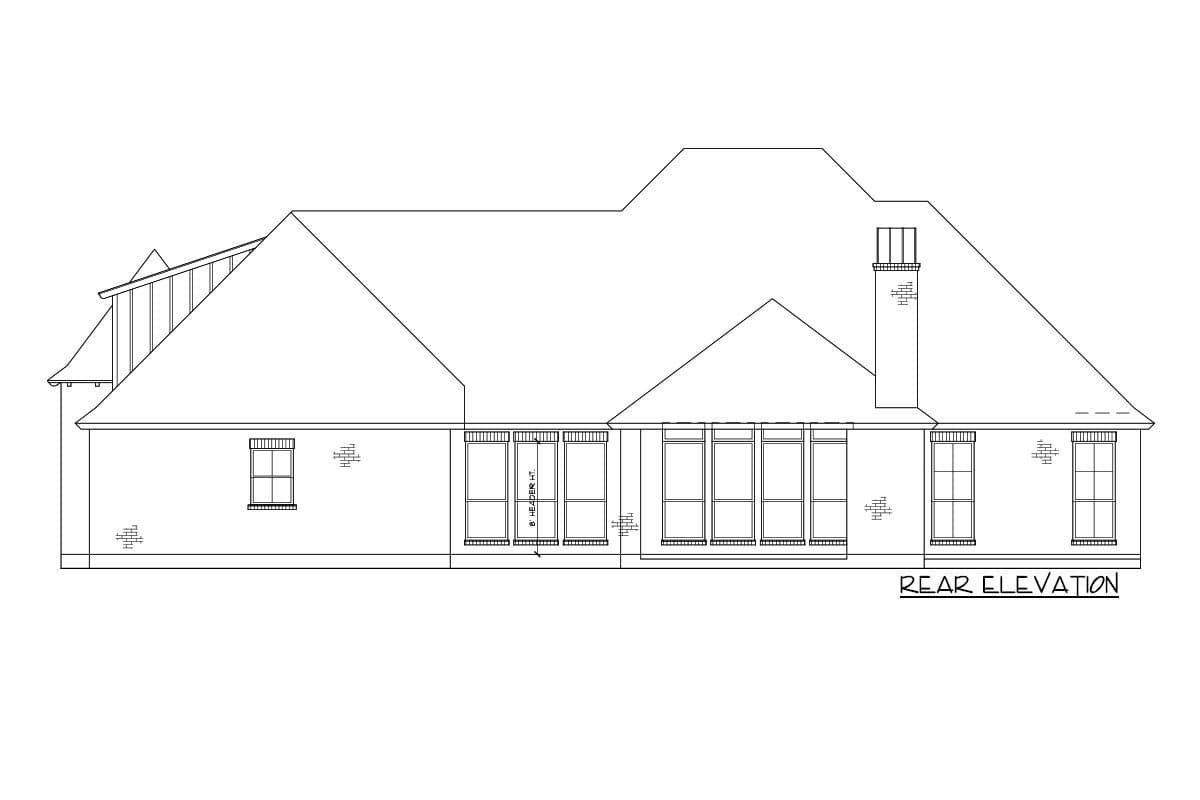

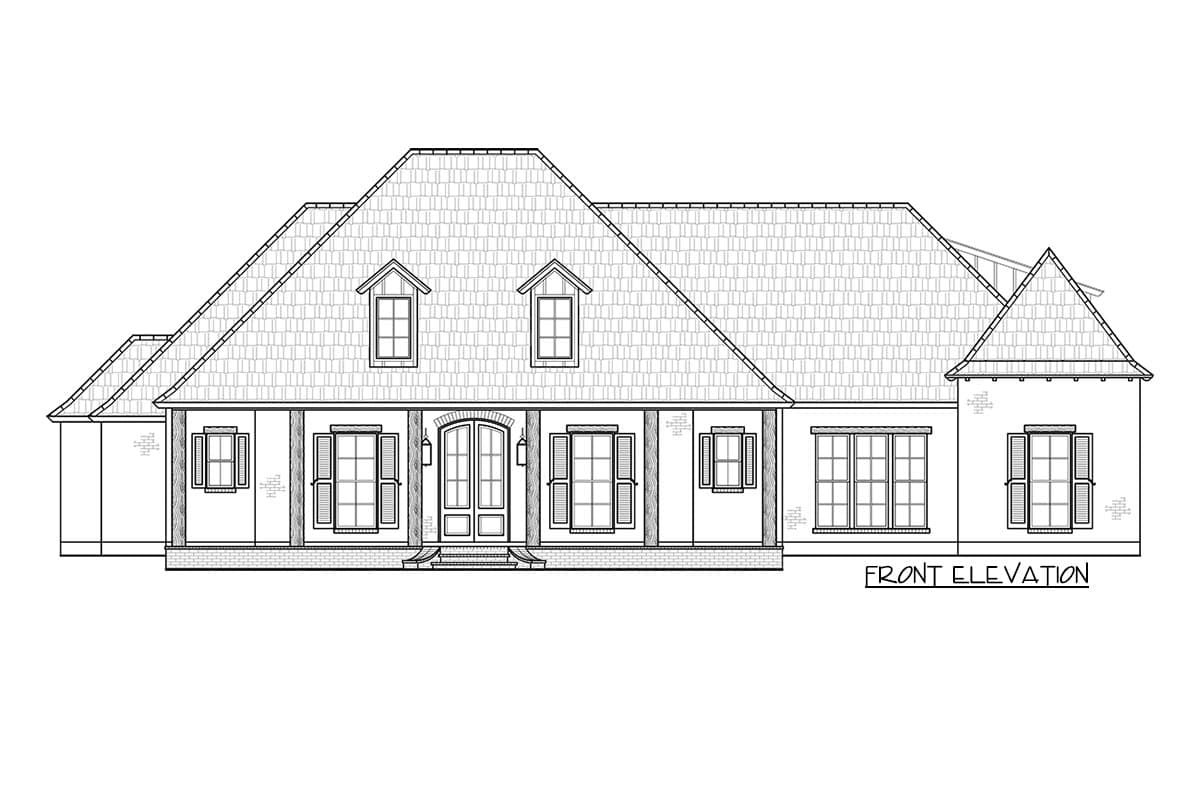

  • FRONT AND REAR ELEVATIONS: The front and rear elevation of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
  • SIDE ELEVATIONS, ROOF PLANS, WALL SECTIONS AND FRAMING DETAILS: Side views of house, and necessary framing and roofing details. Also included are wall sections, and any other necessary details for your framer or other subcontractors.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,860 sq. ft.

1st Floor

2,860 sq. ft.

Bonus

454 sq. ft.

Porch, Combined

752 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

78' 7"

Depth

83' 3"

Max Ridge Height

28' 8"

Garage

Type

Attached

Area

940 sq. ft.

Count

3 Cars

Entry Location

Rear

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Acadian
