Plan: 59818ND

Southern Tradition

2,747 5 3 2 2
Pageloader

Southern Tradition

Plan 59818ND

  • 2,747

    Heated s.f.

  • 5

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

  • Southern tradition at its finest with this home plan. Welcome friends and family on the front covered porch on Sunday afternoons. This five bedroom design hosts numerous entertaining options from the cozy great room to the elegant dining room.
  • Privacy is available for everyone with the bedrooms offering the older children the opportunity to have the upper floor with the home theater for Friday nights.
  • 2x4 & 2x6 exterior wall construction.
  • Foundations: slab or crawl. Basement available for an additional charge.
  • See these related house plans: 5901ND, 5994ND, 59817ND,.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Building Sections (1/4″ or 1/2″ = 1′)
  • Kitchen and Bath Elevations (1/2″ = 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches

Floor Plan

Plan details



Southern Tradition

  • 2,747

    Heated s.f.

  • 5

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 1 Set $640
  • 5 Sets $730
  • 8 Sets $870
  • Reproducible Set $1,340
  • PDF - single-use $1,340
  • CAD $2,065
  • View all purchase option online

About This Plan

  • Southern tradition at its finest with this home plan. Welcome friends and family on the front covered porch on Sunday afternoons. This five bedroom design hosts numerous entertaining options from the cozy great room to the elegant dining room.
  • Privacy is available for everyone with the bedrooms offering the older children the opportunity to have the upper floor with the home theater for Friday nights.
  • 2x4 & 2x6 exterior wall construction.
  • Foundations: slab or crawl. Basement available for an additional charge.
  • See these related house plans: 5901ND, 5994ND, 59817ND,.

Floor Plans

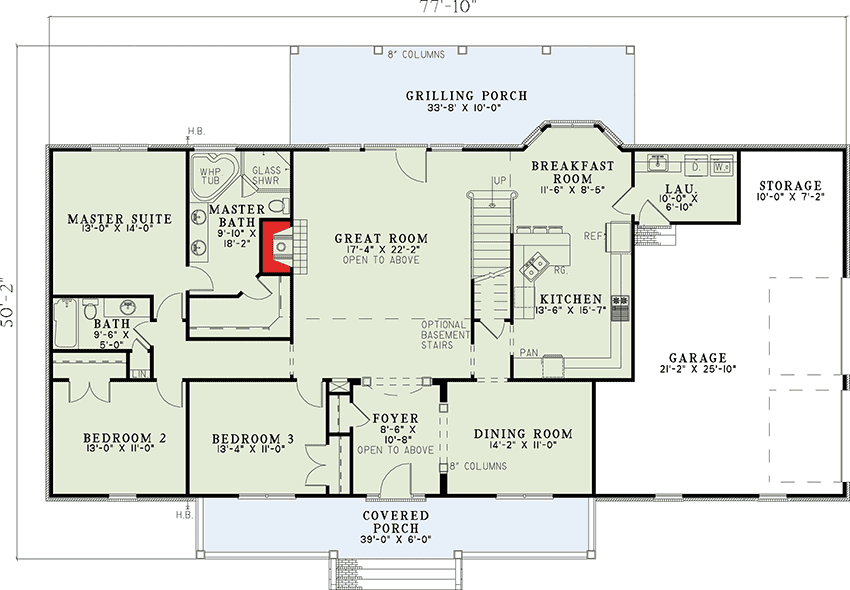

  • Main Level

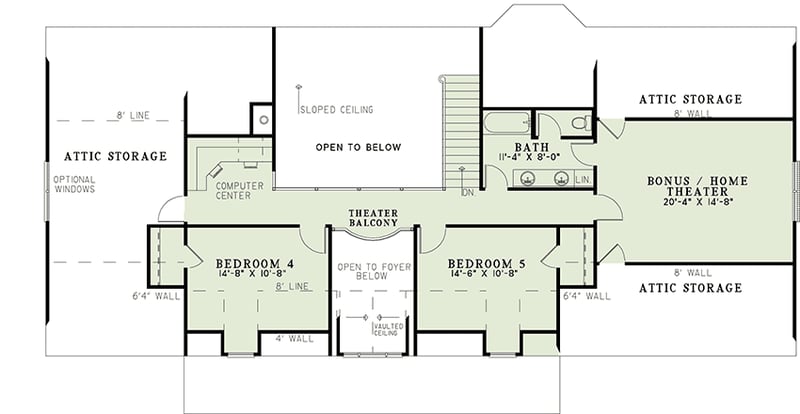

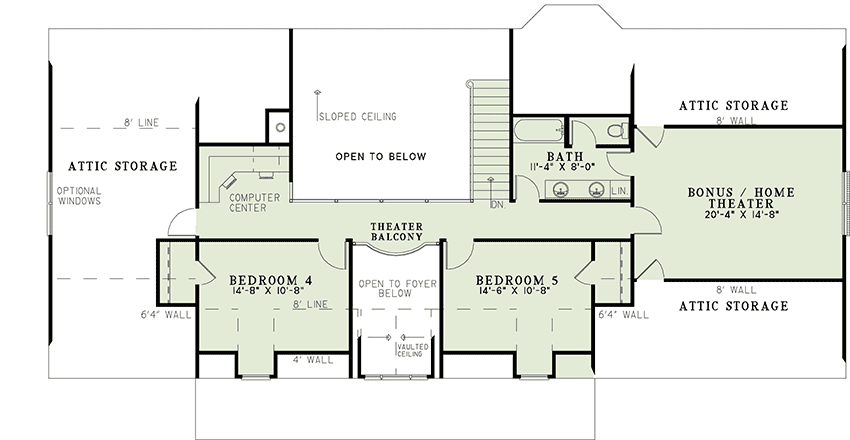

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,747 sq. ft.
  • 1st Floor: 2,004 sq. ft.
  • 2nd Floor: 743 sq. ft.
  • Bonus: 316 sq. ft.
  • Porch, Combined: 553 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 77' 10"
  • Depth: 50' 2"
  • Max ridge height: 27' 0"

Garage

  • Type: Attached
  • Area: 672 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Stick

Architectural Style

  • Country
  • Traditional

Special features

  • 1st Floor Master Suite
  • Bonus Room
  • CAD Available
  • Media-Game-Home Theater
  • PDF
