Southern Traditional Home Plan with Elevator and Large Covered Lanai

Plan 65750BS

  • 5,444

    Heated s.f.

  • 5

    Beds

  • 6.5+

    Baths

  • 2

    Stories

  • 3

    Cars

  • At just under 5,500 sq ft, this Southern Traditional home plan is brimming with charm and curb appeal. The interior living spaces flow onto the covered lanai for ease when entertaining.
  • A T-shaped island anchors the spacious kitchen and provides seating for four, while the laundry room's convenient proximity allows you to multi-task when needed.
  • Behind a pocket door, just off the dining room, discover a family room with access to the lanai and pool bath.
  • The master suite occupies the left side of the main level, and includes a tray ceiling, dual walk-in closets, and a deluxe ensuite with two toilet rooms.
  • Upstairs, four bedroom suites surround a generous loft with access to a covered balcony. A second laundry room on this level makes laundry day more efficient.
  • BUILDING RESTRICTION: Restrictions may apply if building in Lee and Collier Counties, Florida as well as Sarasota, Florida.

Plans include the following:


Elevations:

Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Material Labels
  • Floor-To-Floor Heights
  • Roof Slope Indicators

Floor Plans:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes

Electrical Layouts:

  • Building Section Markers
  • All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale

Roof Design Plan:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges and Valley
  • Building Section Markers

Building Sections:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Floor-To-Floor Heights
  • Non-Typical Plate Heights Indicated

Typical Wall Sections:
Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness
  • Insulation Type and Thickness

Miscellaneous Notes and Details:

  • Miscellaneous General Notes
  • Stairway Details (if applicable)
IMPORTANT NOTE:  Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc.  Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

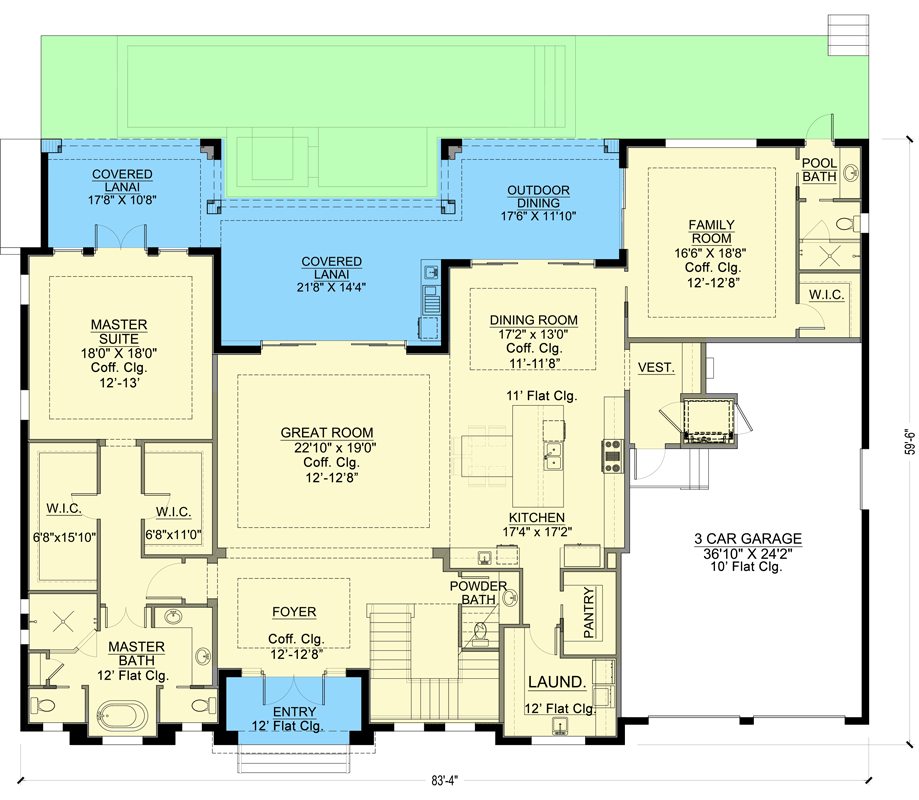

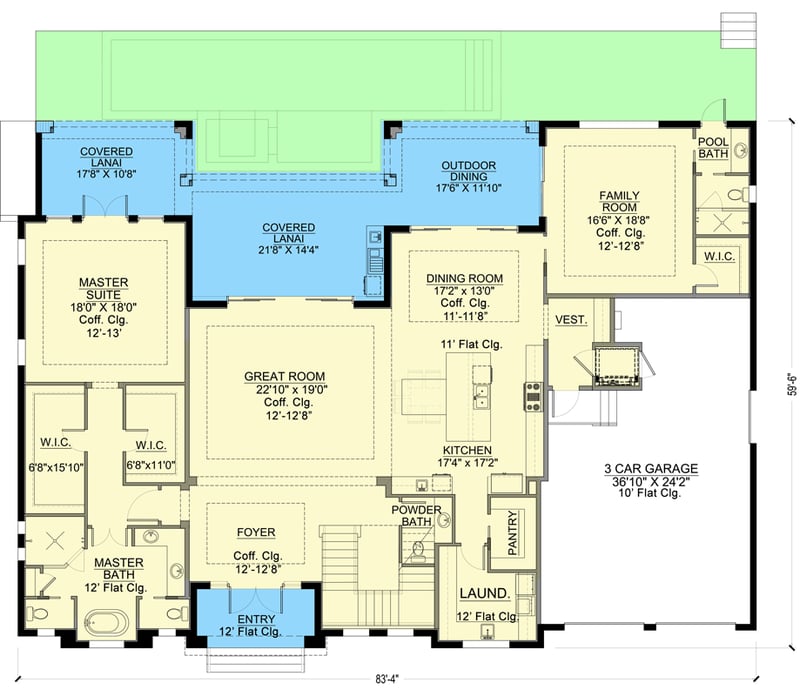

Southern Traditional Home Plan with Elevator and Large Covered Lanai - 65750BS floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

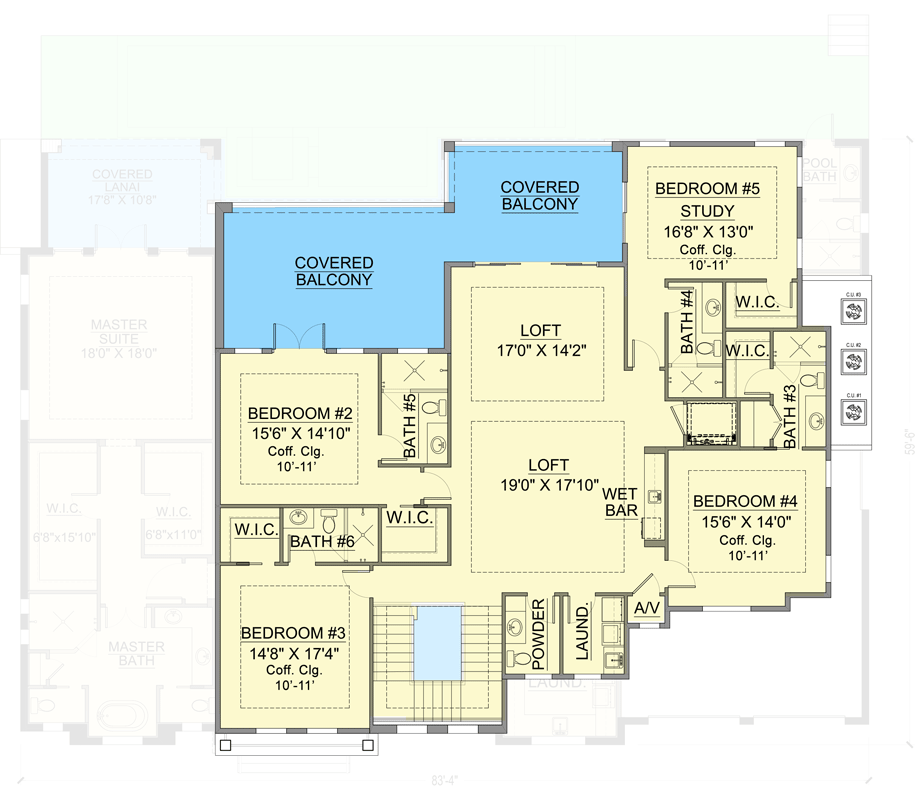

Southern Traditional Home Plan with Elevator and Large Covered Lanai - 65750BS floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 5,444 sq. ft.
  • 1st Floor: 3,103 sq. ft.
  • 2nd Floor: 2,341 sq. ft.
  • Lanai: 707 sq. ft.
  • Entry: 92 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 6
  • Half bathrooms: 2

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 83' 4"
  • Depth: 59' 6"
  • Max ridge height: 36' 1"

Garage

  • Type: Attached
  • Area: 800 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Roof Details

  • Primary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

Special features
