Plan 264195KMD

Southwest House Plan with Game Room and Two-Story Great Room

Name: Plan 264195KMD: Southwest House Plan with Game Room and Two-Story Great Room
Brand: Architectural Designs
SKU: 264195KMD
Price: 2082.97 USD
Availability: InStock

Heated S.F.

3,203

Beds

Baths

3.5

Stories

Cars

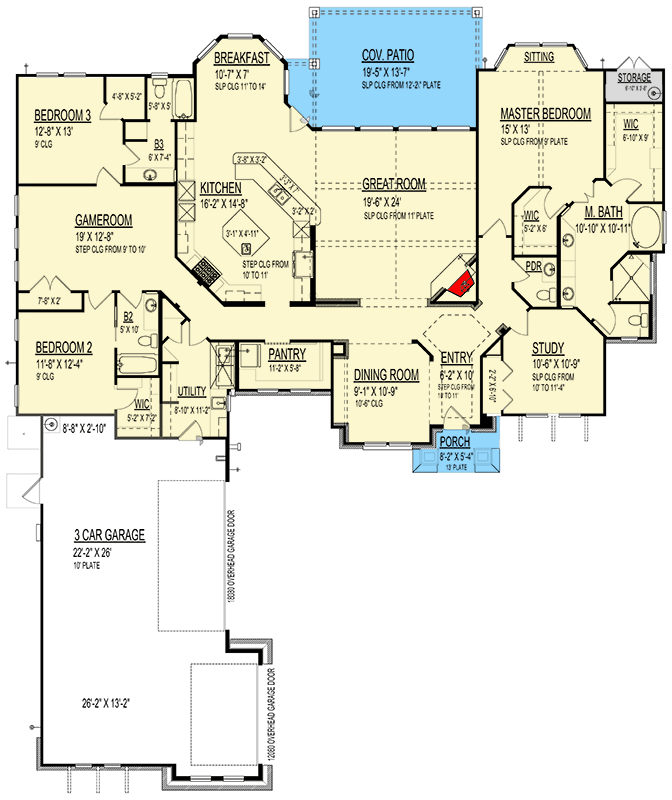

Floor Plan

Main Level

Plan Details

This expansive Southwest House Plan spans 3,203 sq ft of refined living space, featuring 3 bedrooms, 3.5 bathrooms, and an attached 3-car garage offering 1,017 sq ft of storage and utility.
Upon entry, guests are welcomed into a grand two-story great room, creating an immediate sense of spaciousness and light, while a dedicated home office and a versatile flex room – ideal for a library or game room – offer private retreats or adaptable living spaces off the main entry.
The heart of the home features a gourmet kitchen, thoughtfully designed with two large islands perfect for meal prep and casual dining, seamlessly flowing into a charming breakfast nook and a formal dining room, all supported by a practical butler's walk-in pantry for effortless entertaining.
The luxurious primary master suite, conveniently located on the first floor, boasts a private sitting area, providing a serene escape, and is thoughtfully separated from the secondary bedrooms in a split layout, ensuring privacy and comfort for all residents.
A practical mudroom and a main-level laundry room enhance daily living, while the flexible layout allows the home office or library/study to transform into a quiet sanctuary for work or reading.

What's Included

Foundation Plan: Includes the complete foundation with dimensions, plumbing locations for slabs and reference details for foundation construction. Also includes any specific construction notes or requirements to ensure proper installation. Does not include Structural Engineering stamp due to regional specification and requirements per local conditions. Typically, structural requirements can be obtained by local lumber supplier for little or no cost.
Elevations: Exterior views from all four directions that includes dimensions, height dimensions including finished floor to highest point of the structure. Also includes all special construction notes, finishes and applicable elements that need extra detail to convey the design intent to construct in the field correctly.
Floor Plan(s): Complete with dimensions of wall locations, windows, doors, cabinetry, and special construction elements. Notes including standard and special conditions tailored for the tradesmen in mind. We strive to give your contractor more dimensions than they need.
Roof Plan: Complete with overhang dimensions, plate heights which remove the guesswork of how the roof is properly constructed. Also includes roof pitches, notes for special conditions, roof square footage which is a big help estimating roof materials and reducing job site waste.
Details: All relevant details including Cornice (eave) which are designed directly from each plan "we do not reuse details with each plan." we also include applicable enlarged details which need even more magnification in order to properly explain the design intent.
Interior Elevations: Inside views of the structure, including cabinetry, electrical and any applicable special construction that needs that extra level of detail.
Sections: Also known as a cut through the entire structure. This explains in further detail how the structure is built and properly braced to ensure a safe home. Our practice also includes complete dimensions, notes, and any required special attention needed.
Electrical Plan: Complete with layout and location of lights, switches and plugs. When we include wall plugs, we go beyond the code standards, which gives you more walls to choose to plug up your appliance.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
