Spacious 3-Bedroom Ranch Plan with Vaulted Great Room and Covered Patio

Heated S.F.
1,680
Beds
3
Baths
2
Stories
1

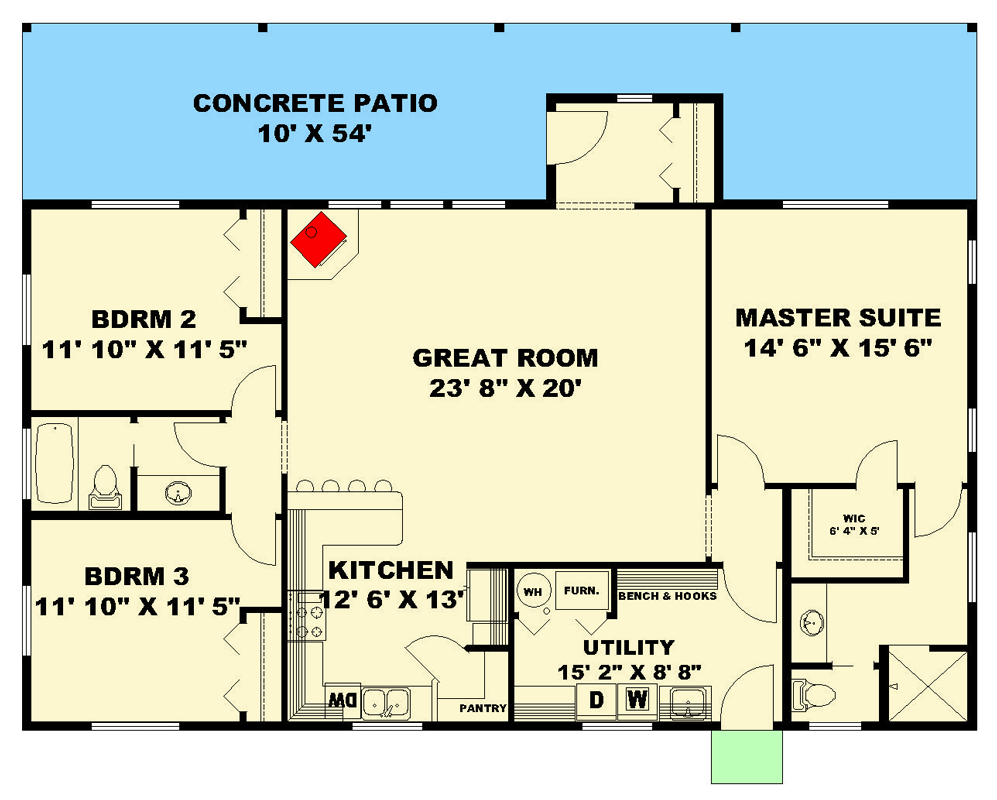

Floor Plan

Plan 350184GH

Main Level
Main Level

Plan 350184GH

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 350184GH: Spacious 3-Bedroom Ranch Plan with Vaulted Great Room and Covered Patio - Floor Plan - Main Level - Contemporary, Ranch

Plan Details

  • This inviting 1,680 sq. ft. Ranch House Plan offers 3 bedrooms, 2 full bathrooms, and features a classic yet contemporary exterior with stone accents and a welcoming covered front porch.
  • Step inside to discover an intuitive, open-concept layout where the kitchen seamlessly flows into the great room, creating an expansive central hub perfect for daily living and social gatherings.
  • The heart of the home is the vaulted great room, providing an airy atmosphere, while the adjacent kitchen boasts an island with seating, ample counter space, and a dedicated pantry, making meal preparation a delight. A convenient breakfast nook offers a casual dining spot, and a main-level utility room with laundry facilities is thoughtfully placed nearby.
  • Enjoy the privacy of a split bedroom design, with the luxurious master suite tucked away on one side of the home, featuring a spacious bedroom, a walk-in closet, and a private ensuite bathroom. Two additional comfortable bedrooms and a shared full bathroom are thoughtfully placed on the opposite side.
  • Extend your living outdoors to the generous 540 sq. ft. concrete patio, providing an ideal setting for al fresco dining, entertaining, or simply enjoying morning coffee in the fresh air.

What's Included

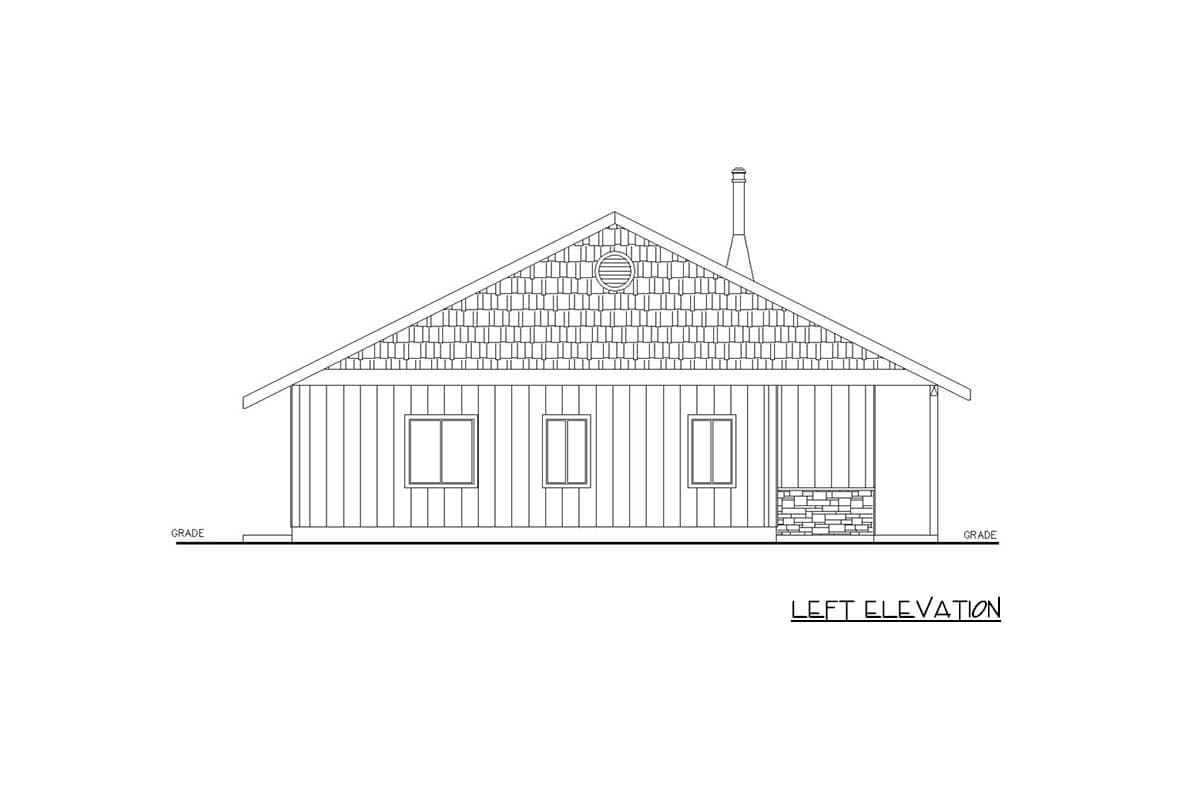

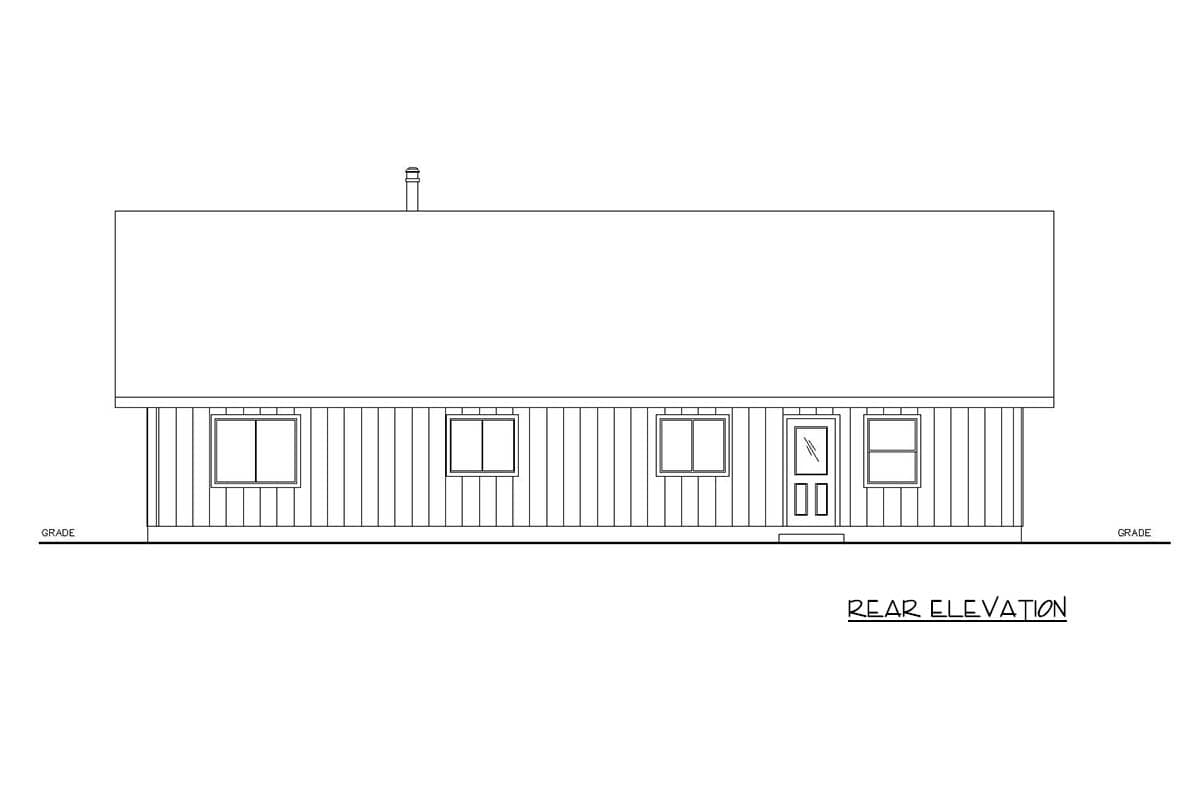

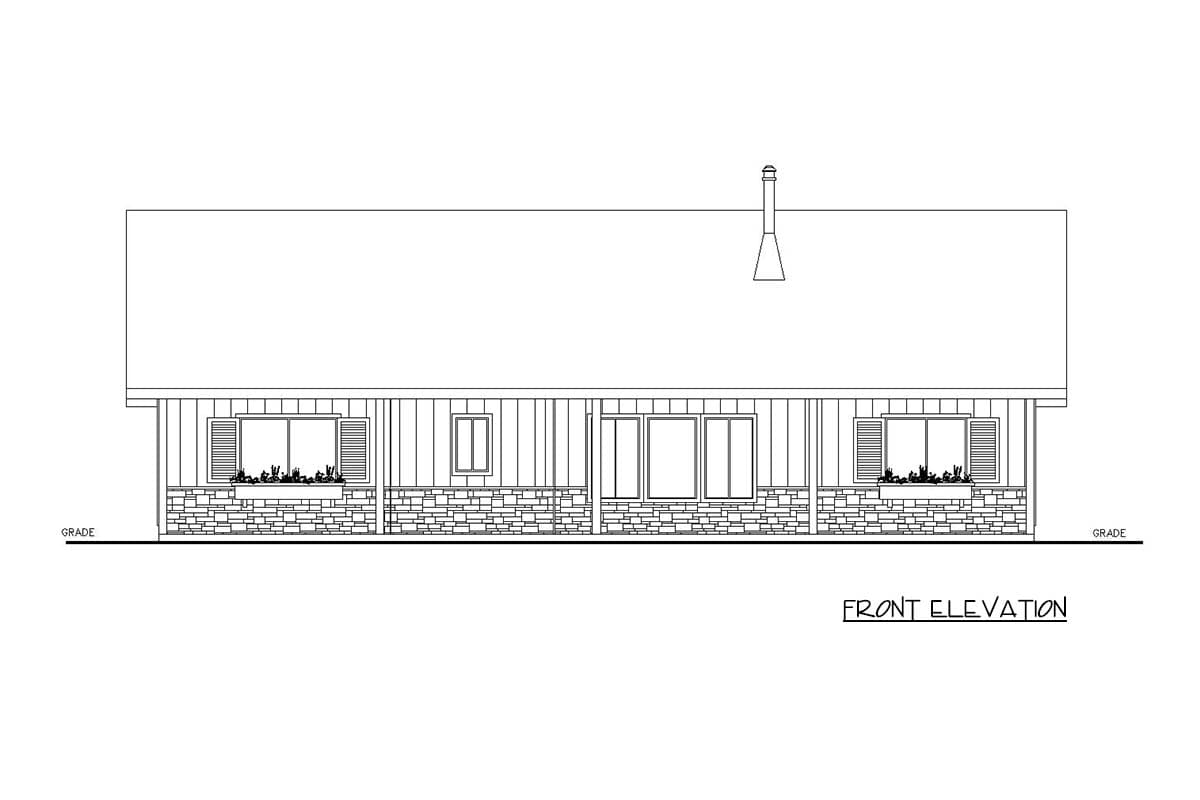

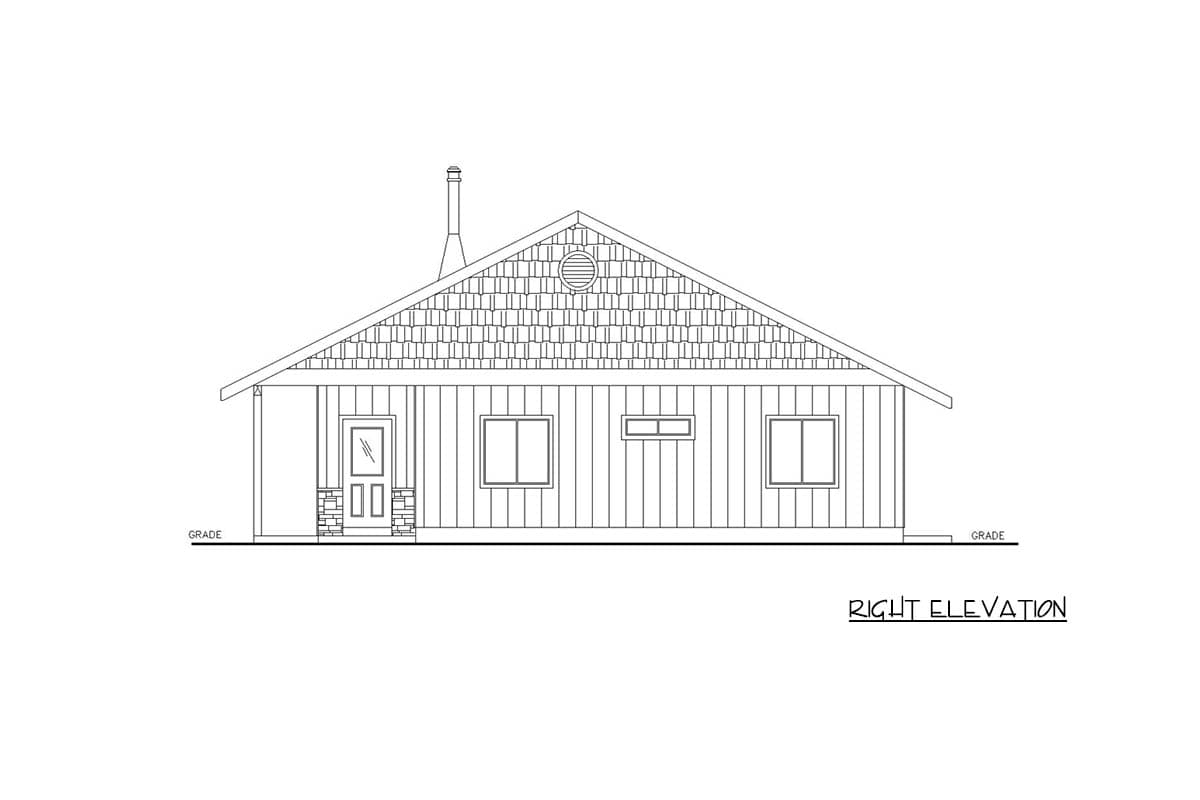

  • Exterior Elevations:  The exterior elevations provide exterior views of the house and call out the exterior finish materials, such as siding, stucco, brick, stone, etc. This page also shows roof pitches and materials, and decorative elements, such as columns and window shutters. Sometimes window and door sizes are also shown here.
  • Floor Plans:  The floor plan shows how each room is laid out on each floor of the house. In most cases, the floor plan will include wall sizes, room dimensions, notes about ceiling design, window and door locations and sizes, and other structural layout notes and details.
  • Foundation Plan: This page provides a detailed foundation drawing, including the thickness of the foundation walls, how the foundation is built, footing and wall placement, Rebar schedule, as well as other construction notes and details. This page may also include a floor framing plan.
  • Cross Sections: Cross sections are views from the top to the bottom of the house plan showing structural details related to the construction of the home. They will show the composition of the foundation, interior and exterior walls, roof, floor and stair details. They also show rooflines, ceiling heights, and the relationships between floors. Cross sections may be on a separate page or on various pages throughout the home plan.
  • Basic Electric: This page shows the locations of outlets, switches, and fixtures. It may be on a separate page, or located on the floor plan page.
  • Simple Plumbing: This page shows the locations of the bathtubs, showers, toilets, and sinks. This may be found on the floor plan, or it might be on a separate page.
  • Details: This page includes the structural details for the construction of the house.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
