Plan 666117RAF Spacious Contemporary House Plan with Lower-level ADU

Spacious Contemporary House Plan with Lower-level ADU

Plan 666117RAF

  • 6,010

    Heated s.f.

  • 6

    Beds

  • 5.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • At just over 6,000 square feet of living space, this Contemporary house plan offers something for everyone in the family. Utilize the lower-level ADU as an in-law suite or income property.
  • The kitchen seamlessly flows into the dining area and great room where coffered ceilings add an elegant overhead visual. The oversized prep island, spice kitchen, and walk-in pantry provides an abundance of storage and workspace.
  • The bedroom suite on the main level grants access to the covered deck, while a home office off the foyer completes the main level.
  • Two bedroom suites line the right side of the second level, each with a private balcony and 5-fixture bathroom. Two additional bedrooms and a bonus room can also be found upstairs.
  • Downstairs, a recreation room opens to a covered patio and provides access to the 1-bedroom apartment. After a workout, enjoy the sauna before starting your day.

Our plans include

-Cover Sheet/General Notes
-Floor plans
-Elevations
-Cross sections
-Glazing and Energy Calcs


Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

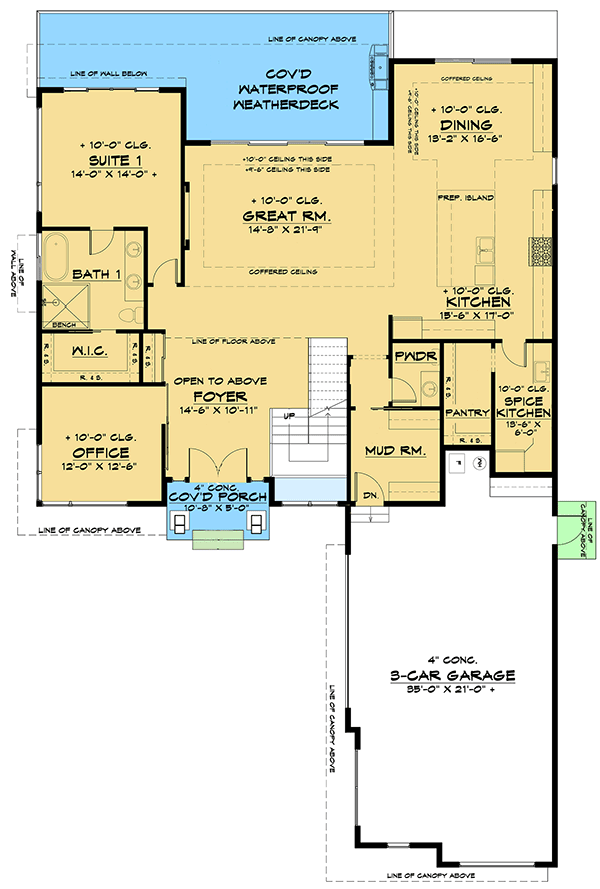

Spacious Contemporary House Plan with Lower-level ADU - 666117RAF floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

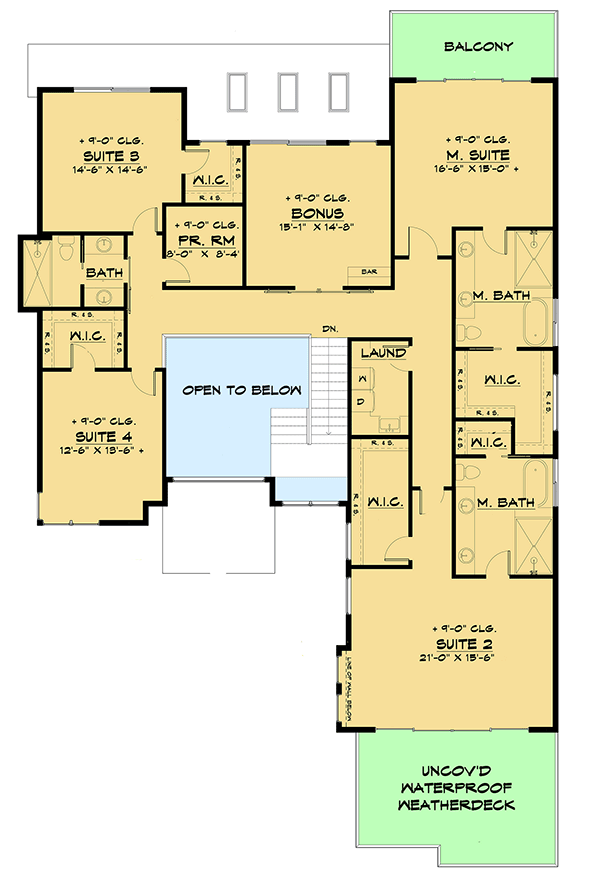

Spacious Contemporary House Plan with Lower-level ADU - 666117RAF floor plan - 2nd Floor
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

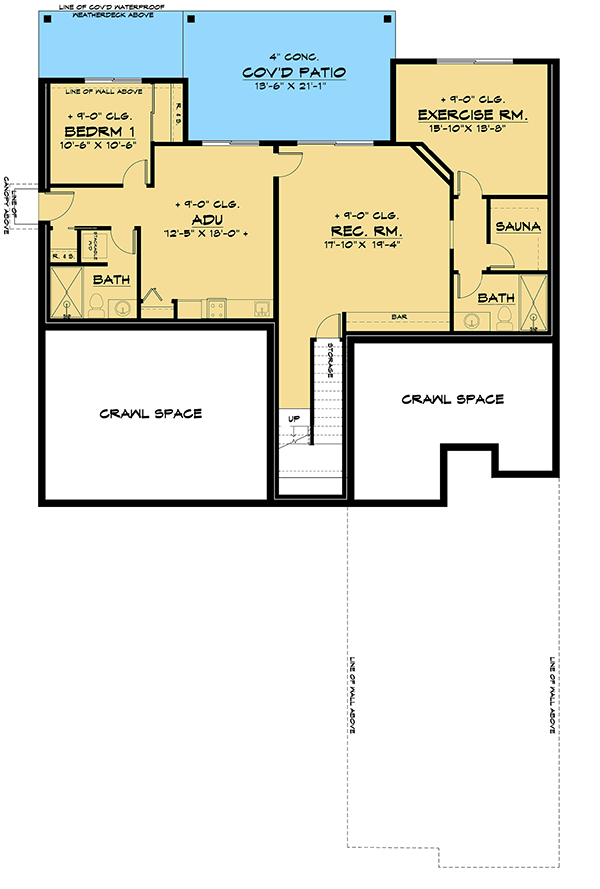

Spacious Contemporary House Plan with Lower-level ADU - 666117RAF floor plan - Lower Level

Plan details

Spacious Contemporary House Plan with Lower-level ADU

  • 6,010

    Heated s.f.

  • 6

    Beds

  • 6

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,929
  • 5 Sets $2,134
  • 8 Sets $2,239
  • CAD - Single-Build $5,750
  • View all purchase option online

About This Plan

  • At just over 6,000 square feet of living space, this Contemporary house plan offers something for everyone in the family. Utilize the lower-level ADU as an in-law suite or income property.
  • The kitchen seamlessly flows into the dining area and great room where coffered ceilings add an elegant overhead visual. The oversized prep island, spice kitchen, and walk-in pantry provides an abundance of storage and workspace.
  • The bedroom suite on the main level grants access to the covered deck, while a home office off the foyer completes the main level.
  • Two bedroom suites line the right side of the second level, each with a private balcony and 5-fixture bathroom. Two additional bedrooms and a bonus room can also be found upstairs.
  • Downstairs, a recreation room opens to a covered patio and provides access to the 1-bedroom apartment. After a workout, enjoy the sauna before starting your day.

Floor Plans

  • Main Level

  • 2nd Floor

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 6,010 sq. ft.
  • Lower Level: 1,298 sq. ft.
  • 1st Floor: 2,214 sq. ft.
  • 2nd Floor: 2,498 sq. ft.
  • Covered Patio: 291 sq. ft.
  • Balcony / Veranda: 400 sq. ft.
  • Deck: 411 sq. ft.
  • Porch, Combined: 59 sq. ft.

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl, Daylight, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 85' 0"
  • Depth: 54' 1"
  • Max ridge height: 26' 3"

Garage

  • Type: Attached
  • Area: 842 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 9' 0" Garage 11' 6"

Roof

  • Primary Pitch: 3 on 12
  • Framing Type: Truss
