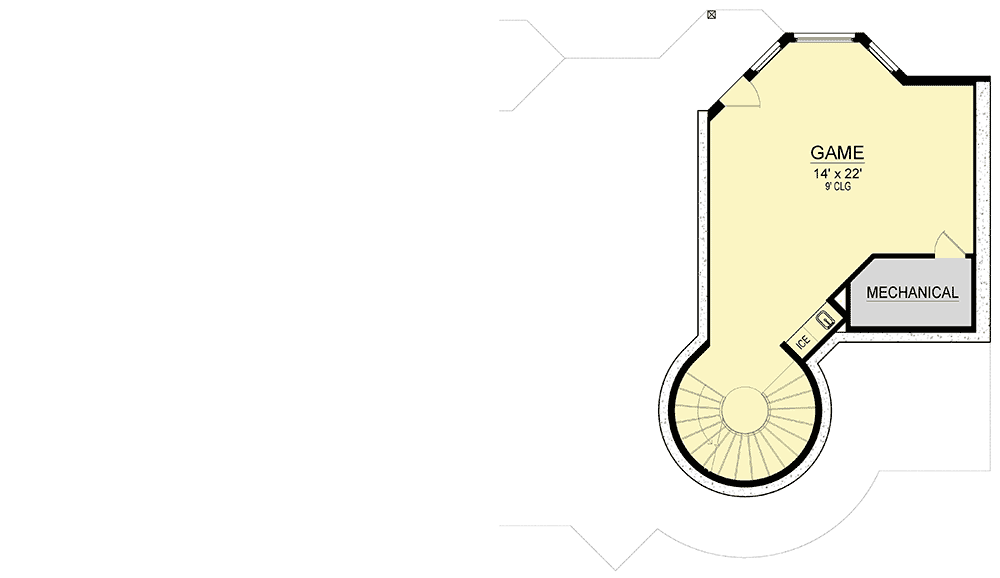

Spacious European House Plan with Lower-level Game Room
Heated S.F.
4,673
Beds
4
Baths
5.5
Stories
2
Cars
2
What's Included
Plan Details
  • The tower-like stairwell provides old world charm on this spacious, European house plan, complete with a lower-level game room for all to enjoy.

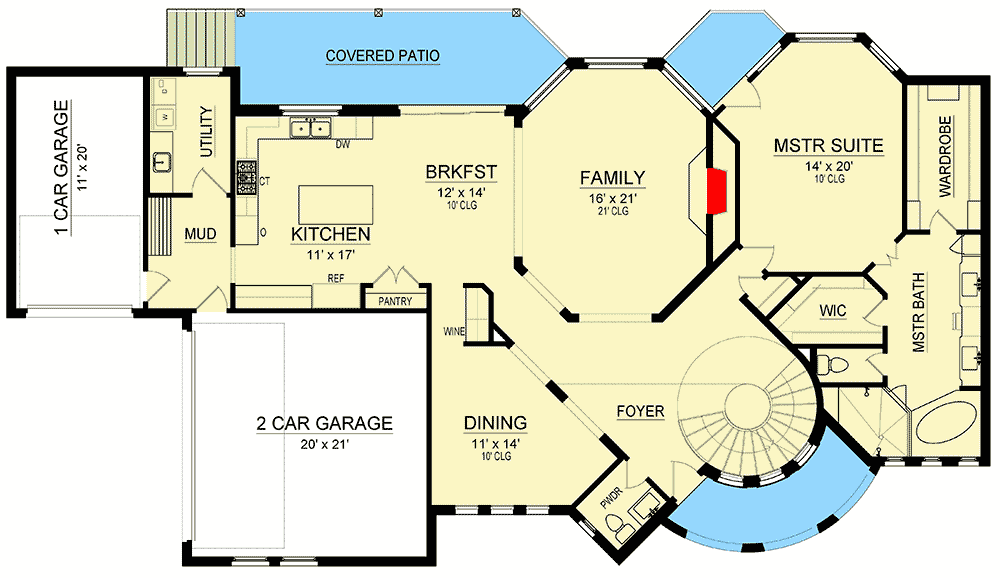

  • Once inside the foyer, a grand, curved staircase serves as a showstopper, and a formal dining room is located to the left. The octagonal family room, which opens to the breakfast nook and kitchen, presents a warm fireplace.
  • A large prep island resides in the center of the kitchen, and an adjacent, back patio provides ample space to grill and dine outdoors.
  • Retreat to the master suite, which is located on the main floor, and includes a private patio. The lavish en suite boasts a 2-person shower and two walk-in closets.

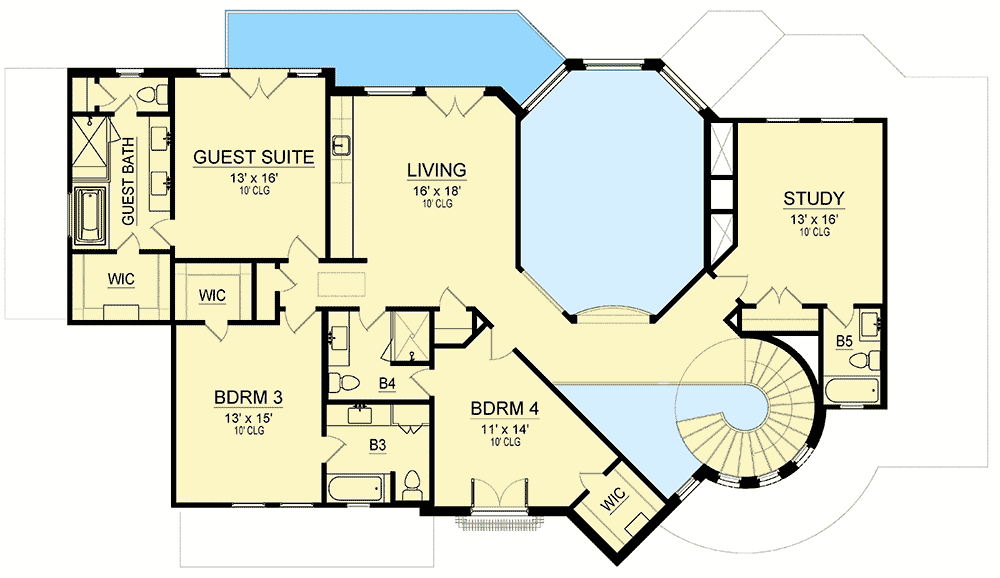

  • Bedrooms 3 and 4 can be found upstairs, each with their own full bath. A second-level, living space with a wet bar opens to a balcony, which is also accessible from the guest suite.
What's Included
  • Cover sheet
  • Foundation Plan
  • First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.
  • Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.
  • First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
  • Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

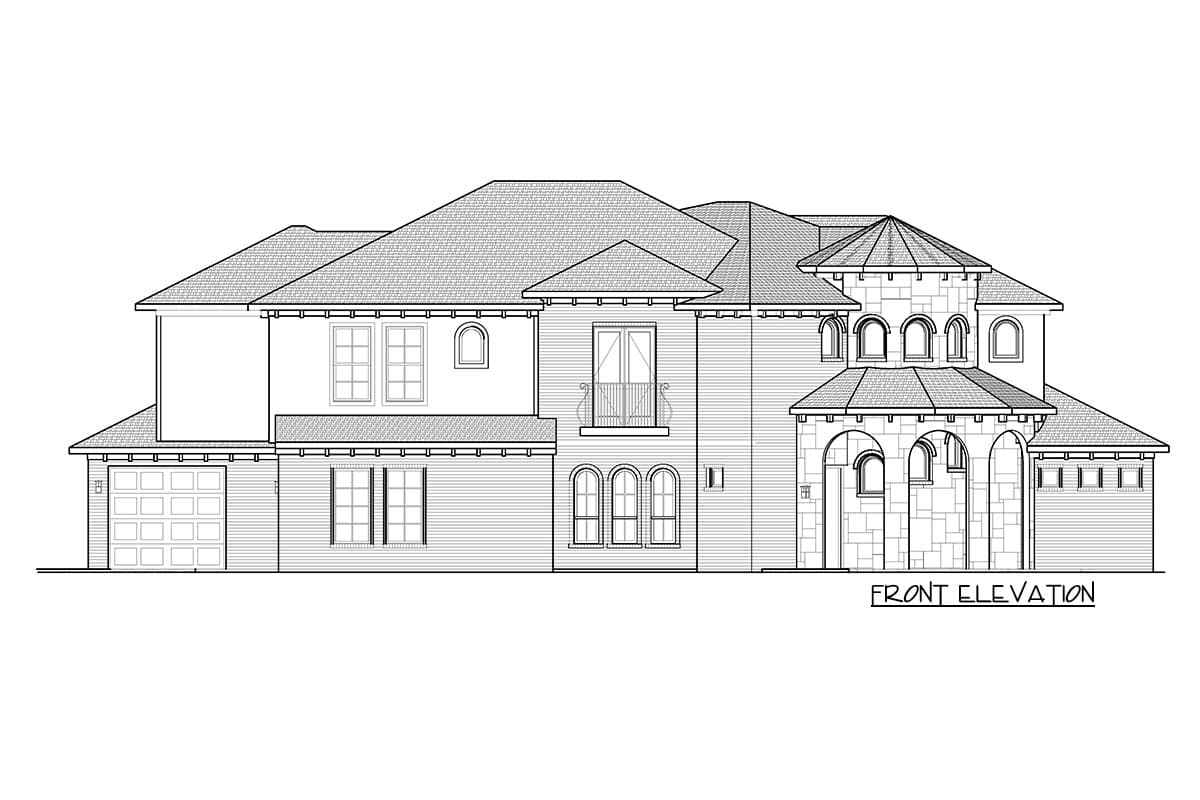

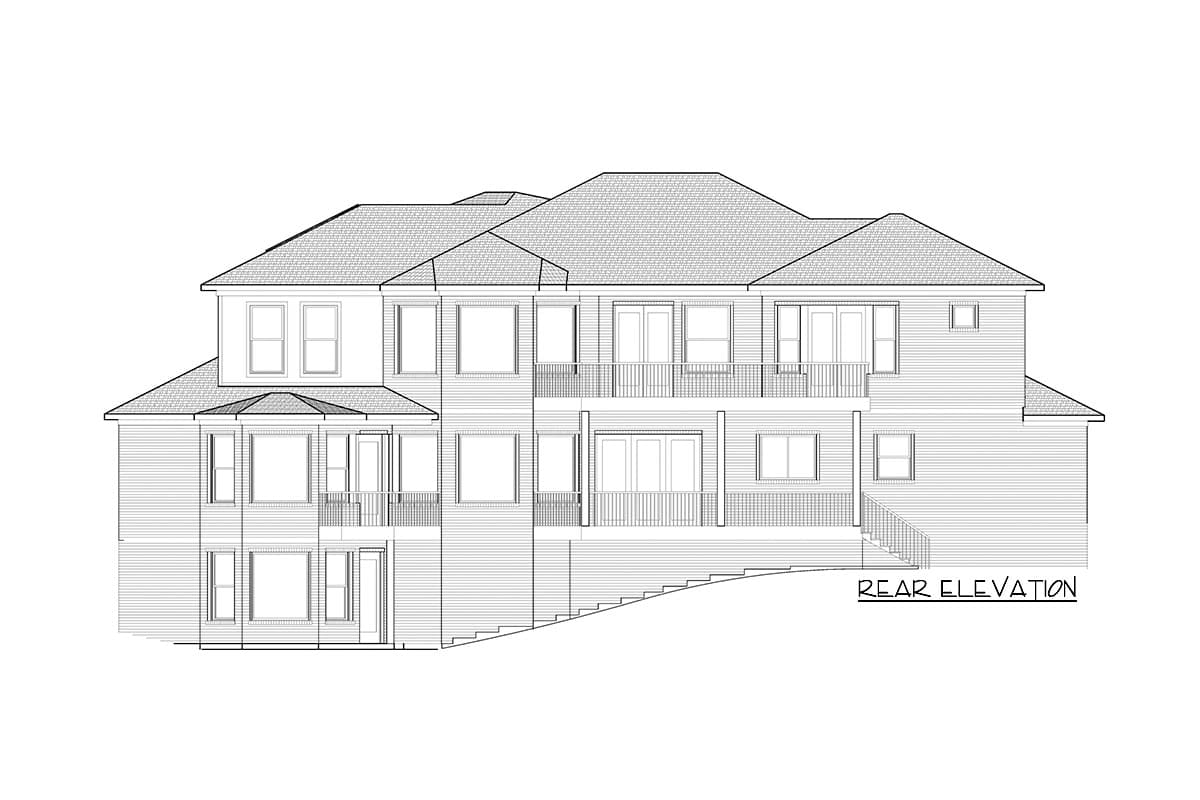

  • Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

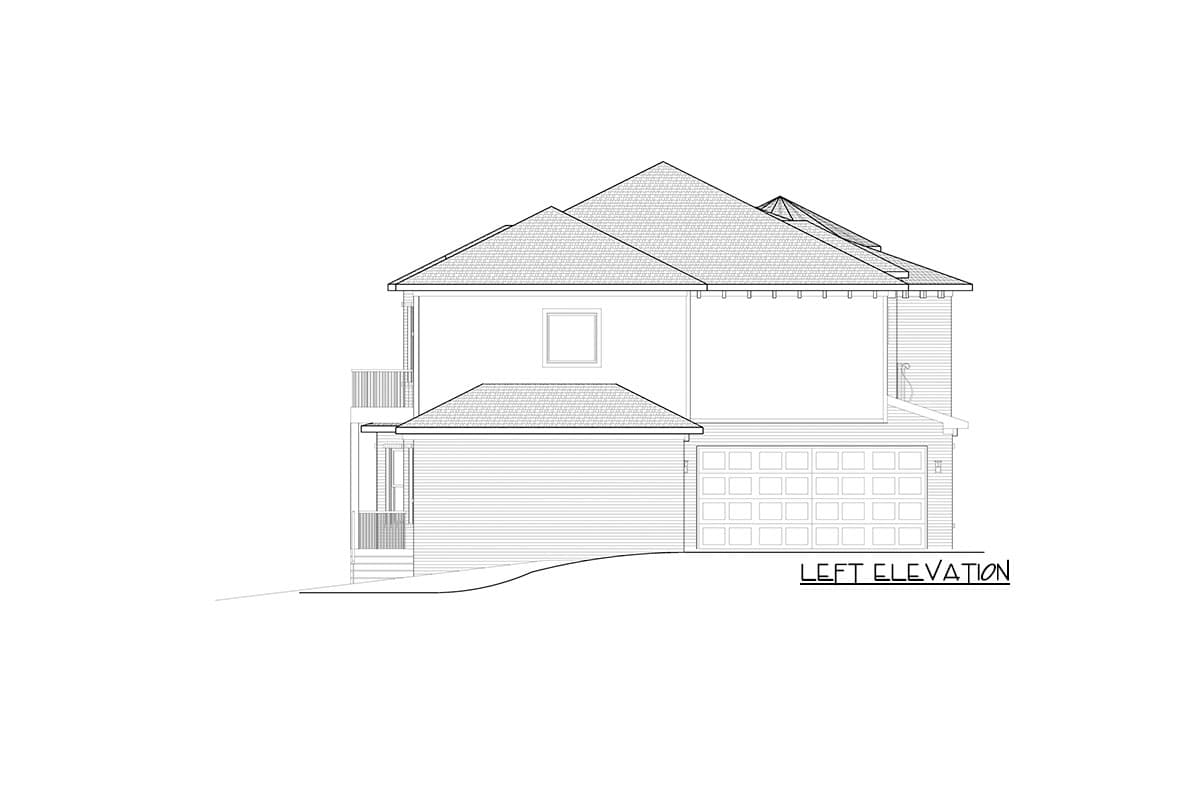

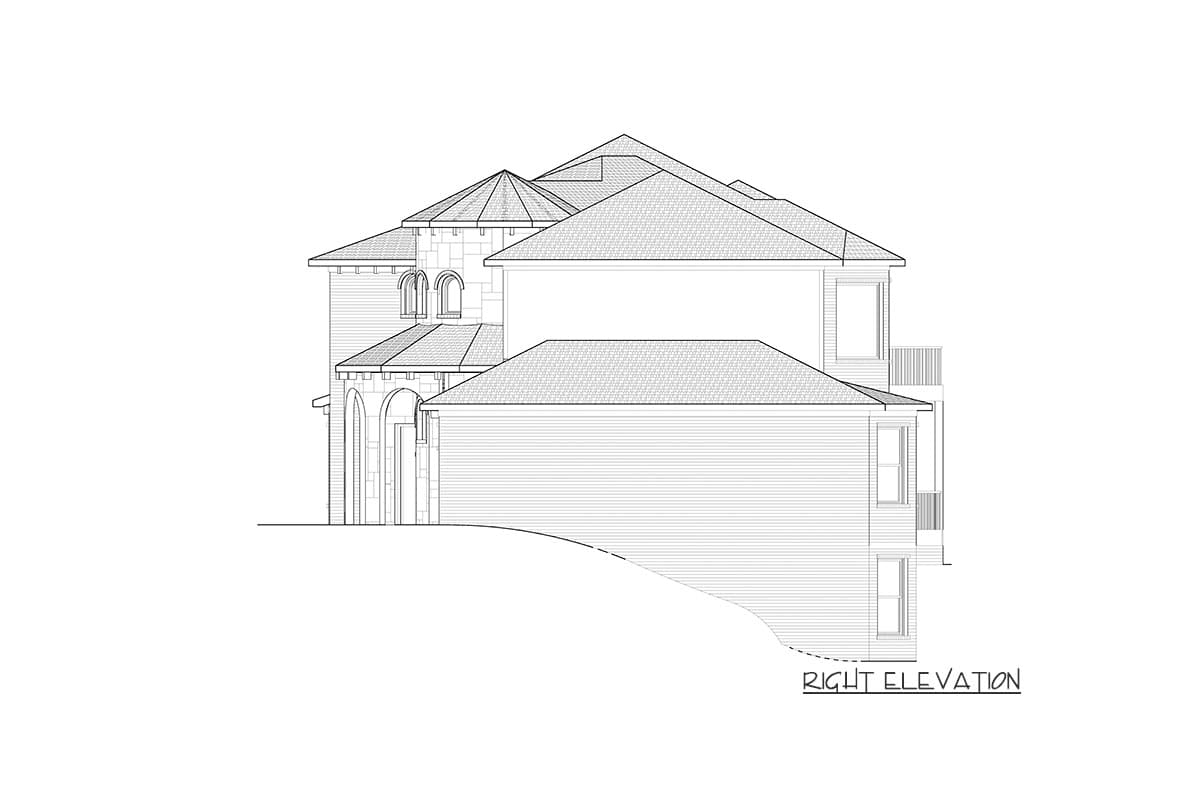

  • Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
  • Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.
  • Sections page
  • Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Spacious European House Plan with Lower-level Game Room

  • 4,673

    Heated s.f.

  • 4

    Beds

  • 5.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 4,673 sq. ft.
  • Lower Level: 642 sq. ft.
  • 1st Floor: 2,198 sq. ft.
  • 2nd Floor: 1,833 sq. ft.

Dimensions

  • Width: 85' 0"
  • Depth: 48' 0"
  • Max ridge height: 31' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 5
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 723 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 10' 0"
