Spacious European Ranch Plan with Main-level Owner's Suite and Walkout Basement

Plan 42429DB

  • 8,106

    Heated s.f.

  • 4

    Beds

  • 5.5+

    Baths

  • 1

    Stories

  • 2

    Cars

  • Stone and shakes adorn the exterior of this European Ranch plan that gives you over 8,100 square feet of living space spread over two floors.
  • Entertain with ease throughout the main level which features a tray-ceiling above the family room, ample outdoor living space, a large library filled with builtins, and easy access to the neighboring wet bar.
  • Retreat to the owner's suite and enjoy a sitting nook tucked in a bay window, a fireplace, two large closets, and a deluxe ensuite with an oversized shower and bidet.
  • Each of the service areas, including the walk-in pantry, mudroom, and laundry room, provide ample space for storage, and an unfinished bonus room above the garage provides a future expansion option.
  • The walkout basement is home to a generous recreation room, complete with a wet bar and prep kitchen. Three bedroom suites line the left side, while fitness and hobby rooms can be found on the right.

This house plan set has the following details:

  • General Notes

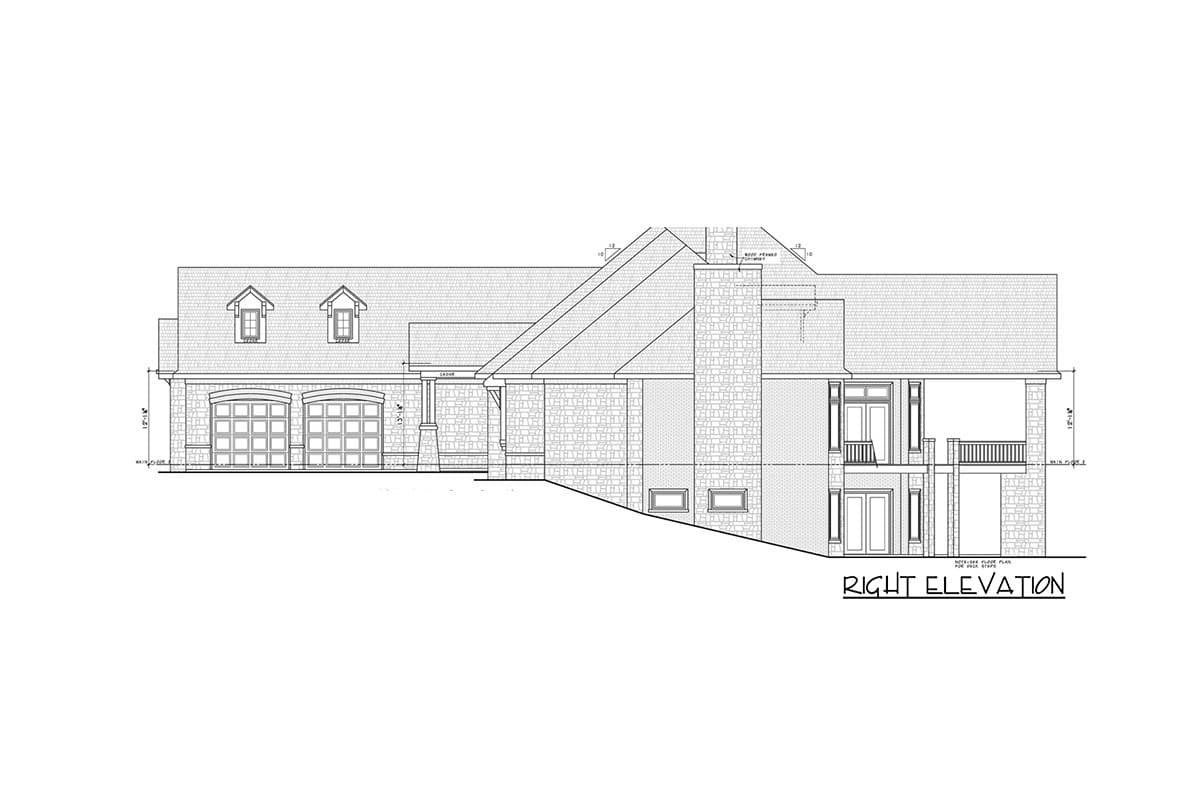

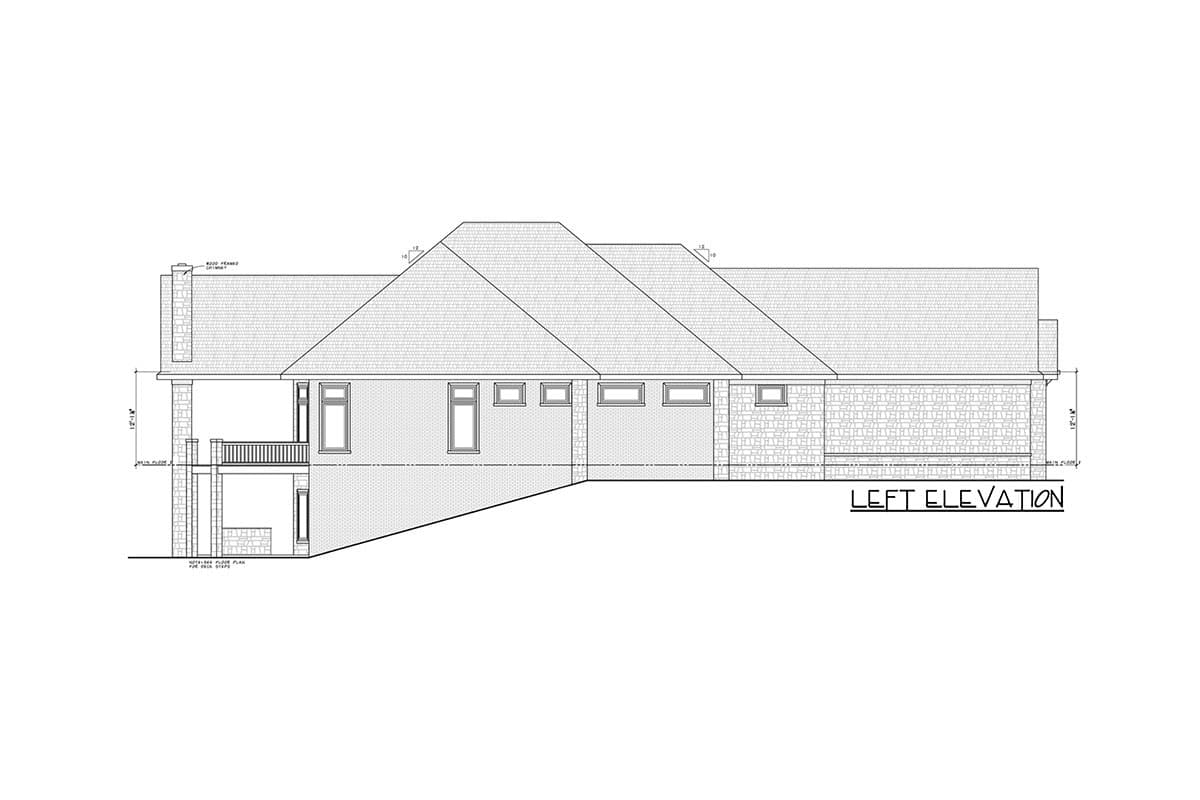

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
*Some plans include cabinet elevations. Please contact us for more information.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

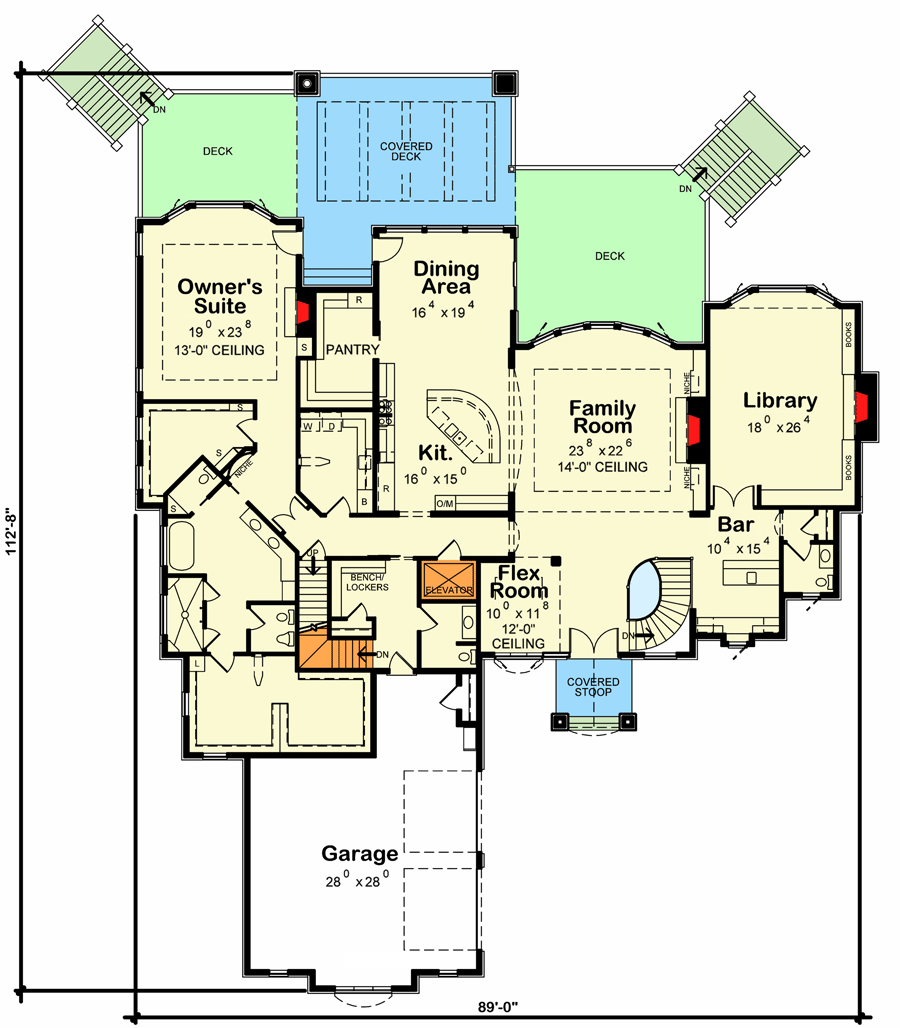

Spacious European Ranch Plan with Main-level Owner's Suite and Walkout Basement - 42429DB floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

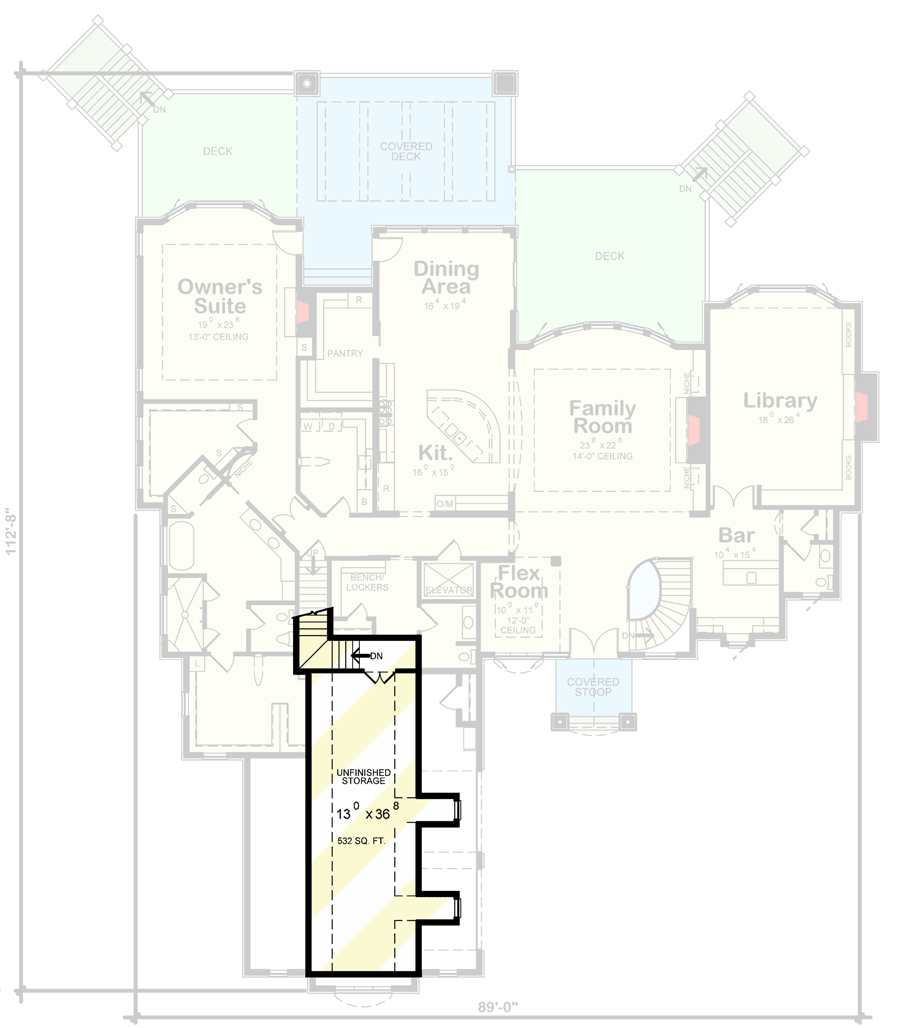

Spacious European Ranch Plan with Main-level Owner's Suite and Walkout Basement - 42429DB floor plan - Bonus Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

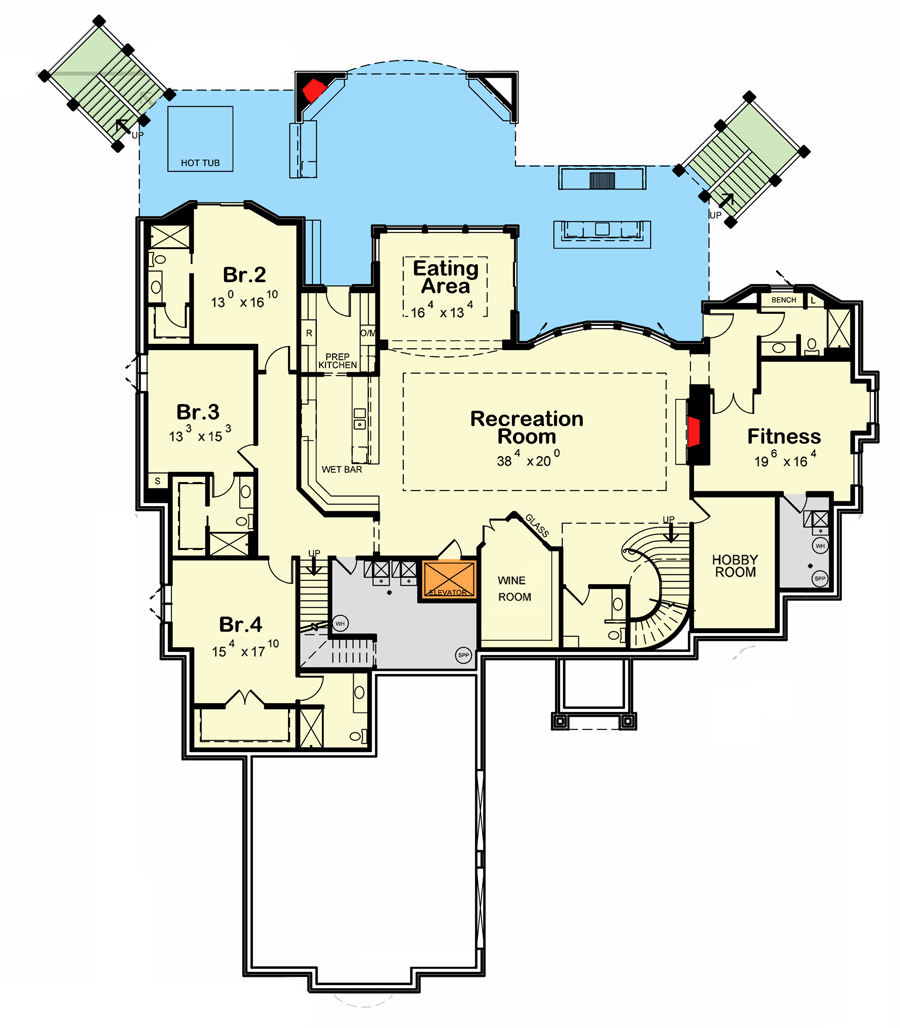

Spacious European Ranch Plan with Main-level Owner's Suite and Walkout Basement - 42429DB floor plan - Lower Level

Spacious European Ranch Plan with Main-level Owner's Suite and Walkout Basement

  • 8,106

    Heated s.f.

  • 4

    Beds

  • 5.5+

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Bonus Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 8,106 sq. ft.
  • Lower Level: 3,781 sq. ft.
  • 1st Floor: 4,235 sq. ft.

Dimensions

  • Width: 89' 0"
  • Depth: 112' 8"
  • Max ridge height: 32' 6"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 5
  • Half bathrooms: 3

Garage

  • Type: Attached
  • Area: 933 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 11' 0" First Floor / 12' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 10 on 12
