Plan 86019BW Spacious Florida House Plan

Spacious Florida House Plan

Plan 86019BW

  • 4,162

    Heated s.f.

  • 3-4

    Beds

  • 4.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • Every room in this lovely Florida house plan is spacious and airy with sightlines that flow from room to room.
  • Tray ceilings top almost every room and even the halls, giving the home a custom feel.
  • The covered outdoor living area in back is also spacious and includes a summer kitchen for your outdoor grilling.
  • In the master suite, your own private retreat features a double tray ceiling, sitting area and two giant walk-in closets.
  • When you want some alone time, head for the large study that has an elegant coffered ceiling.
  • Send the kids to play in the bonus room where the noise stays away from the rest of the house.
  • NOTE:  Restrictions may apply if building in Lee or Collier County, Florida.  Please contact us for details.

Elevations

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*Material Labels
*Floor-To-Floor Heights
*Roof Slope Indicators

 Floor Plans

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*Door and Window Sizes
*Completely Dimensioned Floor Plan
*Room Labels and Interior Room Size



Electrical Layouts

*Building Section Markers
*Electrical Outlets, Fixtures and Switching



Foundation Plan

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*Floor and Deck Joist Sizes, Spacing and Direction
*Electrical Locations



Roof Plan

Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:
*All Beam and Header Heights and Locations
*All Hips, Gables, Ridges and Valley
*Building Section Markers



Building Sections

Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:
*Floor Joist Size and Spacing
*Floor-To-Floor Heights
*Non-Typical Plate Heights Indicated



Typical Wall Sections

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*All Labels Indicating Wall Construction
*Foundation Wall Thickness and Reinforcing
*Insulation Type and Thickness



Miscellaneous Notes and Details

*Miscellaneous General Notes
*Stairway Details (if applicable)


What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Energy calculations

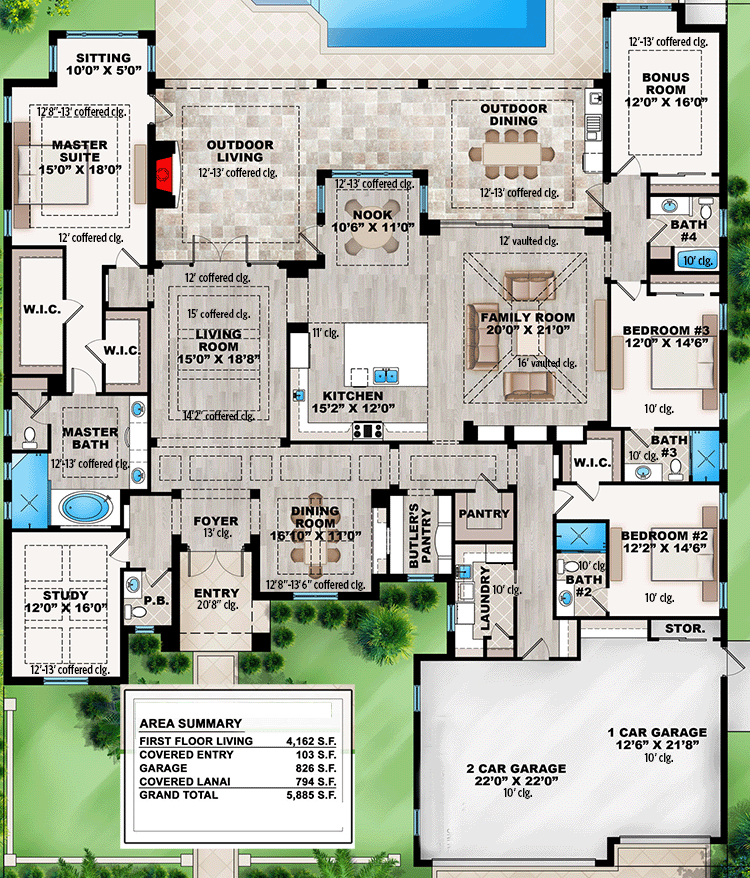

Floor Plan

Plan details



Spacious Florida House Plan

  • 4,162

    Heated s.f.

  • 3 - 4

    Beds

  • 5

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $3,745
  • CAD - Single-Build $3,745
  • View all purchase option online

About This Plan

  • Every room in this lovely Florida house plan is spacious and airy with sightlines that flow from room to room.
  • Tray ceilings top almost every room and even the halls, giving the home a custom feel.
  • The covered outdoor living area in back is also spacious and includes a summer kitchen for your outdoor grilling.
  • In the master suite, your own private retreat features a double tray ceiling, sitting area and two giant walk-in closets.
  • When you want some alone time, head for the large study that has an elegant coffered ceiling.
  • Send the kids to play in the bonus room where the noise stays away from the rest of the house.
  • NOTE:  Restrictions may apply if building in Lee or Collier County, Florida.  Please contact us for details.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,162 sq. ft.
  • 1st Floor: 4,162 sq. ft.
  • Bonus: 203 sq. ft.
  • Entry: 103 sq. ft.
  • Lanai: 794 sq. ft.
  • Porch, Front: 103 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block
  • Optional Type(s): 2x6

Dimensions

  • Width: 79' 8"
  • Depth: 95' 0"

Garage

  • Type: Attached
  • Area: 826 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
