Plan 59177ND

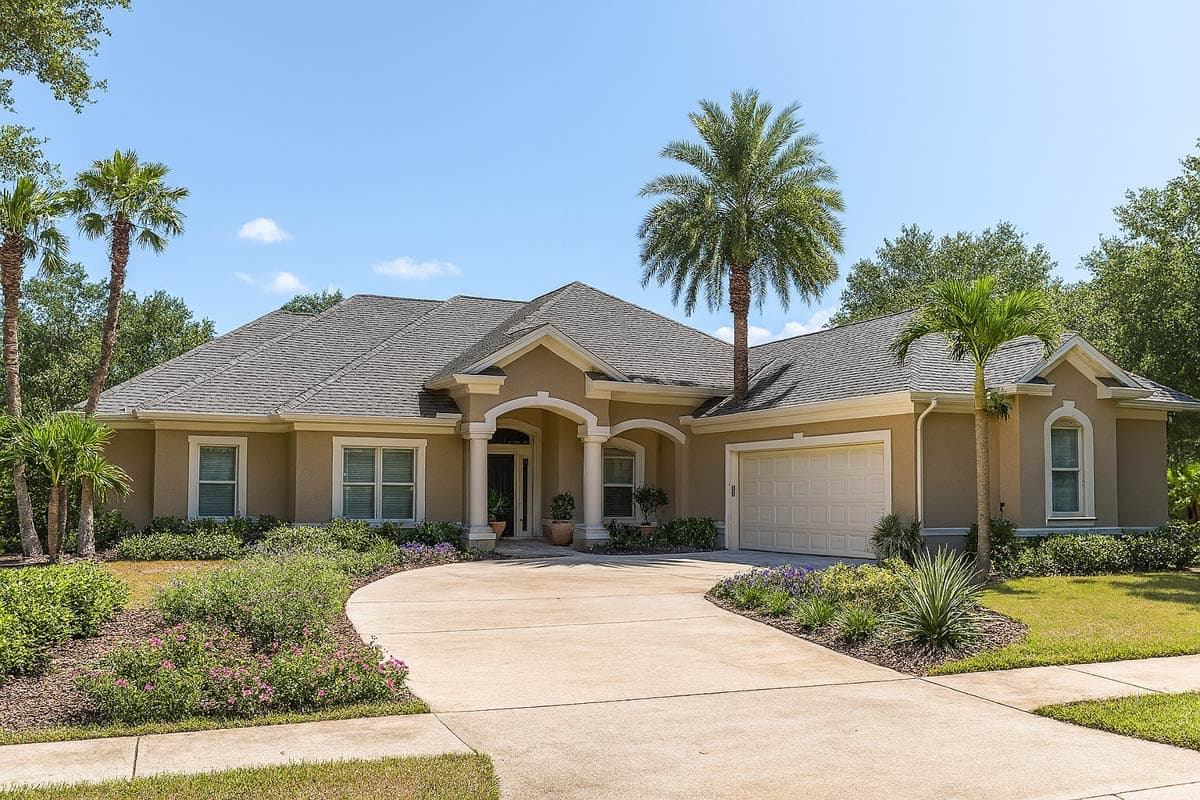

Spacious Florida-Style Ranch House Plan with Versatile Living and Courtyard Garage

Heated S.F.
2,501
Beds
3 - 4
Baths
3
Stories
1
Cars
2

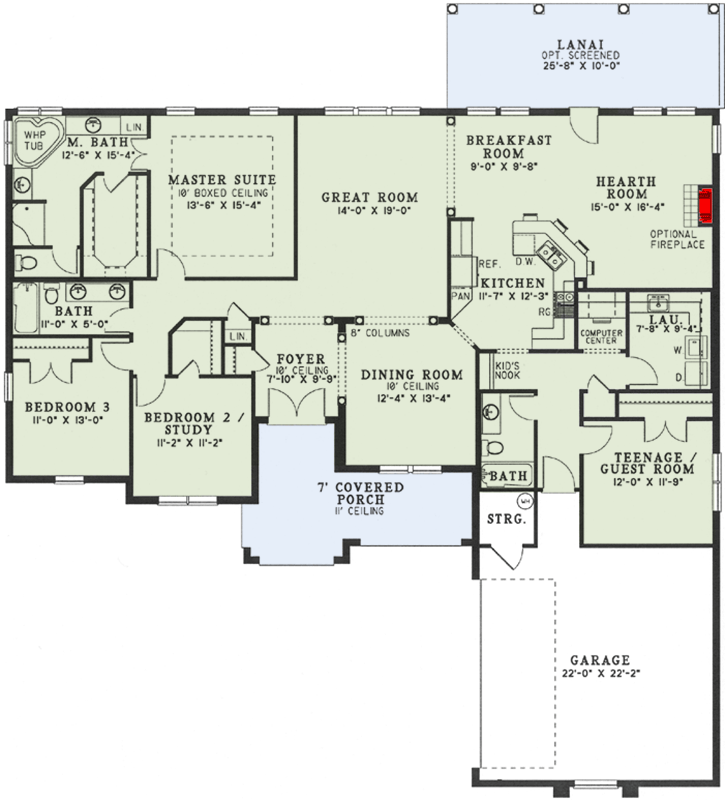

Floor Plan

Plan 59177ND

Main Level
Main Level

Plan 59177ND

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 59177ND: Spacious Florida-Style Ranch House Plan with Versatile Living and Courtyard Garage - Floor Plan - Main Level - Florida-Style, Ranch, Southern

Plan Details

  • This 2,501 sq. ft. Florida Ranch home offers 3 to 4 bedrooms and 3 bathrooms, featuring a classic Southern charm with block/CMU construction and an attached 2-car garage.
  • Step through the large covered porch into a grand foyer that introduces you to the open-concept layout, perfect for entertaining and family gatherings.
  • Enjoy the seamless flow from the great room to the kitchen, breakfast nook, and dining room, all enhanced by high ceilings and abundant natural light.
  • The luxurious master suite on the first floor boasts a spacious en-suite bath and walk-in closet, while the secondary bedrooms are conveniently clustered with flexible study or bedroom options.
  • A cozy hearth room with an optional fireplace and a flexible library/study that can be used as a bedroom and offer intimate spaces for relaxation or work.
  • Outdoor living is enhanced with a large rear lanai, ideal for weekend BBQs or quiet evenings enjoying the sunset.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,501 sq. ft.

1st Floor

2,501 sq. ft.

Porch, Front

189 sq. ft.

Porch, Rear

268 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

67' 4"

Depth

74' 8"

Max Ridge Height

24' 8"

Garage

Type

Attached

Area

569 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

9' 4"

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Florida-Style

Ranch

Southern

Special Features

Bedrooms - Clustered

Breakfast Nook

Flex Room

Formal Dining

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

2,501 sq. ft.

1st Floor

2,501 sq. ft.

Porch, Front

189 sq. ft.

Porch, Rear

268 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

67' 4"

Depth

74' 8"

Max Ridge Height

24' 8"

Garage

Type

Attached

Area

569 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

9' 4"

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Florida-Style

Ranch

Southern

Special Features

Bedrooms - Clustered

Breakfast Nook

Flex Room

Formal Dining

Laundry - Main Level

Library/Study

Master Suite - 1st Floor
