Plan 23846JD
Spacious Home Plan with Third-level Recreation Room
Heated S.F.
4,402
Beds
5
Baths
4.5
Stories
3
Cars
2
What's Included
Plan Details
  • This spacious home plan includes 5 bedrooms, with the majority of the sleeping rooms on the second level.

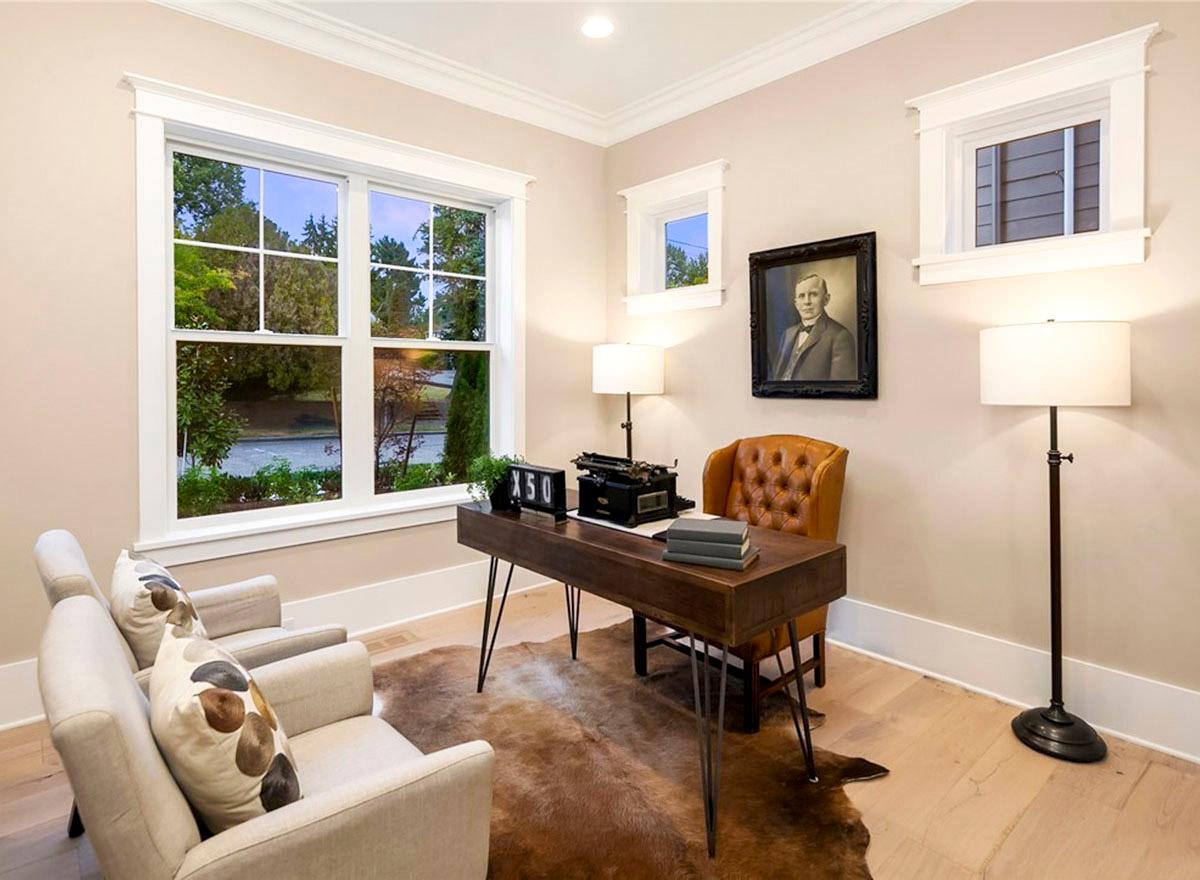

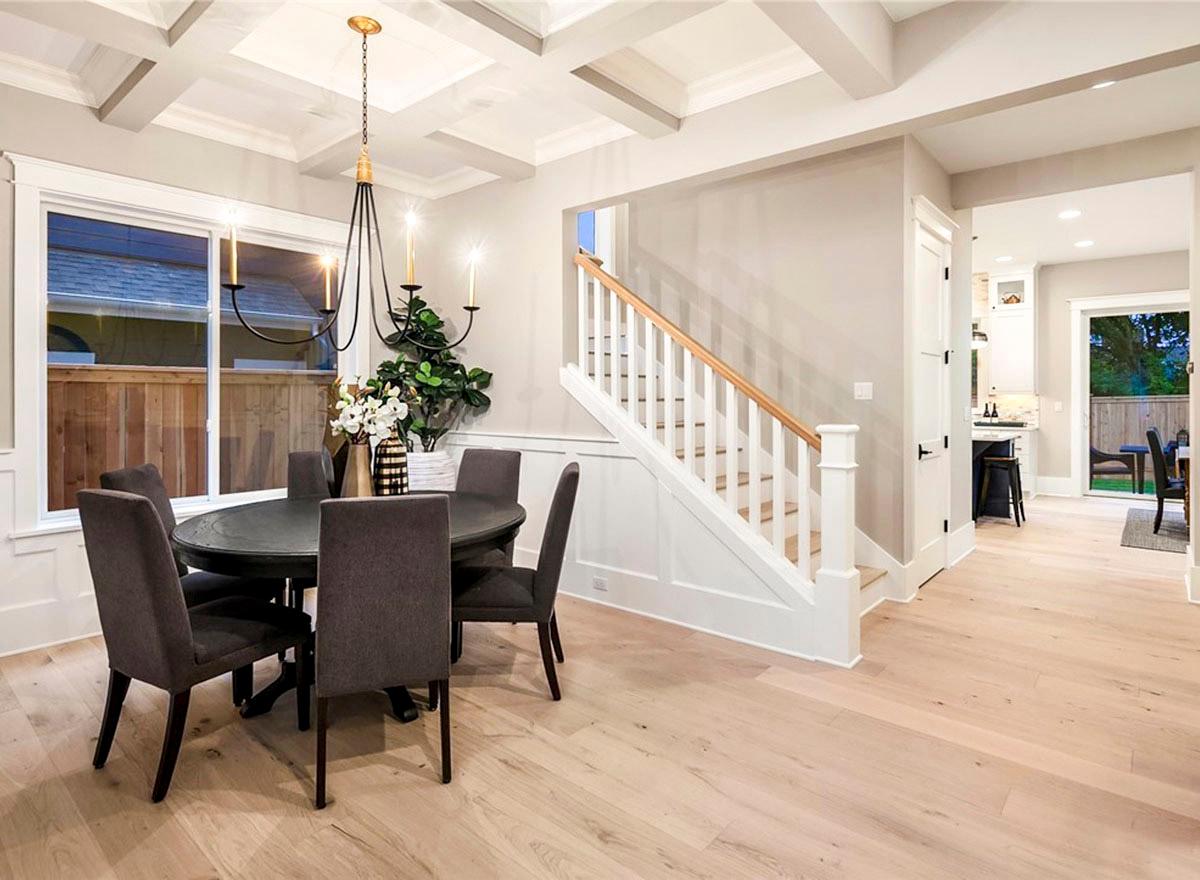

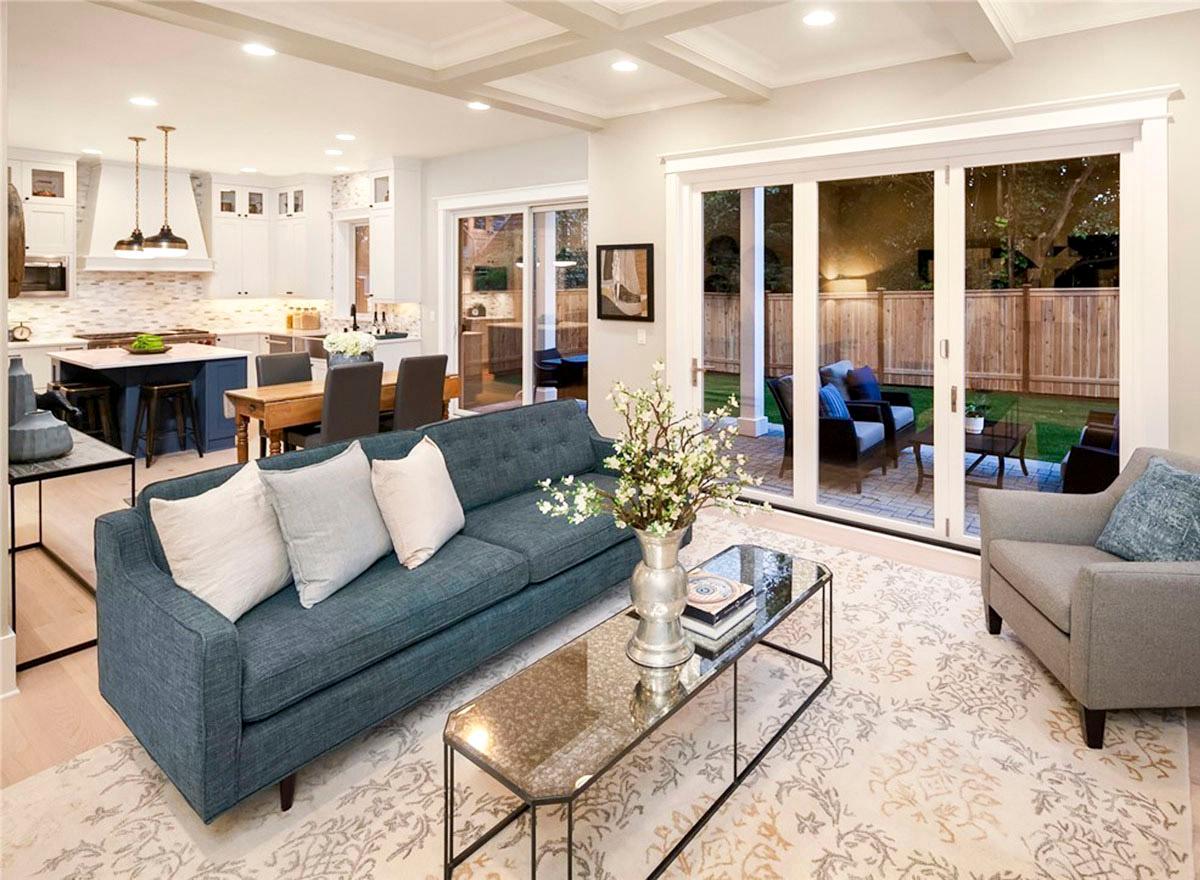

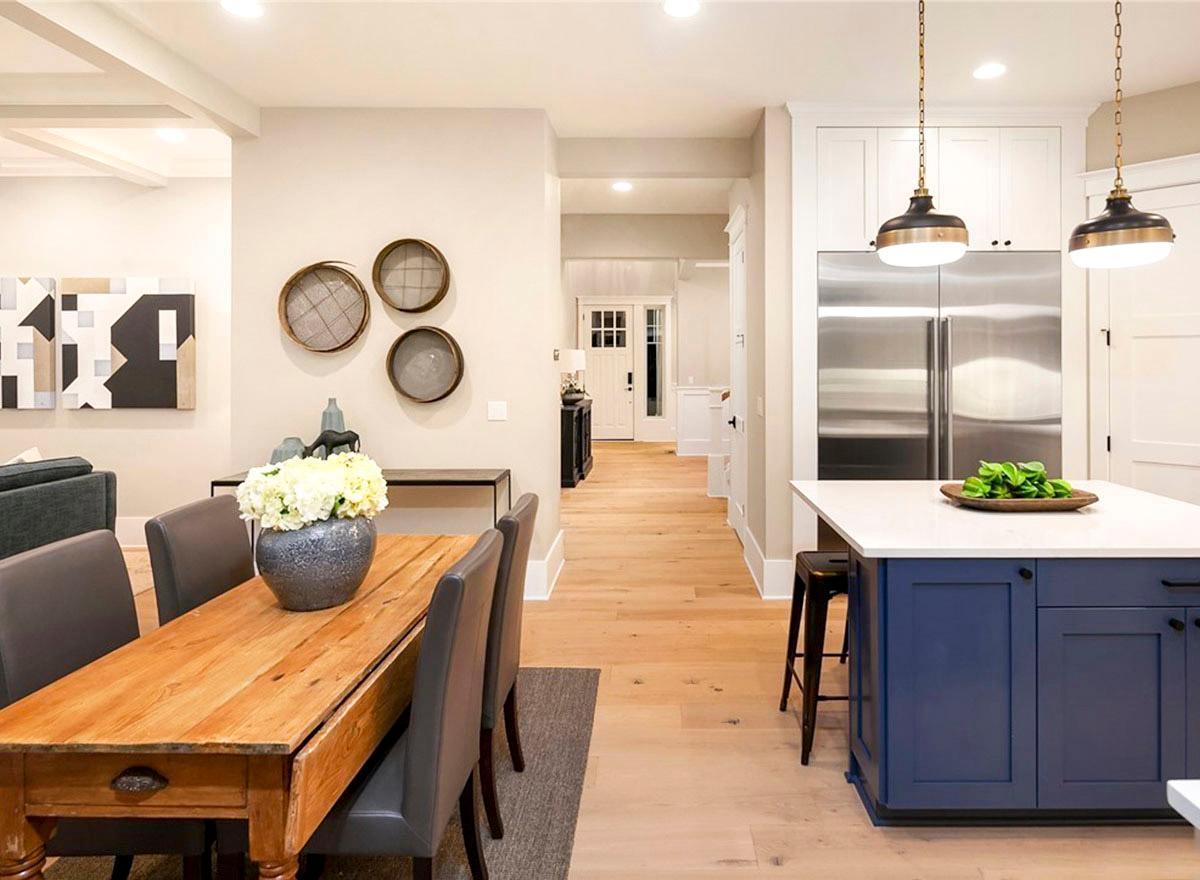

  • To the left of the formal entry, discover a quiet den, powder bath, and coat closet. The adjacent dining room features an elegant, coffered ceiling, while straight ahead leads to the combined kitchen, breakfast nook, and living room.

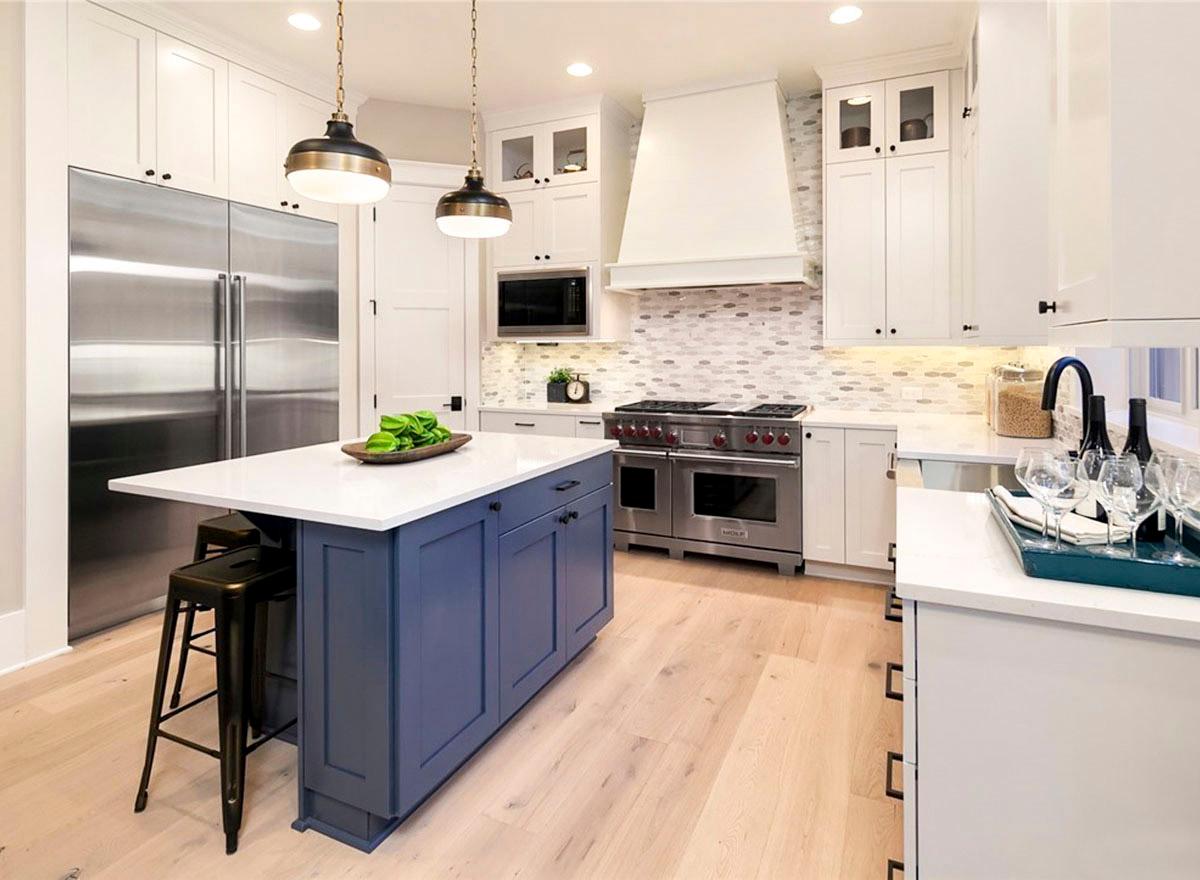

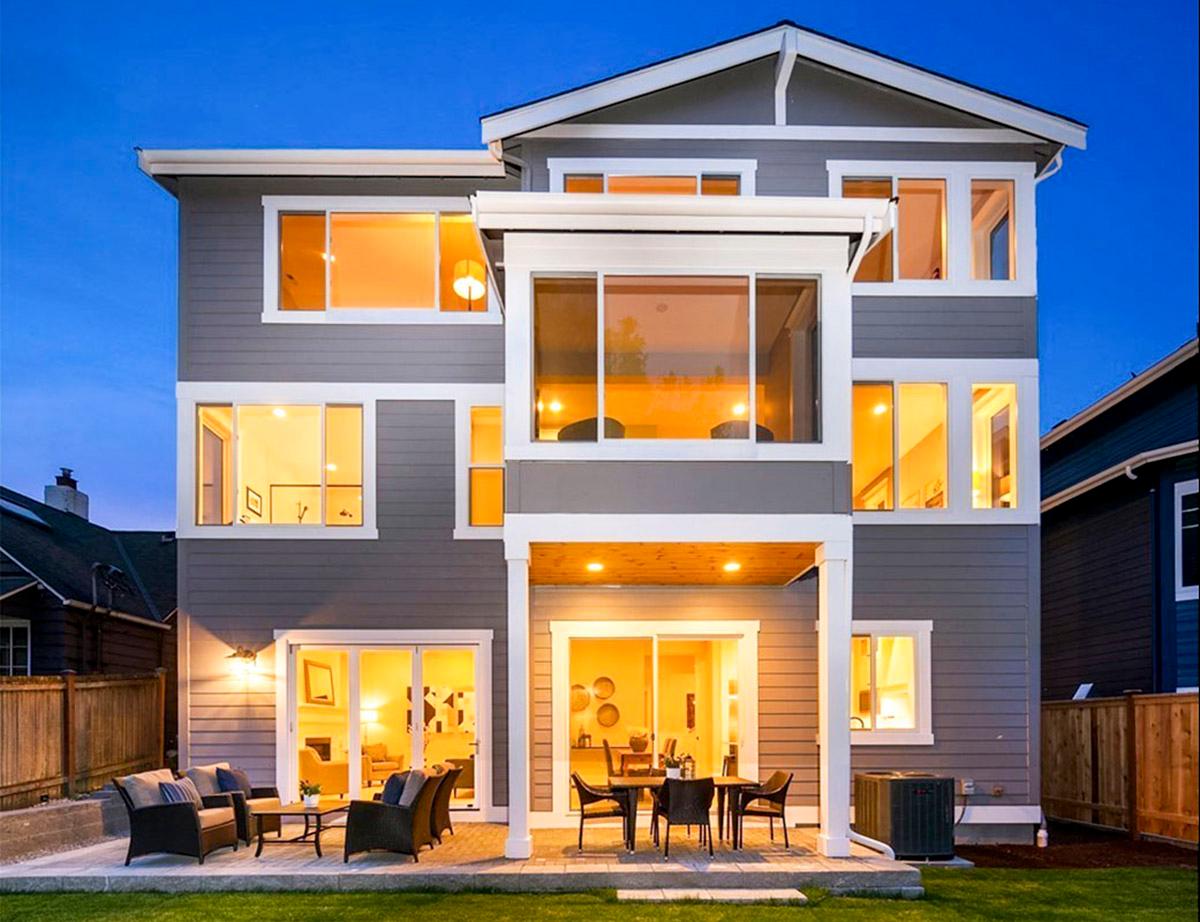

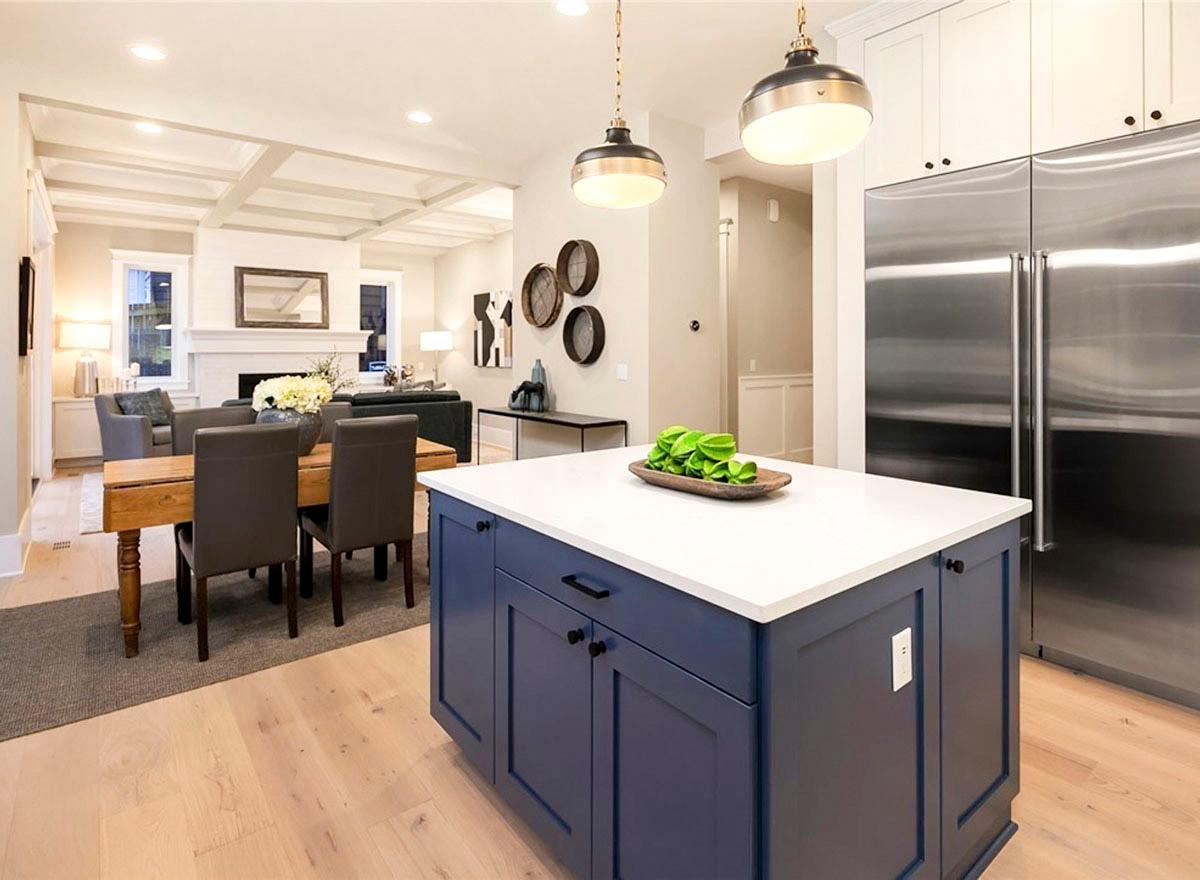

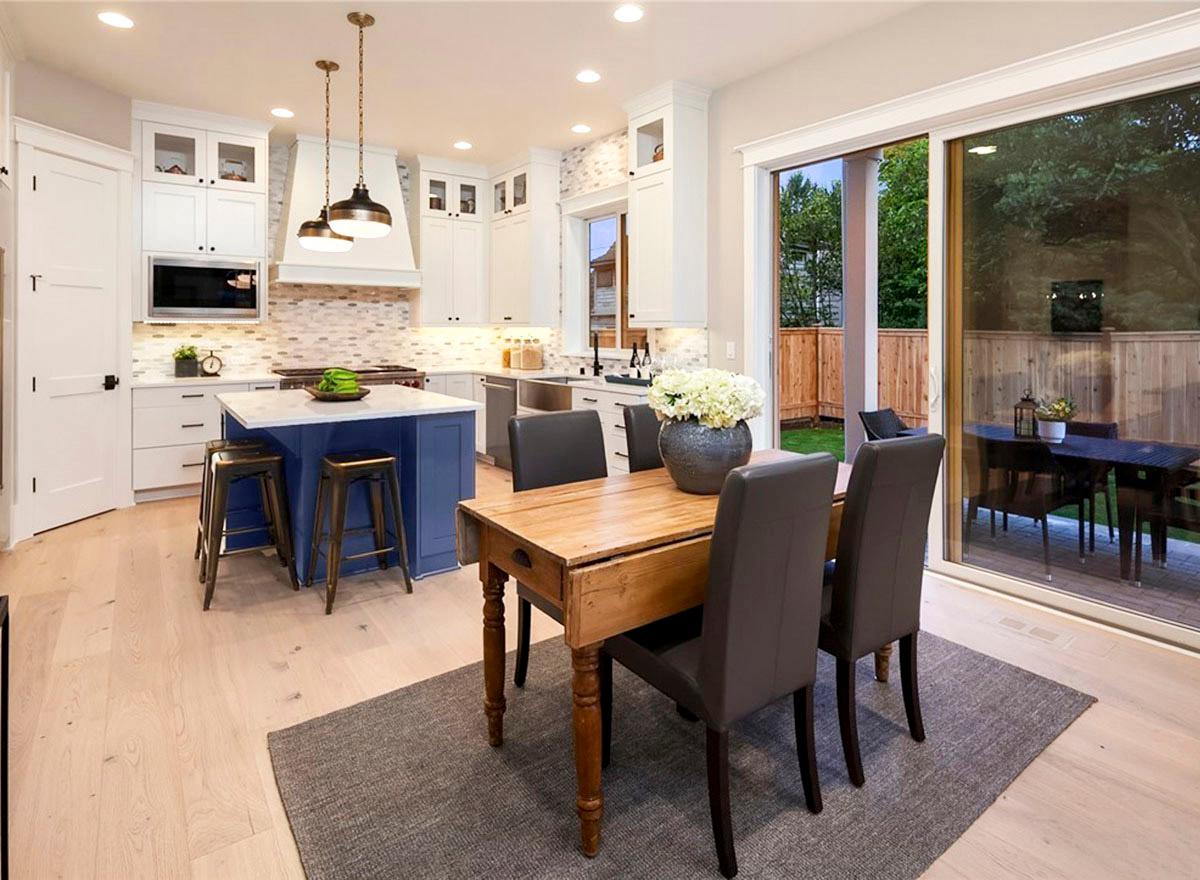

  • A large prep island is surrounded by kitchen counters, maximizing workspace, while a corner pantry lends plenty of storage space. Oversized, rear-facing windows overlook the partially covered patio, which encourages you to spend time outdoors.

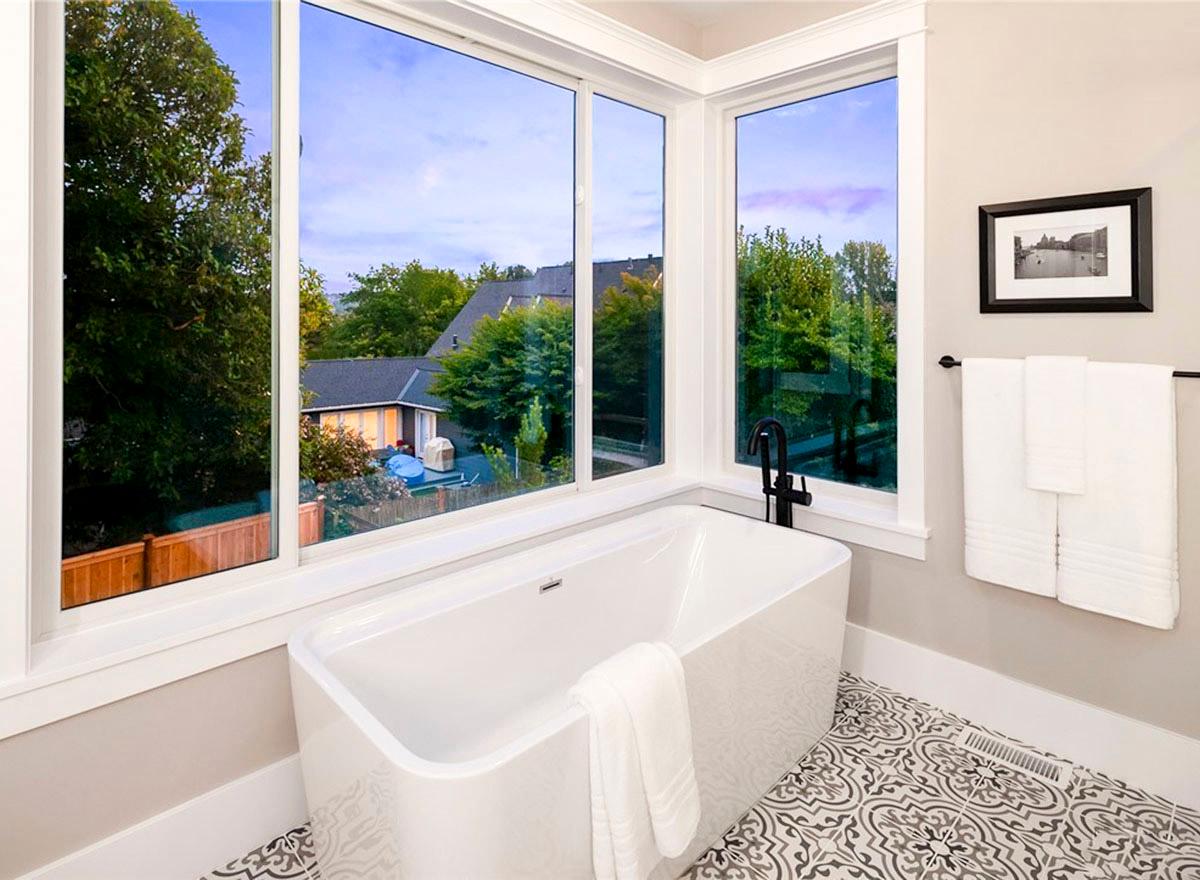

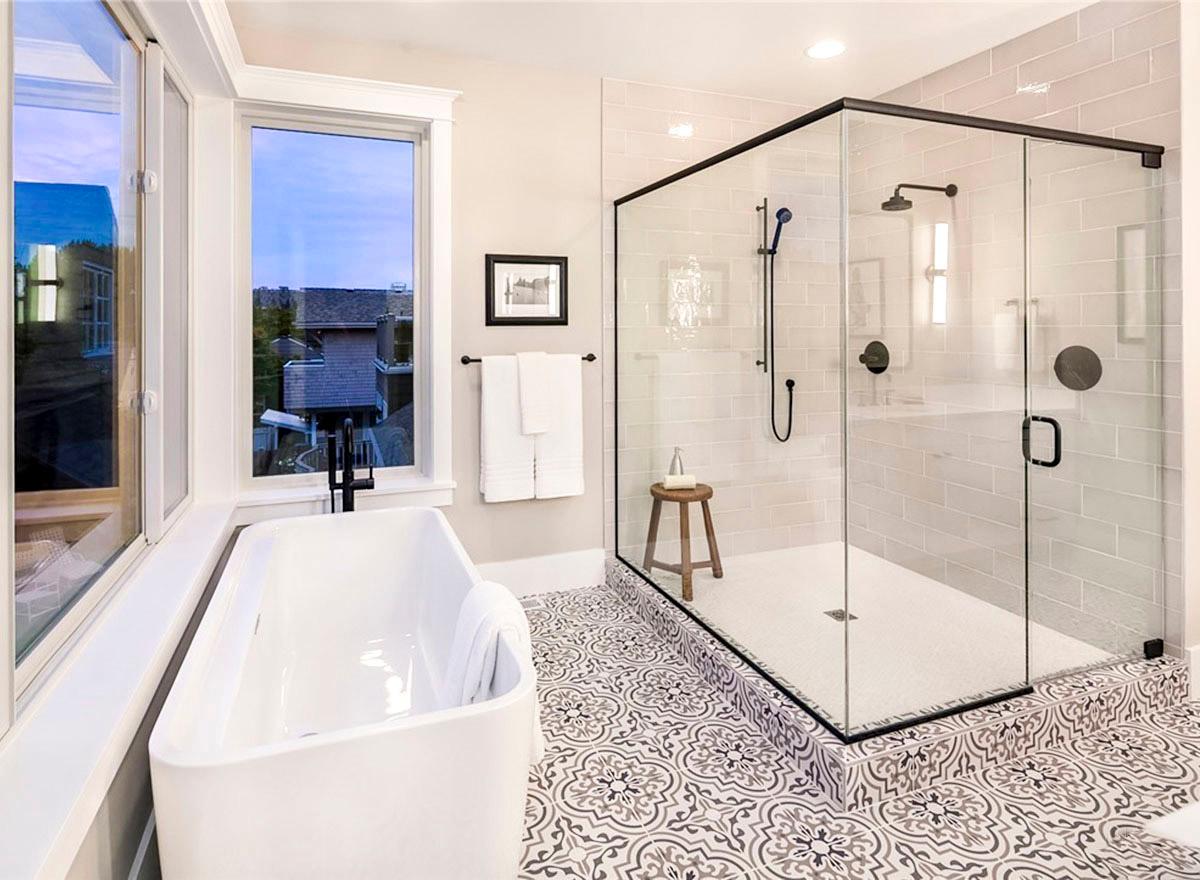

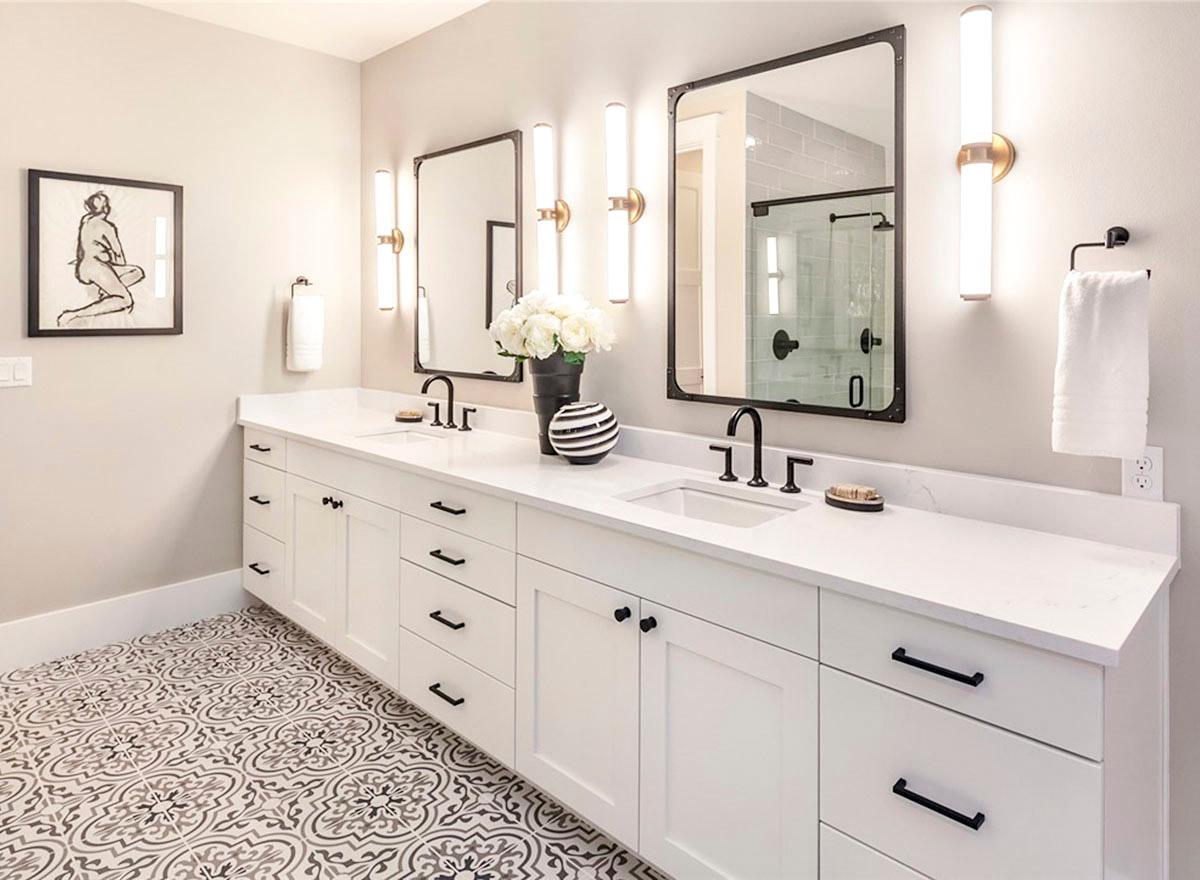

  • The largest of the second-level bedrooms is reserved for the homeowner and includes a sitting nook, walk-in closet, and en suite with a freestanding tub and oversized shower.

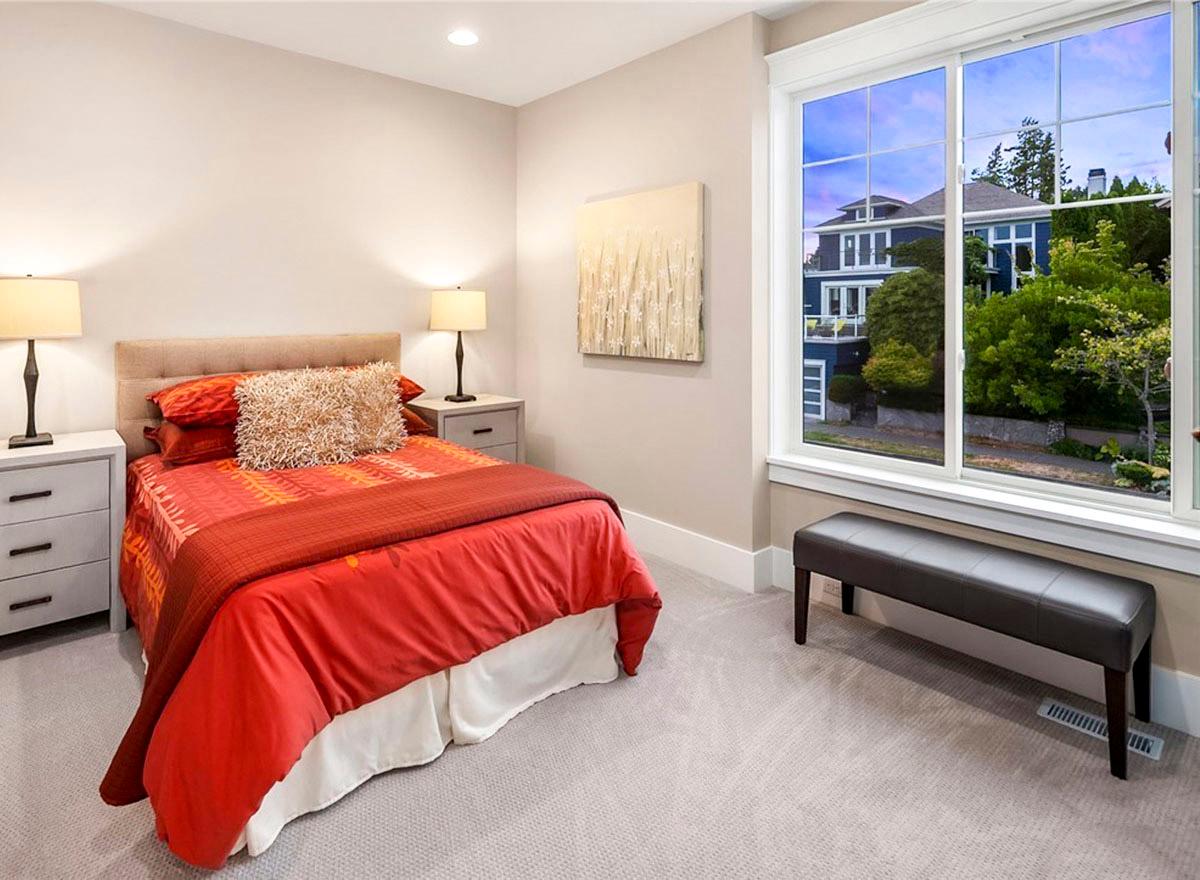

  • Three additional bedrooms reside down the hall and surround the laundry room.

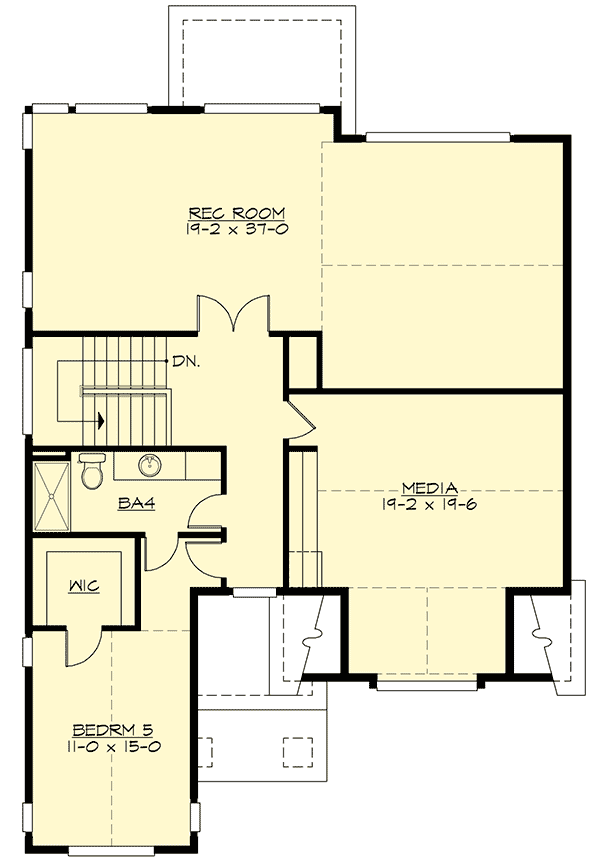

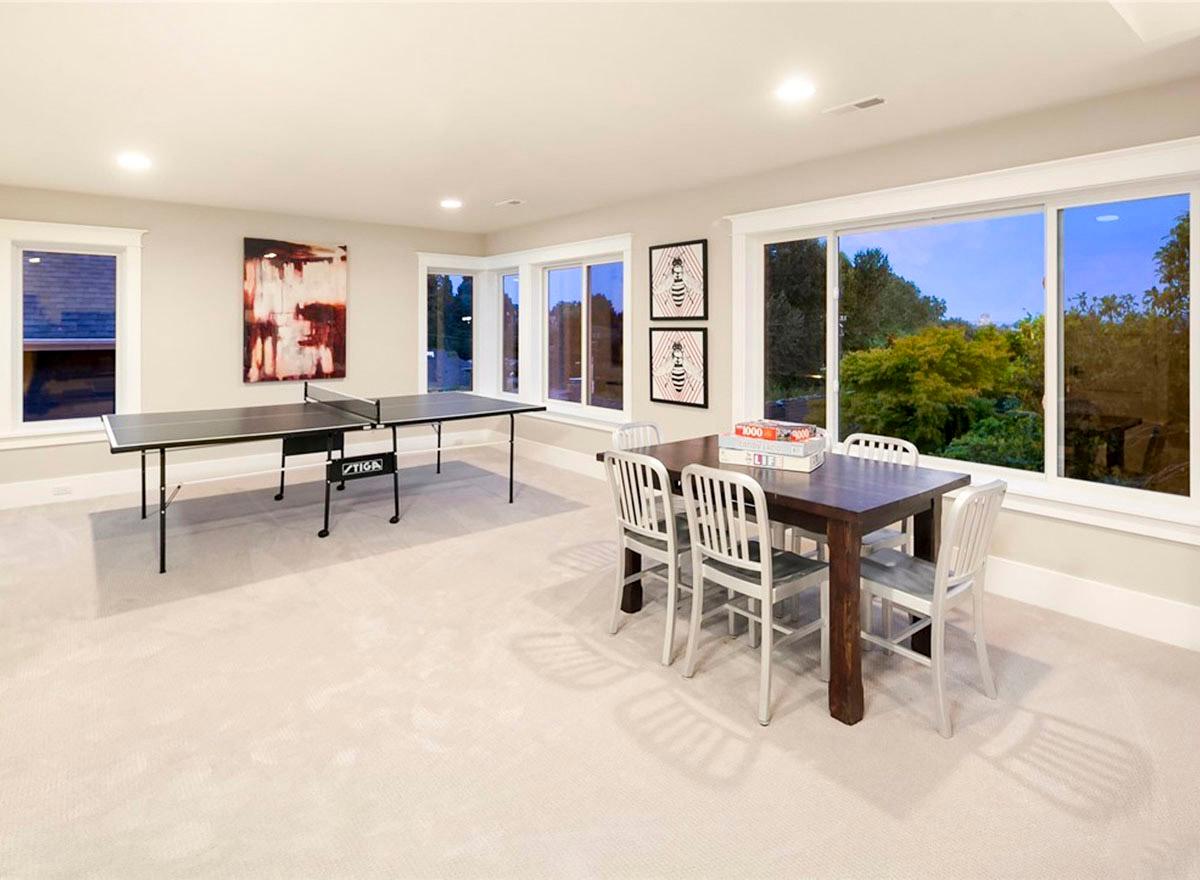

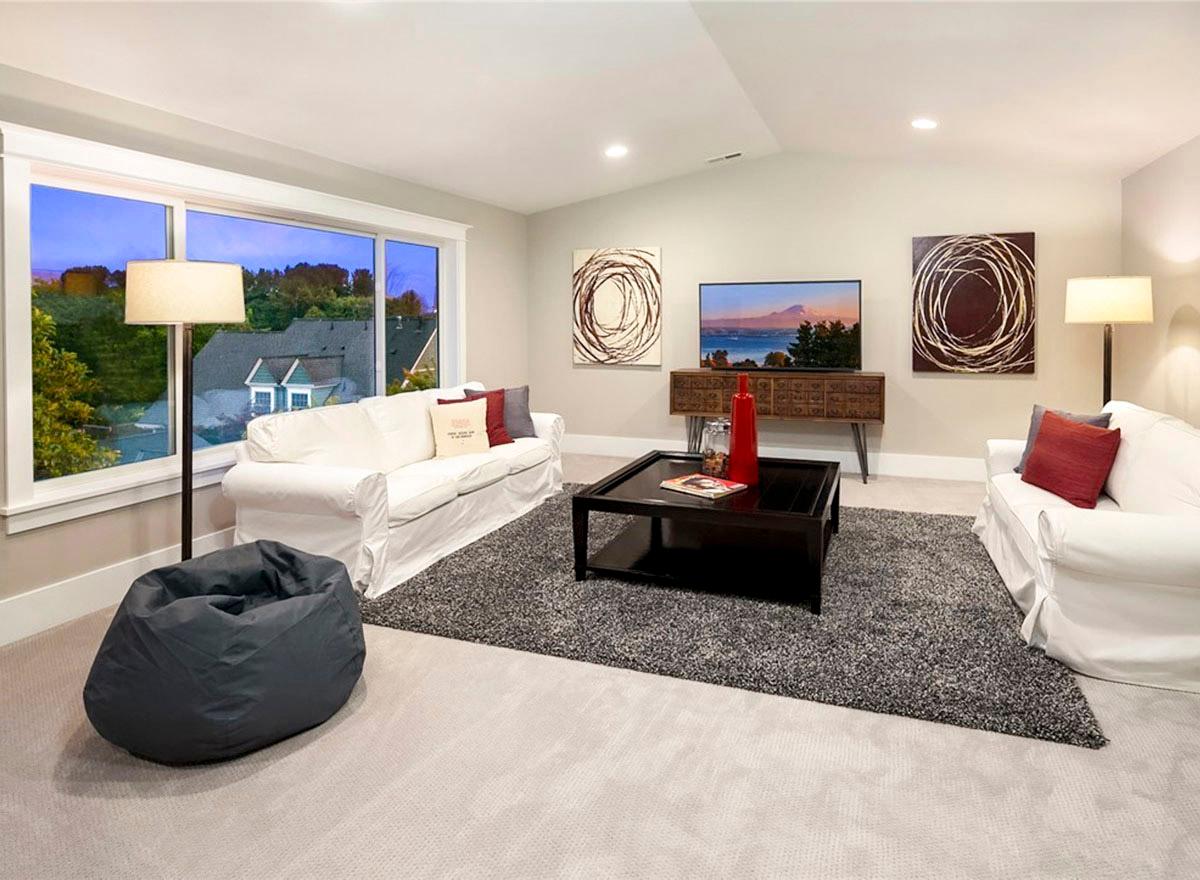

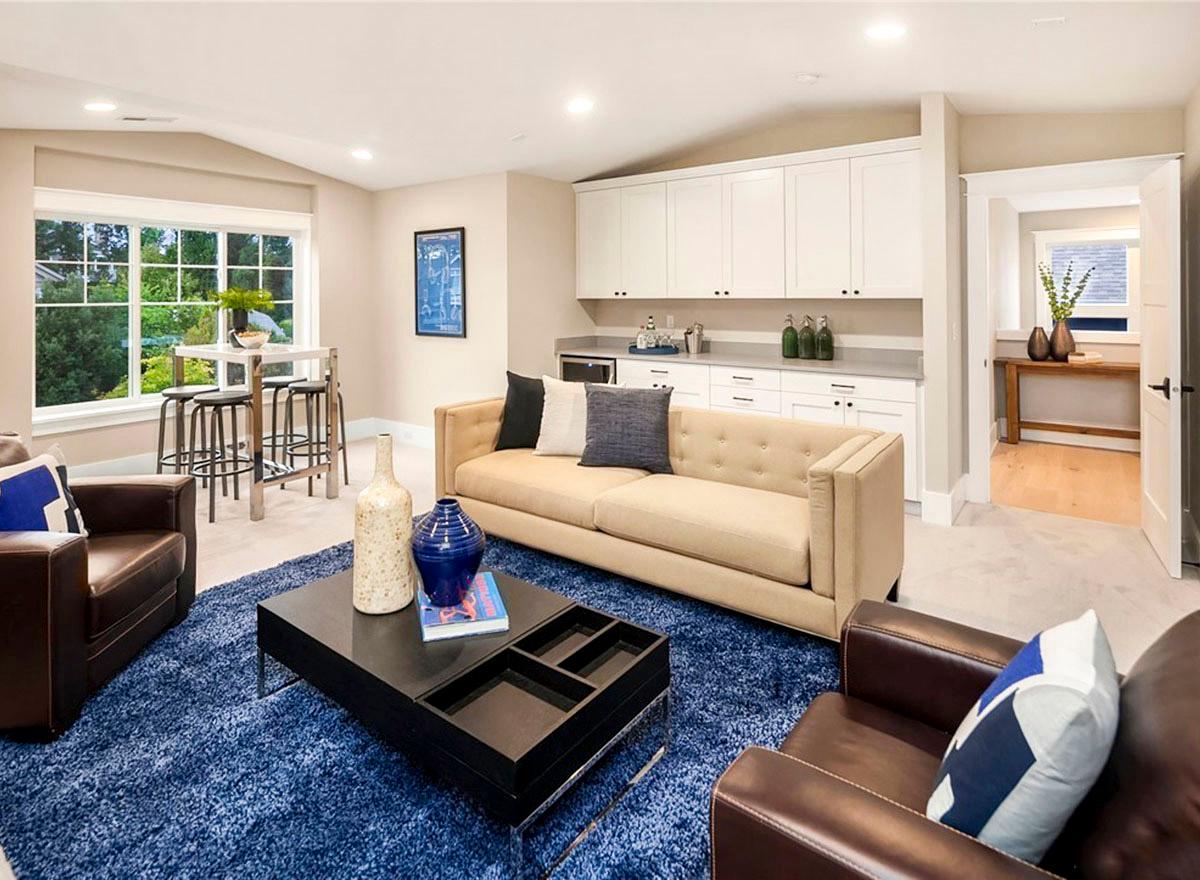

  • The fun continues on the third level with a sprawling recreation room, media room, and fifth bedroom with access to a full bath.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.
What's Included
  • Cover Sheet - The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
  • Schedule Sheet - The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
  • Detail Sheet - The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • Foundation Plan Sheet - The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
  • Floor Plan Sheet - Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
  • Roof Framing Plan Sheet - The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

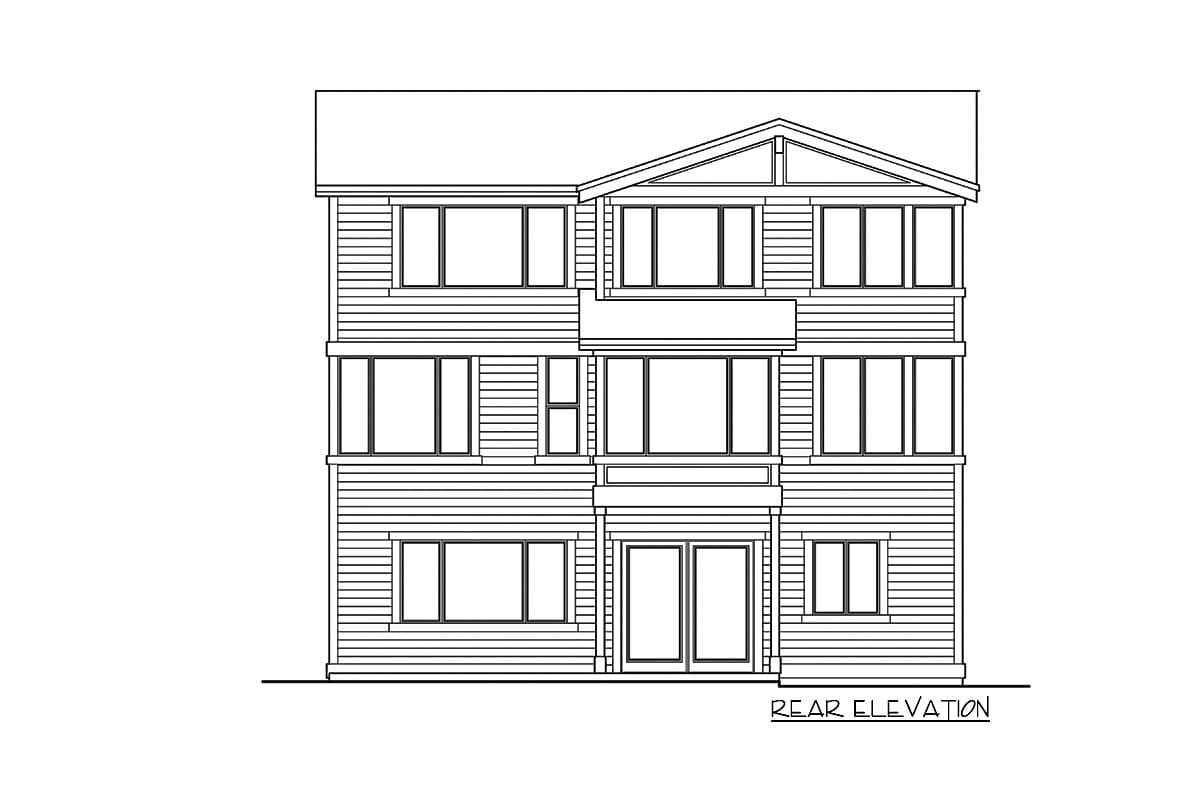

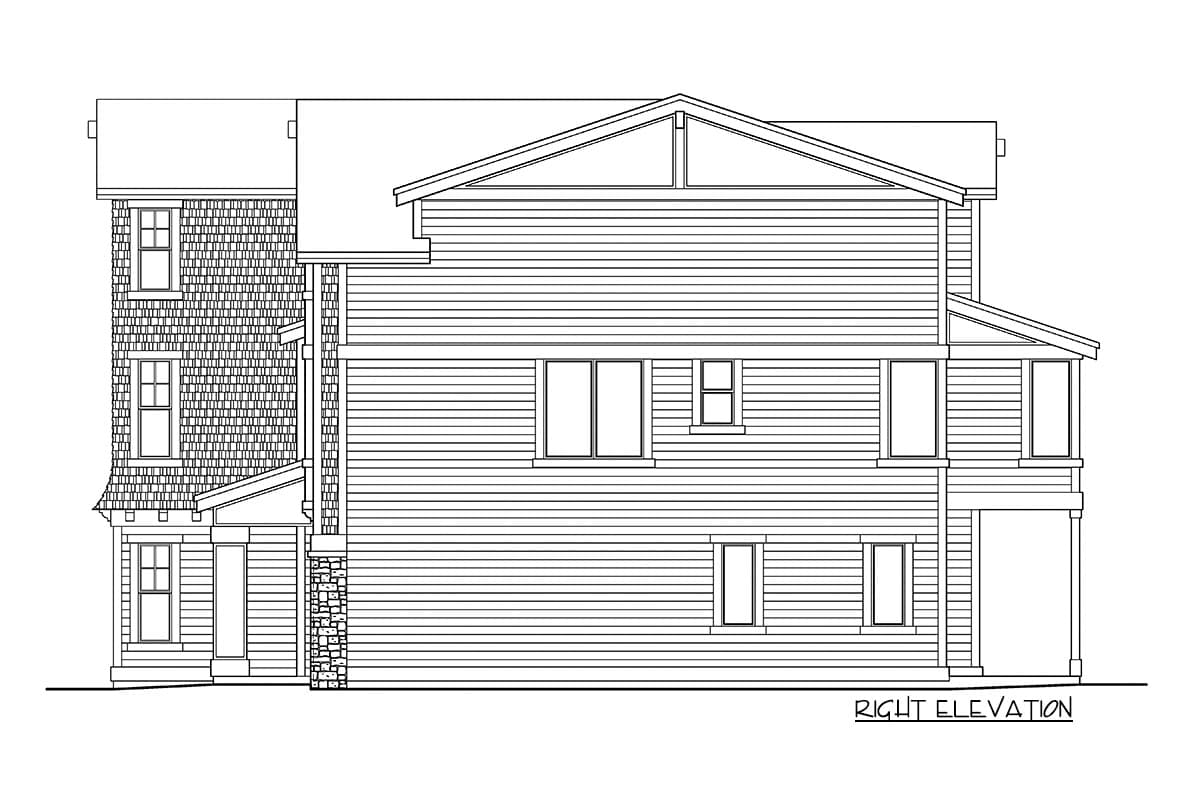

  • Elevation Sheet - Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • Building Section Sheet - Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
What's Not Included
  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Spacious Home Plan with Third-level Recreation Room

  • 4,402

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 3

    Floors

  • 2

    Car garage

Floor Plan

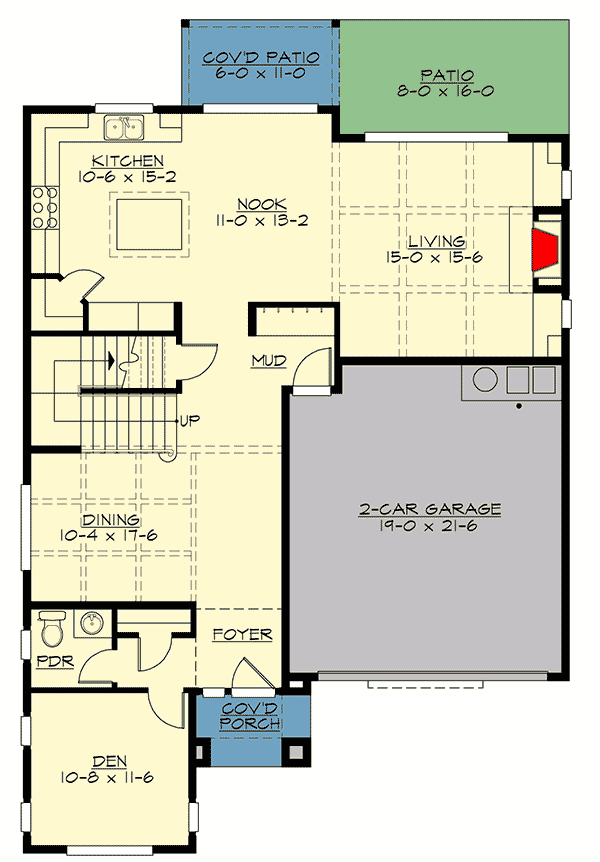

  • Main Level

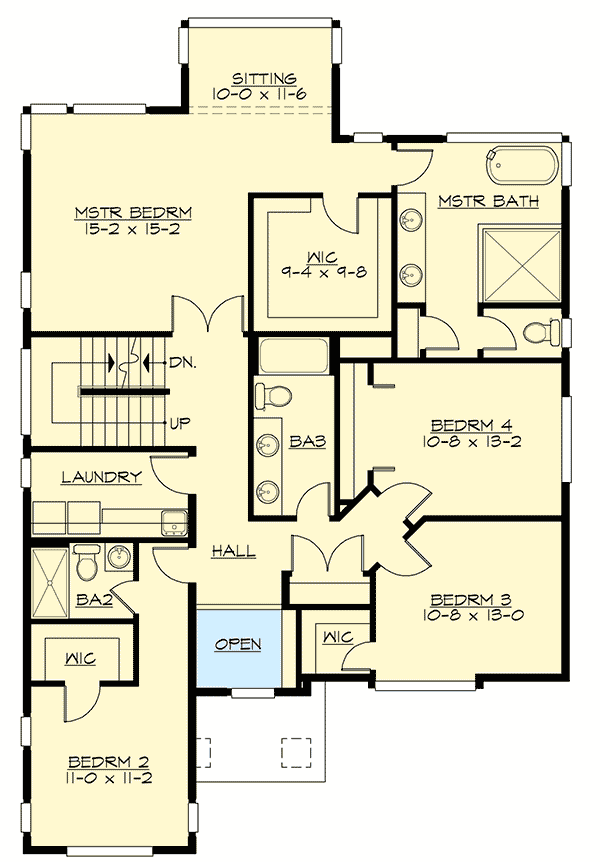

  • 2nd Floor

  • Third Level

Plan Details

Square Footage Breakdown

  • Total: 4,402 sq. ft.
  • 1st Floor: 1,216 sq. ft.
  • 2nd Floor: 1,710 sq. ft.
  • 3rd Floor: 1,476 sq. ft.

Dimensions

  • Width: 38' 0"
  • Depth: 58' 0"
  • Max ridge height: 35' 0"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 421 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0" Third Floor 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site

Spacious Home Plan with Third-level Recreation Room

  • 4,402

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 3

    Floors

  • 2

    Car garage

Spacious Home Plan with Third-level Recreation Room

  • 4,402

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 3

    Floors

  • 2

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 4,402 sq. ft.
  • 1st Floor: 1,216 sq. ft.
  • 2nd Floor: 1,710 sq. ft.
  • 3rd Floor: 1,476 sq. ft.

Dimensions

  • Width: 38' 0"
  • Depth: 58' 0"
  • Max ridge height: 35' 0"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 421 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0" Third Floor 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss

    Main Level

    2nd Floor

    Third Level
