Plan 82294KA Spacious Mediterranean Home Plan for Car Enthusiasts

8,409 6 6.5 2 8
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Spacious Mediterranean Home Plan for Car Enthusiasts

Plan 82294KA

  • 8,409

    Heated s.f.

  • 6

    Beds

  • 6.5

    Baths

  • 2

    Stories

  • 8

    Cars

  • With 8 garage bays extending from the front of this spacious Mediterranean home plan, the car enthusiast will appreciate the space to protect their collection.
  • The grand foyer provides views into the dining room and parlor, as well as the double-sided staircase that sits center stage.
  • The veranda makes entertaining large groups a reality and is accessible from the foyer, family room, library, and master bedroom.
  • Luxurious amenities can be found throughout the design, including a wine room, elevator, exercise and activity rooms, and home theater.
  • The master bedroom is nothing short of a spa experience and the remaining 5 bedrooms include bathrooms and walk-in closets.

Each plan set includes the following:

  • Foundation Plan: Complete with dimensions, dimensioned plumbing, referenced details, General Notes and Schedules.

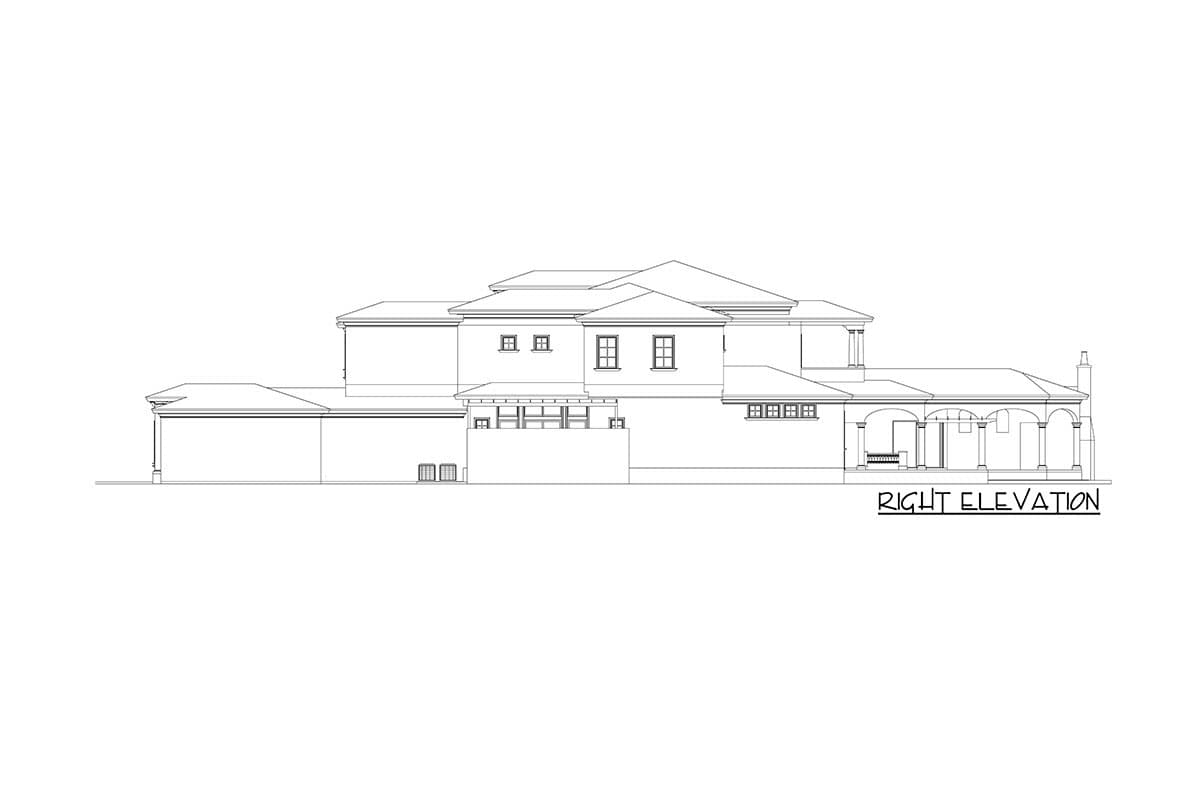

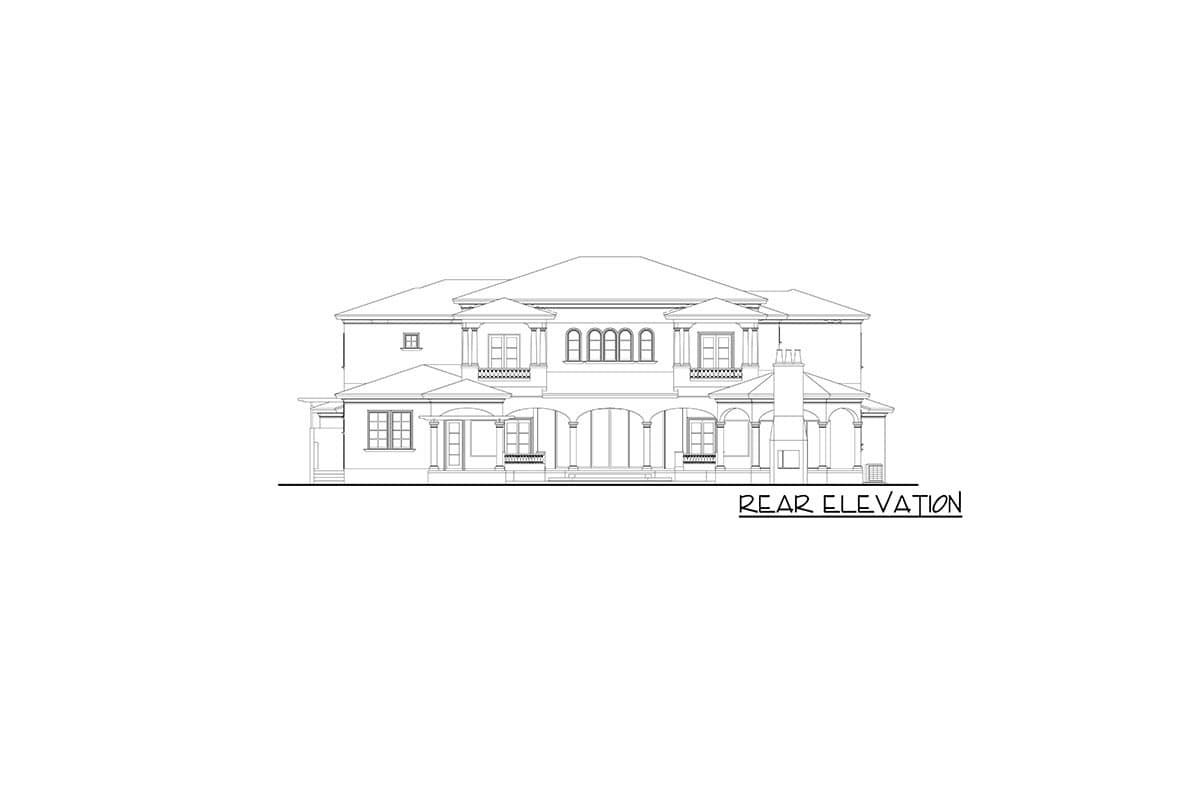

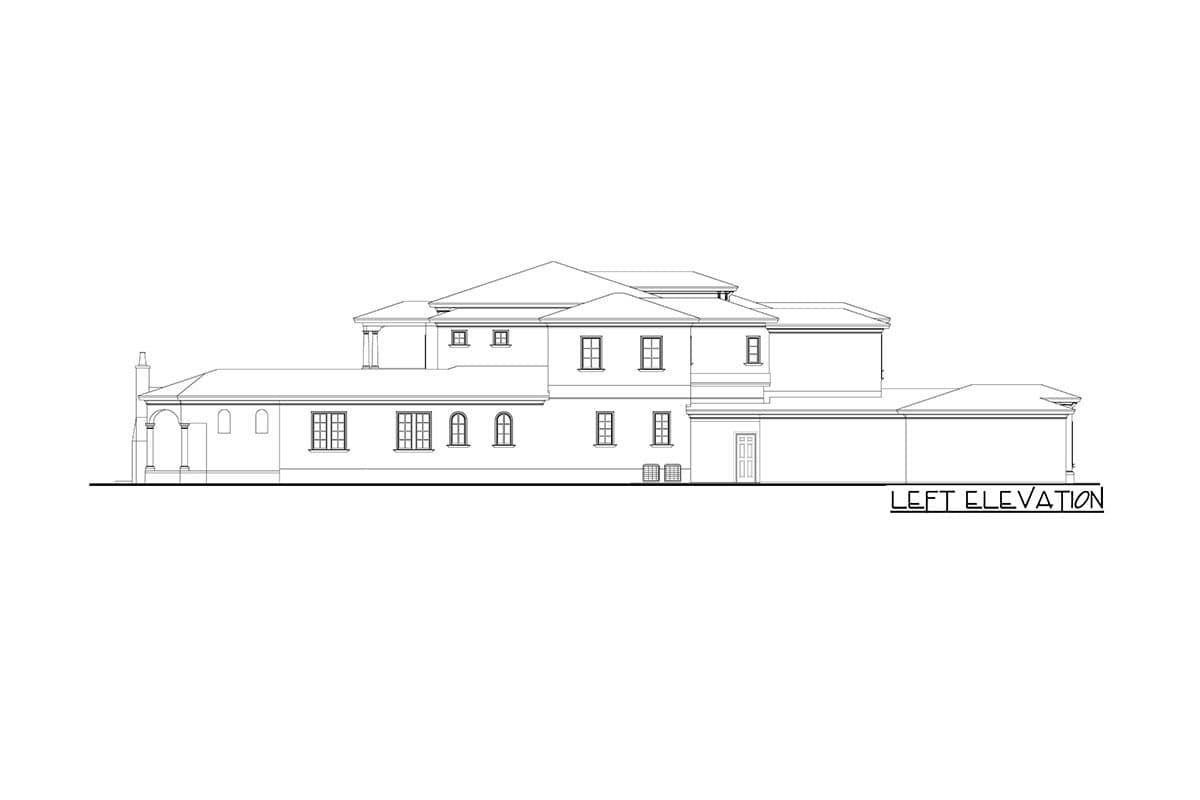

  • Elevations: Minimal four completed elevations with dimensions, notes and material call outs. Also exterior details where applicable.
  • Floor Plan(s): Complete with dimensions and notes of all elements. On our high-end plans we provide architectural and structural floor plans, as typical part of our sets to avoid clatter and for easy construction.
  • Roof Plan: Complete with roof pitches overhangs and notes for special condition also dimensions on any special condition as per plan.
  • Building Sections: Where applicable, building sections are included. The quantity of these drawings is determined by the plan set complexity.
  • Details: Interior and Exterior details as require per plan. Common details are: Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
  • Interior Elevations: Some sets include interior Kitchen, Bathrooms and other significant detailed plan specific areas.
  • Roof Framing Plan: Engineered truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Floor Framing Plan: Only were needed. Engineered floor truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Building Sections: Complete with layout, light fixtures, outlets, legend and notes.
  • Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.
  • Lintel Plan: Provided with block concrete masonry unit plans only. Lintel sizes and details for all exterior openings. Since local codes and conditions very, this plan is for reference only.
  • Structural Details: Including wall sections and all framing details needed per plans. Since local codes and conditions very, this plan is for reference only.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

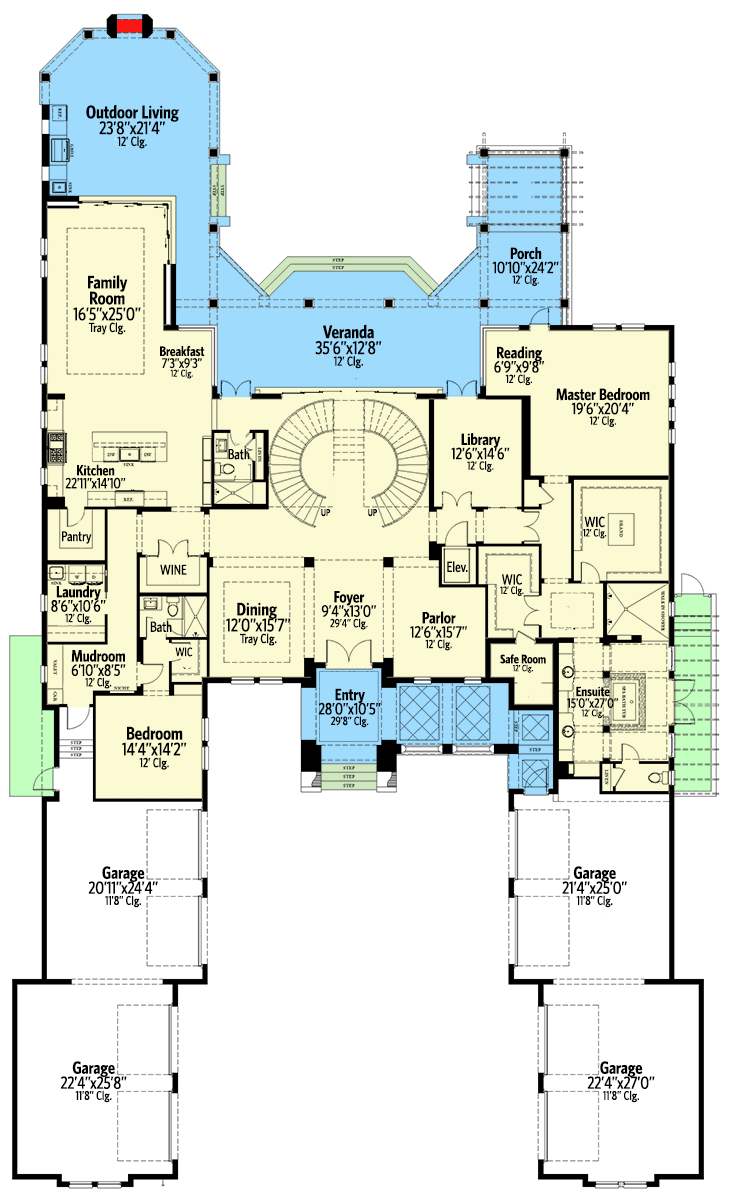

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Spacious Mediterranean Home Plan for Car Enthusiasts - 82294KA floor plan - Main Level

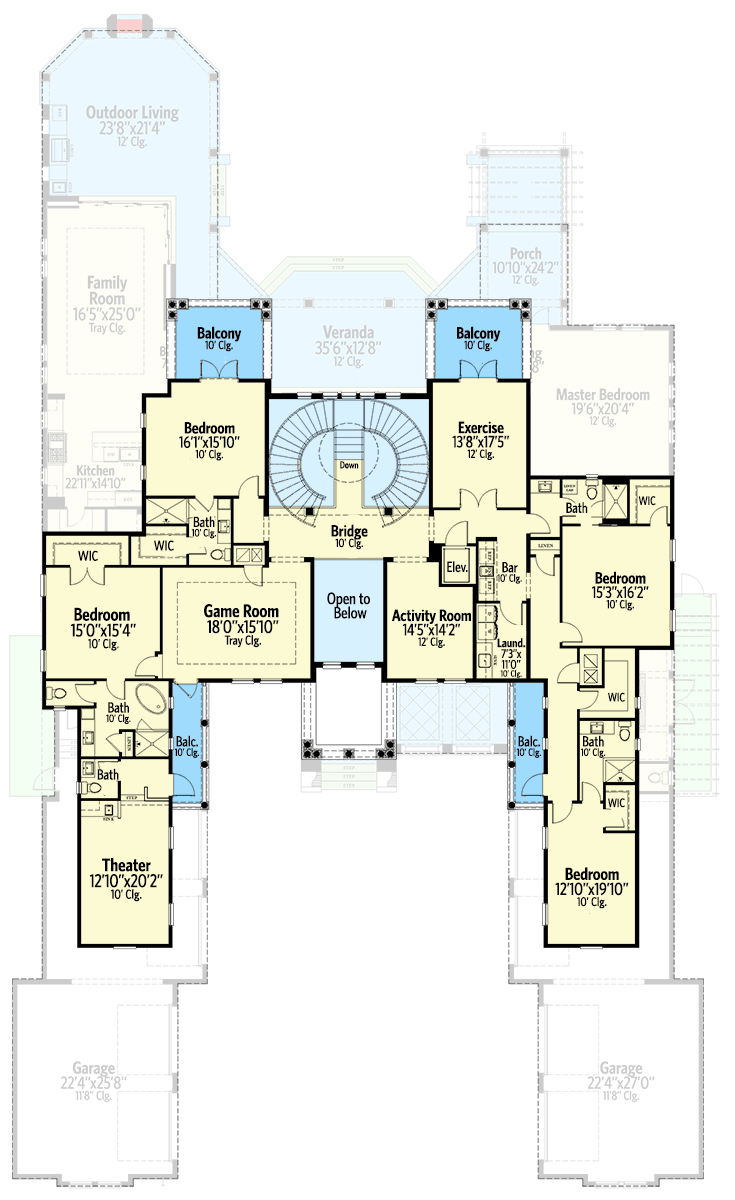

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Spacious Mediterranean Home Plan for Car Enthusiasts - 82294KA floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 8,409 sq. ft.
  • 1st Floor: 4,594 sq. ft.
  • 2nd Floor: 3,815 sq. ft.

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 6
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)

Dimensions

  • Width: 93' 4"
  • Depth: 158' 2"
  • Max ridge height: 35' 0"

Garage

  • Type: Attached
  • Area: 2411 sq. ft.
  • Count: 8 Cars
  • Entry Location: Courtyard

Roof Details

  • Primary Pitch: 4 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Spacious Mediterranean Home Plan for Car Enthusiasts

  • 8,409

    Heated s.f.

  • 6

    Beds

  • 6.5

    Baths

  • 2

    Floors

  • 8

    Car garage

Buy This Plan
  • 5 Sets $6,300
  • CAD - Single-Build $6,700
  • PDF - Single-Build $6,700
  • View all purchase option online

About This Plan

  • With 8 garage bays extending from the front of this spacious Mediterranean home plan, the car enthusiast will appreciate the space to protect their collection.
  • The grand foyer provides views into the dining room and parlor, as well as the double-sided staircase that sits center stage.
  • The veranda makes entertaining large groups a reality and is accessible from the foyer, family room, library, and master bedroom.
  • Luxurious amenities can be found throughout the design, including a wine room, elevator, exercise and activity rooms, and home theater.
  • The master bedroom is nothing short of a spa experience and the remaining 5 bedrooms include bathrooms and walk-in closets.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 8,409 sq. ft.
  • 1st Floor: 4,594 sq. ft.
  • 2nd Floor: 3,815 sq. ft.

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 6
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)

Dimensions

  • Width: 93' 4"
  • Depth: 158' 2"
  • Max ridge height: 35' 0"

Garage

  • Type: Attached
  • Area: 2411 sq. ft.
  • Count: 8 Cars
  • Entry Location: Courtyard

Roof

  • Primary Pitch: 4 on 12
  • Framing Type: Truss
