Plan 82293KA Spacious Modern Home Plan with Double Island Kitchen and Large Lanai

7,279 6 6.5 2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Spacious Modern Home Plan with Double Island Kitchen and Large Lanai

Plan 82293KA

  • 7,279

    Heated s.f.

  • 6

    Beds

  • 6.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Spacious and modern define this two-story home plan that delivers multiple spaces to gather with loved ones, including a large covered lanai, complete with an outdoor kitchen.
  • A coffered ceiling crowns the great room, while the double-island kitchen, combined with an elongated pantry, provides plenty of workspace for meal prep. The pantry includes additional cold storage and a sink.
  • Enjoy the convenience of a main-level primary suite that is joined by a deluxe ensuite and massive closet. Another bedroom can be found on the first floor, as well as a study.
  • Centrally located upstairs, discover a great room surrounded by four bedrooms and a bunk room.
  • The 2-car garage opens into a mudroom with a neighboring laundry room that includes additional storage and a sink.

Each plan set includes the following:

  • Foundation Plan: Complete with dimensions, dimensioned plumbing, referenced details, General Notes and Schedules.
  • Elevations: Minimal four completed elevations with dimensions, notes and material call outs. Also exterior details where applicable.
  • Floor Plan(s): Complete with dimensions and notes of all elements. On our high-end plans we provide architectural and structural floor plans, as typical part of our sets to avoid clatter and for easy construction.
  • Roof Plan: Complete with roof pitches overhangs and notes for special condition also dimensions on any special condition as per plan.
  • Building Sections: Where applicable, building sections are included. The quantity of these drawings is determined by the plan set complexity.
  • Details: Interior and Exterior details as require per plan. Common details are: Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
  • Interior Elevations: Some sets include interior Kitchen, Bathrooms and other significant detailed plan specific areas.
  • Roof Framing Plan: Engineered truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Floor Framing Plan: Only were needed. Engineered floor truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Building Sections: Complete with layout, light fixtures, outlets, legend and notes.
  • Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.
  • Lintel Plan: Provided with block concrete masonry unit plans only. Lintel sizes and details for all exterior openings. Since local codes and conditions very, this plan is for reference only.
  • Structural Details: Including wall sections and all framing details needed per plans. Since local codes and conditions very, this plan is for reference only.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

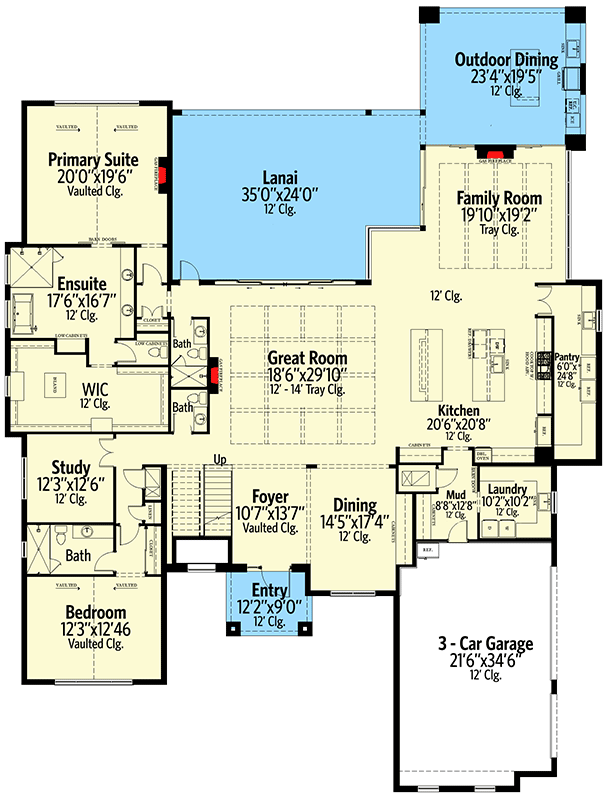

Spacious Modern Home Plan with Double Island Kitchen and Large Lanai - 82293KA floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Spacious Modern Home Plan with Double Island Kitchen and Large Lanai - 82293KA floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 7,279 sq. ft.
  • 1st Floor: 4,639 sq. ft.
  • 2nd Floor: 2,641 sq. ft.
  • Deck: 455 sq. ft.
  • Porch, Rear: 784 sq. ft.
  • Porch, Front: 107 sq. ft.

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 6
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)

Dimensions

  • Width: 84' 4"
  • Depth: 110' 8"
  • Max ridge height: 38' 10"

Garage

  • Type: Attached
  • Area: 784 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Roof Details

  • Primary Pitch: 10 on 12
  • Framing Type: Truss

Architectural Style

Special features

Spacious Modern Home Plan with Double Island Kitchen and Large Lanai

  • 7,279

    Heated s.f.

  • 6

    Beds

  • 6.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $6,300
  • CAD - Single-Build $6,700
  • PDF - Single-Build $6,700
  • View all purchase option online

About This Plan

  • Spacious and modern define this two-story home plan that delivers multiple spaces to gather with loved ones, including a large covered lanai, complete with an outdoor kitchen.
  • A coffered ceiling crowns the great room, while the double-island kitchen, combined with an elongated pantry, provides plenty of workspace for meal prep. The pantry includes additional cold storage and a sink.
  • Enjoy the convenience of a main-level primary suite that is joined by a deluxe ensuite and massive closet. Another bedroom can be found on the first floor, as well as a study.
  • Centrally located upstairs, discover a great room surrounded by four bedrooms and a bunk room.
  • The 2-car garage opens into a mudroom with a neighboring laundry room that includes additional storage and a sink.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 7,279 sq. ft.
  • 1st Floor: 4,639 sq. ft.
  • 2nd Floor: 2,641 sq. ft.
  • Deck: 455 sq. ft.
  • Porch, Rear: 784 sq. ft.
  • Porch, Front: 107 sq. ft.

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 6
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)

Dimensions

  • Width: 84' 4"
  • Depth: 110' 8"
  • Max ridge height: 38' 10"

Garage

  • Type: Attached
  • Area: 784 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Truss
Plan 82293KA
View this and more for this plan by visiting www.architechtecturaldesigns.com/82293KA
|
Need Help? 800-854-7852
|
