Spacious Mountain House Plan with Indoor Outdoor Living

Plan 23867JD

  • 8,120

    Heated s.f.

  • 4

    Beds

  • 5.5+

    Baths

  • 2

    Stories

  • 3

    Cars

  • This spacious mountain house plan includes all of the must-have amenities and then some, including two deluxe master bedrooms, an open concept living space with easy access to the outdoors, and even a life management center.
  • Minimal walls between the great room, dining area, and kitchen create a truly open floor plan, while a retractable wall of windows brings the outdoors inside. The kitchen's cooktop island will delight the chef in the home, and a large walk-in pantry allows for buying in bulk.
  • The master bedroom occupies the right wing of the main level, next to a quiet den, and boasts a sitting nook that leads onto a sun deck with a fireplace. The ensuite provides a spa-like experience with a sauna, toilet room, whirlpool tub, and his and hers closets.
  • Two staircases and an elevator provide access to the second level, where a second master suite with a private deck can be found. Also upstairs, discover two family bedroom suites and a generous bonus room next to a kitchenette.
  • The angled 3-car garage includes a workshop and recycling center.

Each plan set includes the following:

Cover Sheet
The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet
The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet
The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet
The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet
Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet
The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
Elevation Sheet

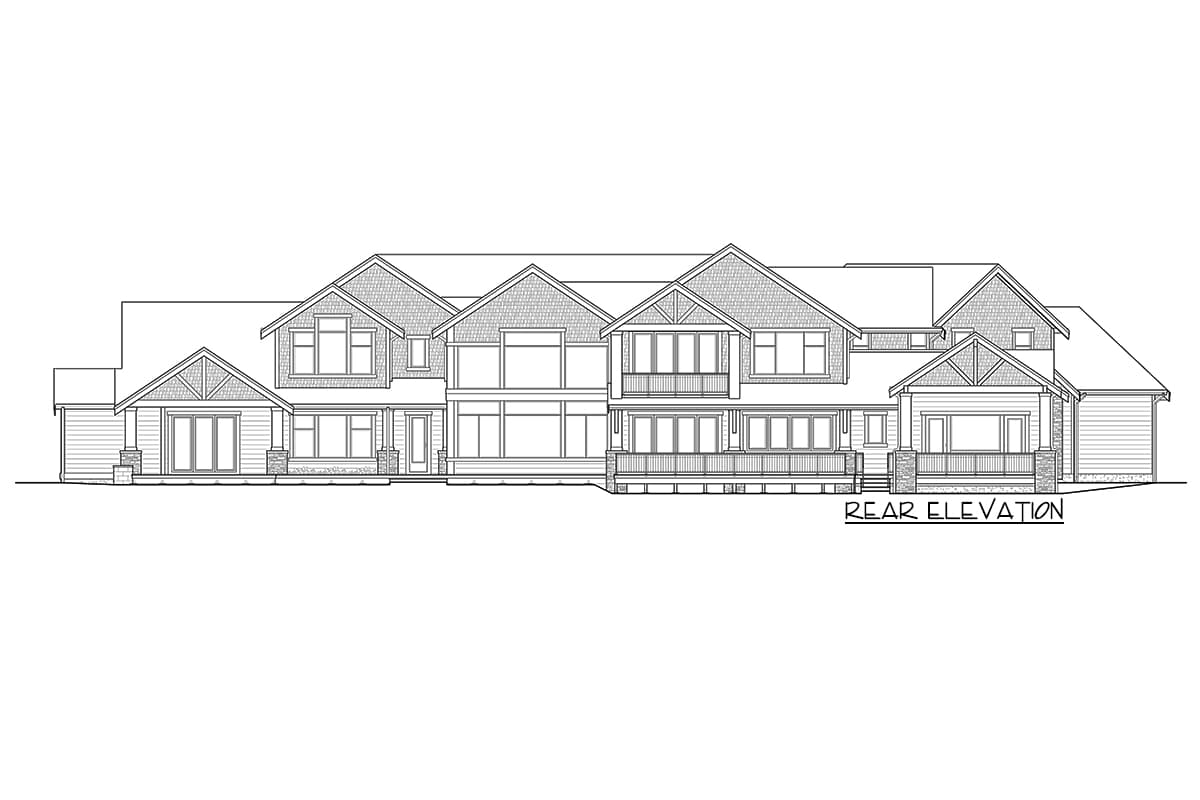

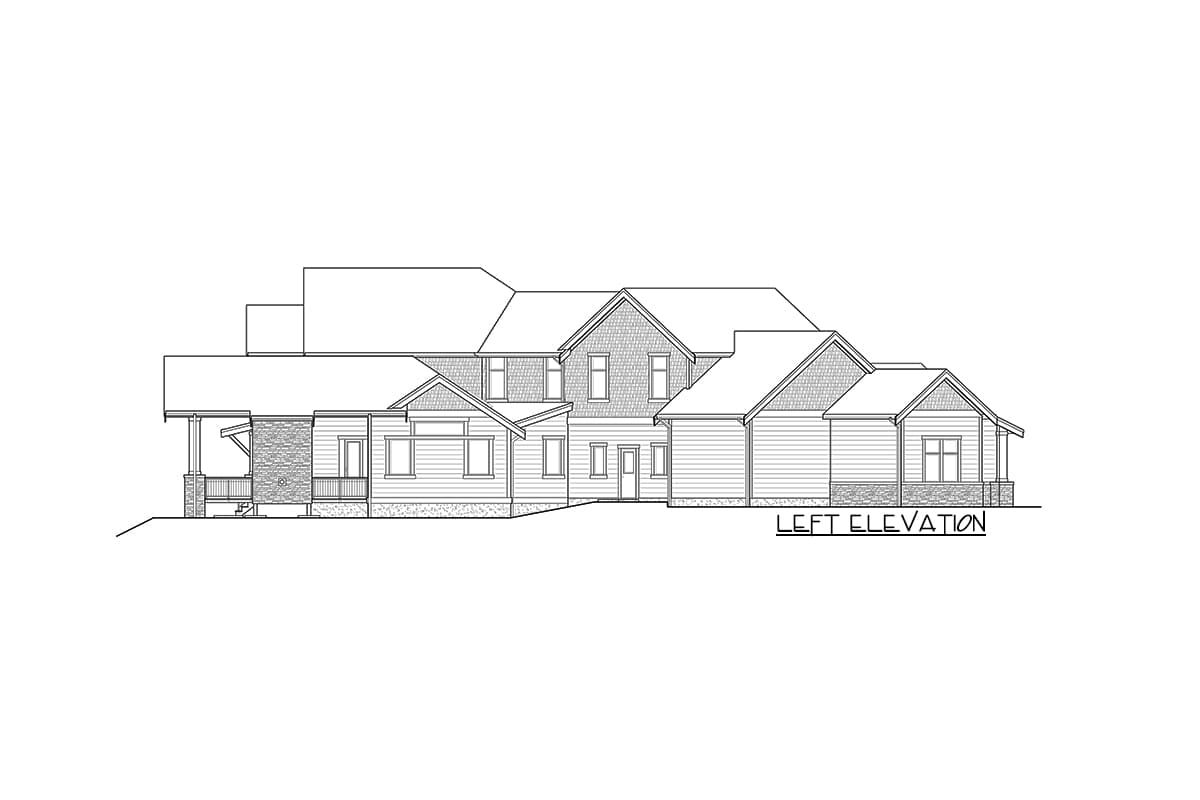

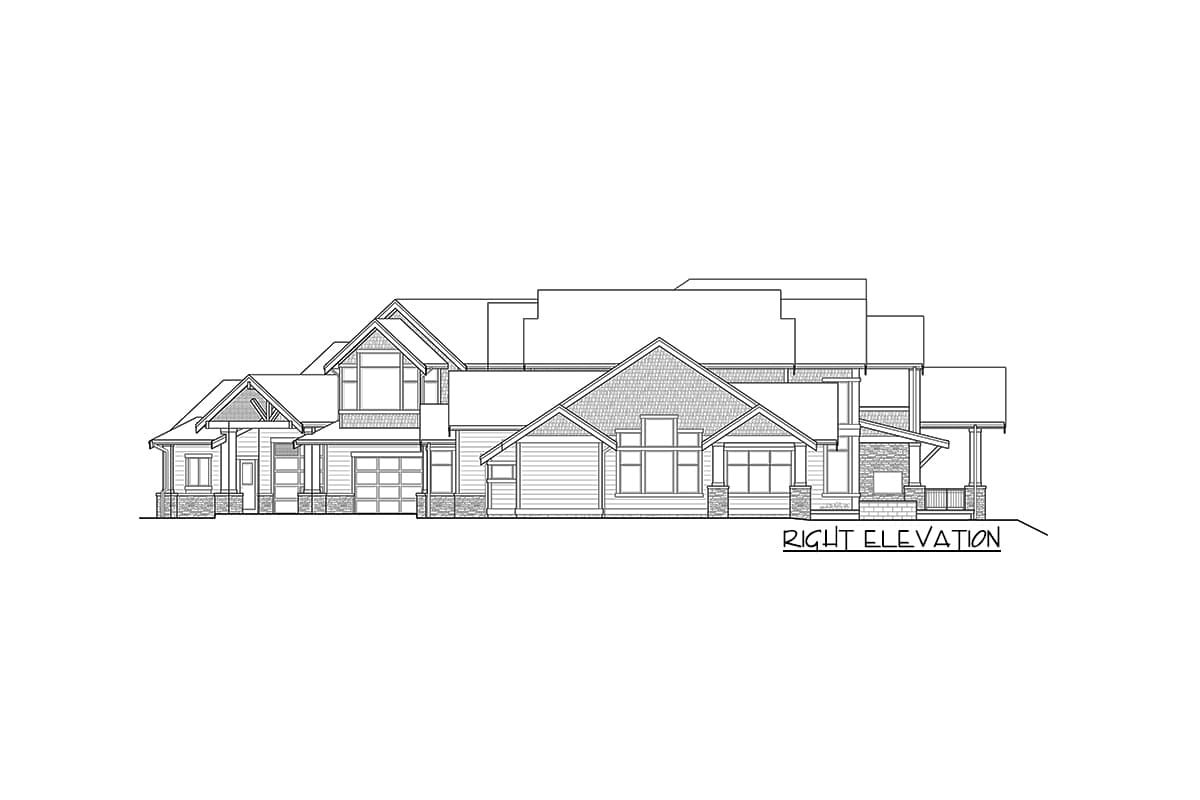

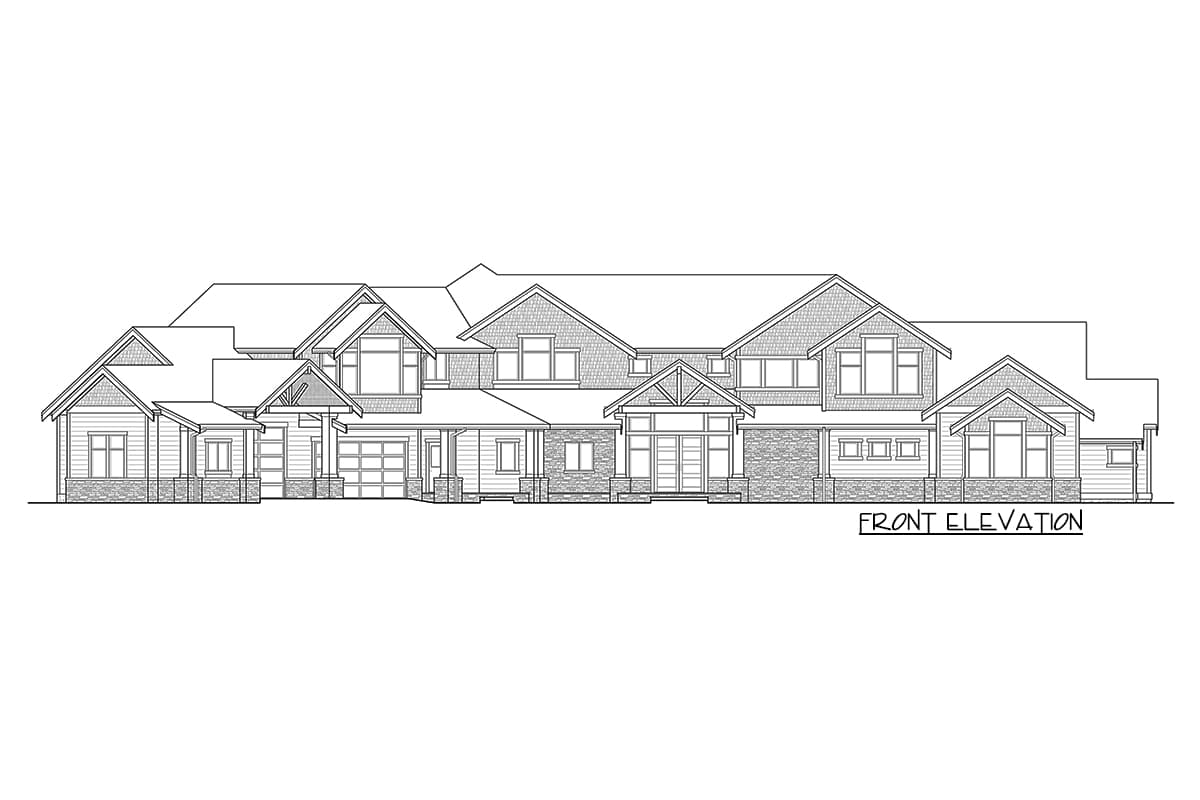

Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet
Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

These items are NOT included:

  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

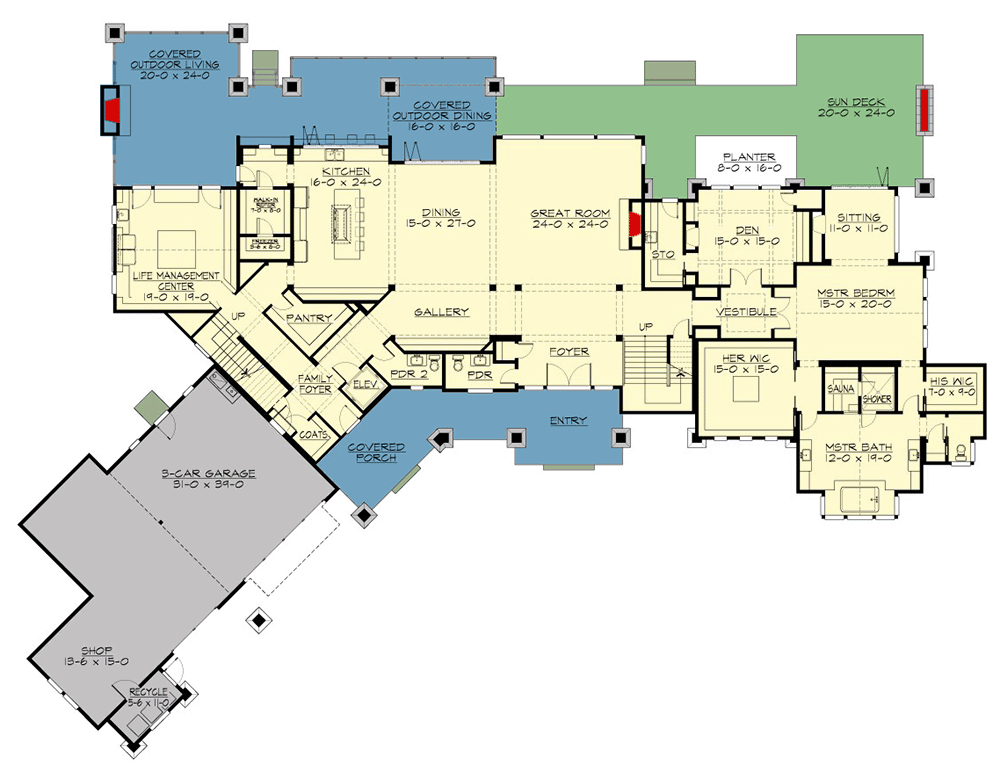

Spacious Mountain House Plan with Indoor Outdoor Living - 23867JD floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

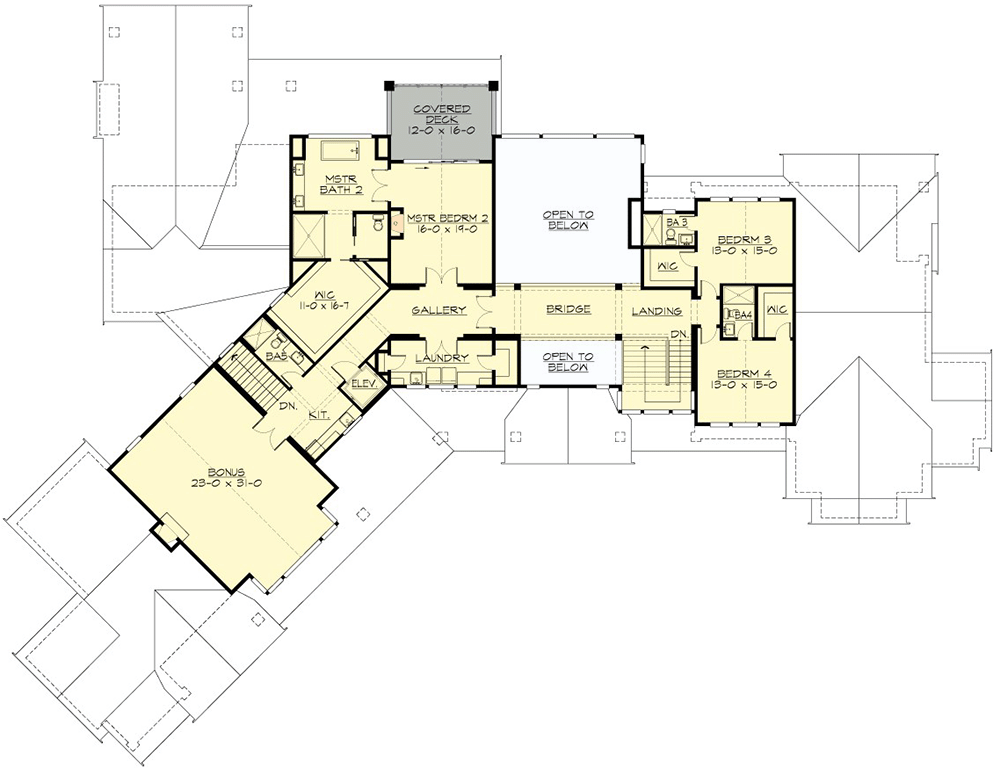

Spacious Mountain House Plan with Indoor Outdoor Living - 23867JD floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 8,120 sq. ft.
  • 1st Floor: 5,050 sq. ft.
  • 2nd Floor: 3,070 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 5
  • Half bathrooms: 2

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 153' 0"
  • Depth: 116' 0"
  • Max ridge height: 32' 0"

Garage

  • Type: Attached
  • Area: 1480 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 6 on 12

Architectural Style

Special features

Plan Collections

Spacious Mountain House Plan with Indoor Outdoor Living

  • 8,120

    Heated s.f.

  • 4

    Beds

  • 5.5+

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $5,000
  • CAD + PDF - Unlimited Build $7,200
  • View all purchase option online

About This Plan

  • This spacious mountain house plan includes all of the must-have amenities and then some, including two deluxe master bedrooms, an open concept living space with easy access to the outdoors, and even a life management center.
  • Minimal walls between the great room, dining area, and kitchen create a truly open floor plan, while a retractable wall of windows brings the outdoors inside. The kitchen's cooktop island will delight the chef in the home, and a large walk-in pantry allows for buying in bulk.
  • The master bedroom occupies the right wing of the main level, next to a quiet den, and boasts a sitting nook that leads onto a sun deck with a fireplace. The ensuite provides a spa-like experience with a sauna, toilet room, whirlpool tub, and his and hers closets.
  • Two staircases and an elevator provide access to the second level, where a second master suite with a private deck can be found. Also upstairs, discover two family bedroom suites and a generous bonus room next to a kitchenette.
  • The angled 3-car garage includes a workshop and recycling center.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 8,120 sq. ft.
  • 1st Floor: 5,050 sq. ft.
  • 2nd Floor: 3,070 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 5
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 153' 0"
  • Depth: 116' 0"
  • Max ridge height: 32' 0"

Garage

  • Type: Attached
  • Area: 1480 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 6 on 12
