Plan 86424HH

Spacious New American Ranch House Plan with Four Bedrooms

Heated S.F.
2,403
Beds
4
Baths
3
Stories
1
Cars
2

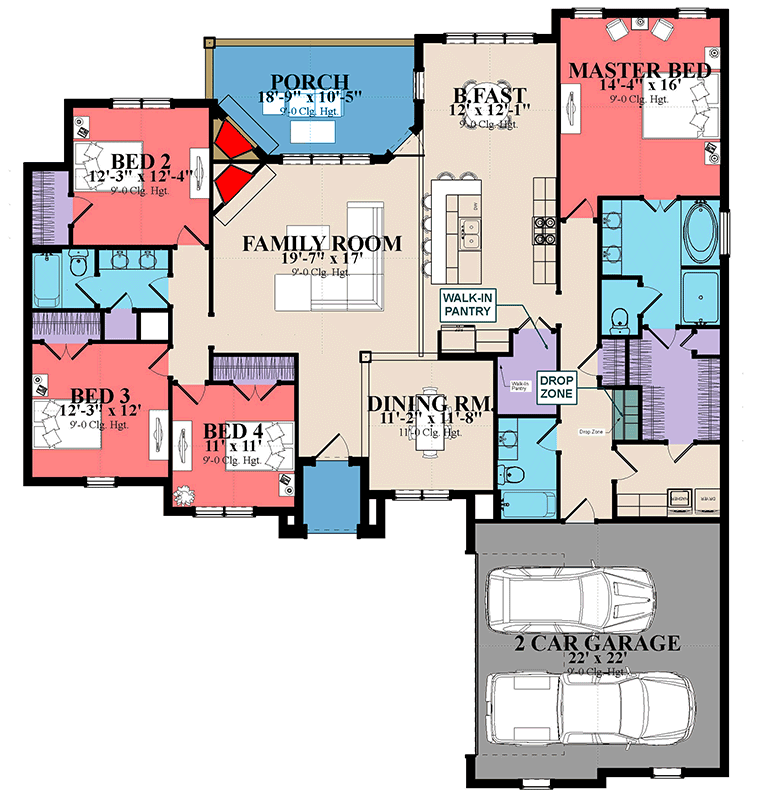

Floor Plan

Plan 86424HH

Floor Plan 1

Plan 86424HH

M-F 9am-5pm EST |

1-203-761-8500

Plan 86424HH: Spacious New American Ranch House Plan with Four Bedrooms - Floor Plan - - New American, Ranch, Southern, Traditional

Plan Details

  • This 2,403 square foot New American ranch house plan features four bedrooms, three bathrooms, and a two-car 547 square foot garage.
  • The home welcomes you through a courtyard entry that leads into a thoughtfully designed, split-bedroom floor plan.
  • The heart of the home showcases an expansive family room that flows seamlessly into the breakfast nook and a kitchen equipped with a large walk-in pantry.
  • A formal dining room sits near the front of the home, providing a sophisticated space for hosting dinners or gatherings.
  • The private primary suite is tucked away for quiet relaxation and includes convenient access to the main-level laundry room.
  • A covered rear porch serves as an ideal outdoor retreat, complete with a fireplace for enjoying crisp evenings in comfort.

What's Included

  • Cover Sheet
  • Foundation plans
  • Elevations - complete with dimensions, ridge heights and special notes
  • Floor Plans - complete with dimensions of all elements including plumbing, appliances and cabinet sizes
  • Roof Plan - complete with dimensions, plate heights, roof pitches and notes for special conditions
  • Rafter Plan
  • Details
  • Interior Elevations - include applicable cabinetry, electrical and special construction notes
  • Floor Joist Plan - complete with spans, sizes and direction (if applicable)
  • Ceiling Joist - complete with spans, sizes and direction
  • Sections - complete with dimensions, notes and specifications
  • Electrical plan - complete wit layout, light fixtures, outlets and legend

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,403 sq. ft.

1st Floor

2,403 sq. ft.

Porch, Combined

232 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

63' 3"

Depth

69' 10"

Max Ridge Height

26' 1"

Garage

Type

Standard

Area

547 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Architectural Style

New American

Ranch

Southern

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Formal Dining

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Outdoor Fireplace

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

2,403 sq. ft.

1st Floor

2,403 sq. ft.

Porch, Combined

232 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

63' 3"

Depth

69' 10"

Max Ridge Height

26' 1"

Garage

Type

Standard

Area

547 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Architectural Style

New American

Ranch

Southern

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Formal Dining

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Outdoor Fireplace

Walk-in Pantry
