Plan 81692AB
Spacious Northwest Beauty
Heated S.F.
3,905
Beds
3
Baths
2.5
Stories
2
Cars
3
What's Included
Plan Details
  • A grand open floor plan gives you sweeping views of all the main living areas of this Northwest house plan.
  • Interior columns are used instead of walls to keep the sight lines open.
  • The walk-in coat closet off the foyer is huge with lots of welcome space.
  • Another walk-in closet lies off the giant mud room and there's lots of counter space for folding clothes fresh out of the dryer.
  • The second floor bonus room has open railings so you can see down into the first floor below.
  • A sun deck lets you work on your tan with privacy.
  • Extras include another laundry room for the upper floor and charming window seats in the family bedrooms.
  • A spacious master suite comes with a dressing area and large deluxe bathroom.
What's Included

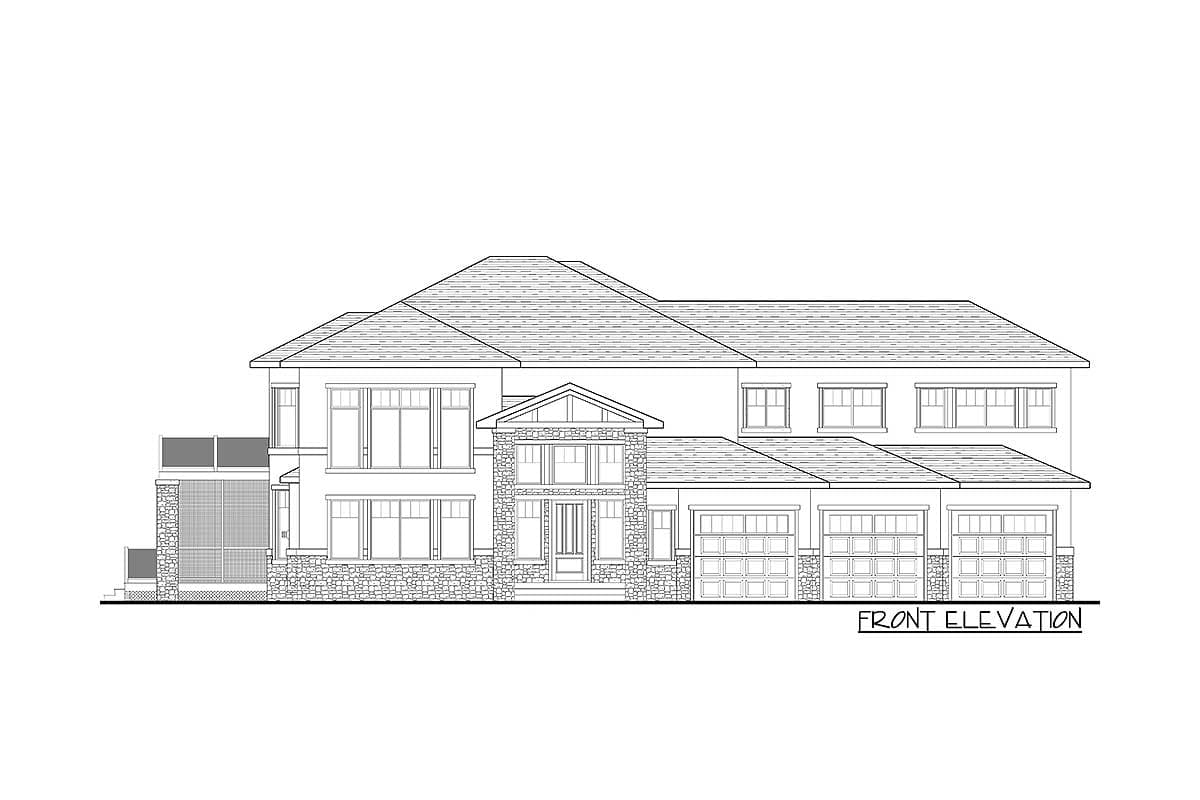

  • Elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.

What's Not Included
  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Spacious Northwest Beauty

  • 3,905

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 3

    Car garage

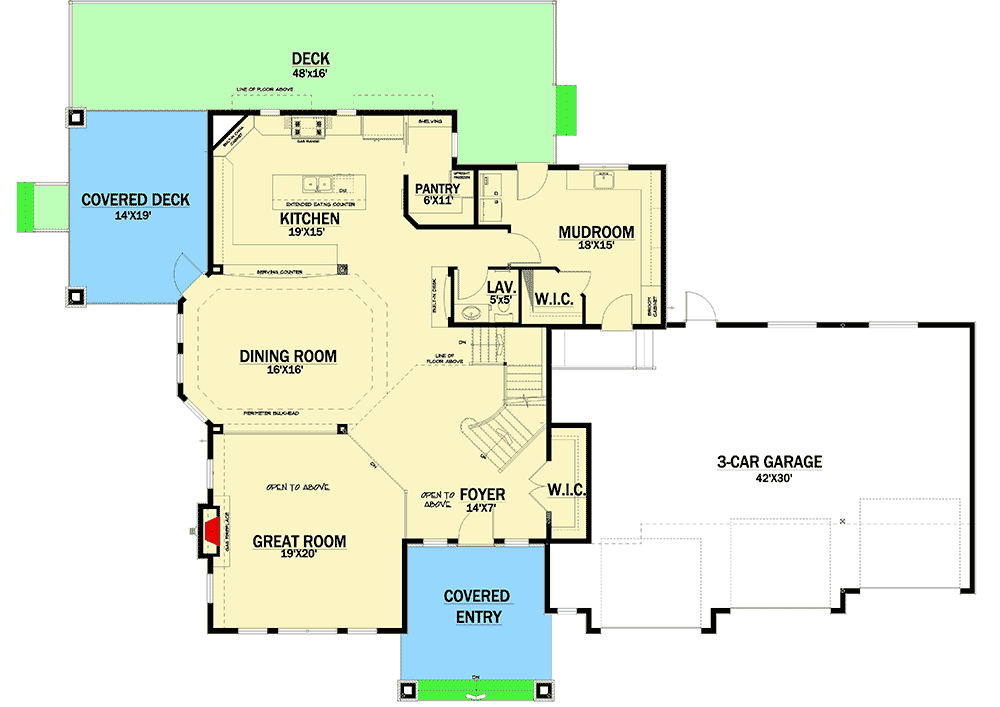

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,905 sq. ft.
  • 1st Floor: 1,856 sq. ft.
  • 2nd Floor: 2,049 sq. ft.

Dimensions

  • Width: 80' 0"
  • Depth: 53' 0"
  • Max ridge height: 34' 4"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1238 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 5 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss
