Plan 81705AB

Spacious One Story Home with Finished Lower Level

Spacious One Story Home with Finished Lower Level

Plan 81705AB

  • 4,682

    Heated s.f.

  • 3

    Beds

  • 4.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • Every room in this spacious Northwest house plan is a large and comfortable size.
  • The open layout guarantees beautiful views from room to room.
  • Even the mud room is large and well-organized with built-ins and a walk-through pantry.
  • Outdoor living spaces come with open decks and shaded porches.
  • The main floor master suite is enormous and has a giant master bathroom with a sauna and huge walk-in closet.
  • Why go to the gym when you have your own dedicated exercise room on the fully finished lower level?
  • The enormous family room/games area are made for entertaining with a large wet bar close by.
  • Each of the two family bedrooms have private bathrooms and walk-in closets.

Plans include the following:

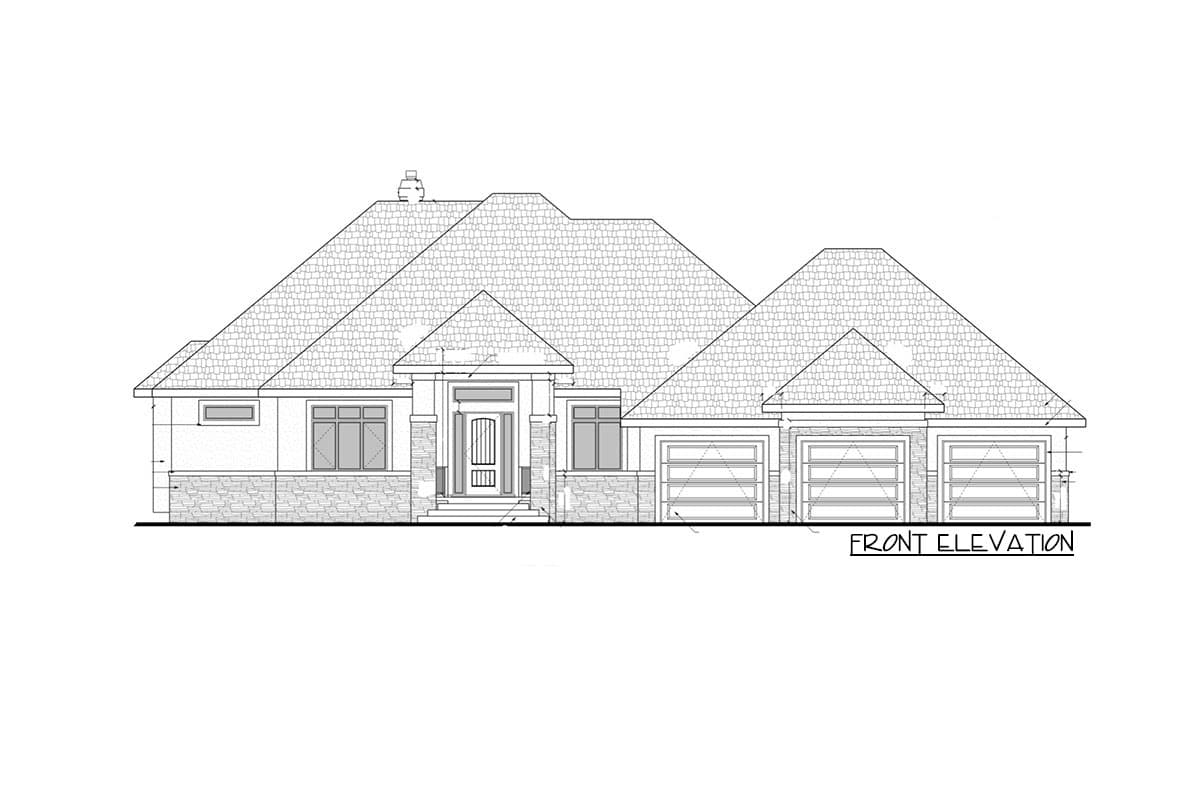

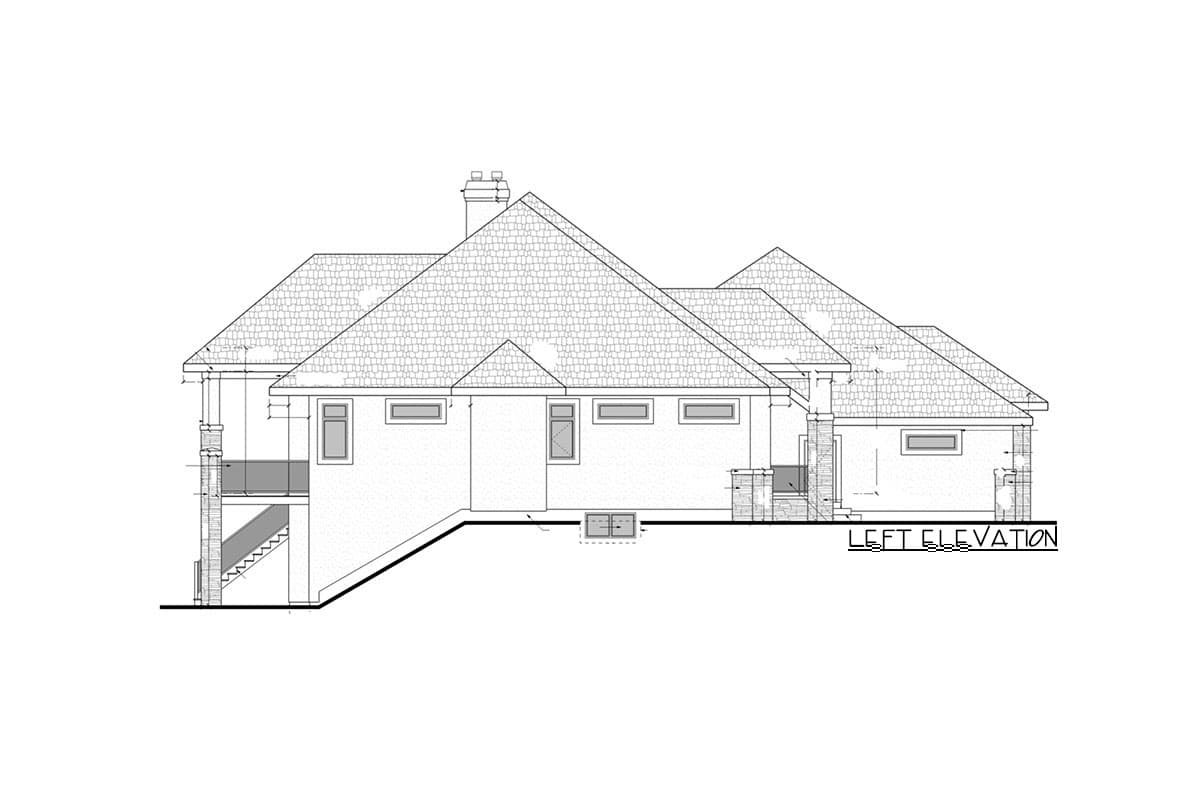

  • 4 elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

 We also include a list of building specifications, and notes for each page, with any important info the builder may need.

 What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Framing layouts with beam sizes and locations
  •           Energy calculations



Floor Plan

Finished Lower Level

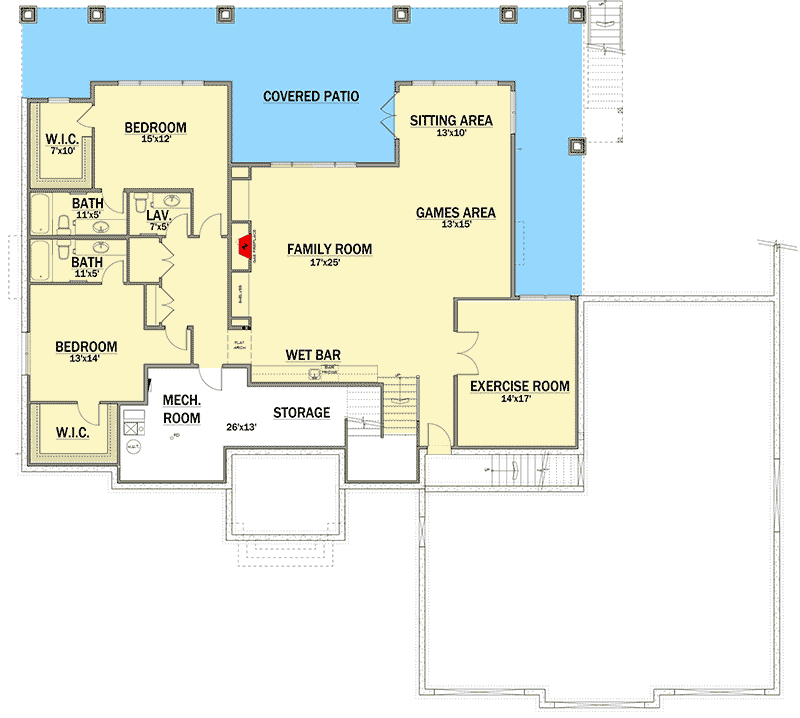

Spacious One Story Home with Finished Lower Level - 81705AB floor plan - Finished Lower Level

Plan details



Spacious One Story Home with Finished Lower Level

  • 4,682

    Heated s.f.

  • 3

    Beds

  • 5

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $2,495
  • CAD $3,495
  • View all purchase option online

About This Plan

  • Every room in this spacious Northwest house plan is a large and comfortable size.
  • The open layout guarantees beautiful views from room to room.
  • Even the mud room is large and well-organized with built-ins and a walk-through pantry.
  • Outdoor living spaces come with open decks and shaded porches.
  • The main floor master suite is enormous and has a giant master bathroom with a sauna and huge walk-in closet.
  • Why go to the gym when you have your own dedicated exercise room on the fully finished lower level?
  • The enormous family room/games area are made for entertaining with a large wet bar close by.
  • Each of the two family bedrooms have private bathrooms and walk-in closets.

Floor Plans

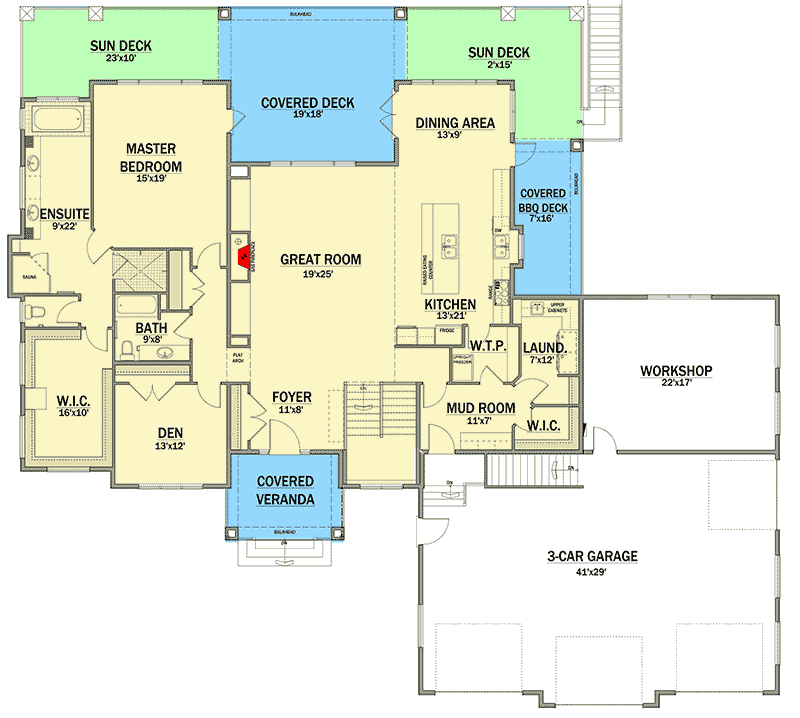

  • Main Level

  • Finished Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,682 sq. ft.
  • Lower Level: 2,097 sq. ft.
  • 1st Floor: 2,585 sq. ft.
  • Deck: 342 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 90' 0"
  • Depth: 73' 0"
  • Max ridge height: 32' 6"

Garage

  • Type: Attached
  • Area: 1655 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Truss
