Plan 81649AB
Spacious Ranch with Optional Lower Level
Heated S.F.
3,099
Beds
1-4
Baths
1.5 - 4.5
Stories
1
Cars
4
What's Included
Plan Details
  • A staggered four car garage is angled off to one side of this spacious Ranch house plan.
  • The main floor has a delightful open layout that lets you see into the kitchen, vaulted great room and eating nook all in one glance.
  • Use the den as a second bedroom, giving you two bedrooms on this floor.
  • Luxury abounds in the master suite with its tray ceiling, huge en suite bathroom and an enormous walk-in closet with windows.
  • Enjoy the three season room off the eating nook, warmed by a corner fireplace.
  • If you finish off the optional lower level, you get two extra bedrooms, an exercise room and a fabulous rec area that includes a games room, wet bar and home theater.
What's Included
Plans include the following:
  • 4 elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.


These items are NOT included:
  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Spacious Ranch with Optional Lower Level

  • 3,099

    Heated s.f.

  • 1-4

    Beds

  • 1.5 - 4.5

    Baths

  • 1

    Floors

  • 4

    Car garage

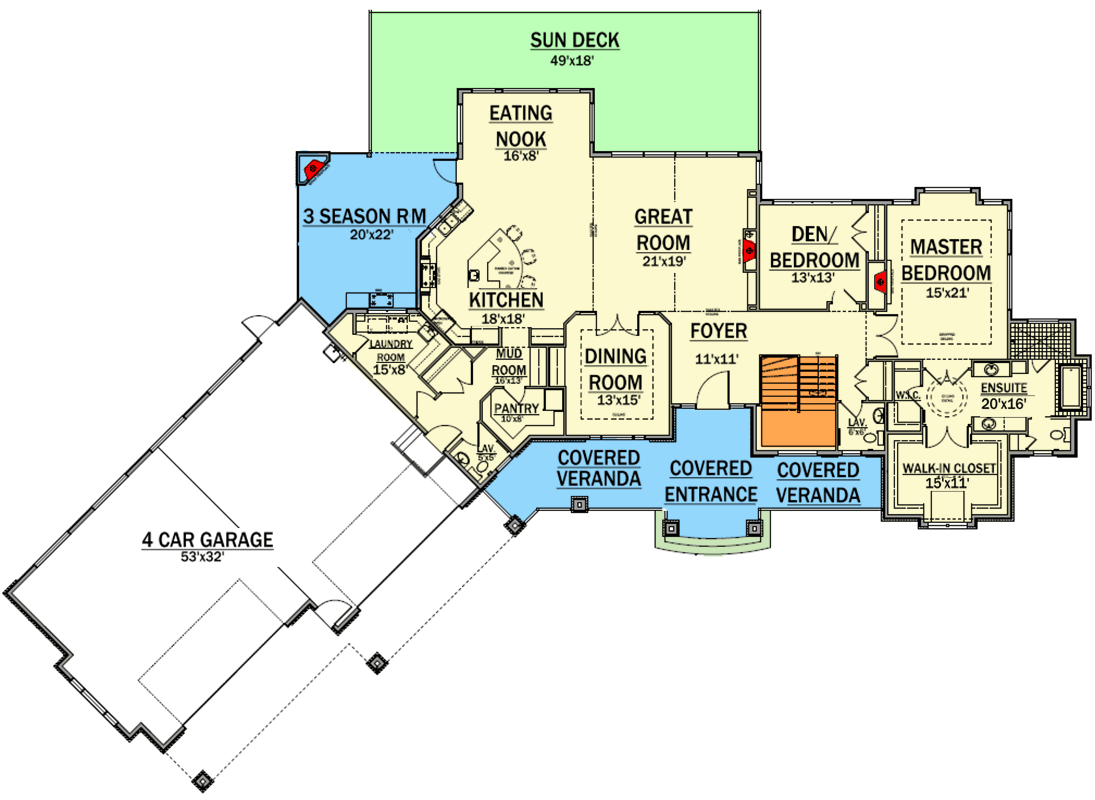

Floor Plan

  • Main Level

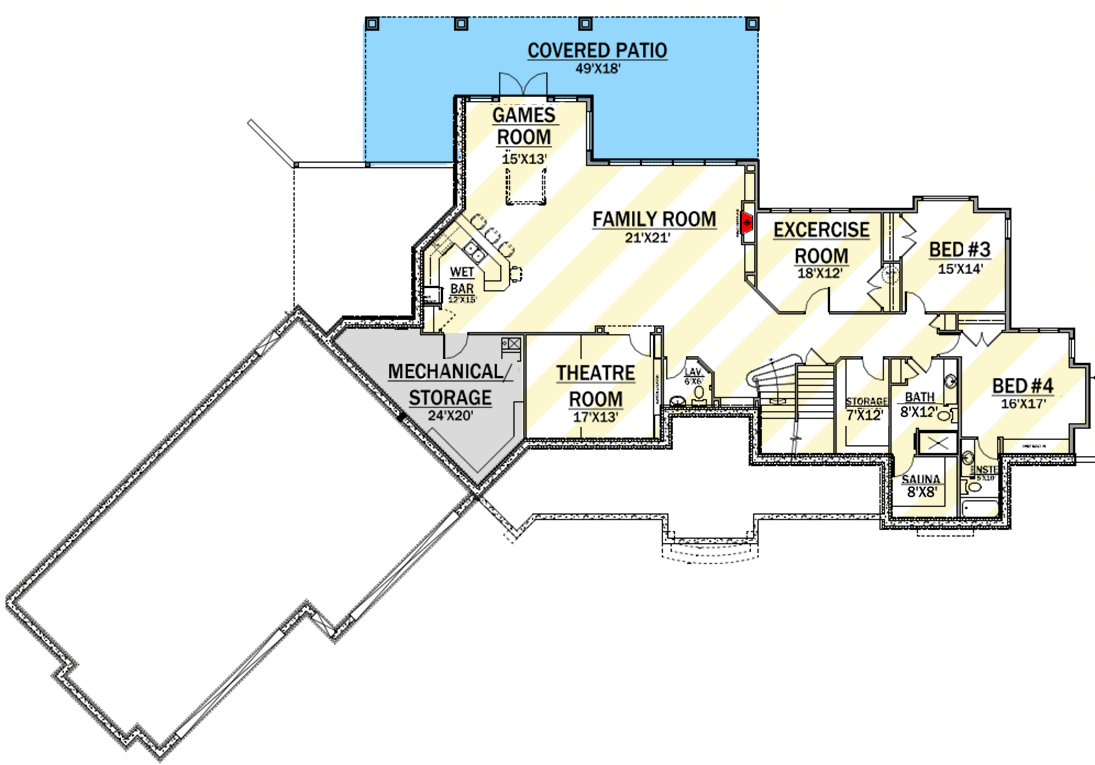

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 3,099 sq. ft.
  • 1st Floor: 3,099 sq. ft.

Dimensions

  • Width: 137' 0"
  • Depth: 99' 0"
  • Max ridge height: 30' 3"

Beds/Baths

  • Bedrooms: 1, 2, 3, or 4
  • Full bathrooms: 1, 2, 3, or 4
  • Half bathrooms: 1 or 2

Garage

  • Type: Attached
  • Area: 1696 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side, Courtyard

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 11' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss
