Spacious Rural Craftsman Plan with Under 4000 Square Feet with 5-Car Garage

Plan 81764AB

  • 3,854

    Heated s.f.

  • 3-5

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Stories

  • 5

    Cars

  • Stone and stucco adorn the facade of this Rural 3,854 square foot Craftsman home plan that delivers an angled 5-car garage that includes a rear overhead door (9' by 8') in addition to a 18' by 8' overhead door and three 10' by 8' doors in front.
  • Plenty of gathering spaces on the main and lower levels make this home ideal for entertaining, and the partially-covered deck allows you to enjoy the outdoors rain or shine.
  • The kitchen has two islands - 3' by 8'3" and 2'6" by 8'3" - giving you work space with two sinks on the inner one and casual seating on the outer one.
  • The mud / laundry room presents plenty of storage, along with a shortcut into the pantry / kitchen to help when unloading groceries.
  • Retreat to the spacious master bedroom, complete with a fireplace and deluxe ensuite with a dresser island in the closet.
  • The fun continues in the walkout basement where you'll find a gym, large rec room with a wet bar / wine cellar, theatre, and two bedrooms.

Plans include the following:

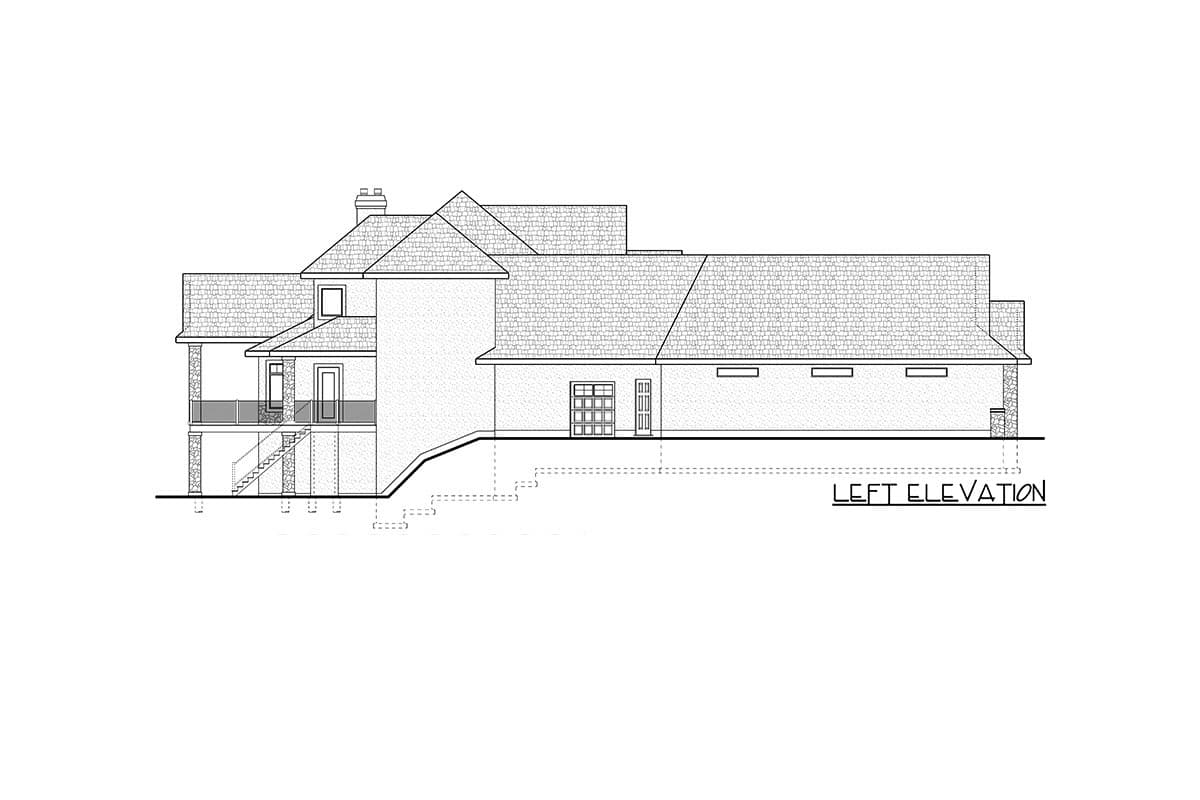

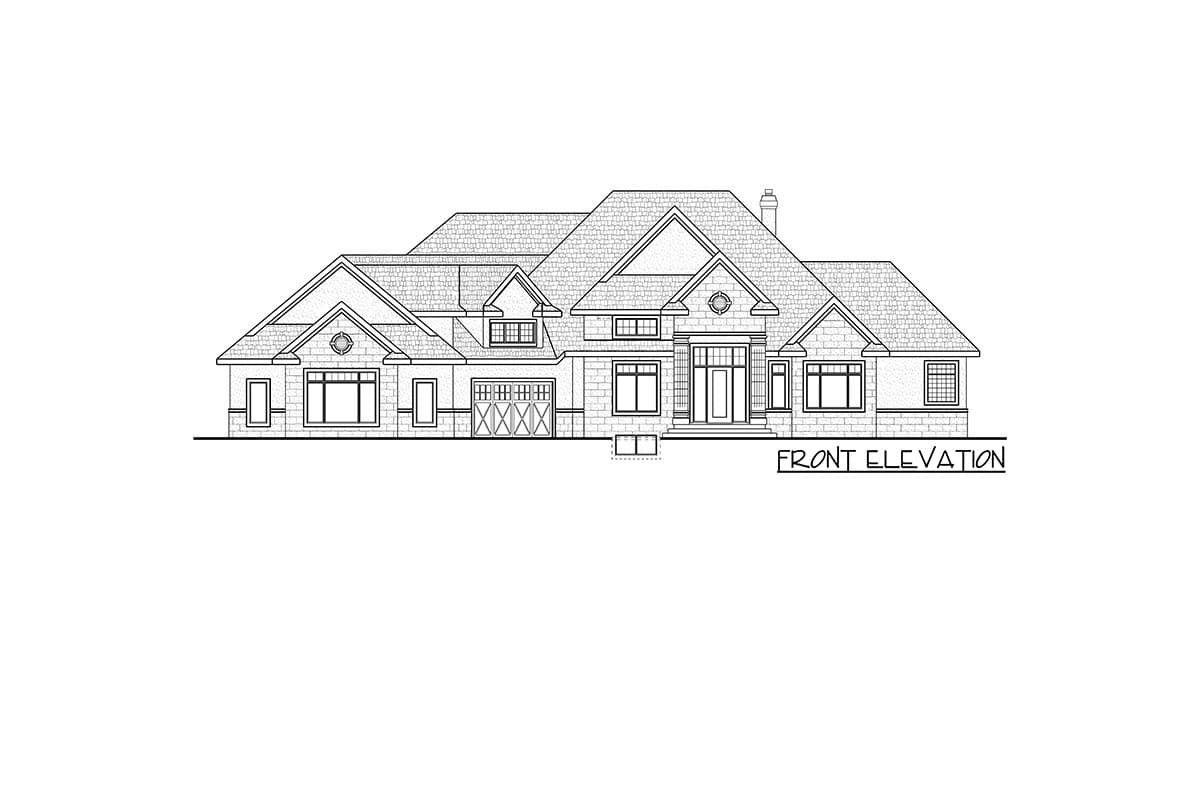

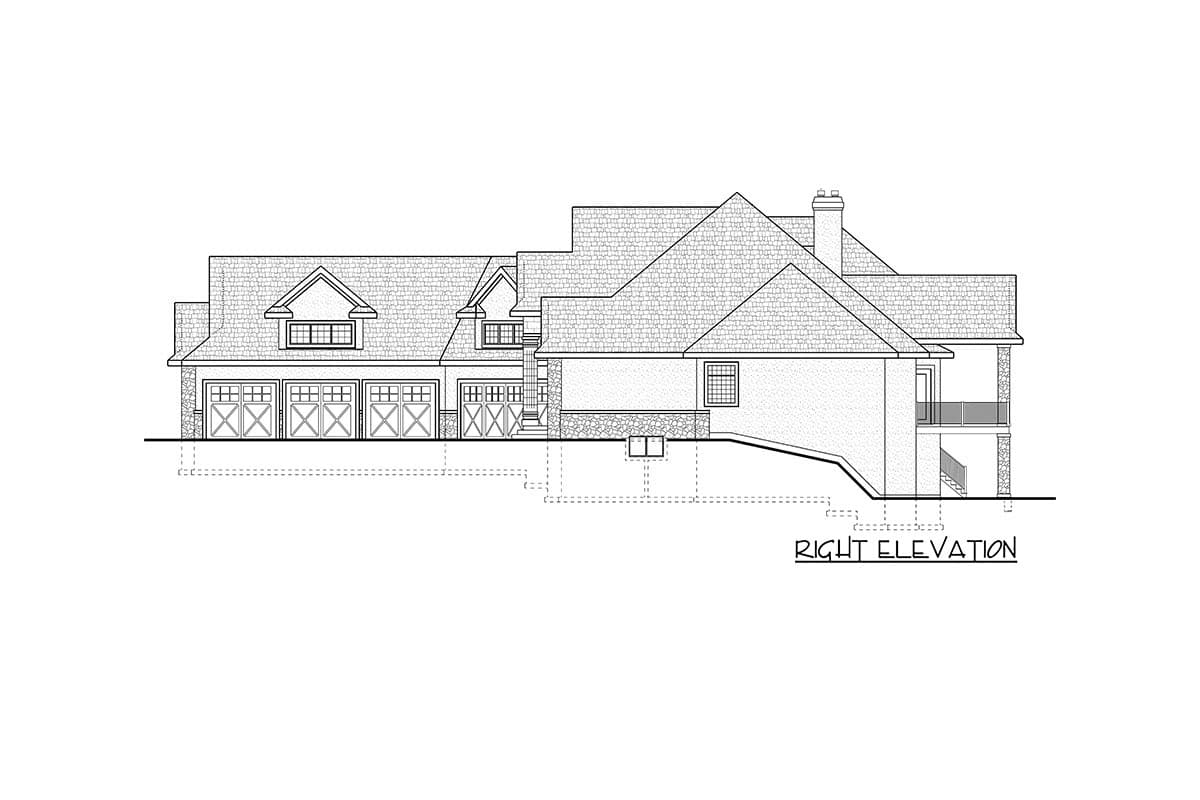

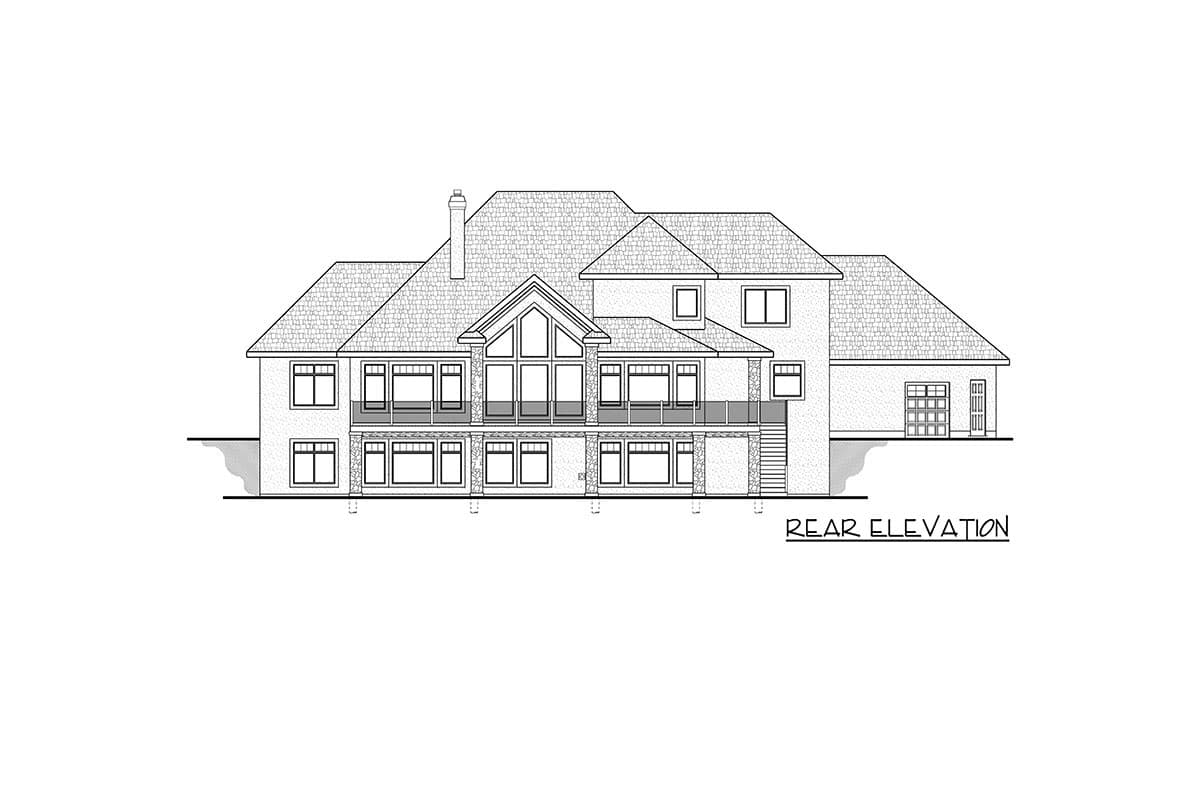

  • 4 elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.


These items are NOT included:
  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

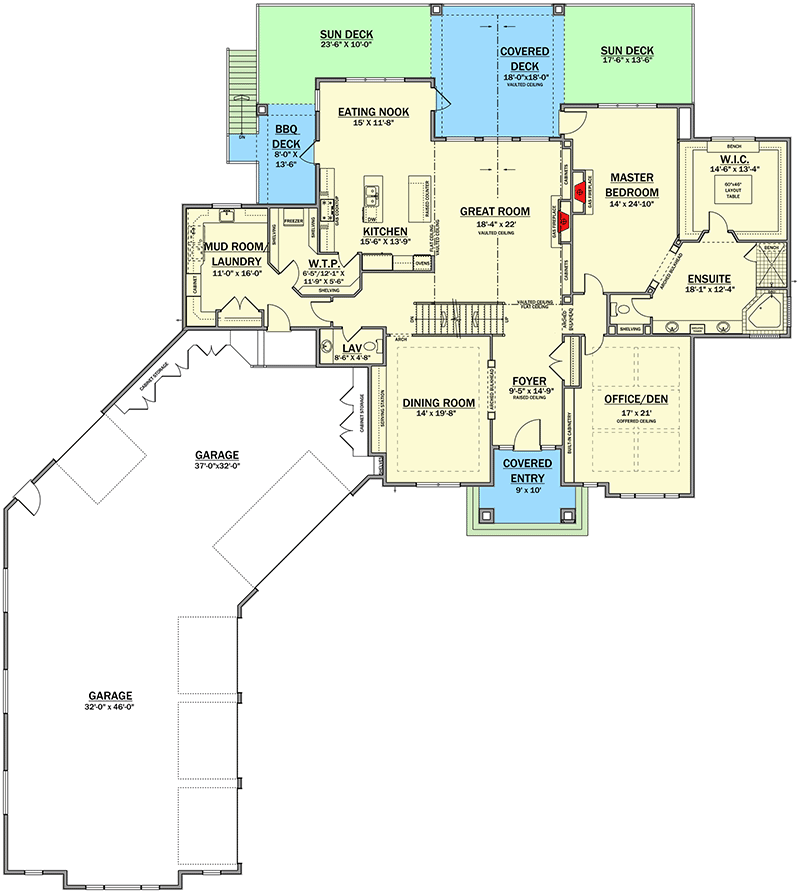

Spacious Rural Craftsman Plan with Under 4000 Square Feet with 5-Car Garage - 81764AB floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

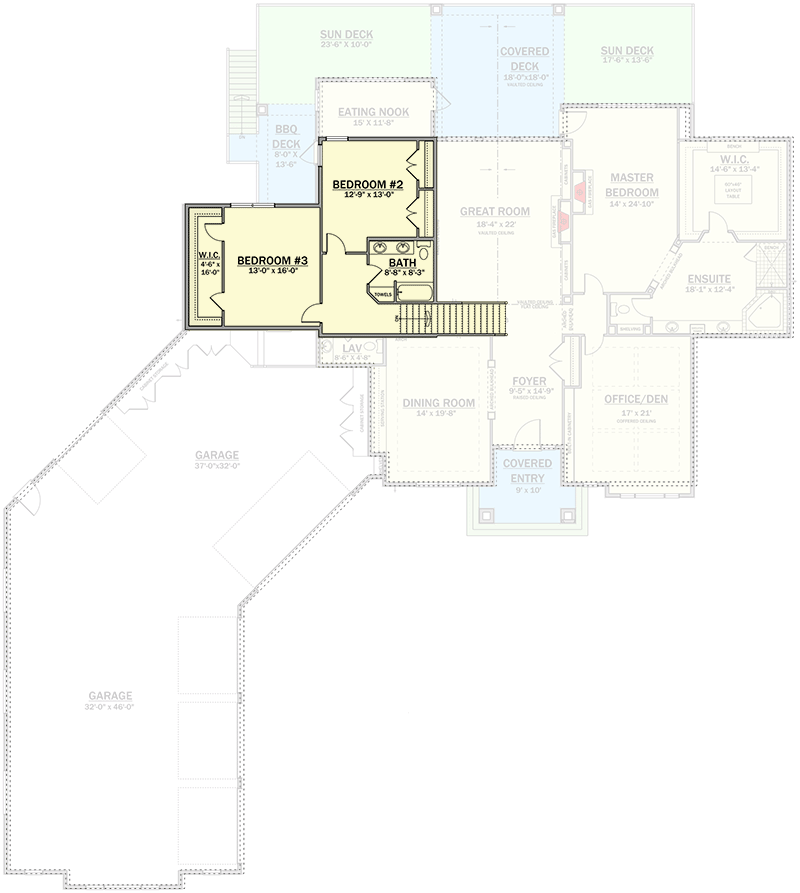

Spacious Rural Craftsman Plan with Under 4000 Square Feet with 5-Car Garage - 81764AB floor plan - 2nd Floor

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

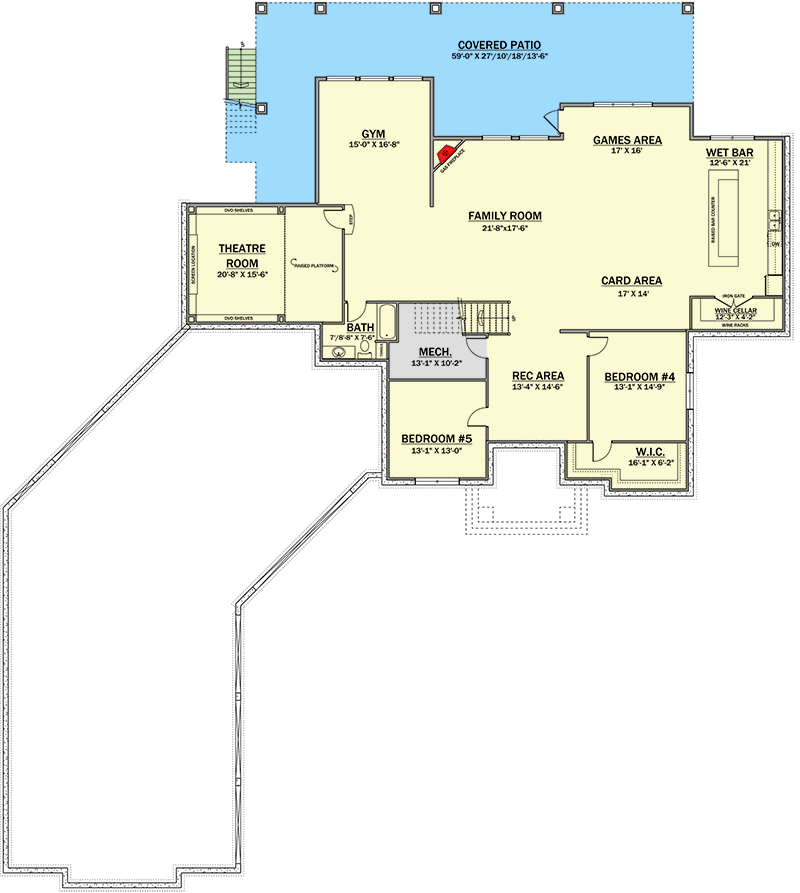

Spacious Rural Craftsman Plan with Under 4000 Square Feet with 5-Car Garage - 81764AB floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,854 sq. ft.
  • Lower Level: 2,774 sq. ft.
  • 1st Floor: 3,116 sq. ft.
  • 2nd Floor: 738 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Walkout
  • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 106' 0"
  • Depth: 119' 4"

Garage

  • Type: Attached
  • Count: 5 Cars
  • Entry Location: Courtyard, Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 4" First Floor / 10' 0" Second Floor / 9' 1"

Roof Details

  • Primary Pitch: 10 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Spacious Rural Craftsman Plan with Under 4000 Square Feet with 5-Car Garage

  • 3,854

    Heated s.f.

  • 3-5

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Floors

  • 5

    Car garage

Buy This Plan
  • PDF - Single-Build $2,100
  • CAD + PDF - Single Build $2,800
  • CAD Unlimited + PDF $3,300
  • View all purchase option online

About This Plan

  • Stone and stucco adorn the facade of this Rural 3,854 square foot Craftsman home plan that delivers an angled 5-car garage that includes a rear overhead door (9' by 8') in addition to a 18' by 8' overhead door and three 10' by 8' doors in front.
  • Plenty of gathering spaces on the main and lower levels make this home ideal for entertaining, and the partially-covered deck allows you to enjoy the outdoors rain or shine.
  • The kitchen has two islands - 3' by 8'3" and 2'6" by 8'3" - giving you work space with two sinks on the inner one and casual seating on the outer one.
  • The mud / laundry room presents plenty of storage, along with a shortcut into the pantry / kitchen to help when unloading groceries.
  • Retreat to the spacious master bedroom, complete with a fireplace and deluxe ensuite with a dresser island in the closet.
  • The fun continues in the walkout basement where you'll find a gym, large rec room with a wet bar / wine cellar, theatre, and two bedrooms.

Floor Plans

  • Main Level

  • 2nd Floor

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,854 sq. ft.
  • Lower Level: 2,774 sq. ft.
  • 1st Floor: 3,116 sq. ft.
  • 2nd Floor: 738 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 106' 0"
  • Depth: 119' 4"

Garage

  • Type: Attached
  • Count: 5 Cars
  • Entry Location: Courtyard, Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 4" First Floor / 10' 0" Second Floor / 9' 1"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Truss
