Plan 270121AF

Spacious Transitional Ranch House Plan with Vaulted Ceilings and 3-Car Garage

Heated S.F.
3,027
Beds
1 - 4
Baths
1.5 - 3.5
Stories
1
Cars
3

Floor Plan

Plan 270121AF

Main Level
Main Level
Optional Lower Level
Optional Lower Level

Plan 270121AF

M-F 9am-5pm EST |

1-203-761-8500

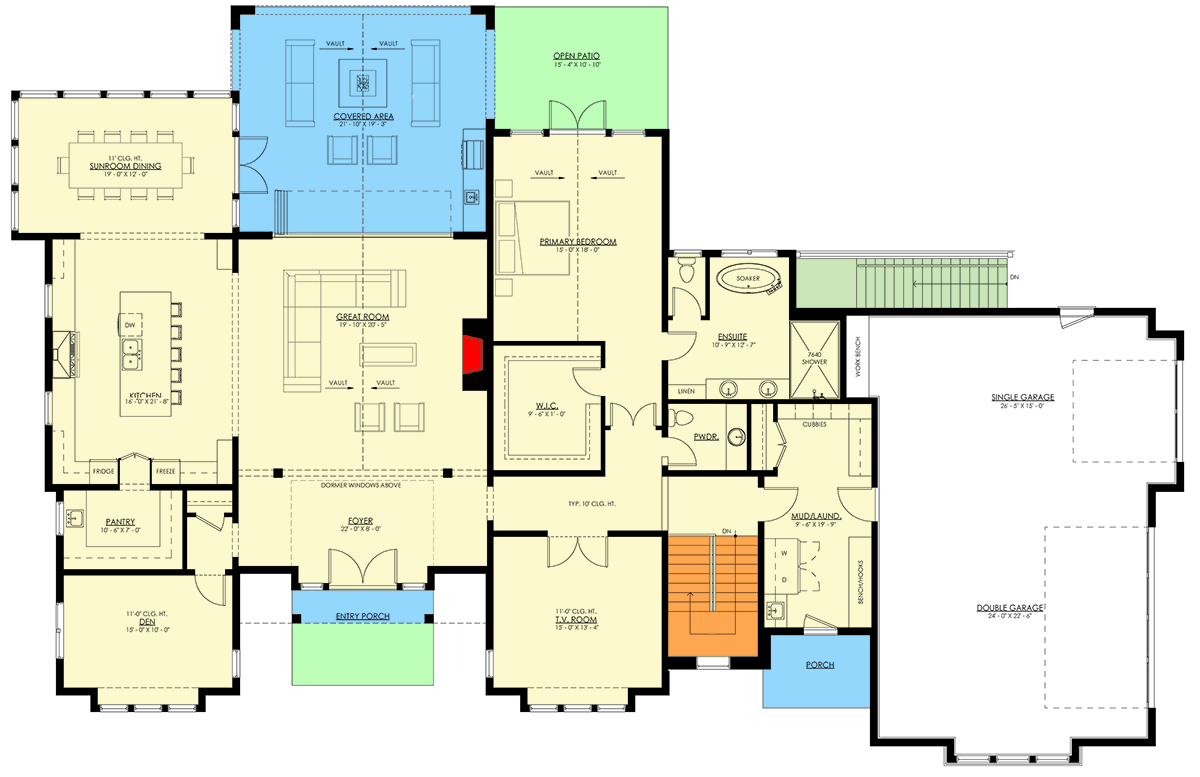

Main Level

Plan 270121AF: Spacious Transitional Ranch House Plan with Vaulted Ceilings and 3-Car Garage - Floor Plan - Main Level - Ranch, Transitional

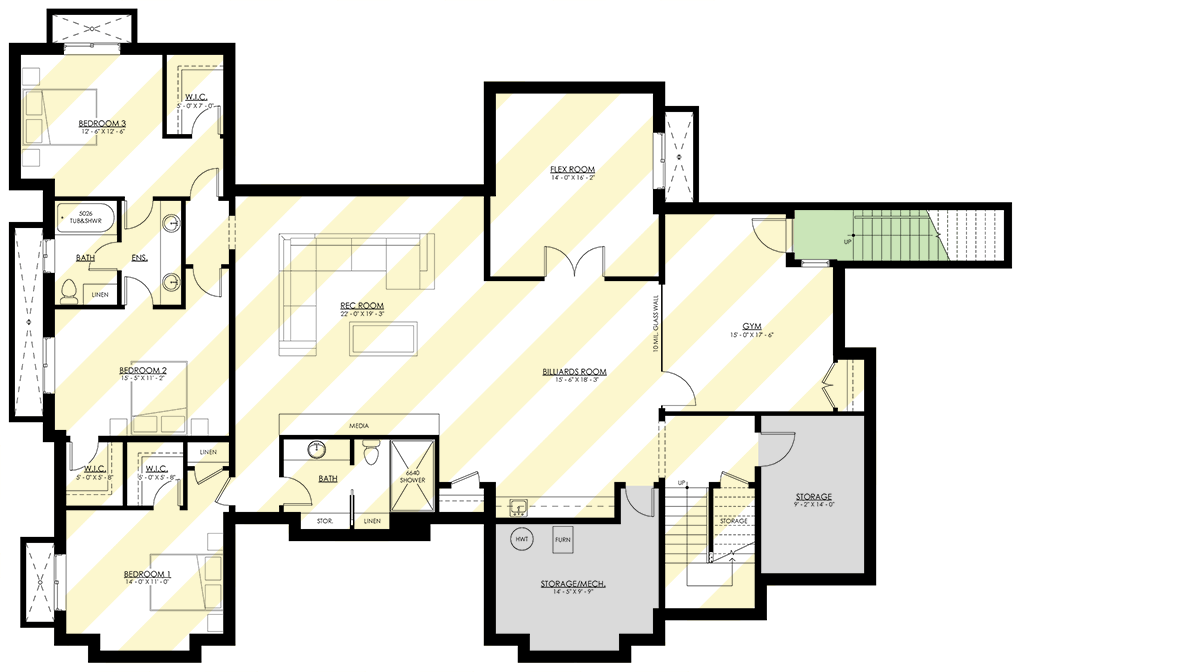

Optional Lower Level

Plan 270121AF: Spacious Transitional Ranch House Plan with Vaulted Ceilings and 3-Car Garage - Floor Plan - Optional Lower Level - Ranch, Transitional

Plan Details

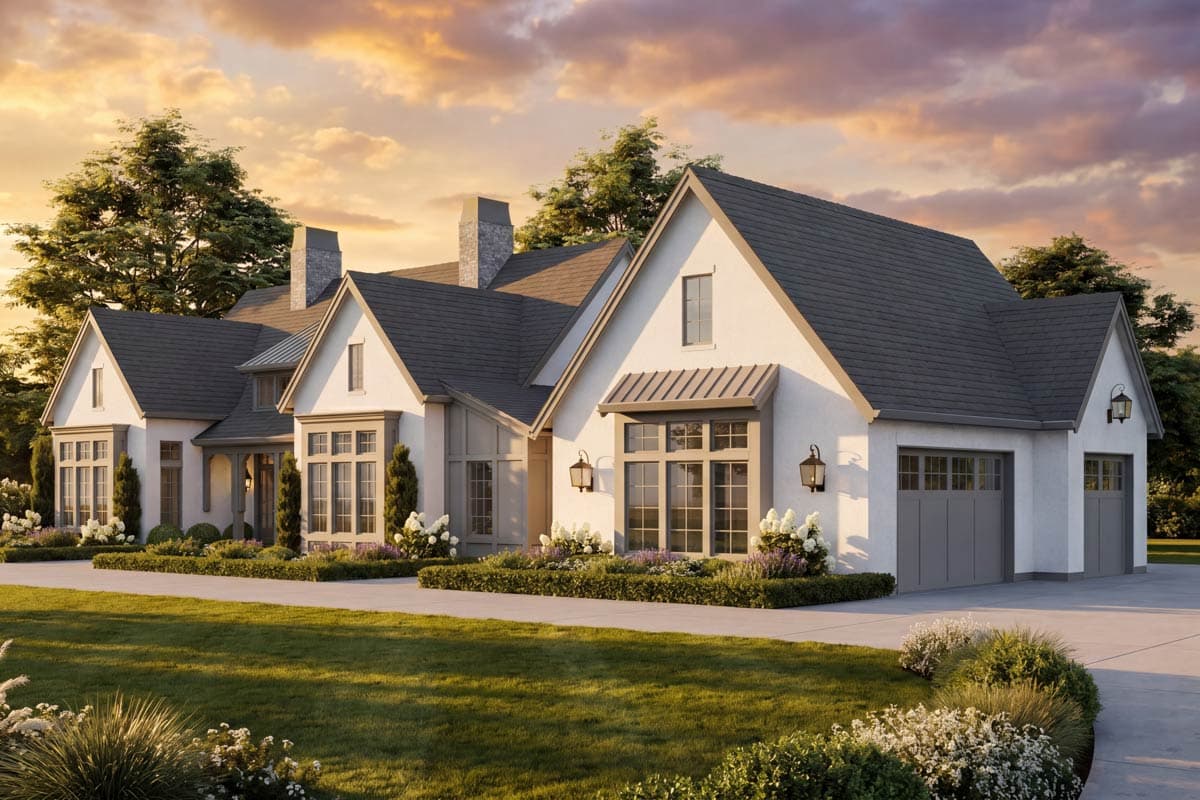

  • This expansive 3,027 sq. ft. Transitional Ranch House Plan features up to 4 bedrooms, up to 3 full bathrooms, a half bath, and a generous 1,022 sq. ft. side-entry 3-car garage, all wrapped in a sophisticated modern farmhouse aesthetic.

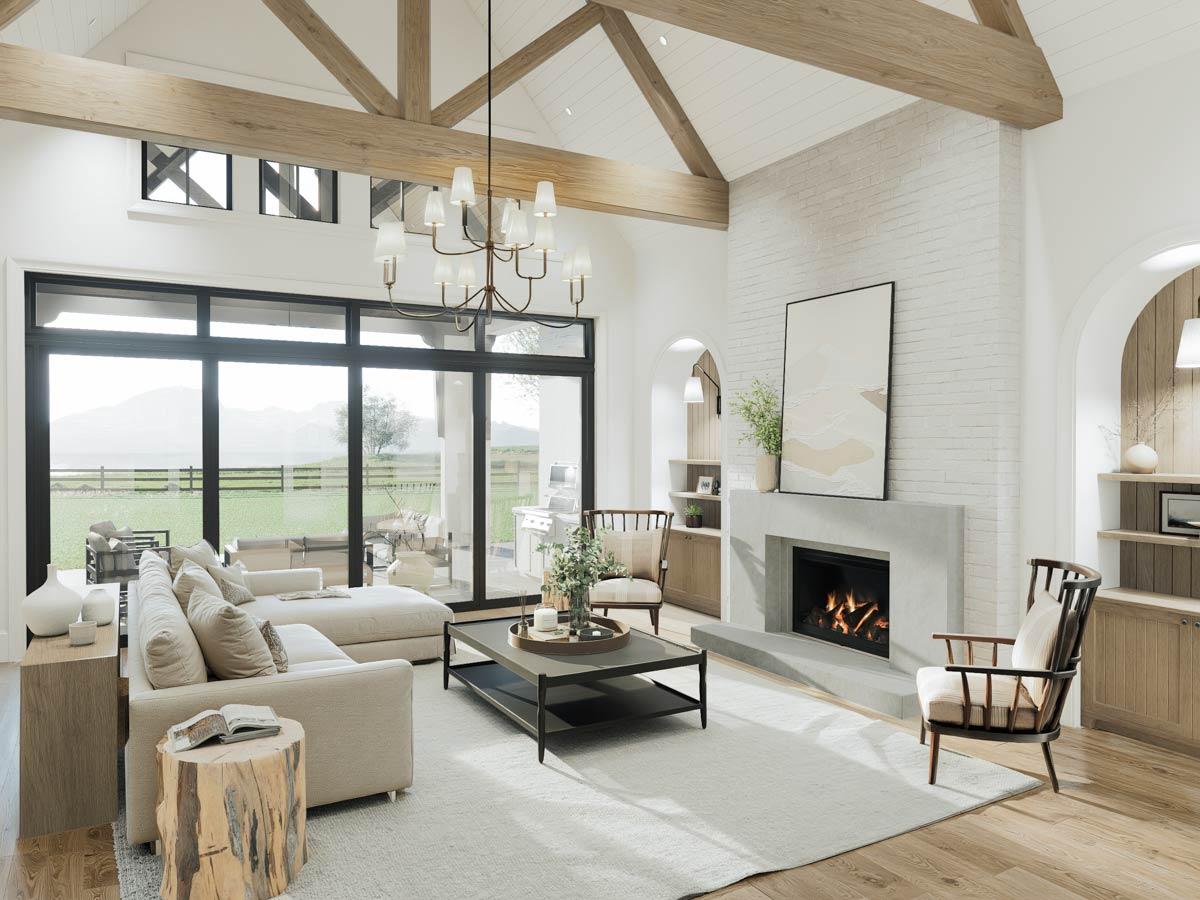

  • Upon entering through the welcoming front porch, you are greeted by a spacious foyer that opens directly into the vaulted great room, creating an immediate sense of grandeur, while a private den and a formal dining room flank the entrance for versatile living.

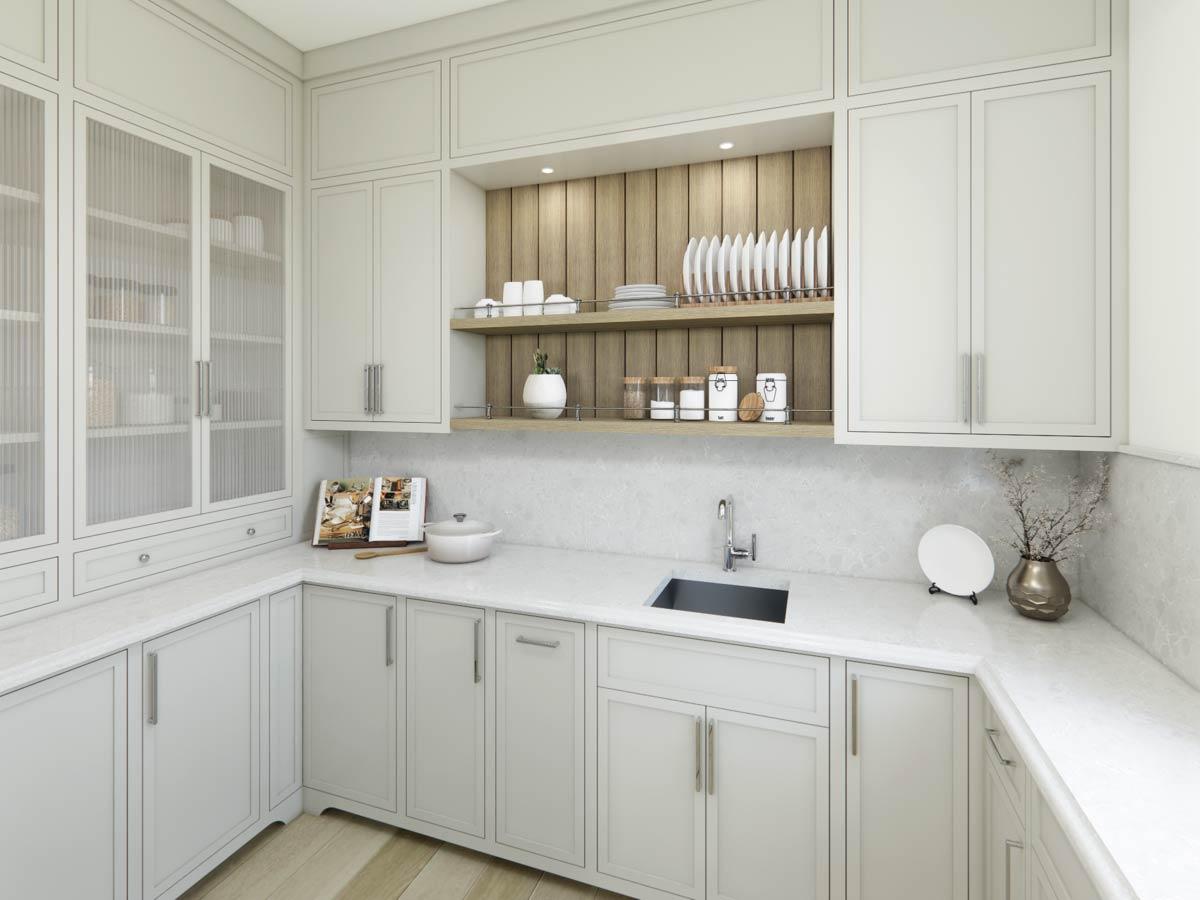

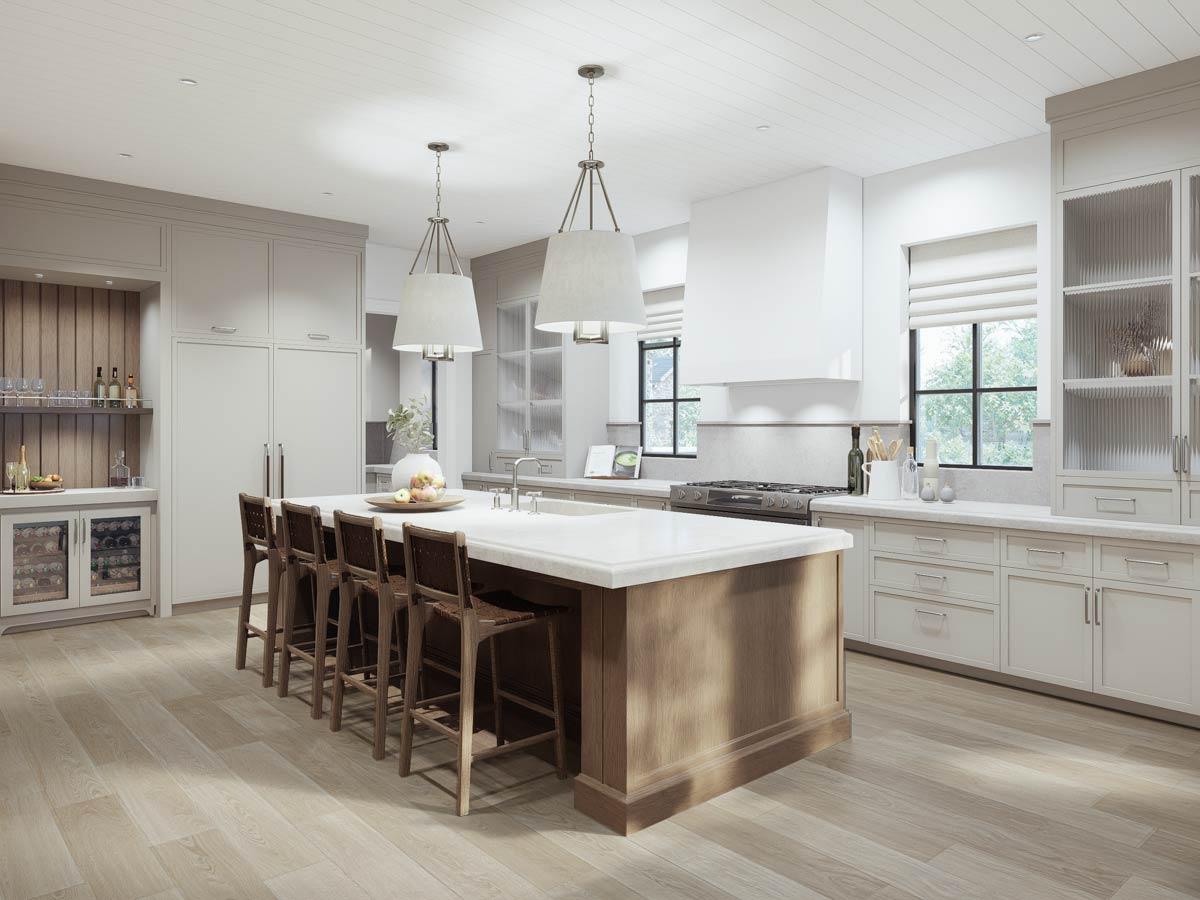

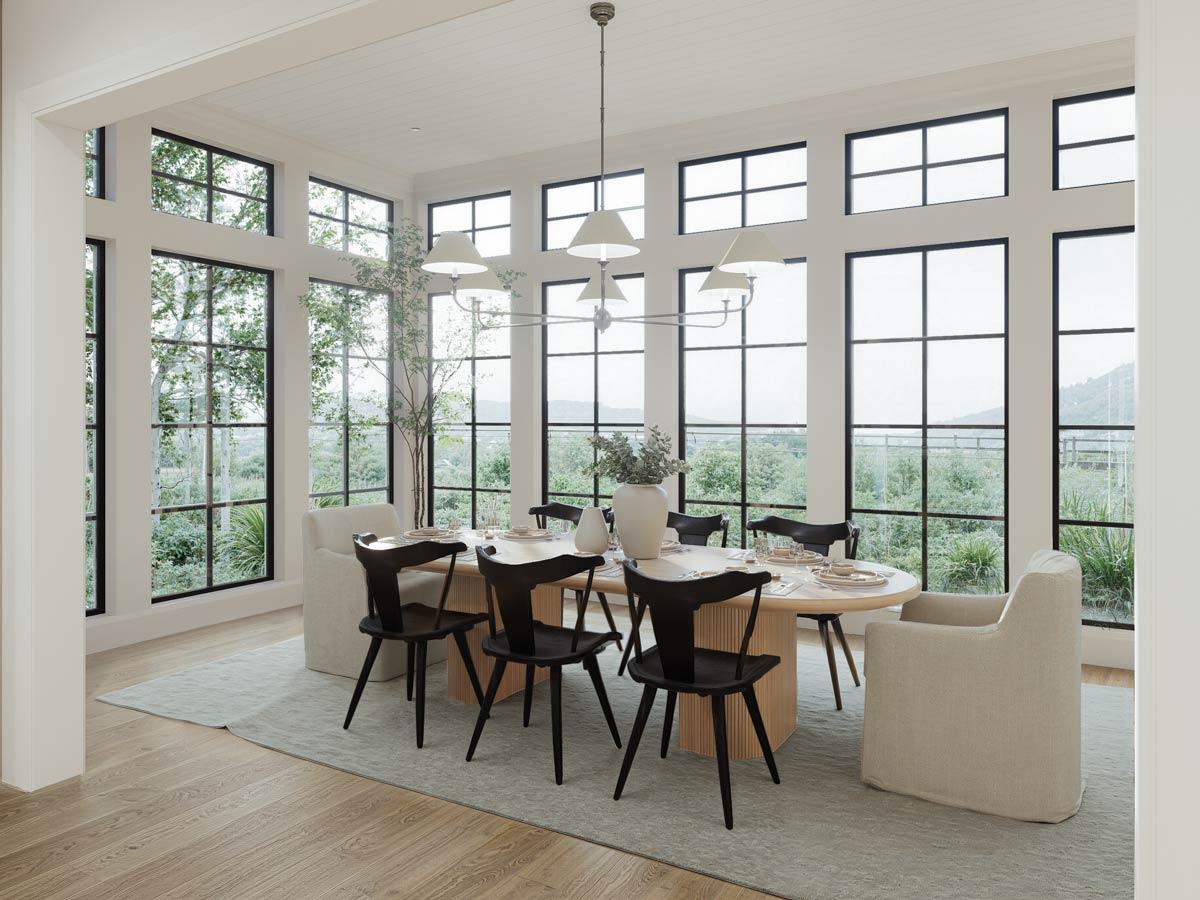

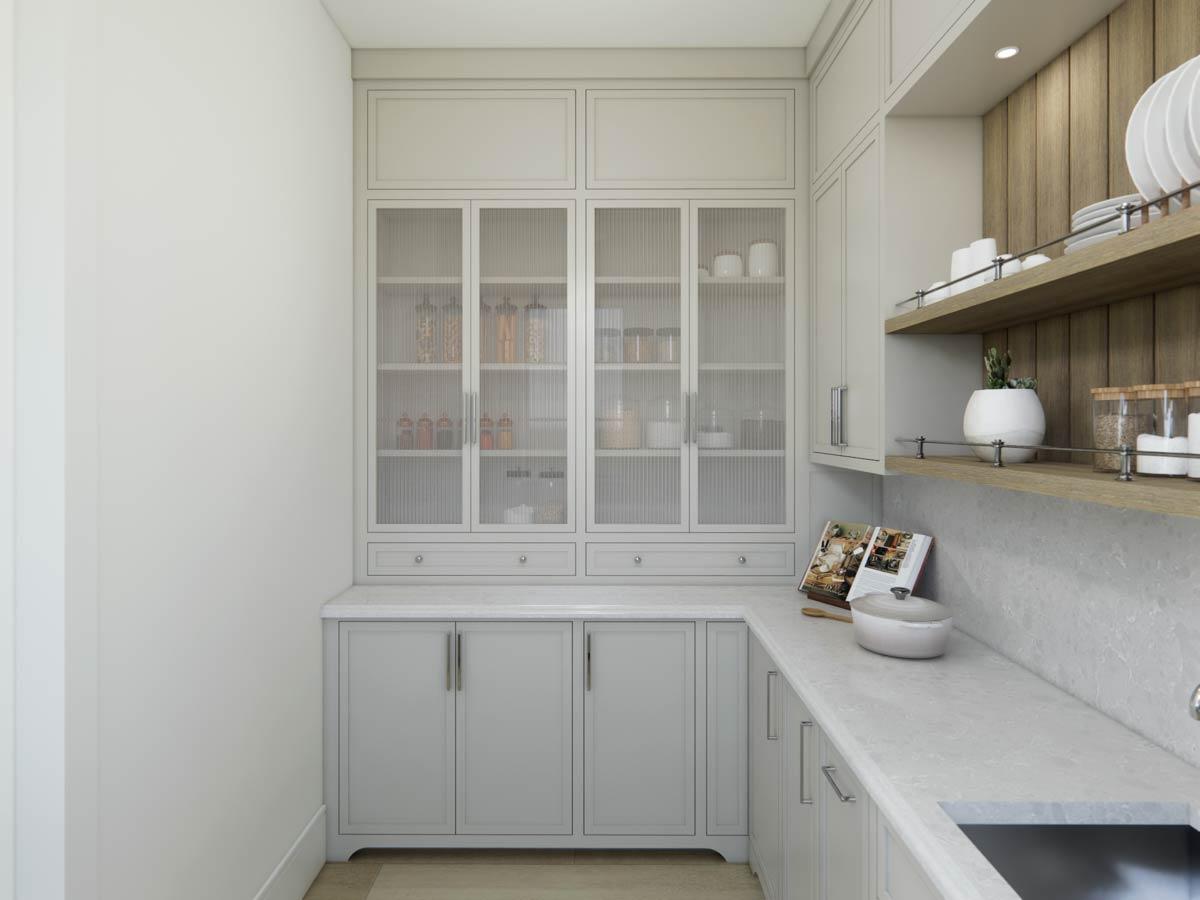

  • The heart of the home is an open-concept arrangement where the vaulted great room seamlessly connects to the gourmet kitchen, featuring a butler walk-in pantry, and a sunroom dining area, perfect for daily meals or grand entertaining, while a dedicated TV room offers a cozy retreat.

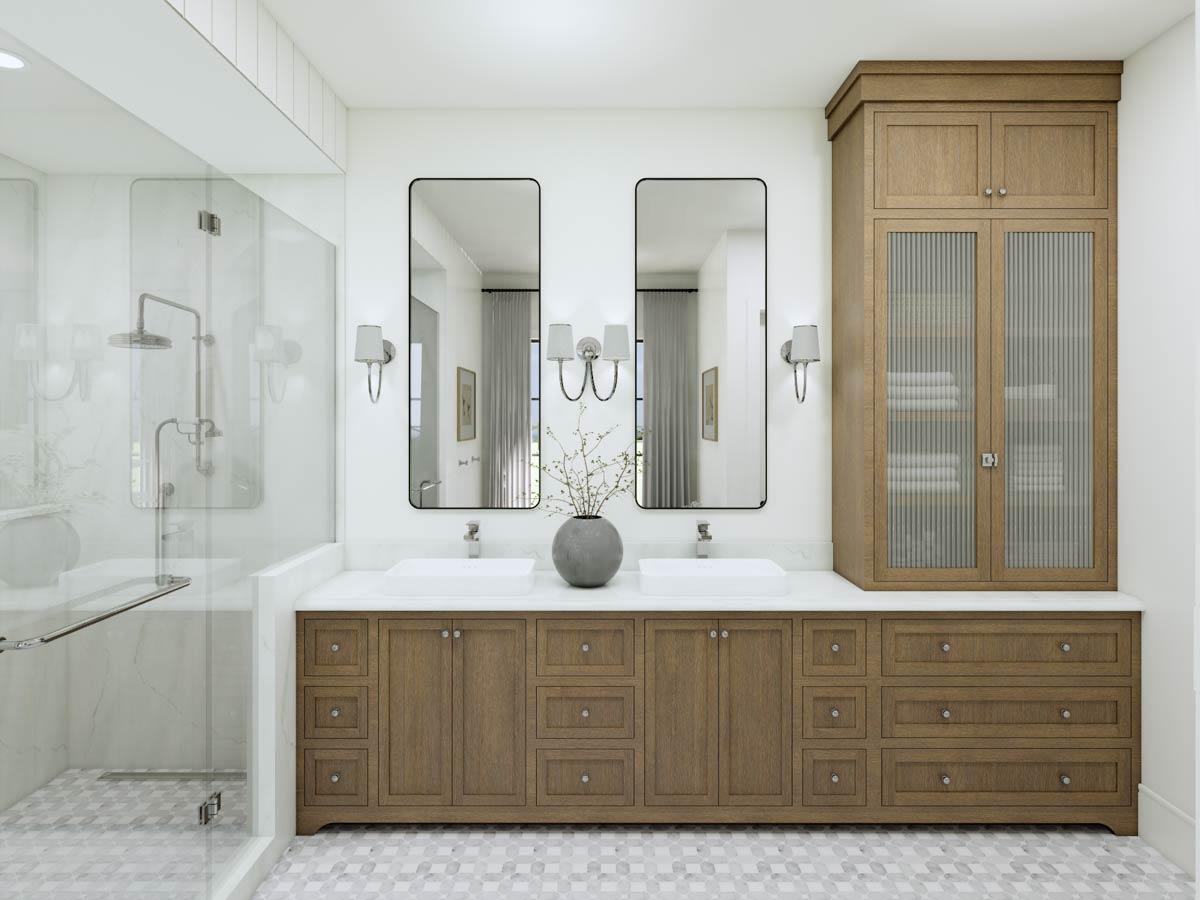

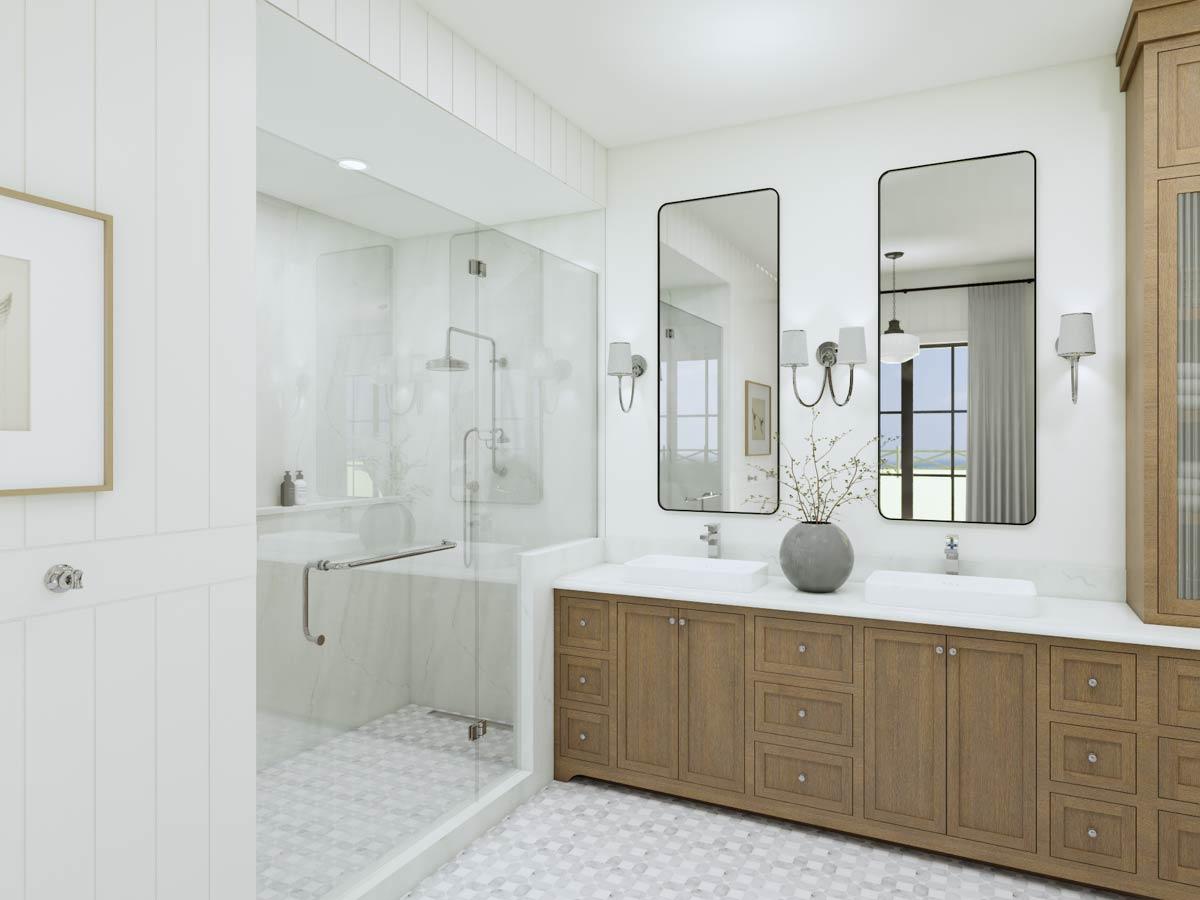

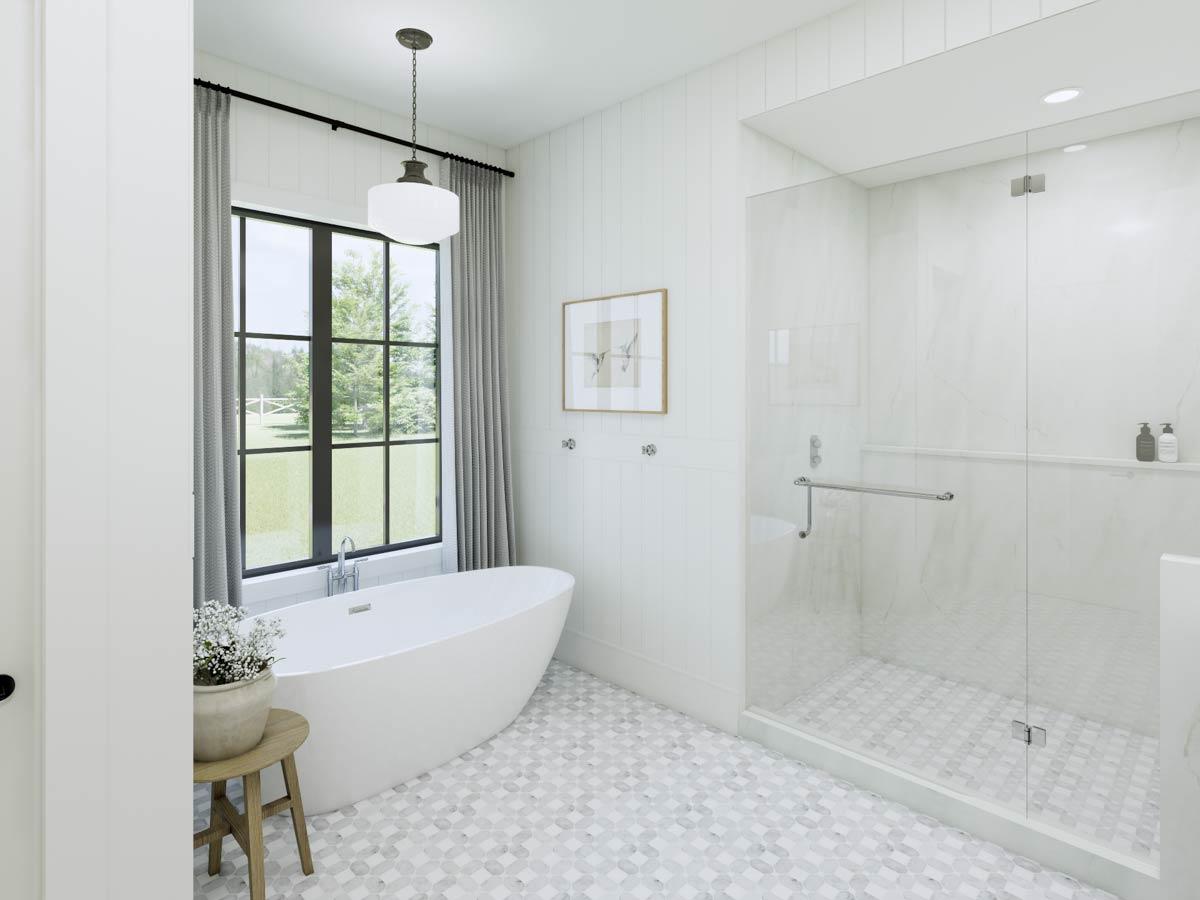

  • The luxurious primary bedroom suite, conveniently located on the main level, boasts a vaulted ceiling and an opulent ensuite bathroom with a freestanding tub, expansive shower, and a large walk-in closet, ensuring a private sanctuary away from secondary bedrooms which are thoughtfully placed on the optional lower level.

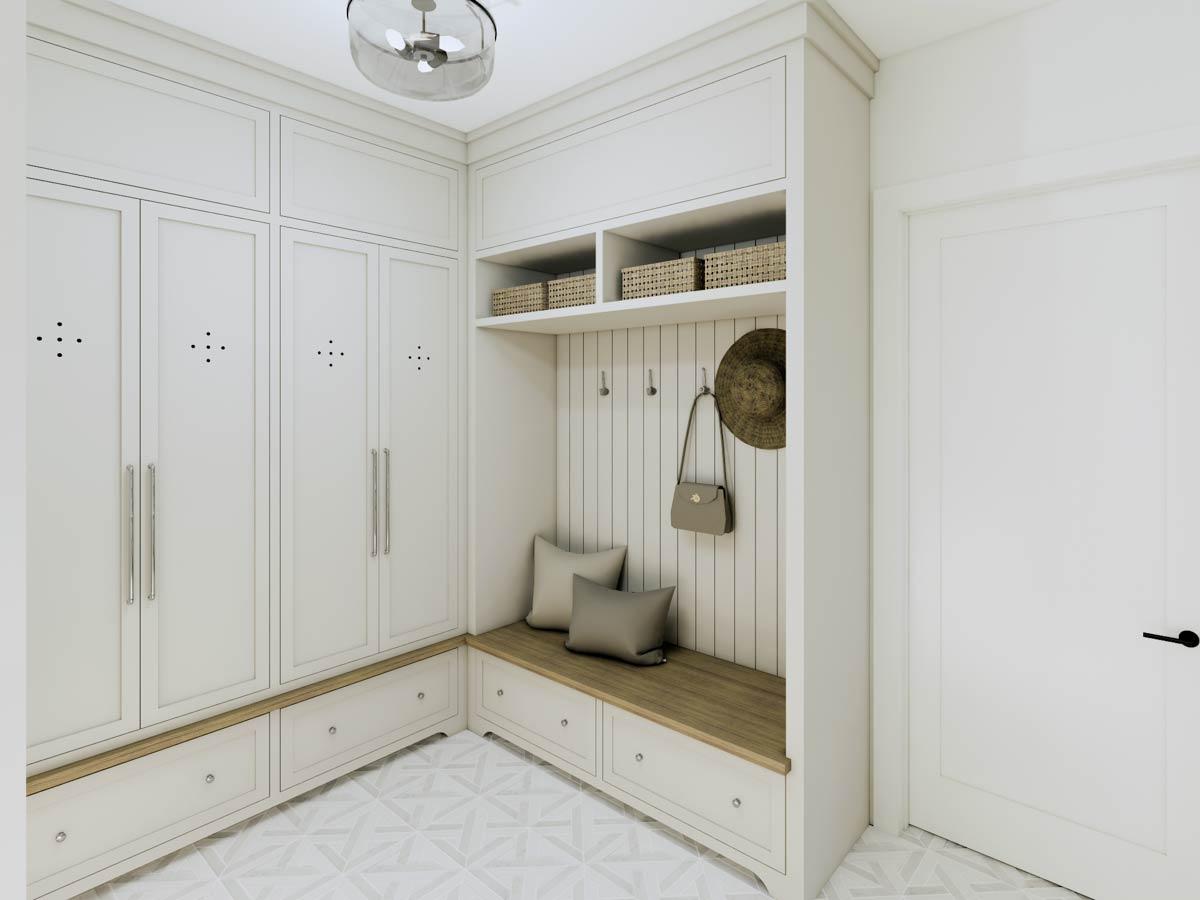

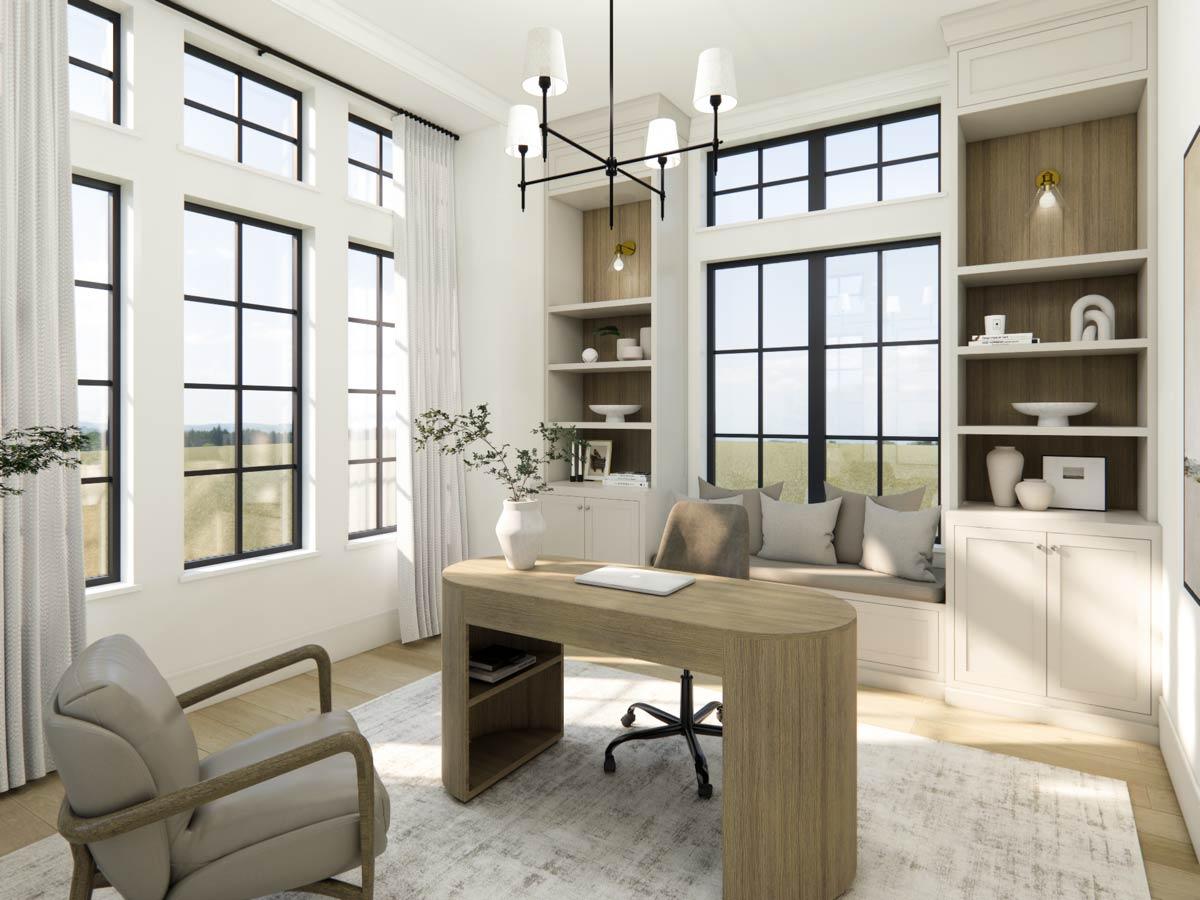

  • Beyond the core living areas, this plan offers a main-level den ideal for a home office, a dedicated TV room for casual entertainment, and a mudroom with cubbies and bench hooks for organized daily transitions.
  • Enjoy the outdoors from multiple vantage points, including a charming front porch, a generous covered patio perfect for al fresco dining, an open patio for sun-drenched relaxation, and a private deck, all designed for seamless indoor-outdoor living.
  • Expand your living space with the optionally finished 3,033 sq. ft. lower level, which can accommodate up to three additional bedrooms, a spacious rec room, a dedicated billiards room, a private gym, a media room, and ample storage, transforming this home into an even grander estate.
  • Related Plan: Get a larger version with house plan 270116AF (3,598 sq. ft.).

What's Included

  • Foundation Plan
  • Floor Plan(s) with Door and Window Opening Sizes
  • Roof Plan showing pitches, valleys, ridges

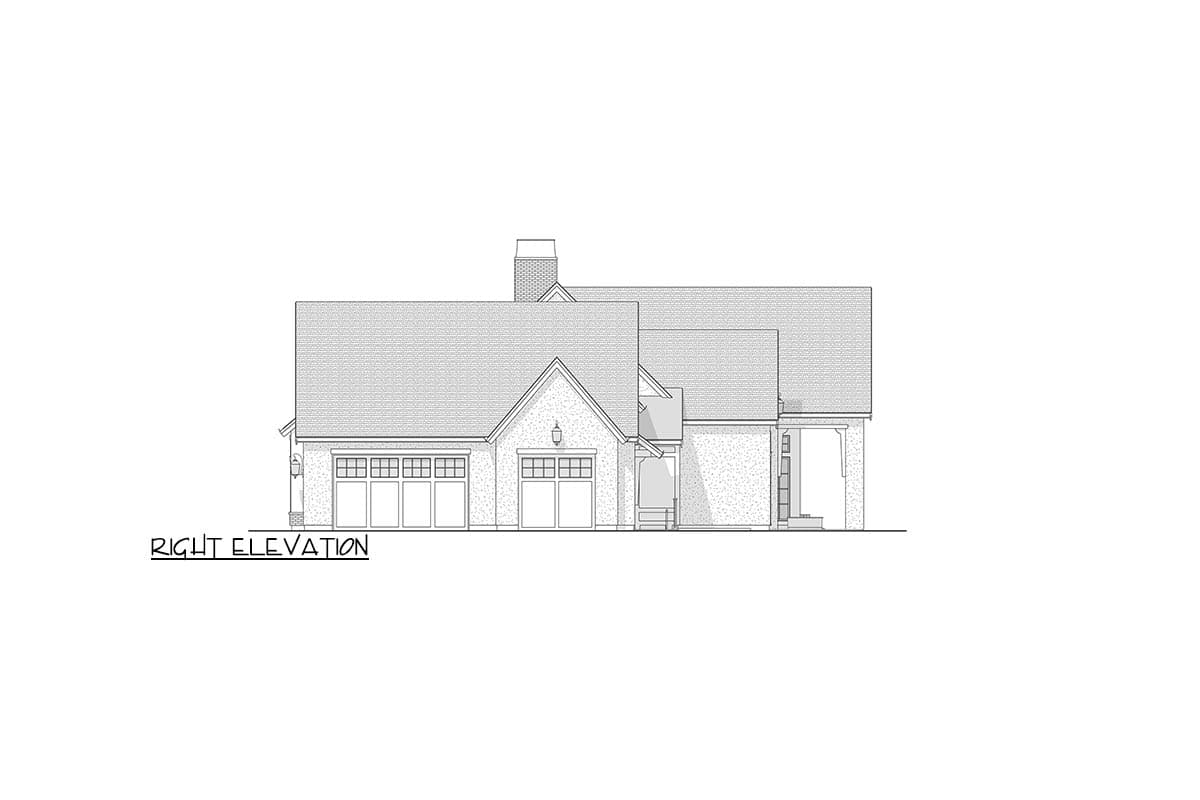

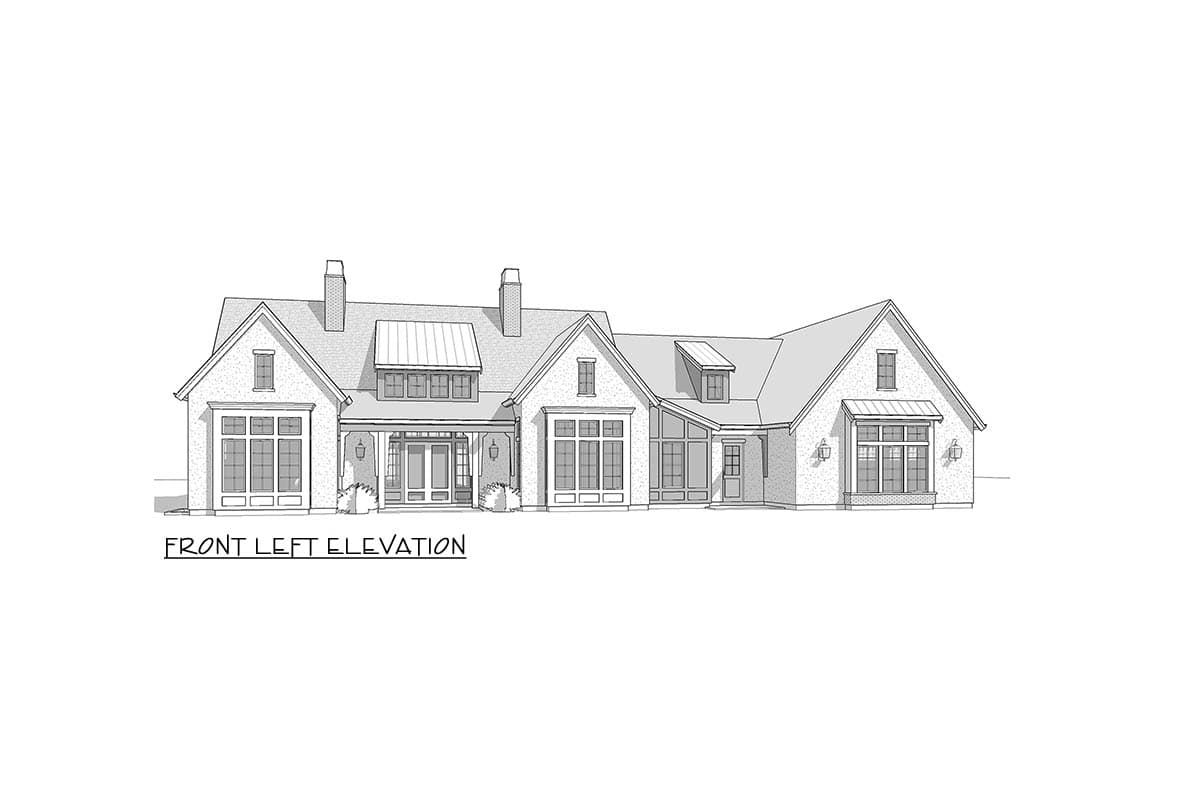

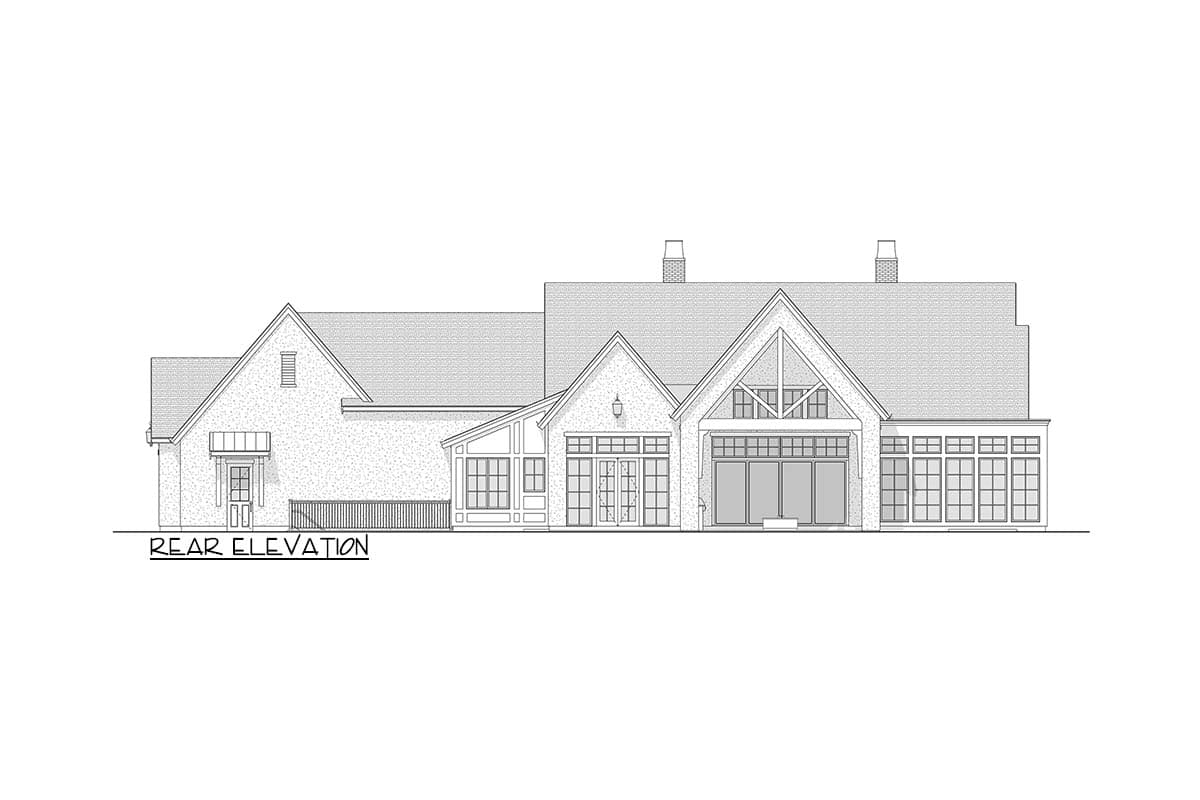

  • Exterior Elevations
  • Building Section
  • Typical Construction Details/Sections

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Framing - layouts with beam sizes and locations
  • Electrical plan
  • Plumbing Details
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Energy calculations - handled locally when required
  • Renderings, photography, or marketing imagery
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,027 sq. ft.

1st Floor

3,027 sq. ft.

Optional Lower Level

3,033 sq. ft.

Porch, Front

106 sq. ft.

Deck

169 sq. ft.

Covered Patio

449 sq. ft.

Beds/Baths

Bedrooms

1, 2, 3, or 4

Full bathrooms

1, 2, or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

103' 6"

Depth

66' 9"

Max Ridge Height

29' 1"

Garage

Type

Attached

Area

1022 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

Lower Level

10'

First Floor

10'

Room

Ceiling Type

Height

Great Room

Vaulted

0' 0''

Master Bedroom

Vaulted

0' 0''

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

14 on 12

Framing Type

Stick And Truss

Architectural Style

Ranch

Transitional

Special Features

Bedrooms - Clustered

Den

Flex Room

Formal Dining

Game/Rec Room

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Media Room

Mudroom

Sunroom

Walk-in Pantry

Wet Bar

Plan Collections
