Plan 510091WDY

  • 4,630

    Heated s.f.

  • 4-5

    Beds

  • 4.5+

    Baths

  • 2

    Stories

  • 3

    Cars

  • This spacious, two-story Acadian-style house plan boasts beautiful exterior brick detail above the arched entryways and windows. The carriage porch adds to the grand curb appeal, while separating a workshop from the main home.
  • An open, interior layout awaits, creating the ideal space for family gatherings. The large covered porch features an outdoor kitchen and fireplace, along with a screened section for dining.
  • The serene master suite occupies the right side of the home with an intricate ceiling adding an elegant touch. A hallway flanked by walk-in closets leads to the lavish en suite with two private toilet rooms.
  • Bedrooms 2 and 3, located on the main level, each include a full bath. Utilize one of them as a study or home office if preferred. Upstairs, discover two additional bedrooms that share a Jack-and-Jill bath, along with a game / media room with a wet bar.
  • The 3-car garage is attached to the back of the home and includes a storage room to help reduce clutter. A mudroom sits just inside, next to the laundry room and a powder bath.

What is Included in Our Plans?

All of our plans are designed by licensed architects and residential building designers. Each plan is designed to meet nationally recognized building codes for the year they were created.

No two plans are the same. We strongly encourage you to contact us for the contents of any plan you may be interested in purchasing.

Below is a listing of sheets typically included in our plans:

Foundation Plan

shows the foundation details.

Floor Plan

shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.

Exterior Elevations

show the front, rear and sides of the house, including exterior materials, details and roof pitches.

Building Cross Section

shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.

Interior Elevations

show the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.

Roof Plan

provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable

Electrical Plan (when available)

shows the suggested locations for fixtures and outlets. Please contact us to see if an electrical plan is included in the plan set.

Notes & Details

provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

Building Code

All of our plans are designed to provide the information needed to build your home. Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all of the information required by your building department. If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.

Engineering

Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.

Important Extras: Sold separately

Readable reverse Plans

The layout is reversed and all the writing is corrected so you can read the writing. With this option, all of your sets will appear the way you want to build the home. This option is available for an additional charge.

Mirror Reverse Plans

The lettering and dimensions will read backwards, so you will need to order at least one set non-reversed as a reference copy.

Itemized List of Materials (when available)

Includes the quantity, type and size of materials needed to build your home.

Floor Plan

Plan details



Spacious Two-story Acadian House Plan with Ample Outdoor Living Space

  • 4,630

    Heated s.f.

  • 4 - 5

    Beds

  • 6

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $2,000
  • 8 Sets $2,150
  • PDF - multi-use $2,350
  • CAD - multi-use $3,472
  • View all purchase option online

About This Plan

  • This spacious, two-story Acadian-style house plan boasts beautiful exterior brick detail above the arched entryways and windows. The carriage porch adds to the grand curb appeal, while separating a workshop from the main home.
  • An open, interior layout awaits, creating the ideal space for family gatherings. The large covered porch features an outdoor kitchen and fireplace, along with a screened section for dining.
  • The serene master suite occupies the right side of the home with an intricate ceiling adding an elegant touch. A hallway flanked by walk-in closets leads to the lavish en suite with two private toilet rooms.
  • Bedrooms 2 and 3, located on the main level, each include a full bath. Utilize one of them as a study or home office if preferred. Upstairs, discover two additional bedrooms that share a Jack-and-Jill bath, along with a game / media room with a wet bar.
  • The 3-car garage is attached to the back of the home and includes a storage room to help reduce clutter. A mudroom sits just inside, next to the laundry room and a powder bath.

Floor Plans

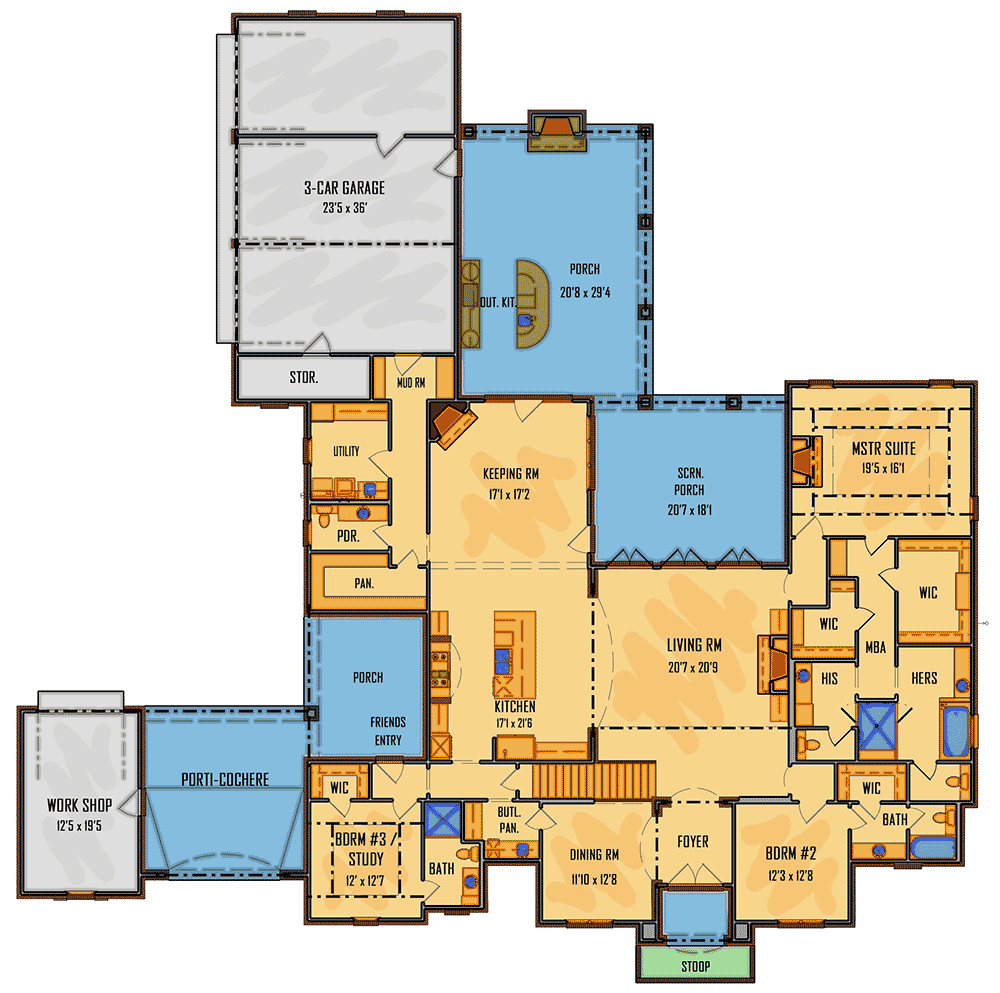

  • Main Level

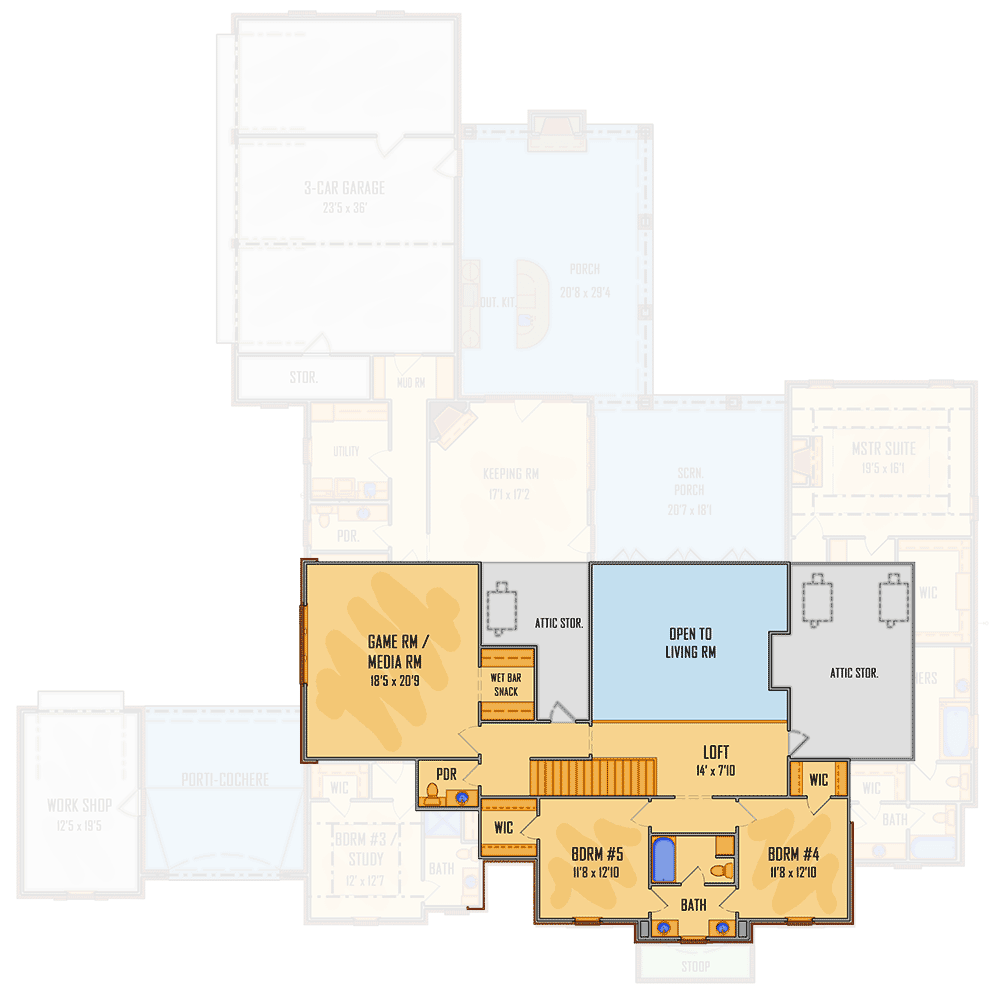

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,630 sq. ft.
  • 1st Floor: 3,520 sq. ft.
  • 2nd Floor: 1,110 sq. ft.
  • Porch, Combined: 1,228 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 4
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 103' 9"
  • Depth: 100' 9"

Garage

  • Type: Attached
  • Area: 1534 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 12' 0" Second Floor / 10' 0"

Roof

  • Primary Pitch: 16 on 12
  • Framing Type: Stick
