Plan 86316HH

Spacious Universal Access 2-Bedroom House Plan with Elevator

Heated S.F.

2,999

Beds

2

Baths

2.5

Stories

2

Cars

2

What's Included

Floor Plan

Main Level

Reverse Floor Plan

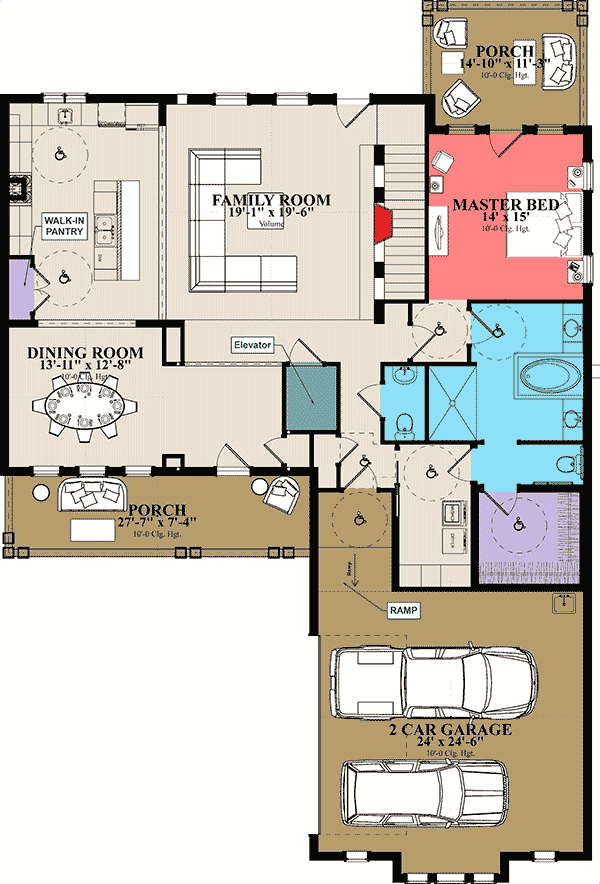

Spacious Universal Access 2-Bedroom House Plan with Elevator - 86316HH floor plan - Main Level

2nd Floor

Reverse Floor Plan

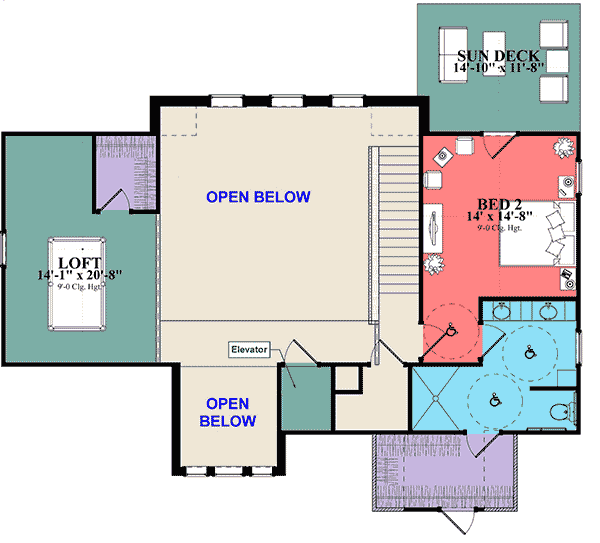

Spacious Universal Access 2-Bedroom House Plan with Elevator - 86316HH floor plan - 2nd Floor

Plan Details

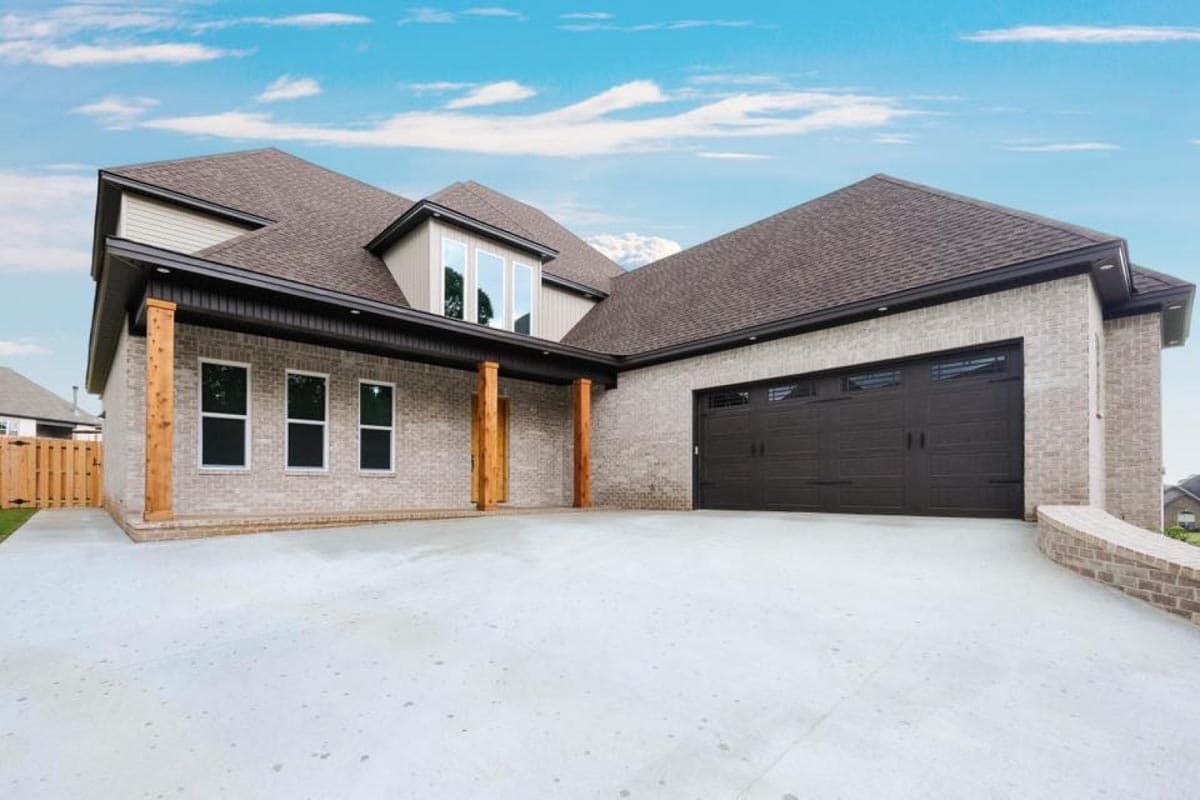

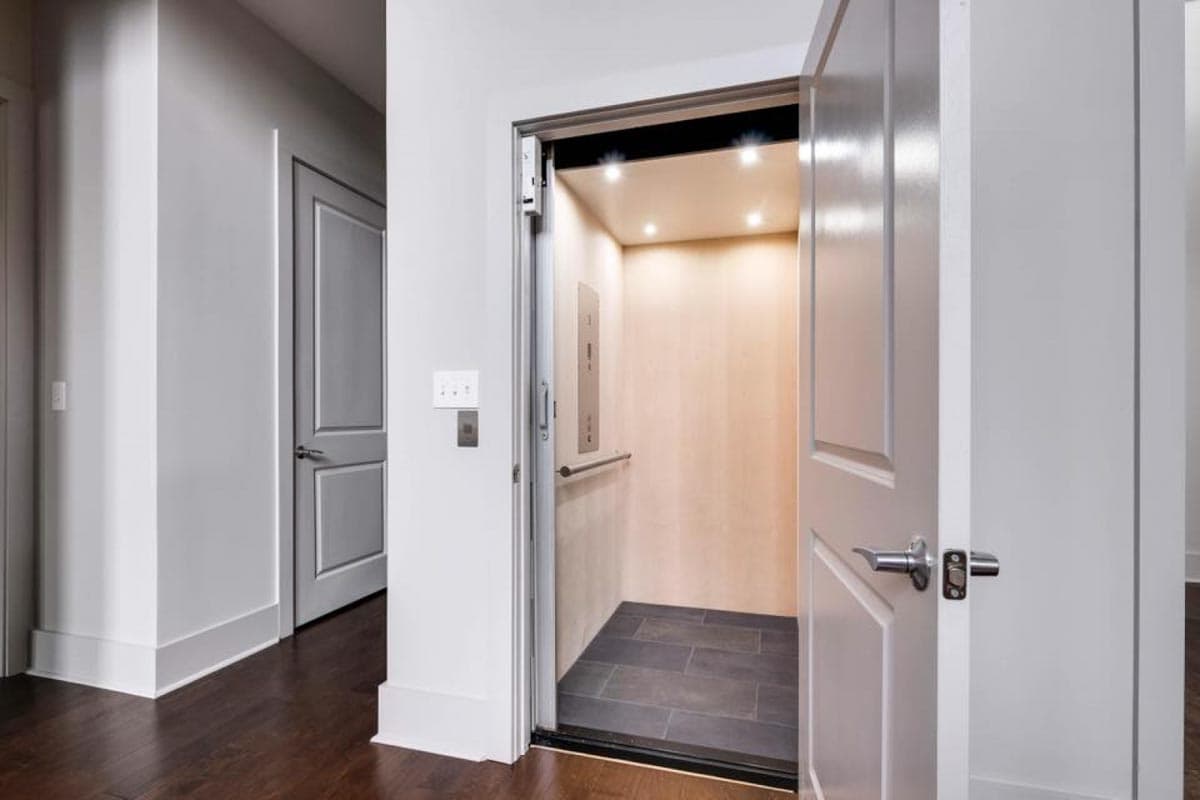

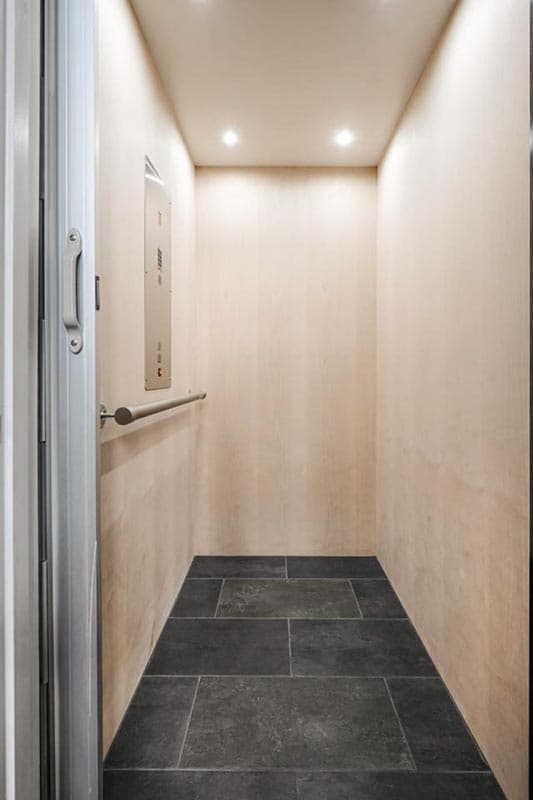

Wide hallways and doorways, ramps, and an elevator allow for easy mobility throughout this thoughtfully designed home plan. An appealing brick exterior, large front porch, and 2-car garage welcome you home.

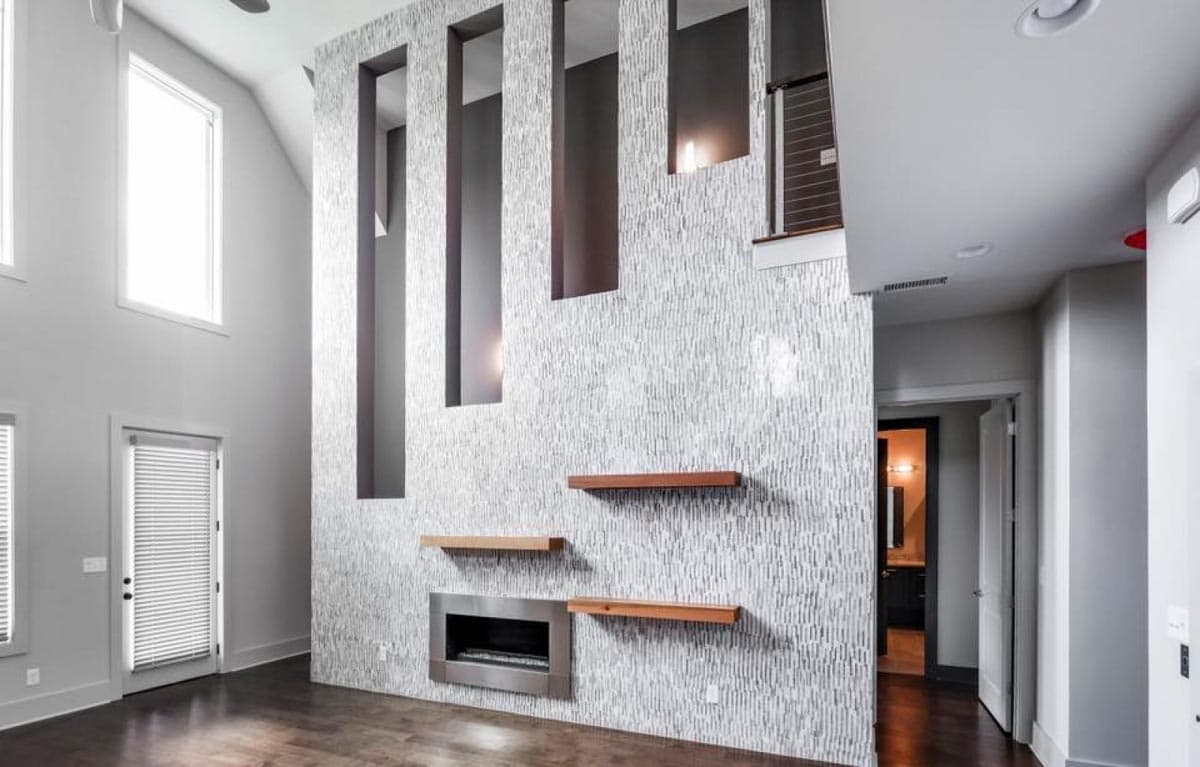

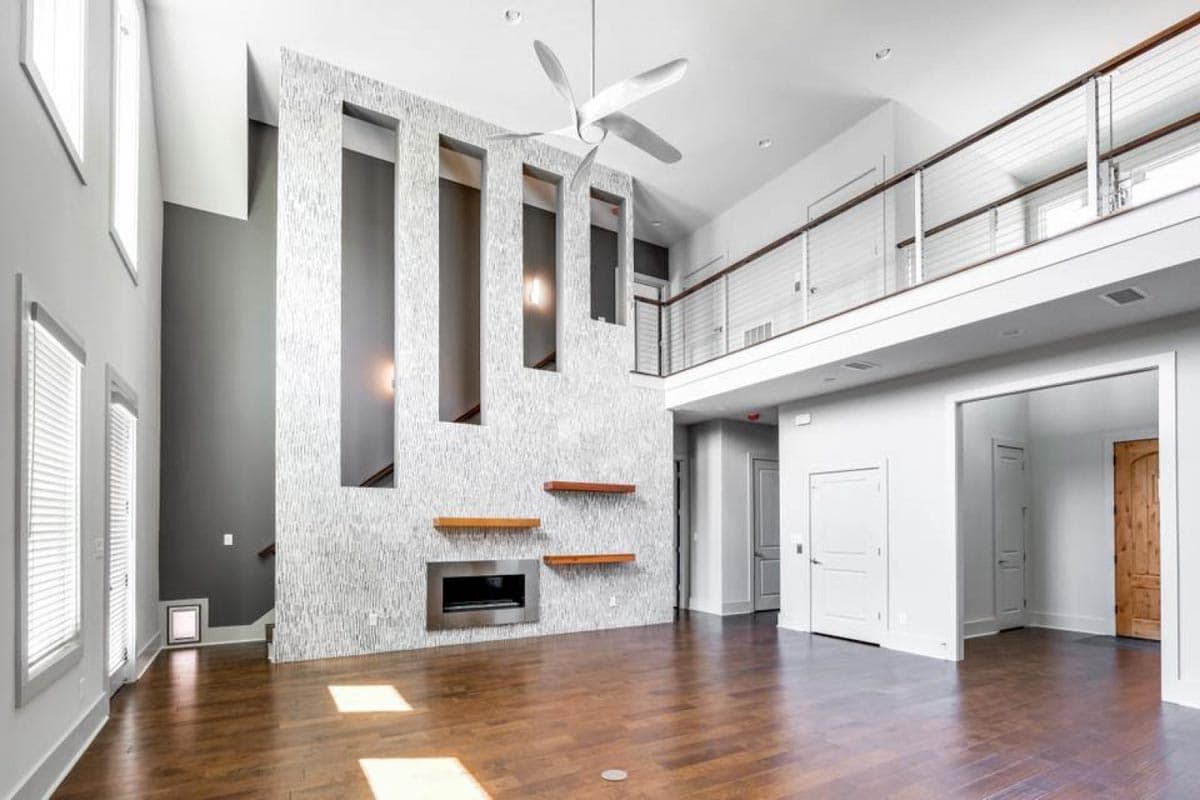

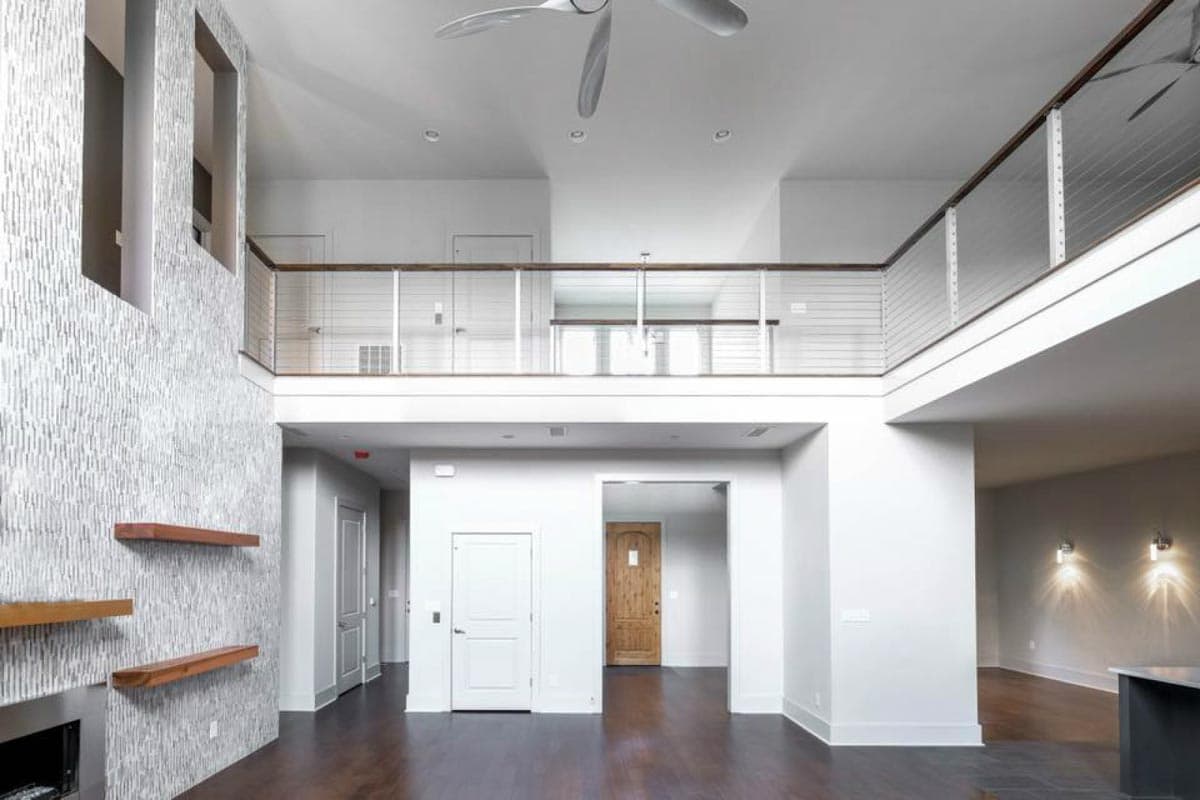

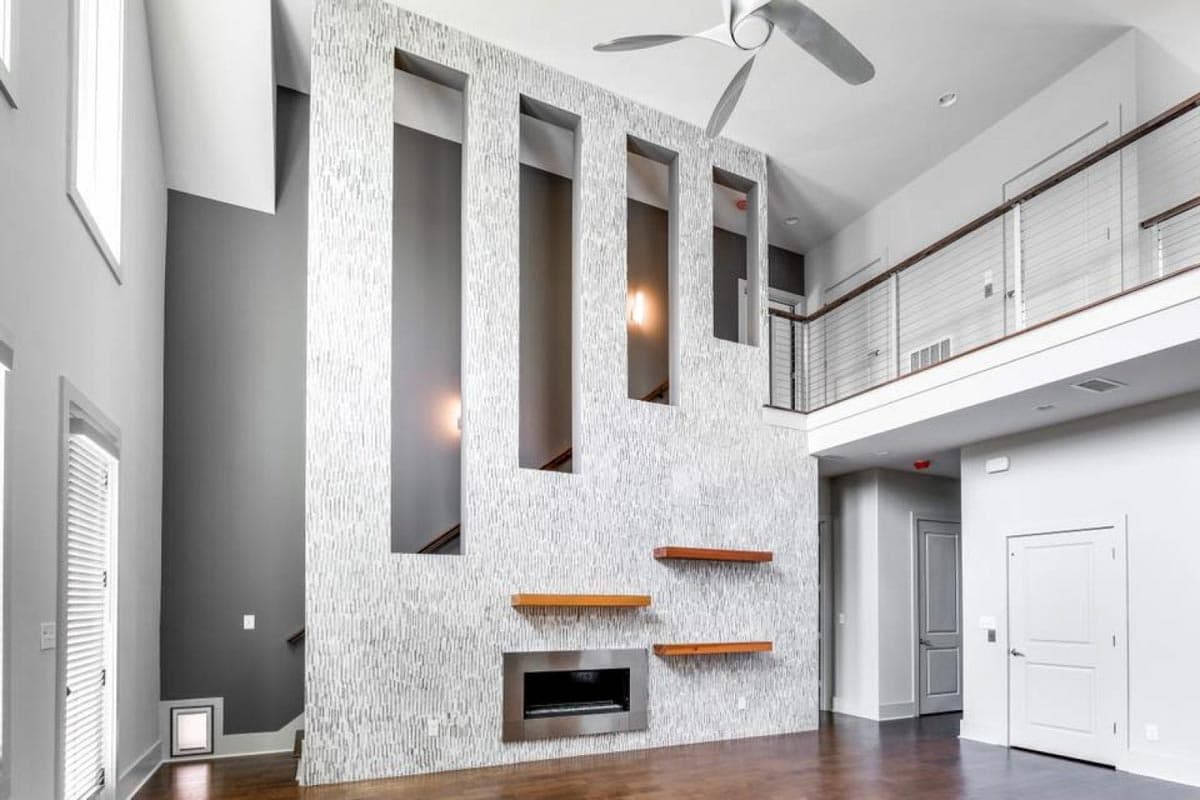

Inside, discover a bright and airy 2-story family room with a fireplace.

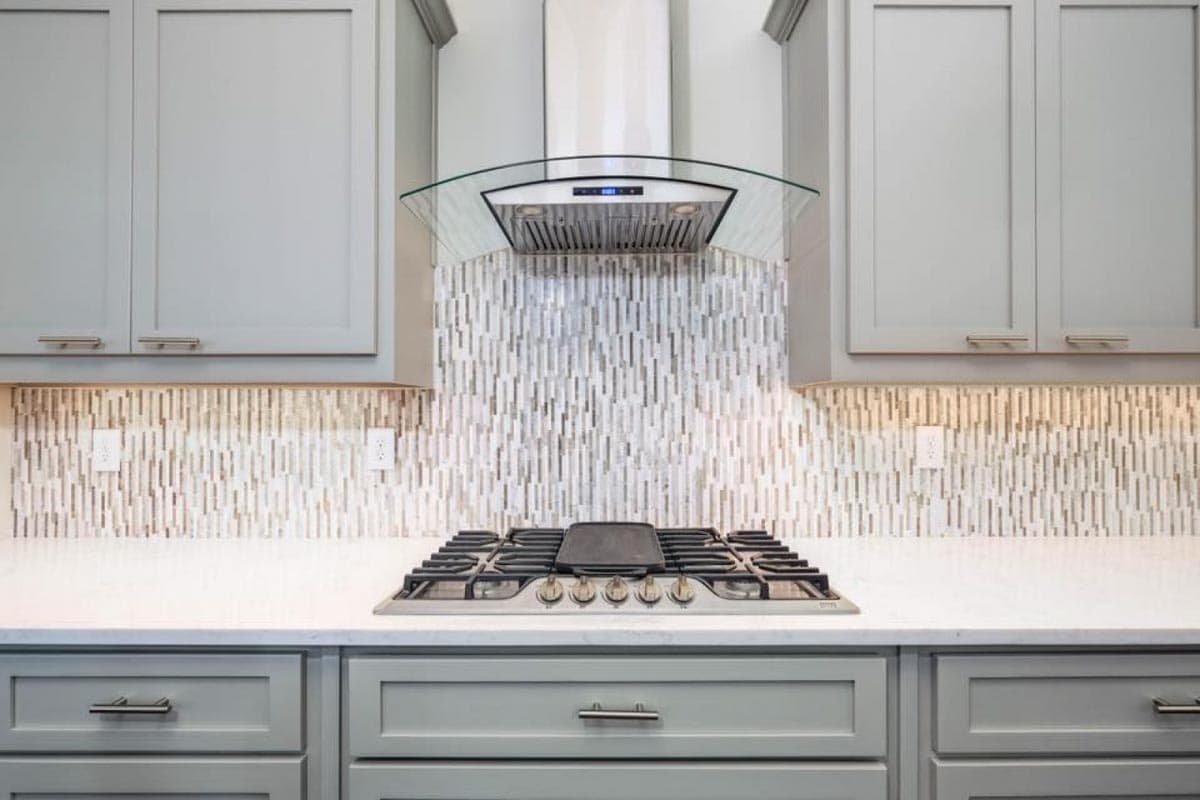

The spacious kitchen is designed for efficiency, offering an oversized island with seating for casual meals and a walk-in pantry.

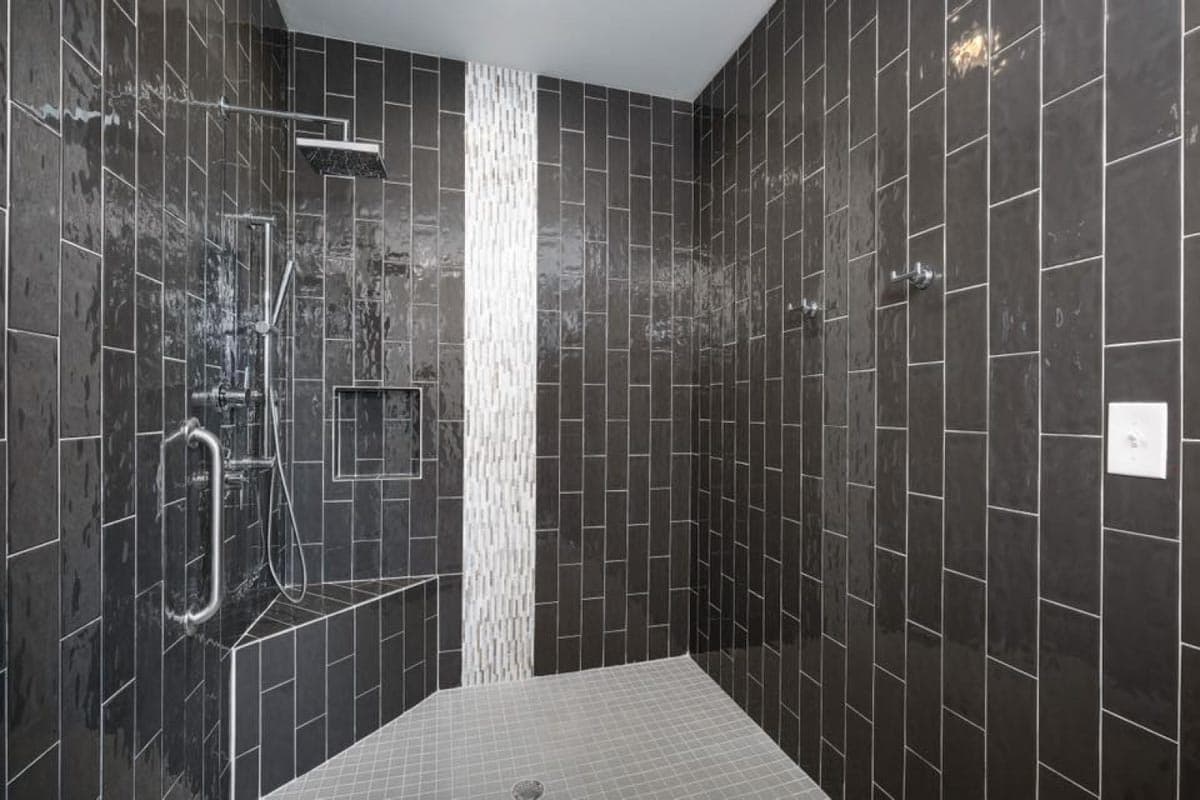

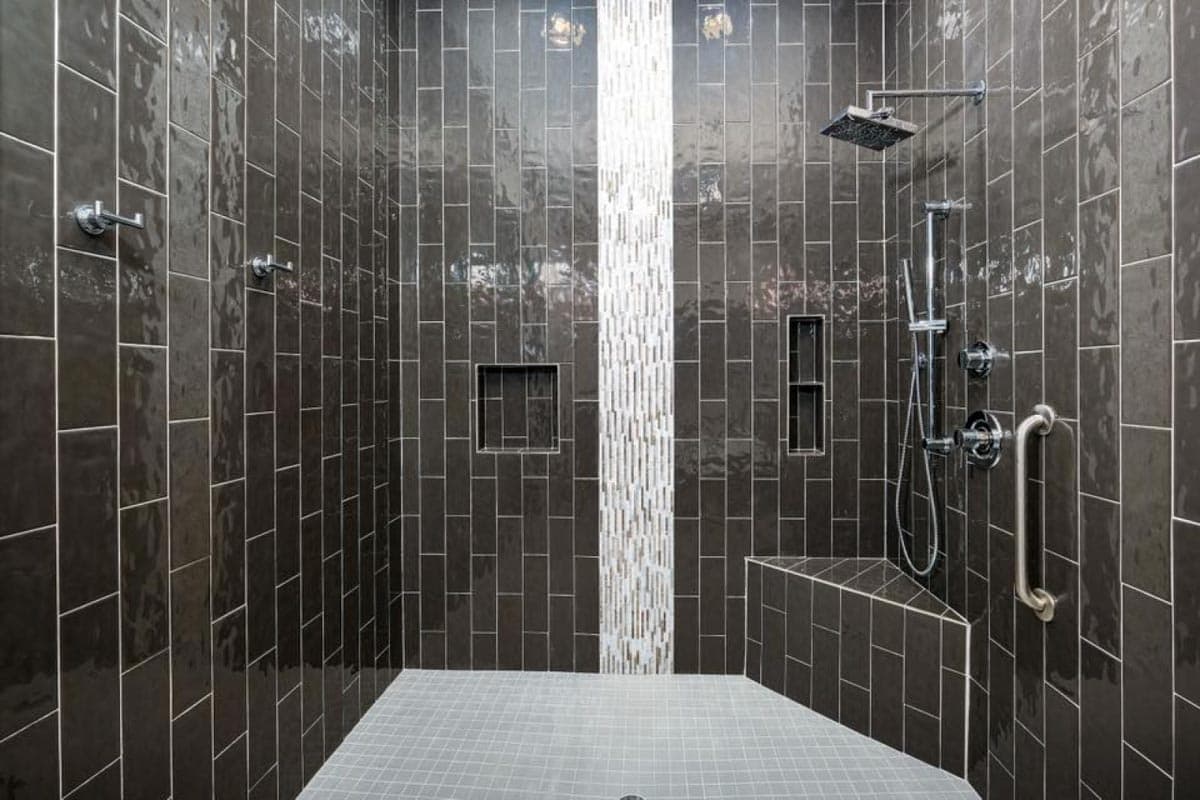

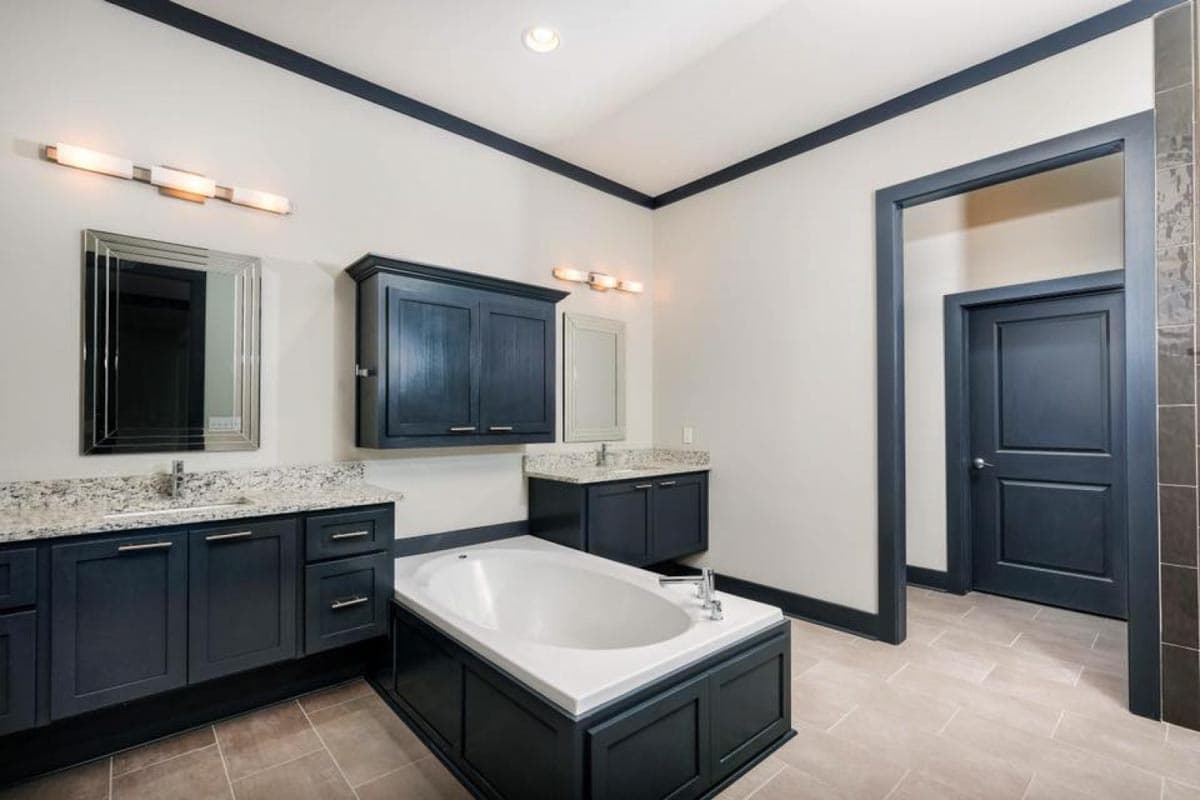

The inviting main-floor master suite offers easy access to a private back porch, large walk-in closet, and a 5-piece bath with an oversized shower.

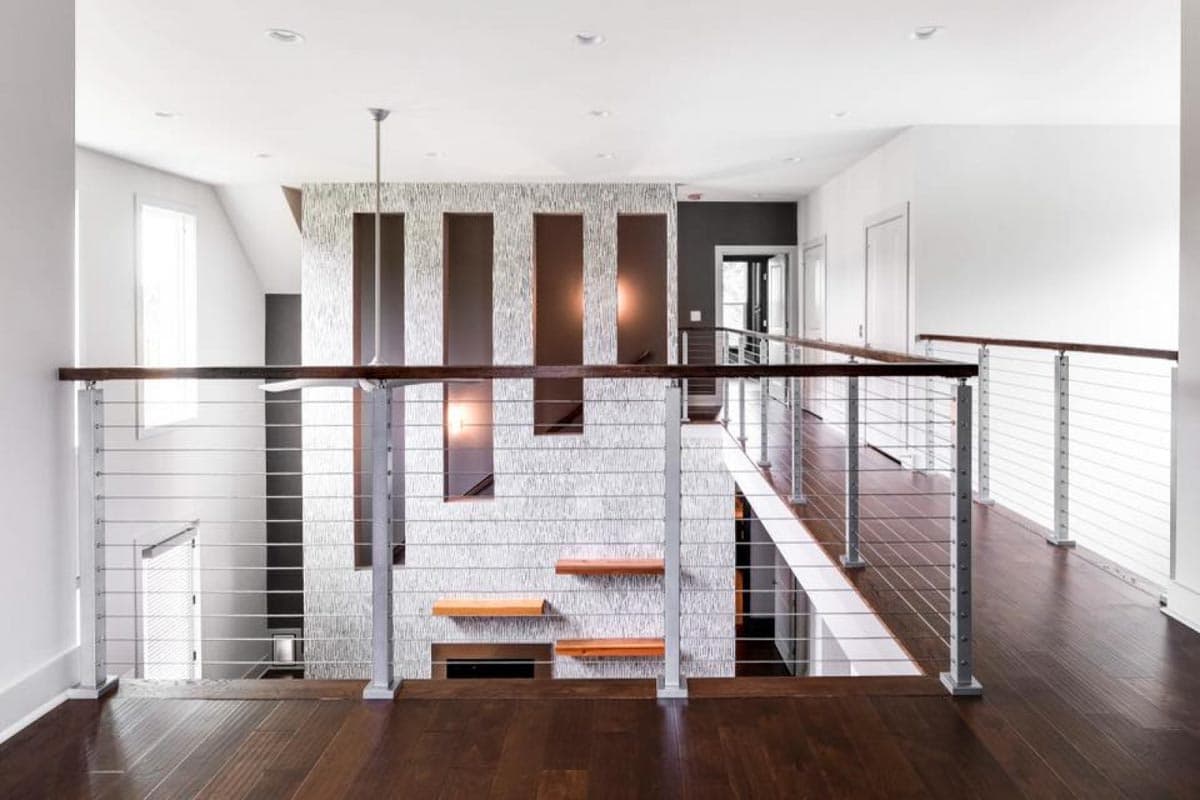

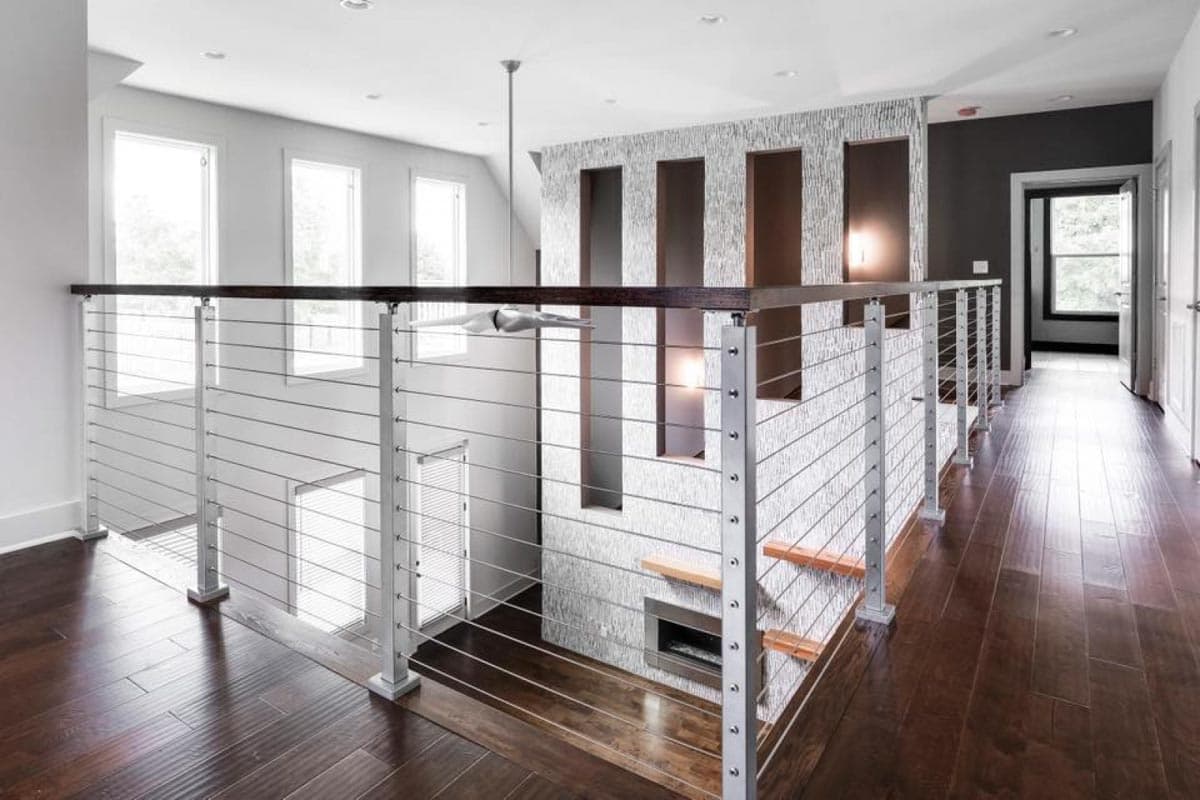

Upstairs, you’ll find a versatile loft space with a walk-in closet.

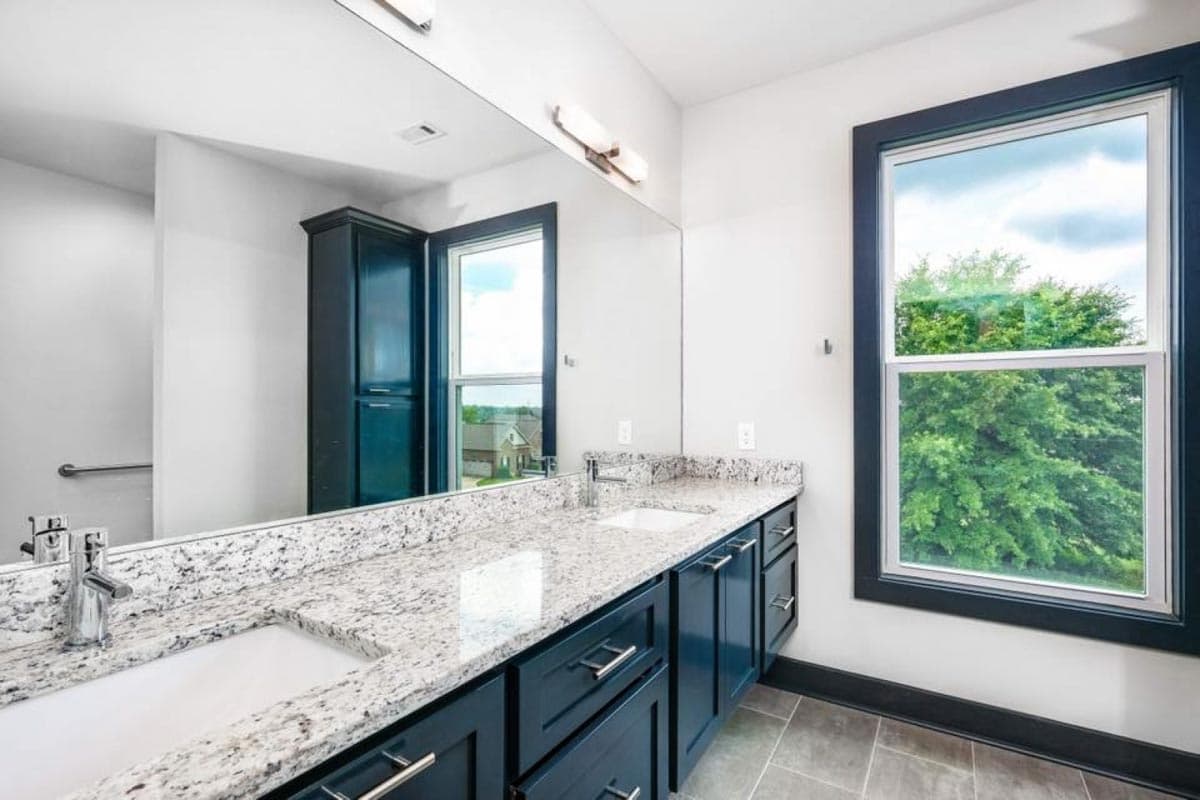

An upper-level bedroom boasts a private sun deck, 4-piece bath with a generously sized shower, and a large walk-in closet.
NOTE: Please allow 3-10 business days for optional foundations.

What's Included

Cover Sheet
Foundation plans
Elevations - complete with dimensions, ridge heights and special notes
Floor Plans - complete with dimensions of all elements including plumbing, appliances and cabinet sizes
Roof Plan - complete with dimensions, plate heights, roof pitches and notes for special conditions
Rafter Plan
Details
Interior Elevations - include applicable cabinetry, electrical and special construction notes
Floor Joist Plan - complete with spans, sizes and direction (if applicable)
Ceiling Joist - complete with spans, sizes and direction
Sections - complete with dimensions, notes and specifications
Electrical plan - complete wit layout, light fixtures, outlets and legend

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Square Footage Breakdown

Total Heated Area:

2,999 sq. ft.

1st Floor:

2,007 sq. ft.

2nd Floor:

992 sq. ft.

Porch, Combined:

539 sq. ft.

Beds/Baths

Bedrooms:

2

Full bathrooms:

2

Half bathrooms:

1

Foundation Type

Standard Foundations:

Slab

Need A Different Foundation?

Request A Modification Quote

Exterior Walls

Standard Type(s):

2x4

Dimensions

Width:

53' 6"

Depth:

79' 9"

Max Ridge Height:

35' 2"

Garage

Type:

Attached

Area:

709 sq. ft.

Count:

2 Cars

Entry Location:

Courtyard

Ceiling Heights

Floor / Height:

First Floor / 10' 0"

Roof Details

Primary Pitch:

12 on 12

Architectural Style

Special Features

Handicapped Accessible

Master Suite - 1st Floor

Two Story Great Room

Plan Collections
