Plan 54063LK

Spanish Mediterranean House Plan with 4 Bedrooms and Outdoor Living

Name: Plan 54063LK: Spanish Mediterranean House Plan with 4 Bedrooms and Outdoor Living
Brand: Architectural Designs
SKU: 54063LK
Price: 2475.0 USD
Availability: InStock

Heated S.F.

3,324

Beds

3 - 4

Baths

4.5

Stories

Cars

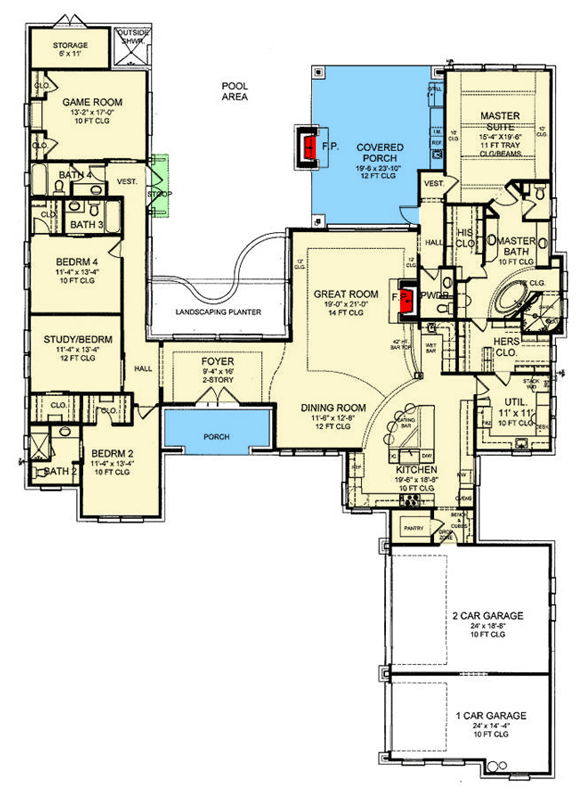

Floor Plan

Plan Details

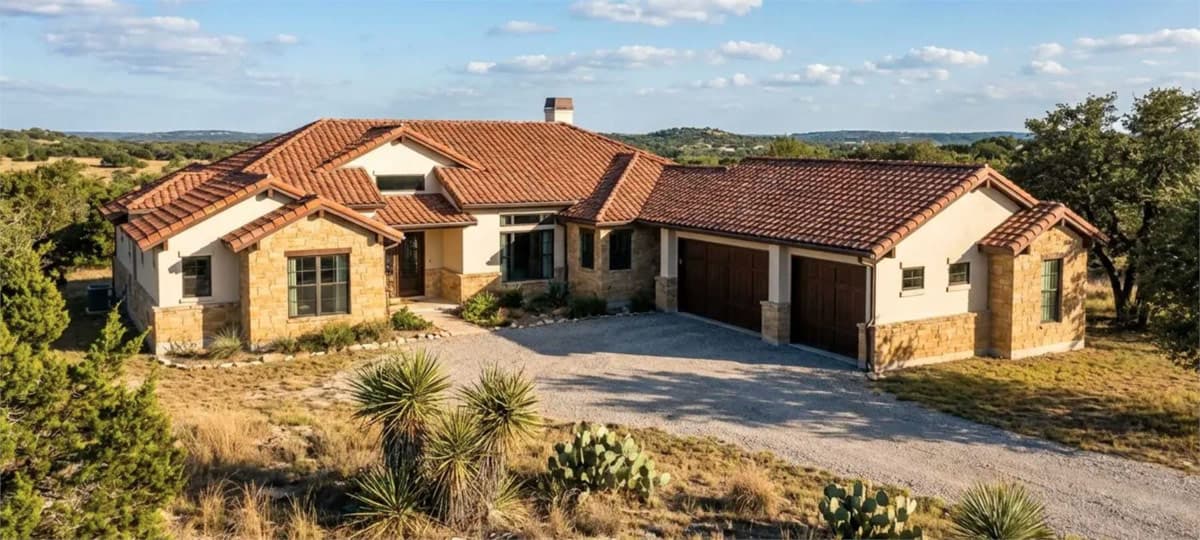

This 3,324 sq ft Spanish Mediterranean house plan features 4 bedrooms, 4.5 baths, and a 920 sq ft, 3-car courtyard garage.
Step inside to a grand entry that flows into an expansive open layout, with a private library/study/bedroom conveniently located near the entrance.
The main living area seamlessly connects a spacious great room, a gourmet kitchen with a walk-in pantry, and a breakfast nook, creating an ideal space for daily life.
The luxurious primary suite is privately situated, while three secondary bedrooms are thoughtfully split for family comfort and privacy.
A sophisticated wet bar enhances entertaining, perfect for hosting gatherings within the main living areas.

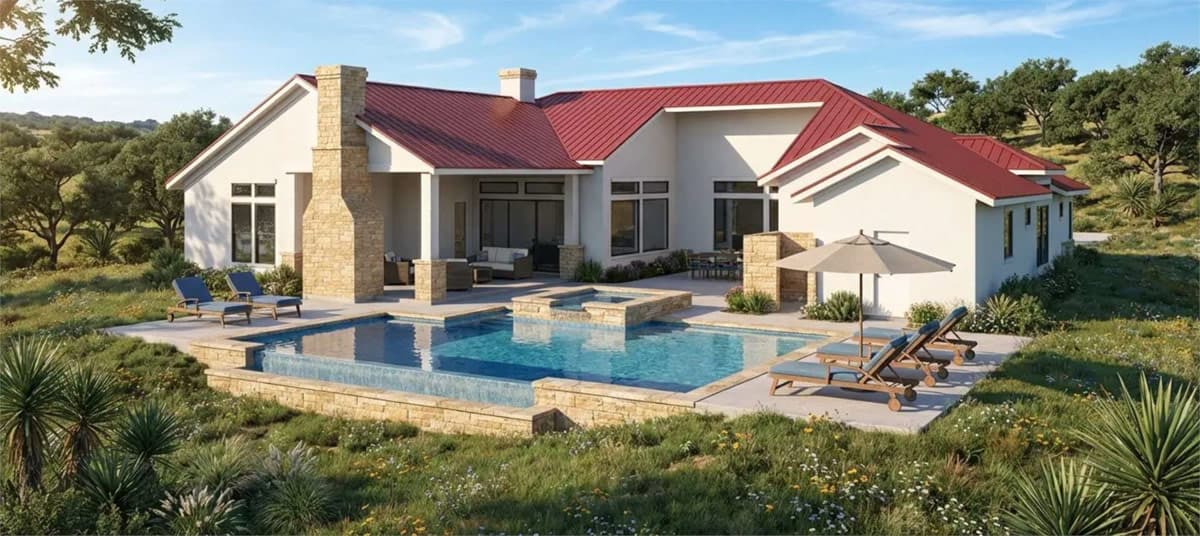

Enjoy the outdoors space, featuring an outdoor kitchen and fireplace for al fresco dining and relaxation.

What's Included

FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches and outlets.
ELEVATIONS: The front, rear and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
ROOF PLANS: Provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable
BUILDING CROSS SECTION: Shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.
INTERIOR ELEVATIONS: Show's how the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.
NOTES AND DETAILS: Provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
