Spectacular Prairie Home Plan with Lower-Level Rec Room

Name: Plan 23854JD: Spectacular Prairie Home Plan with Lower-Level Rec Room
Brand: Architectural Designs
SKU: 23854JD
Price: 3400.0 USD
Availability: InStock

Heated S.F.

5,369

Beds

4 - 5

Baths

5.5

Stories

Cars

Floor Plan

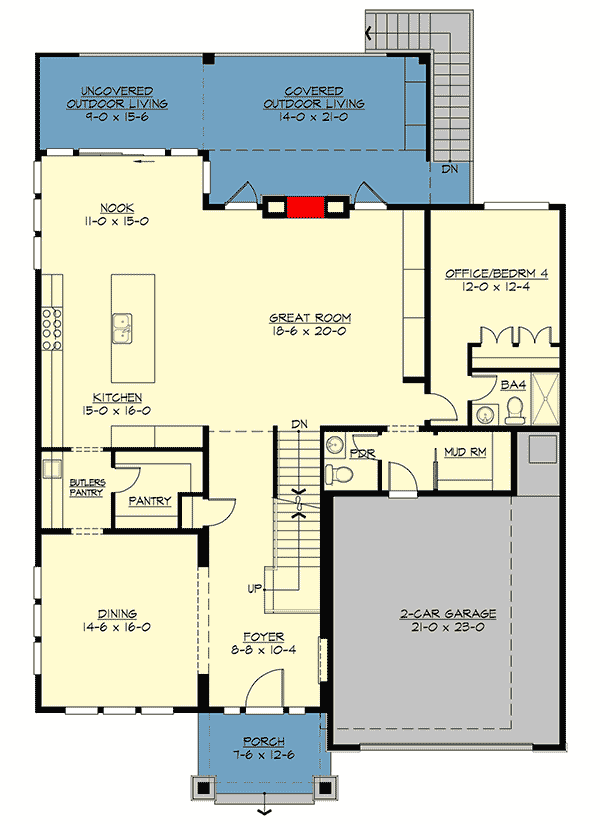

Main Level

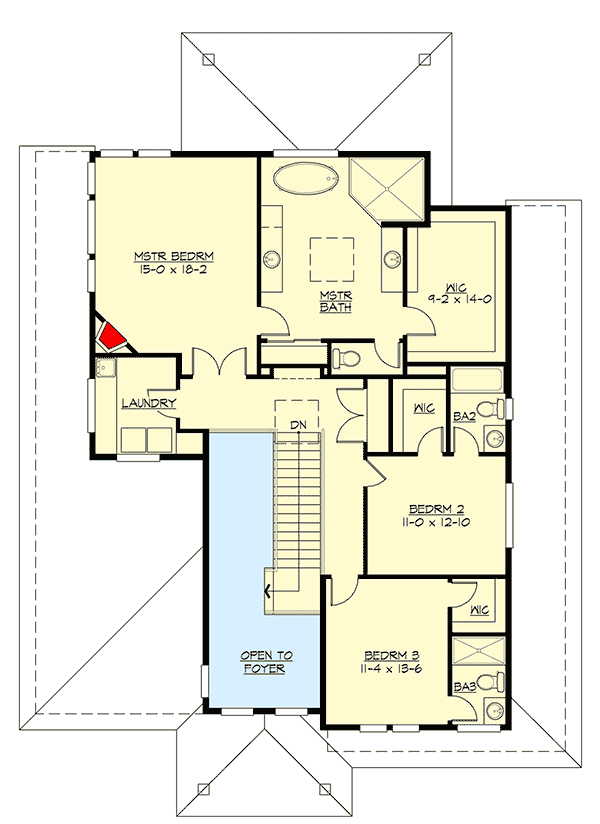

2nd Floor

Lower Level

Plan Details

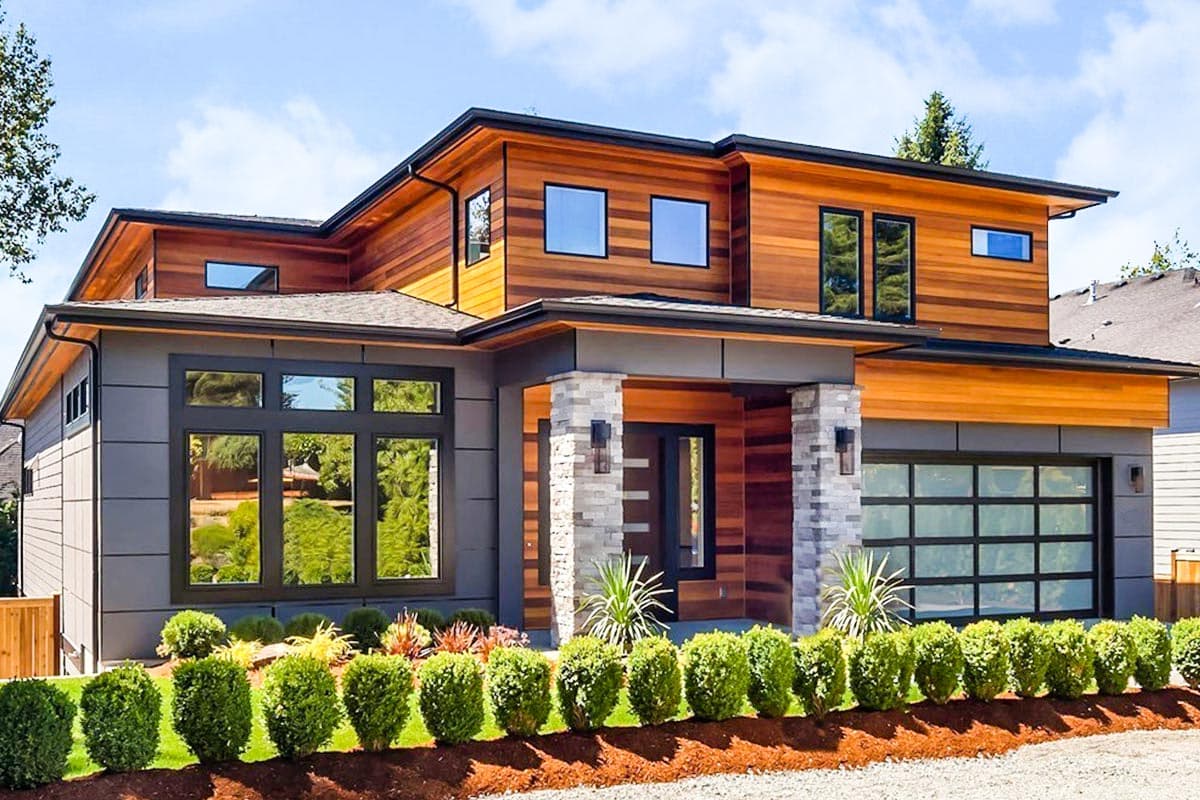

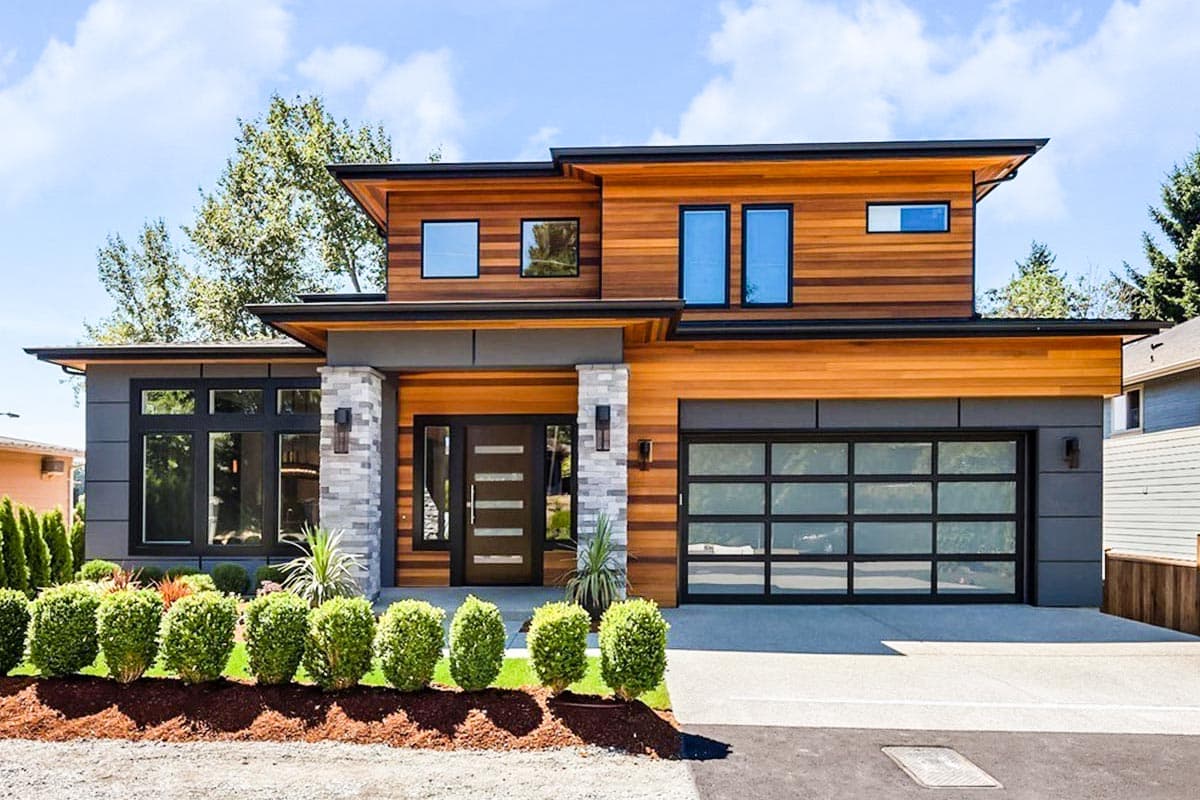

Large panels blend with natural wood siding to produce the exterior of this spectacular, Prairie home plan.

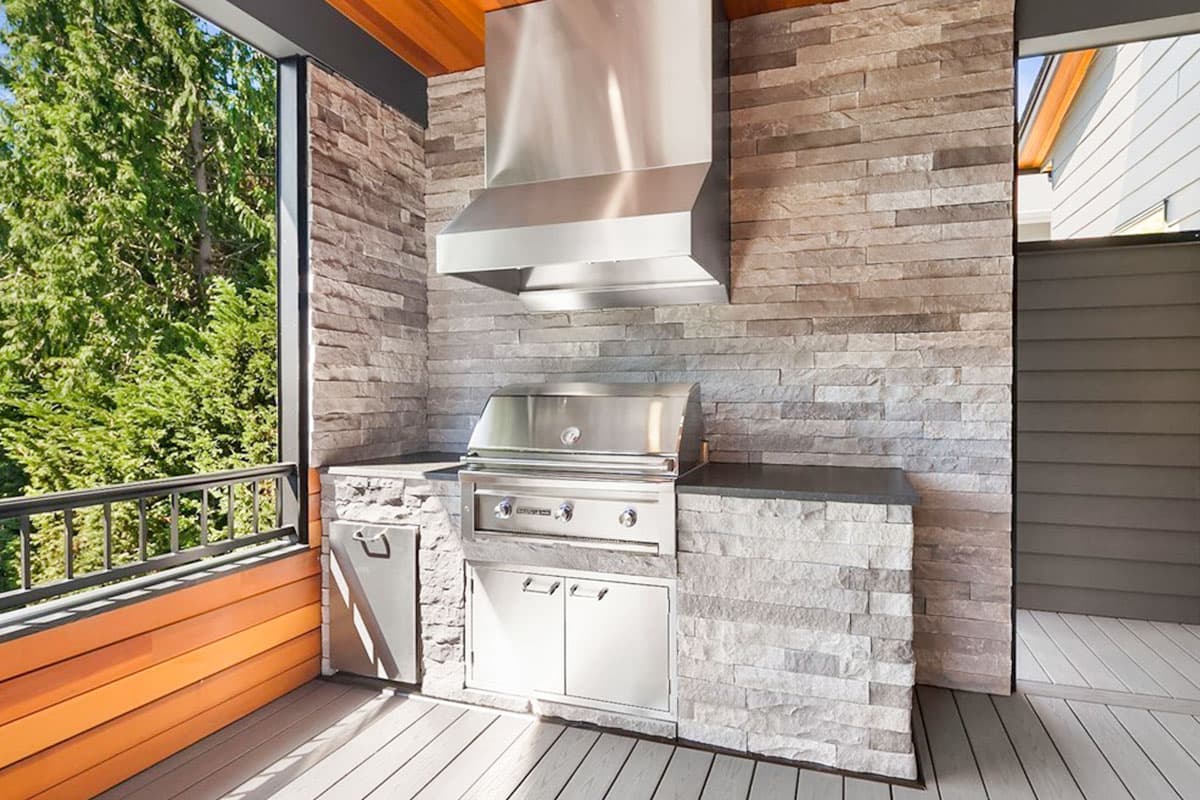

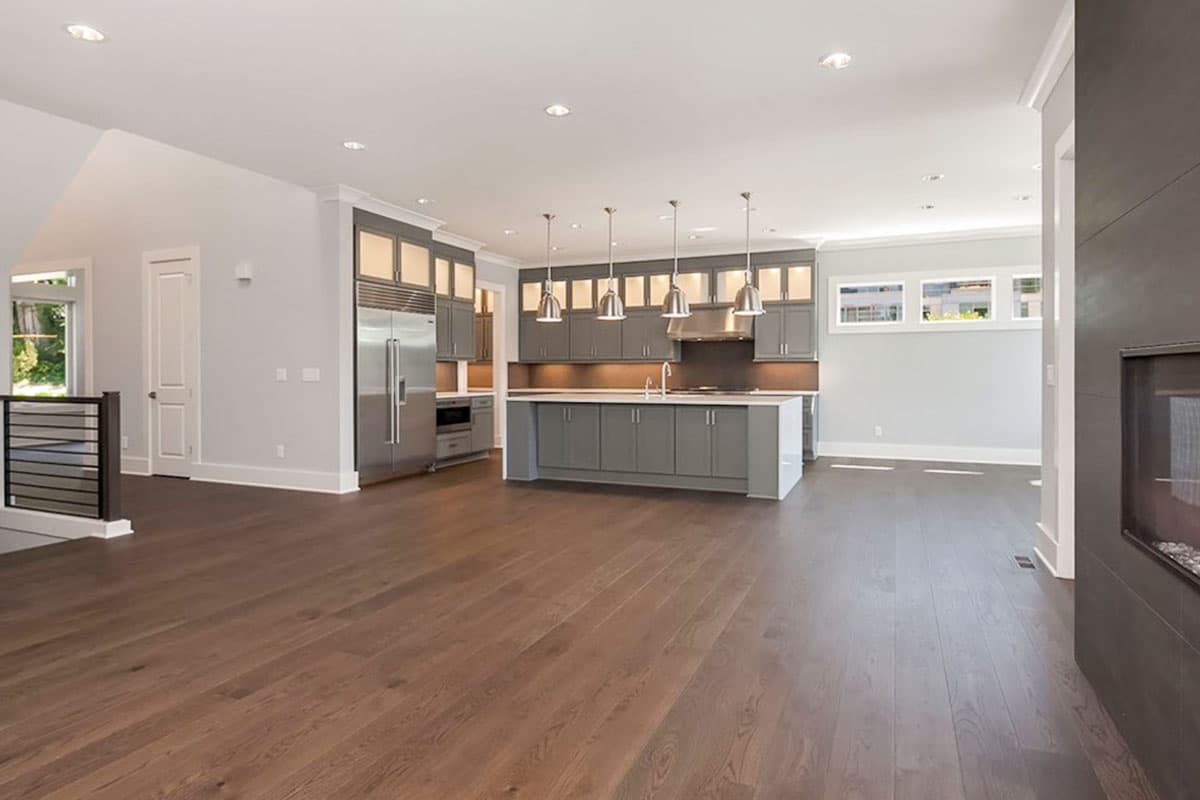

The heart of the home is located on the main level in an open layout. A door on either side of the fireplace in the great room leads to a partially-covered outdoor space for dining or lounging.
The butler's pantry connects the kitchen with the formal dining room, and a home office, or fourth bedroom completes the main level.
Three bedrooms can be found upstairs; the largest is reserved for the homeowner, and features a spacious bath with a freestanding tub, corner shower, and walk-in closet. Two other good-sized bedrooms each include a full bath.

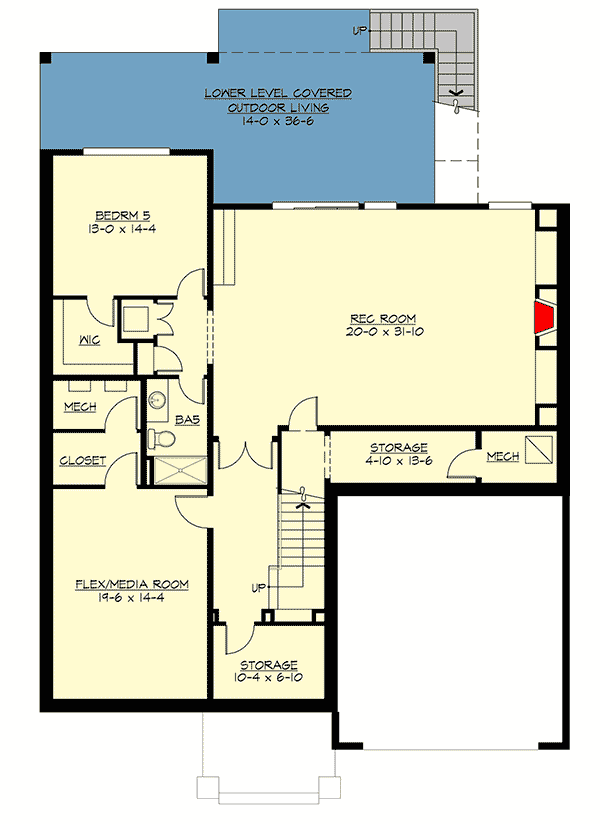

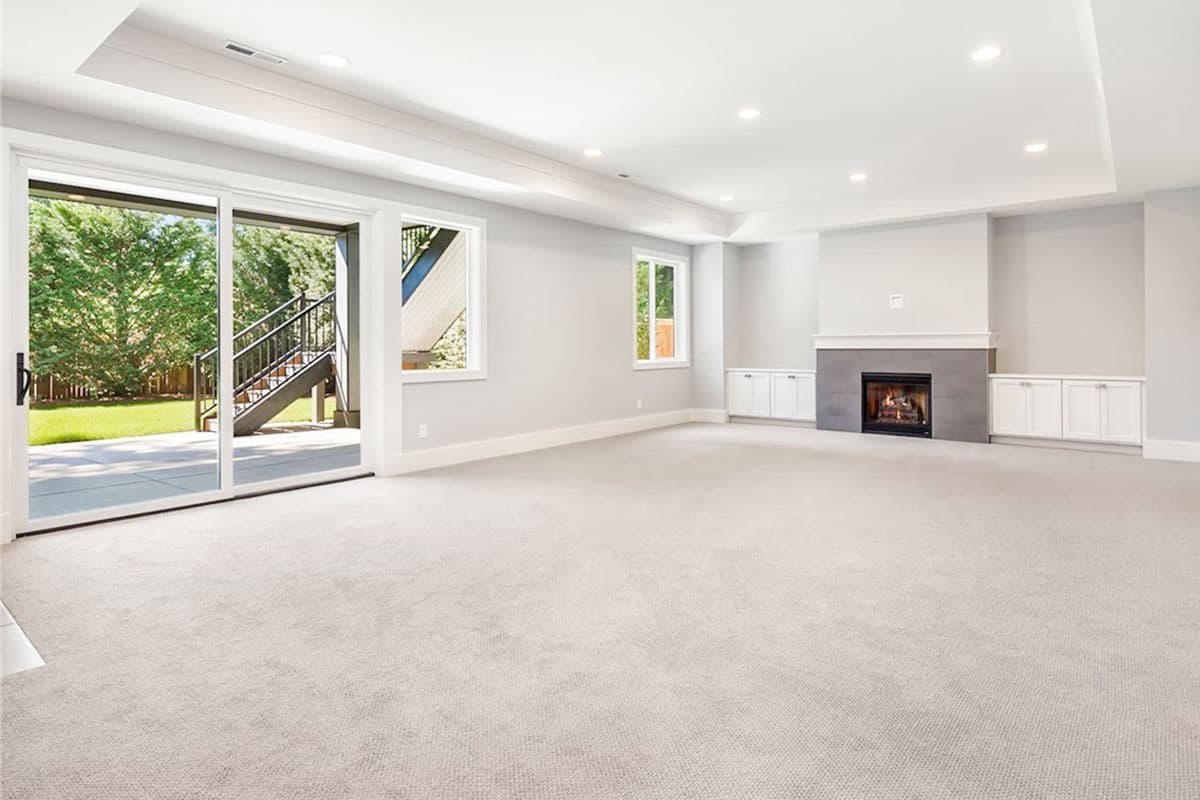

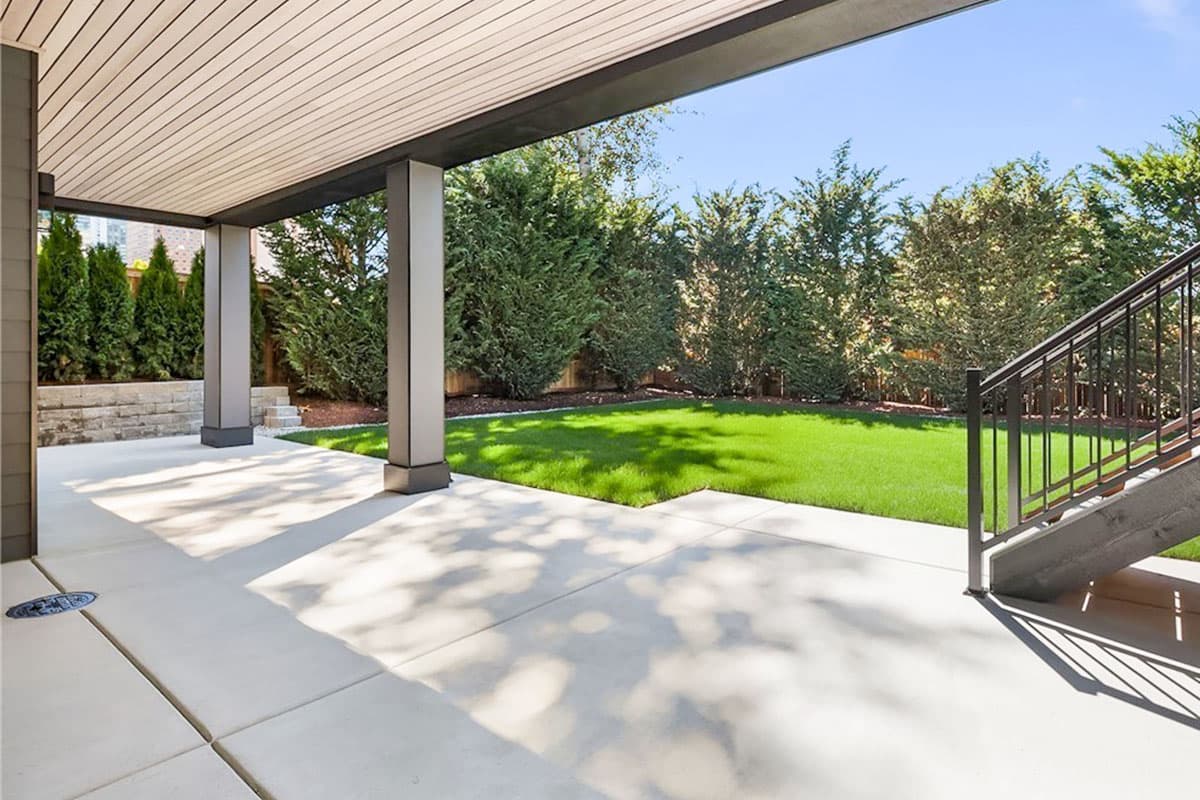

The fun continues on the lower level, which presents a large rec room with a fireplace and access to an outdoor living space, a fifth bedroom, and a flex (media) room.
Related Plan: Eliminate the basement and get a 3-car garage with house plan 23863JD.
NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

What's Included

Cover Sheet - The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet - The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet - The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet - The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet - Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet - The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

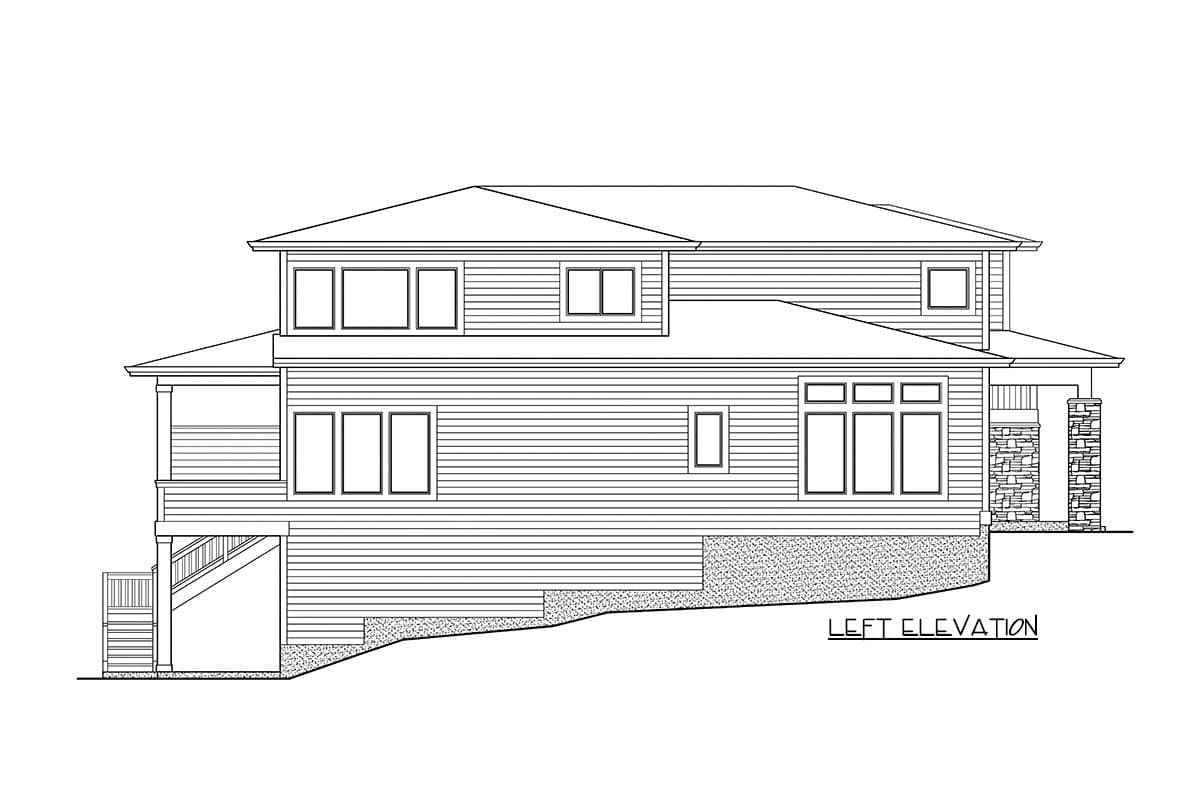

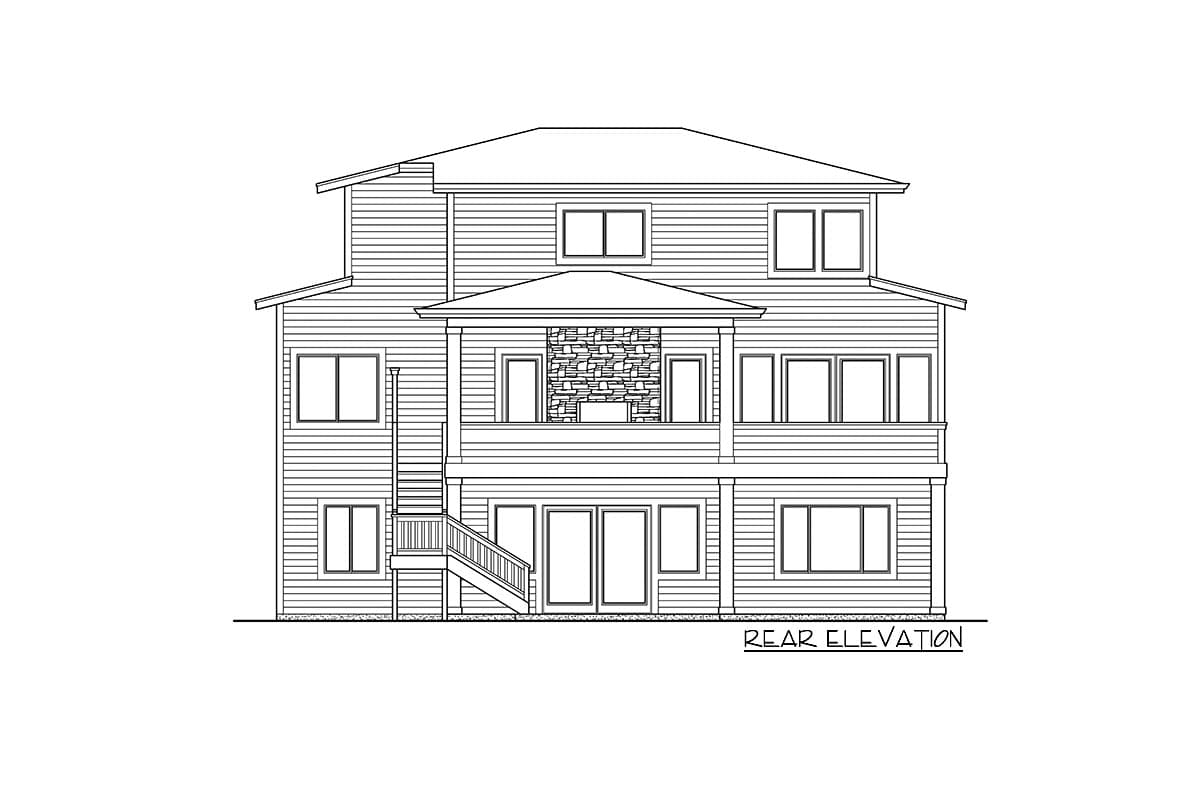

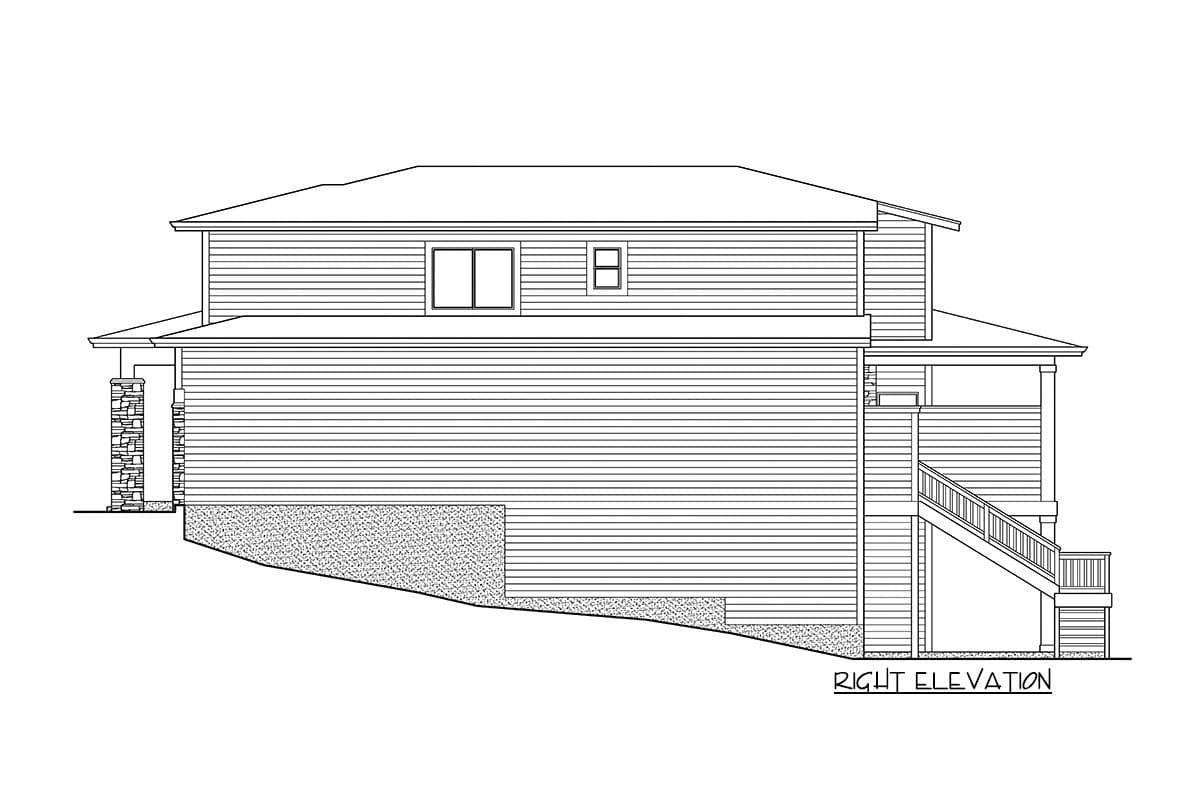

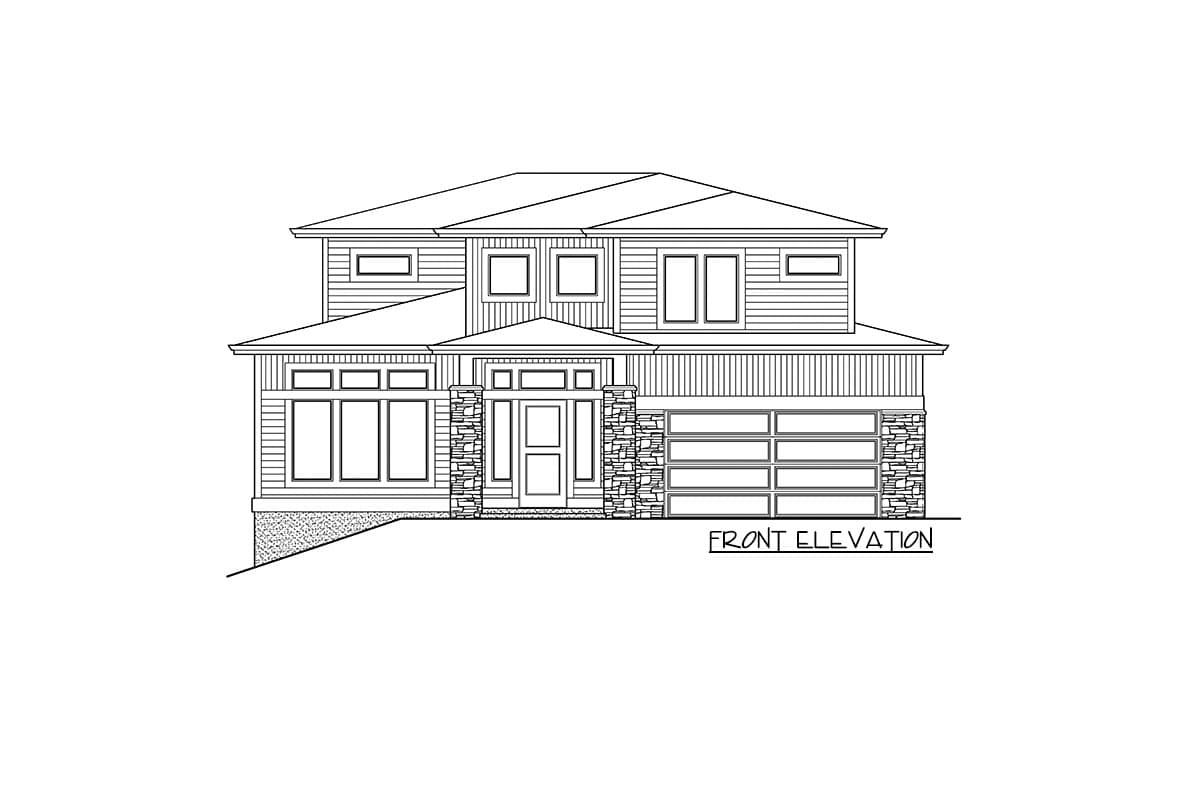

Elevation Sheet - Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet - Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

View Sample Plan

What's Not Included

Electrical Plan - handled by your subcontractor to match your individual needs
Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
