Plan 267004SPK

Split-Bed Contemporary Ranch with Vaulted Great Room

Heated S.F.
1,648
Beds
3
Baths
2
Stories
1
Cars
3

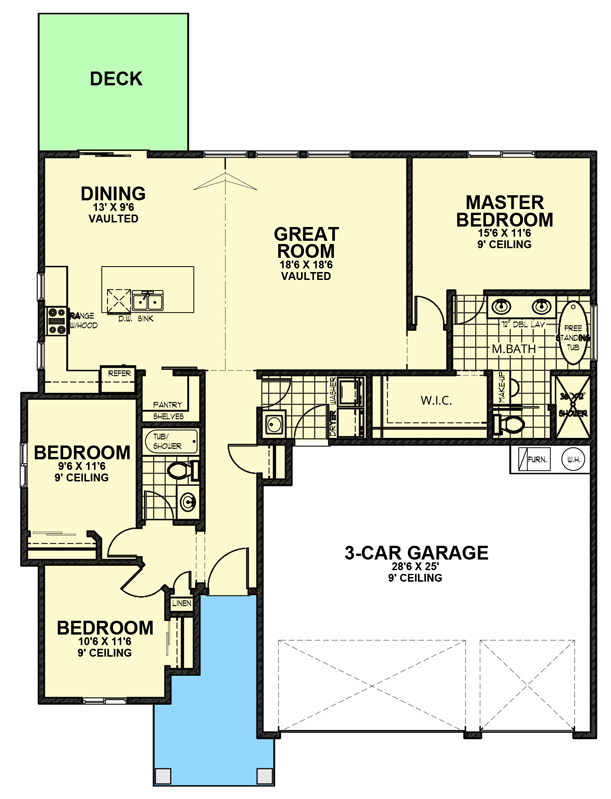

Floor Plan

Plan 267004SPK

Main Level
Main Level

Plan 267004SPK

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 267004SPK: Split-Bed Contemporary Ranch with Vaulted Great Room - Floor Plan - Main Level - Contemporary, Prairie, Ranch

Plan Details

  • The split bedroom layout of this Contemporary Ranch home plan provides the master bedroom with additional privacy, separated by a spacious, open living space in the center of the exclusive design.
  • The vaulted ceiling above the combined great room, dining area, and kitchen makes the space feel larger, and a rear deck provides the perfect spot for BBQs.
  • The master bedroom includes a 5-fixture bathroom with a makeup station, toilet room, and walk-in closet.
  • Bedrooms 2 and 3 are located just off the foyer and neighbor a full bath to share.
  • The 3-car garage is forward facing and leads into a laundry room with a utility sink.

What's Included

  • Exterior Elevations, Roof plan
  • Floor plan
  • Foundation plan
  • Typical details, building section
  • Notes and specifications
View Sample Plan

What's Not Included

  • Electrical Plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
