Plan 580060DFT
Split-bed Craftsman Ranch Plan with Boat Storage and Covered Patio
Heated S.F.
2,511
Beds
3
Baths
2.5
Stories
1
Cars
3
What's Included
Plan Details
  • The fresh exterior with a blend of siding materials makes this Craftsman Ranch home plan stand out in any neighborhood.
  • The open layout combines the living room, fireplace, and dining nook, and provides access to a 21'5" by 18'7" covered patio for outdoor enjoyment. A fireplace anchors the left wall and a kitchen island increases meal-prep space when entertaining.
  • The split-bedroom layout sets the master bedroom apart from the others. The master bathroom features a freestanding tub in front of an oversized shower and the pass-through closet conveniently connects to the laundry room.
  • Bedrooms 2 and 3 are just off the entryway and share a Jack-and-Jill bathroom.
  • The 3-car garage includes an oversized bay for boat storage and a mudroom just inside helps store your outdoor gear and personal items.
What's Included

  • Cover Sheet: General Notes and code criteria
  • Foundation Plan: Concrete layouts including footings, slabs and stem walls, dimensions, floor joist layout, plumbing fixture locations and construction notes and details

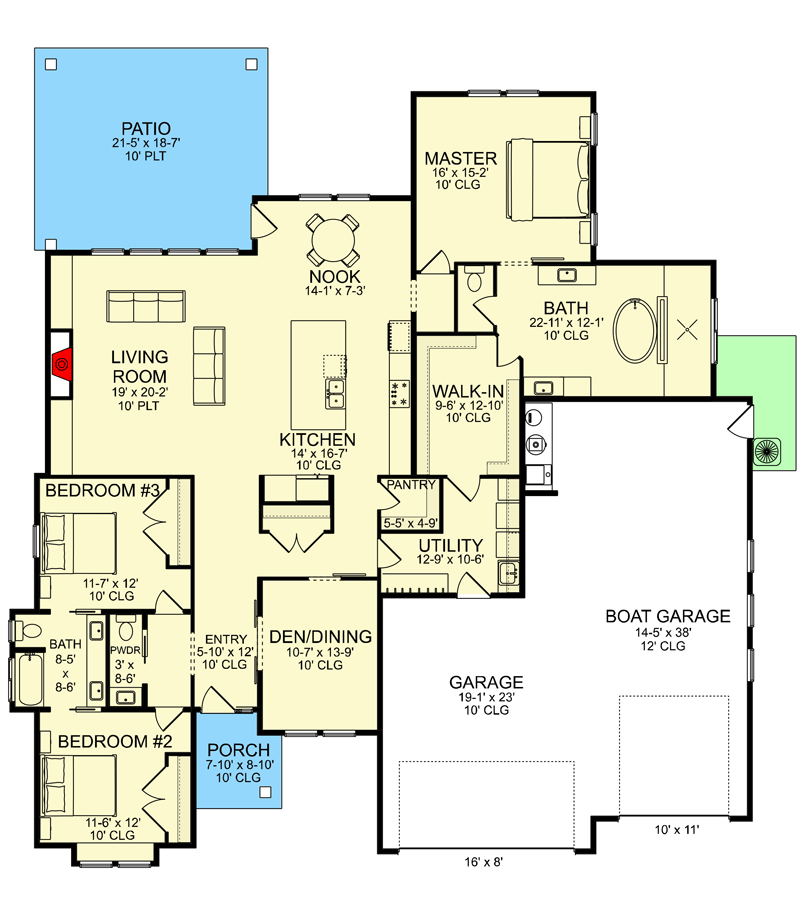

  • Floor Plan(s): Dimensions, wall framing, room sizes, door and window location and sizes, plumbing fixtures, kitchen layout with cabinetry location and construction notes and details
  • Roof Plan: Bird's eye view and general layout, roof pitches, eave sizes, special ceiling heights, trey ceilings located and construction notes and details
  • Section View(s): A cut or cuts through the home showing wall plate heights, stair sections, special construction sections including footings and crawl space or slab details

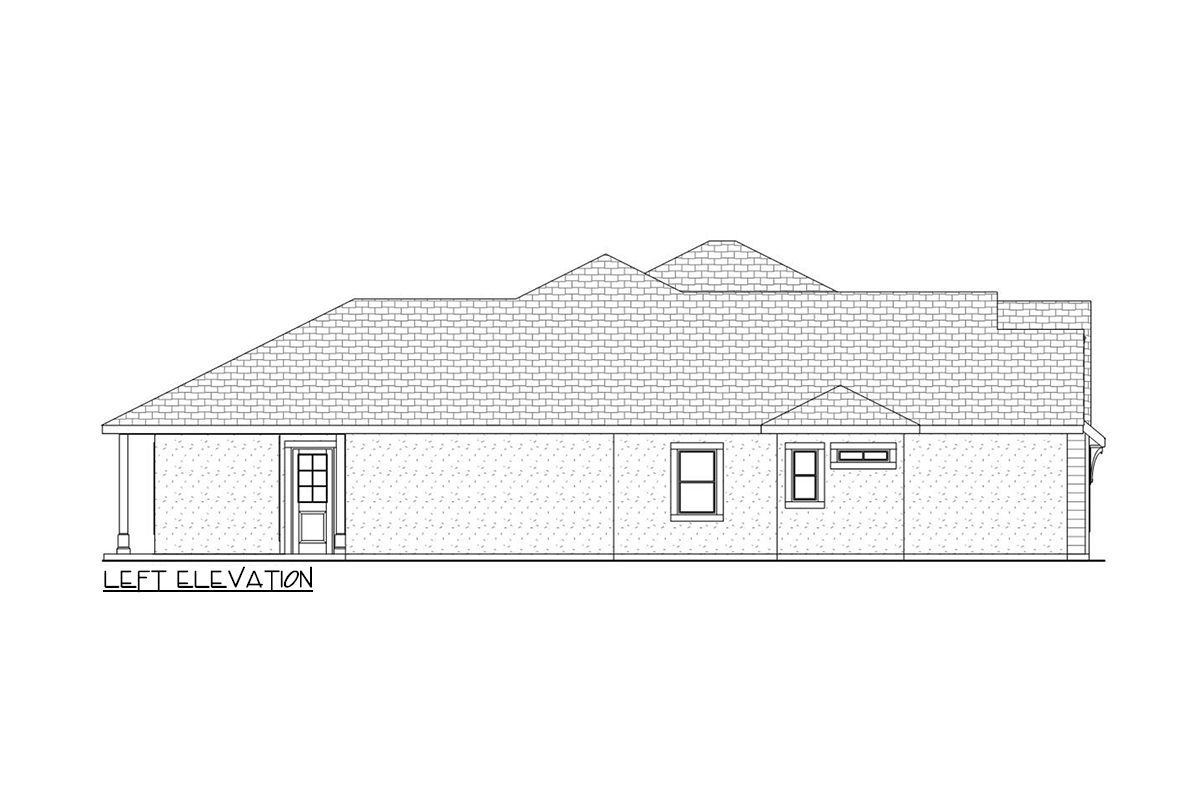

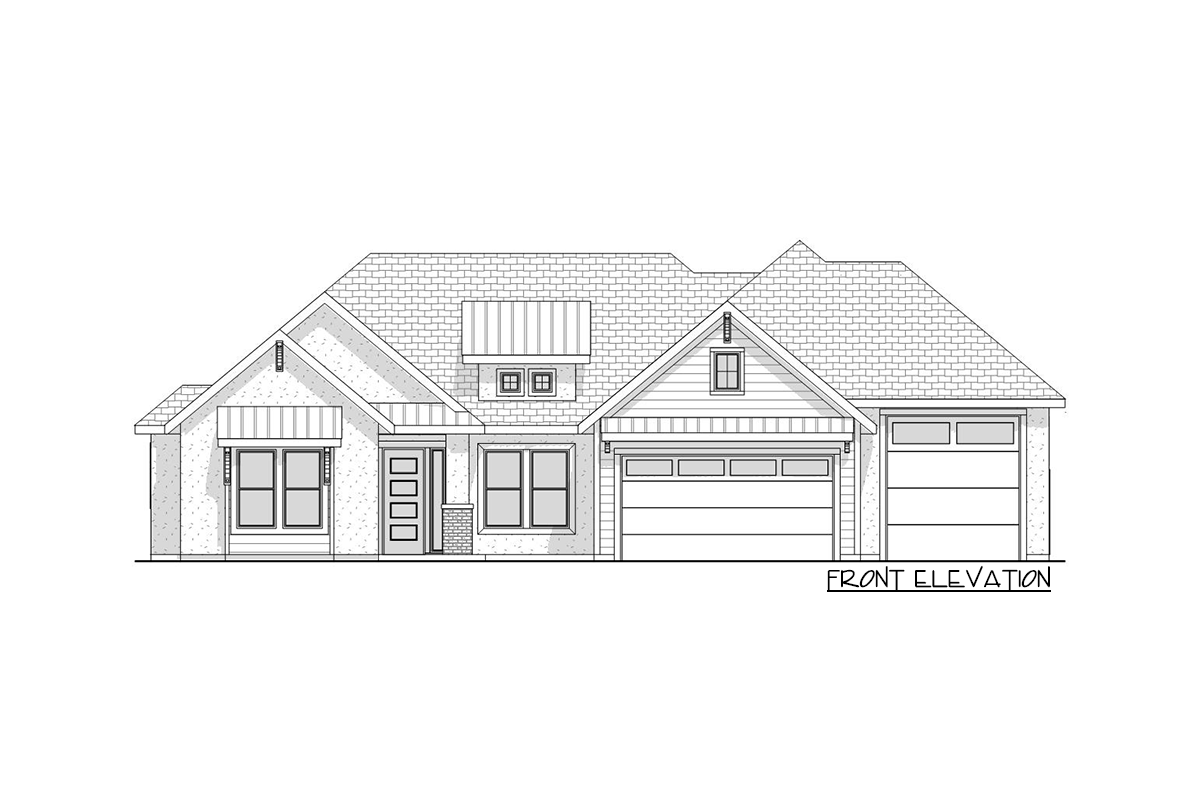

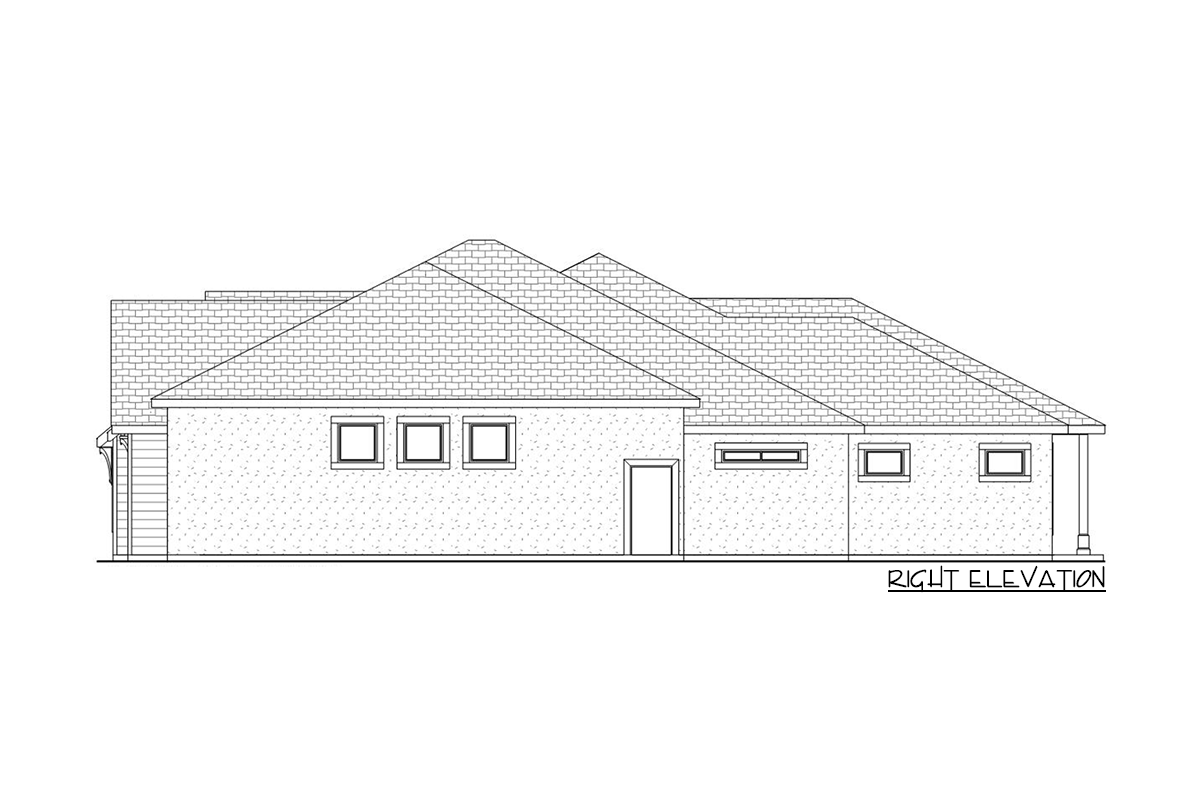

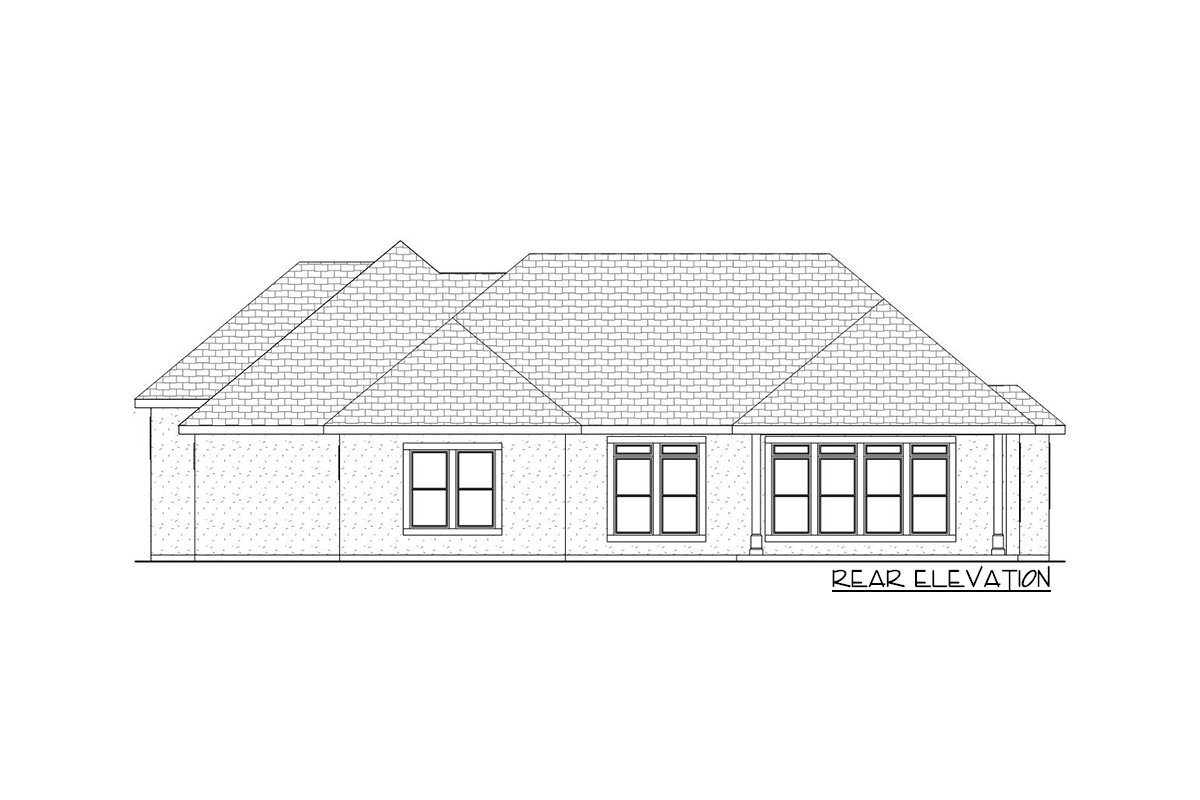

  • Exterior Elevations: Shows 2-D exterior views of all 4 sides of home locating and showing roof lines, roof pitches, material callouts, window locations, vents, trim style and plate heights
  • Electrical Plans: General layout of smoke detectors, carbon monoxide detectors, exhaust fans, lights, switches, outlets and GFI outlets

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Split-bed Craftsman Ranch Plan with Boat Storage and Covered Patio

  • 2,511

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,511 sq. ft.
  • 1st Floor: 2,511 sq. ft.

Dimensions

  • Width: 68' 0"
  • Depth: 74' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1161 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick And Truss
