Split-bed Hill Country Home Plan with Flex Space
Heated S.F.
2,136
Beds
3
Baths
2.5
Stories
1
Cars
2
What's Included
Plan Details
  • With rugged stone on the exterior, this split-bed Hill Country home plan fits right at home in a rural landscape.
  • Three large windows line the rear wall of the living room and overlook the covered porch, while a fireplace anchors the left wall. A skylight offers additional natural light to the kitchen, which is framed by a formal and casual dining space.
  • Use the "away room" as an office, craft room, homeschooling space, or variety of other purposes.
  • The master bedroom is privately situated behind the double garage and includes two closets. Each of the secondary bedrooms include a charming window seat and they share a Jack-and-Jill bath.
  • Enter from the garage to find a mud / utility room combo with a coat closet next door.
What's Included

  • Cover page with legends & notes
  • Foundation details
  • Floor plan(s) [depending on whether it’s 1 or 2 stories]
  • Dimension plan(s)
  • Front view
  • Right view
  • Left view

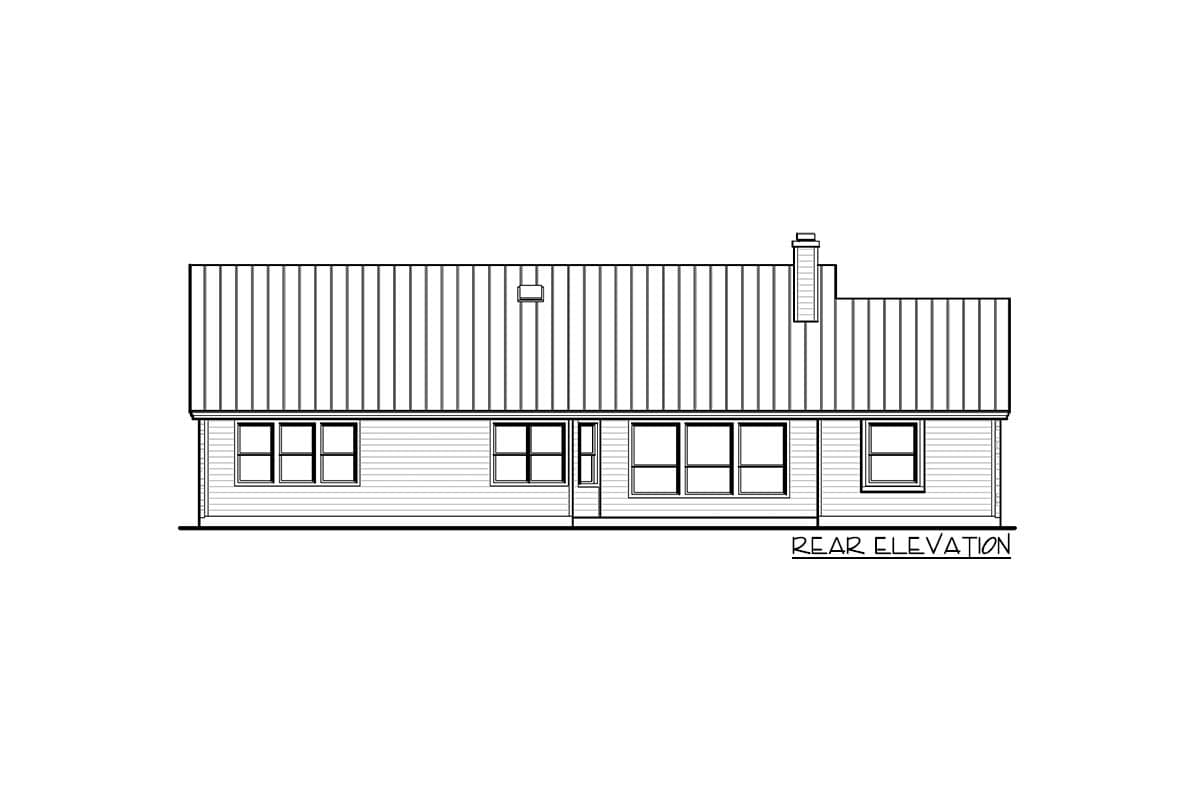

  • Rear view
  • Building section(s)
  • Wall section
  • Interior views
  • Electrical plan(s)
  • Roof layout plan

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Split-bed Hill Country Home Plan with Flex Space

  • 2,136

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,136 sq. ft.
  • 1st Floor: 2,136 sq. ft.

Dimensions

  • Width: 67' 7"
  • Depth: 46' 2"
  • Max ridge height: 21' 6"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 455 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Stick
