Plan 810005RBT
Split-bed New Traditional Home Plan with Double-sided Fireplace and Screened Porch
Heated S.F.
2,880
Beds
4-5
Baths
3 - 4
Stories
1-2
Cars
2-3
Flyer
Photos
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

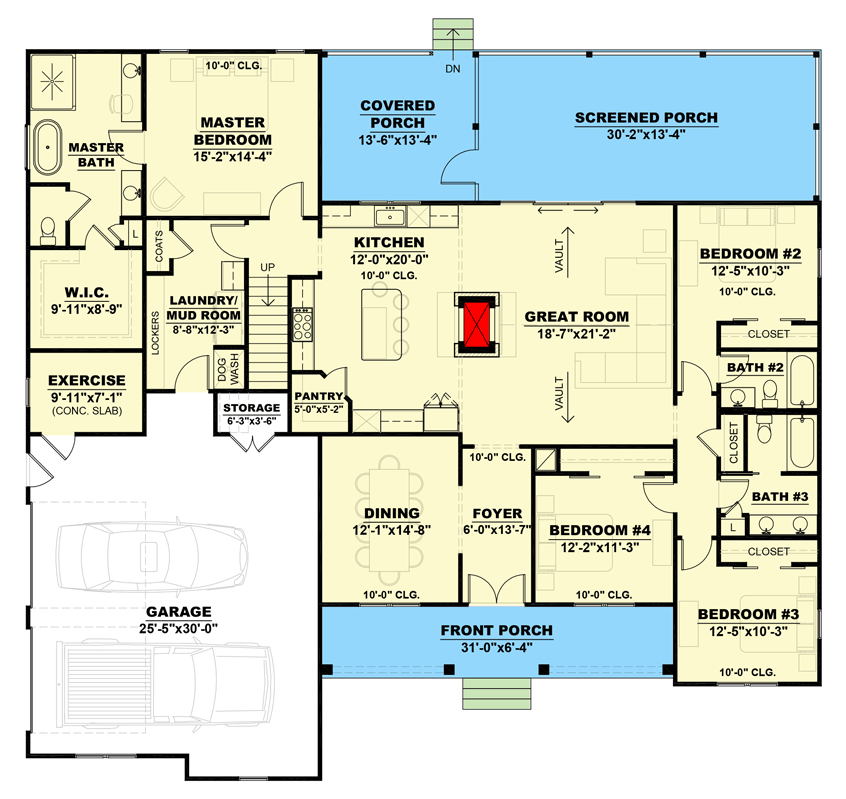

Split-bed New Traditional Home Plan with Double-sided Fireplace and Screened Porch - 810005RBT floor plan - Main Level
Bonus Room
Reverse Floor Plan

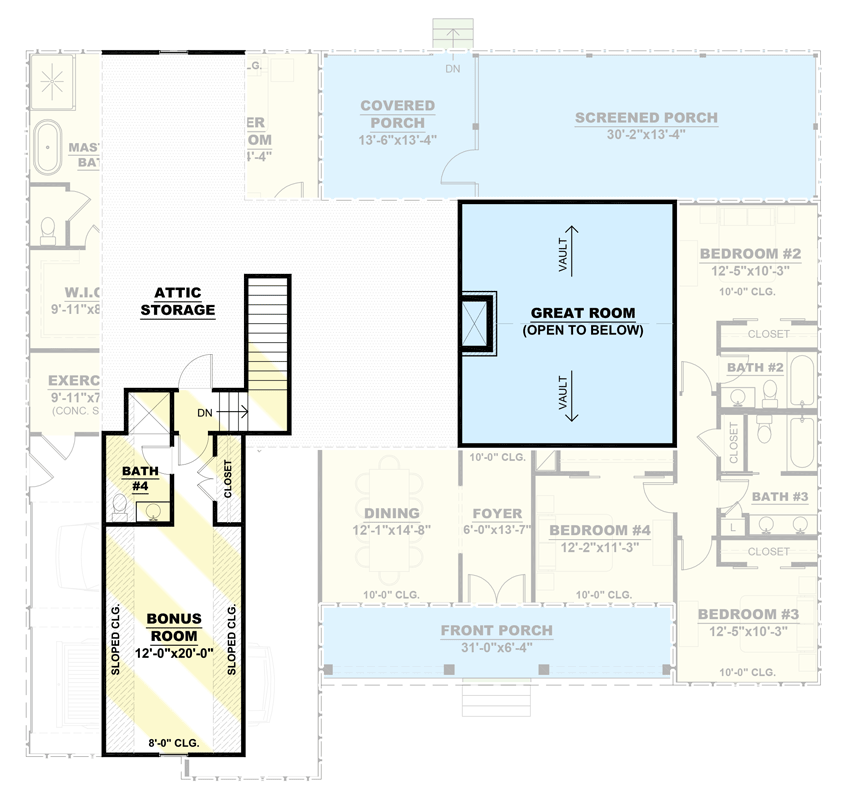

Split-bed New Traditional Home Plan with Double-sided Fireplace and Screened Porch - 810005RBT floor plan - Bonus Room
3-Car Side Garage Option - Main Level
Reverse Floor Plan

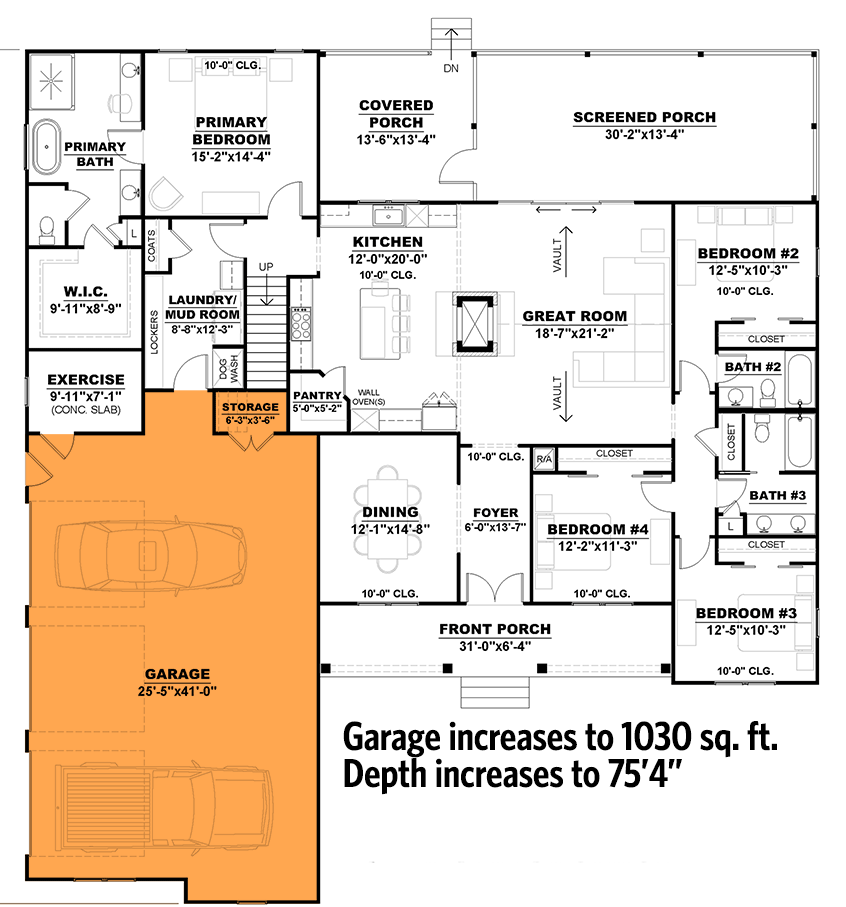

Split-bed New Traditional Home Plan with Double-sided Fireplace and Screened Porch - 810005RBT floor plan - 3-Car Side Garage Option - Main Level
Plan Details
  • This New American home plan features a split-bedroom layout to provide the homeowner with the utmost privacy.
  • Tall ceilings above the great room make the space feel even larger and a double-sided fireplace adds ambiance to both the great room and island kitchen.
  • Enjoy family dinners in the formal dining room then retreat to the partially-screened porch to relax outdoors.
  • Sizable service areas help accommodate active families and an exercise room off the double-garage is the perfect spot to decompress.
  • A bonus room upstairs (included in the square footage) includes a full bath and closet.
  • Related Plan: Get an alternate exterior with house plan 810011RBT.
What's Included
  • Cover sheet with General Notes, Area Tabulation, Index, Drawing Symbol Key, Rendering, Abbreviations, + Materials Legend
  • Main Level Floor Plan + Wall Type Legend
  • Upper Level Floor Plan + Wall Type Legend
  • Roof Plan + General Roof Plan Notes

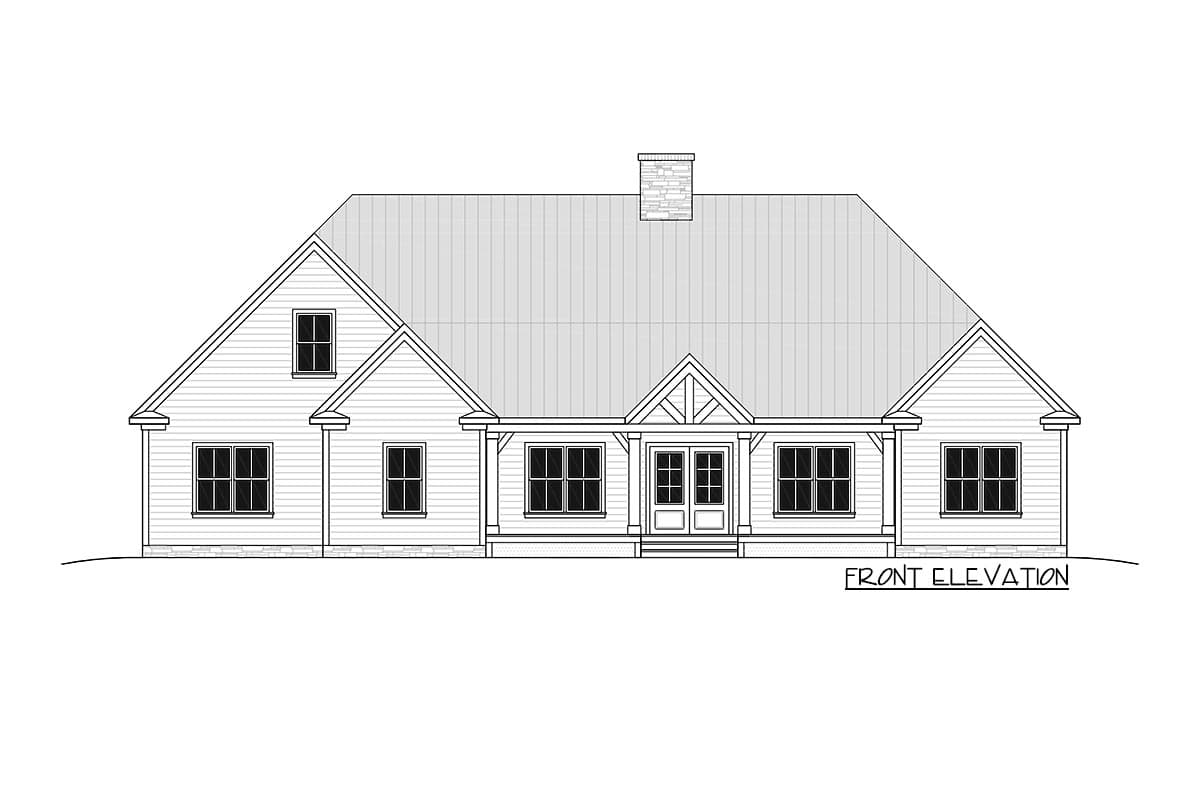

  • Front + Right Exterior Elevations, General Elevation Notes

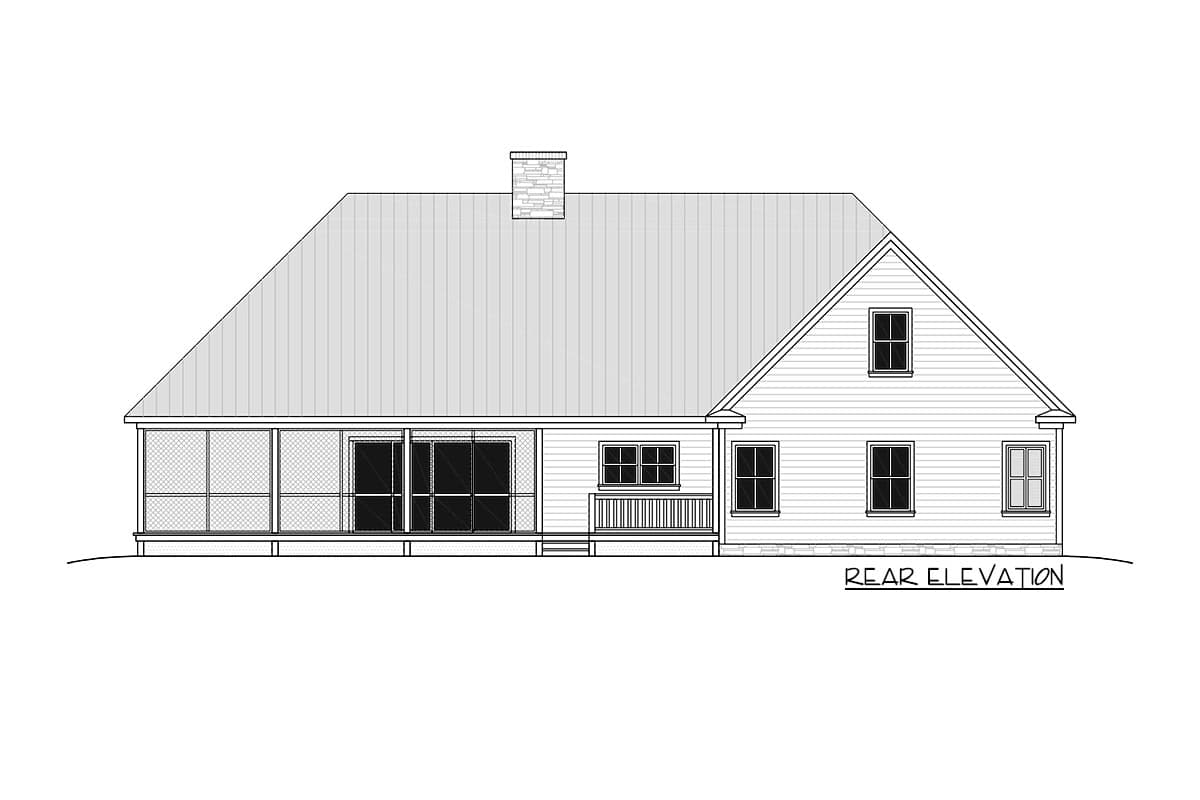

  • Rear + Left Exterior Elevations, General Elevations Notes
  • Enlarged Kitchen Plan, Interior Kitchen Elevations
  • Electrical Lighting Plans, Electrical Legend, + Electrical Notes
  • Foundation Plan, Foundation Plan Notes, + Wall Type Legend
  • Foundation Details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
