Split-Bed Transitional Home Plan with Open Living Space - 2308 Sq Ft

Plan 818001JSS

  • 2,308

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • Stone and stucco adorn the exterior of this split-bedroom Transitional home plan with deep overhanging eaves supported by wooden brackets.
  • The front porch guides you into the foyer with a coat closet and provides views into the spacious, open gathering space.
  • U-shaped cabinetry and an island form the free-flowing kitchen while 3 large windows above the sink offer rearward views.
  • The primary bedroom is set apart from the secondary bedrooms for privacy and includes a sizable shower and walk-in closet in the ensuite; a pocket door provides a shortcut to the laundry room.
  • A mudroom just inside from the double garage and the large pantry next to the kitchen help the family stay organized.

  • Foundation plan

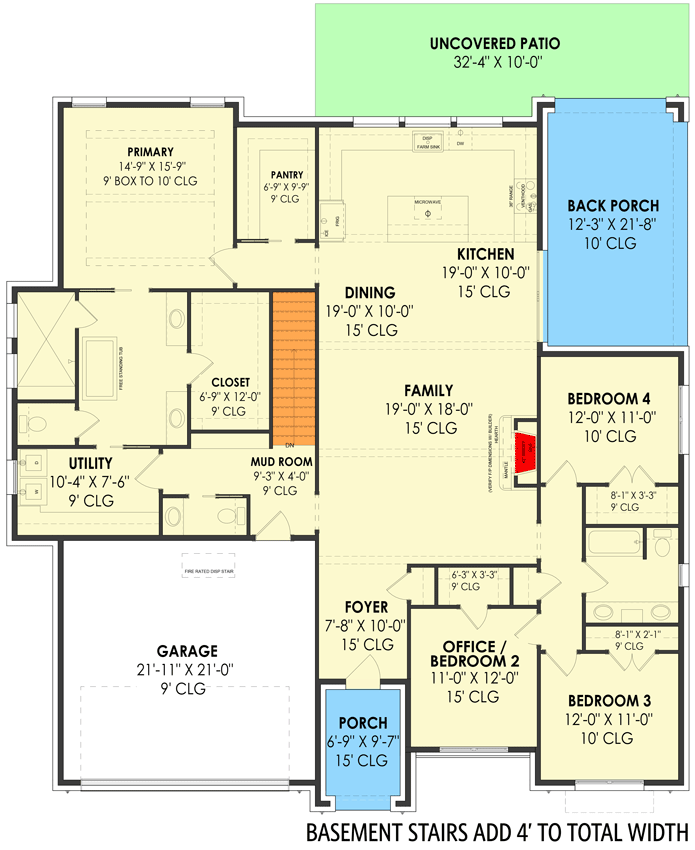

  • Detailed floorplans
  • Roof plan

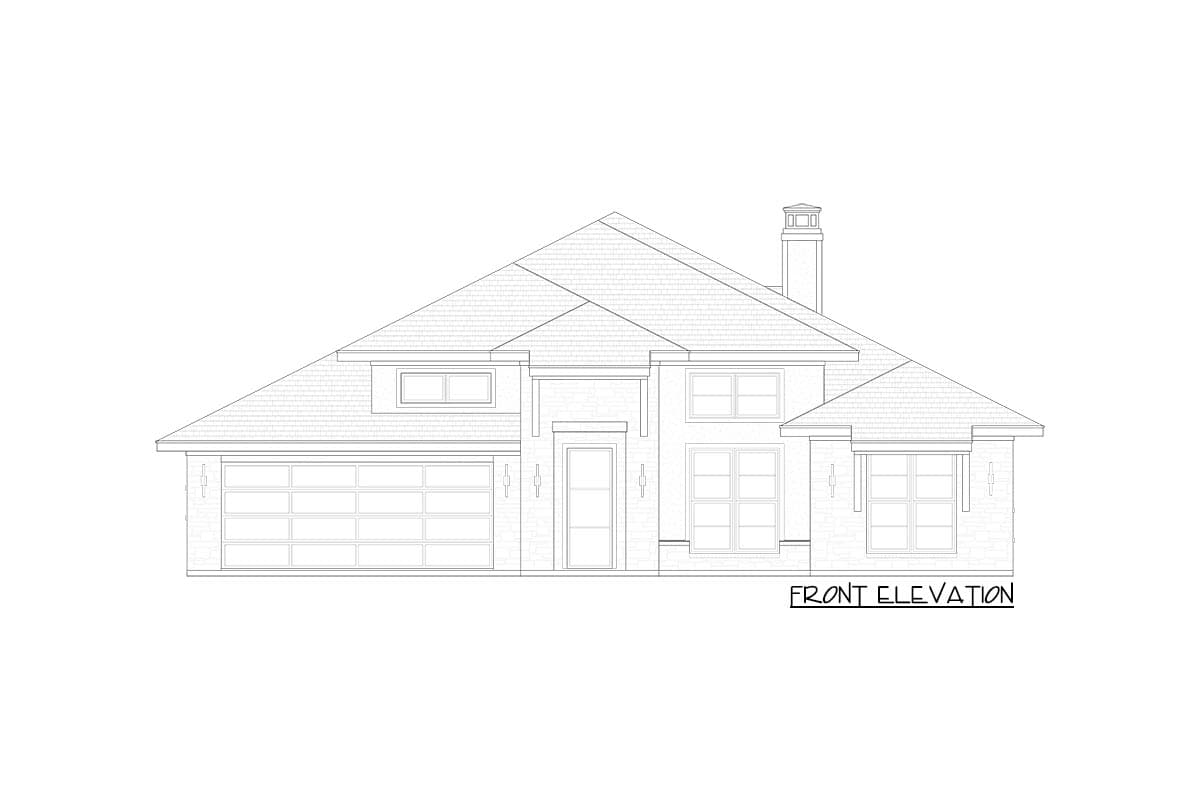

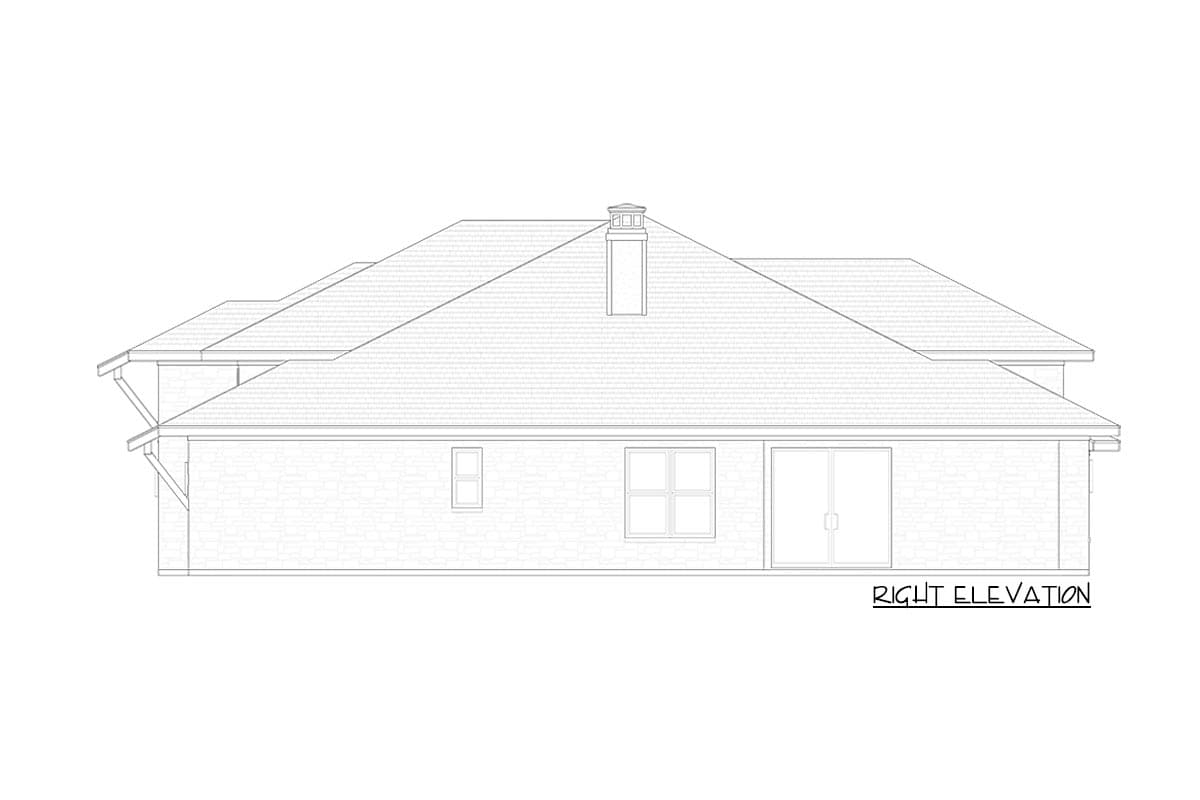

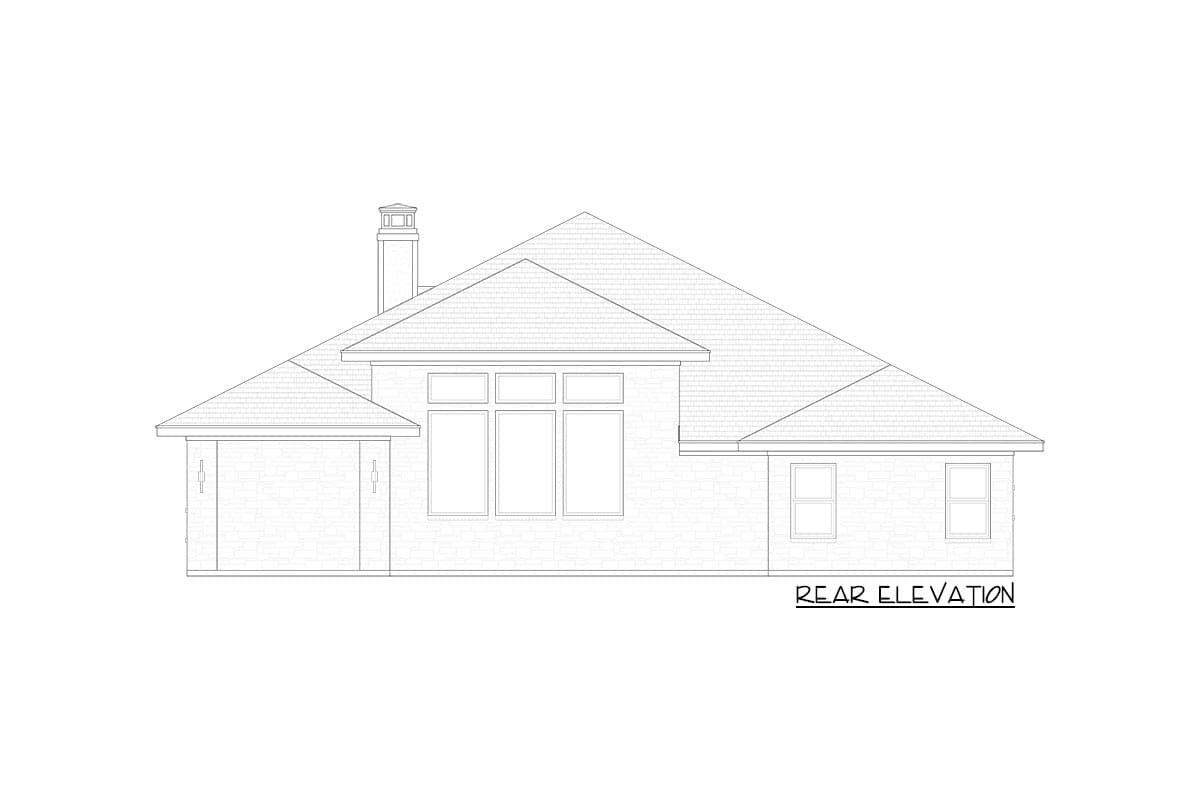

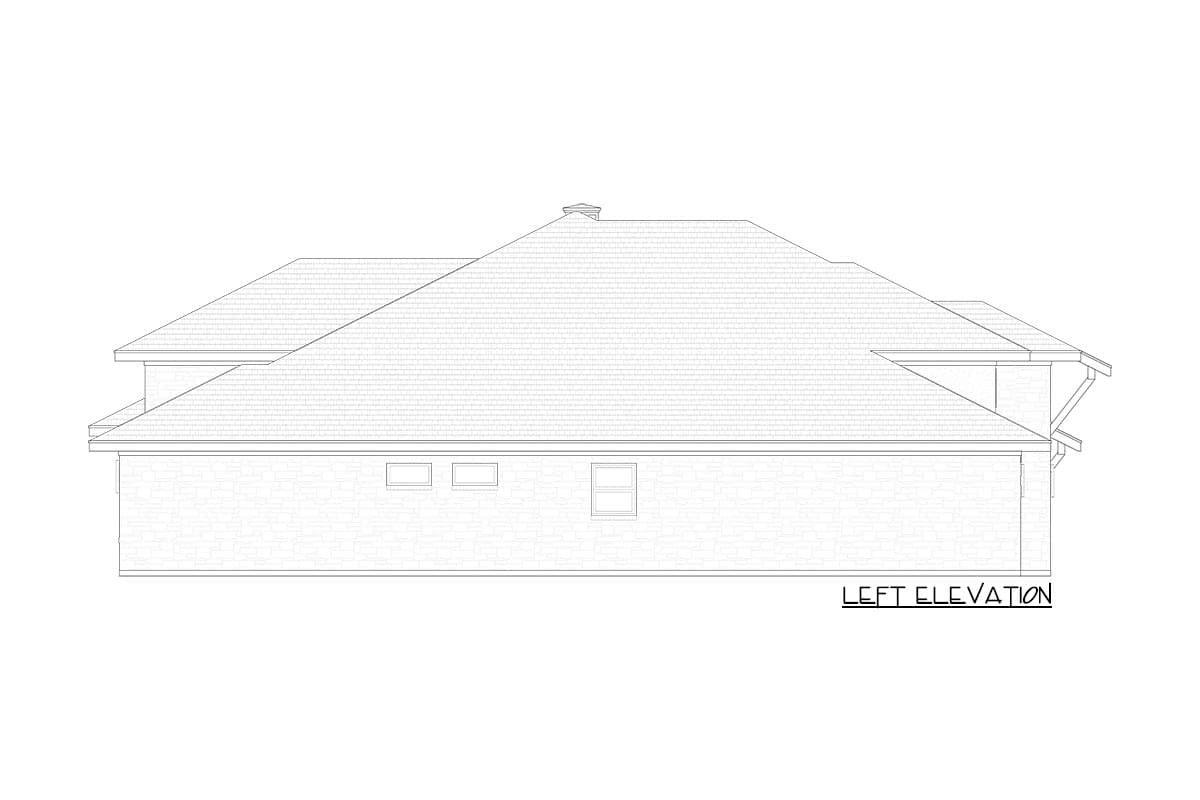

  • Four elevations
  • Electrical schematic
  • Cross section(s)
  • Rafter plan and ceiling joist plans (Beam, joist, and rafters to be sized locally by an engineer or framer)
The following details are NOT included in the plans:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

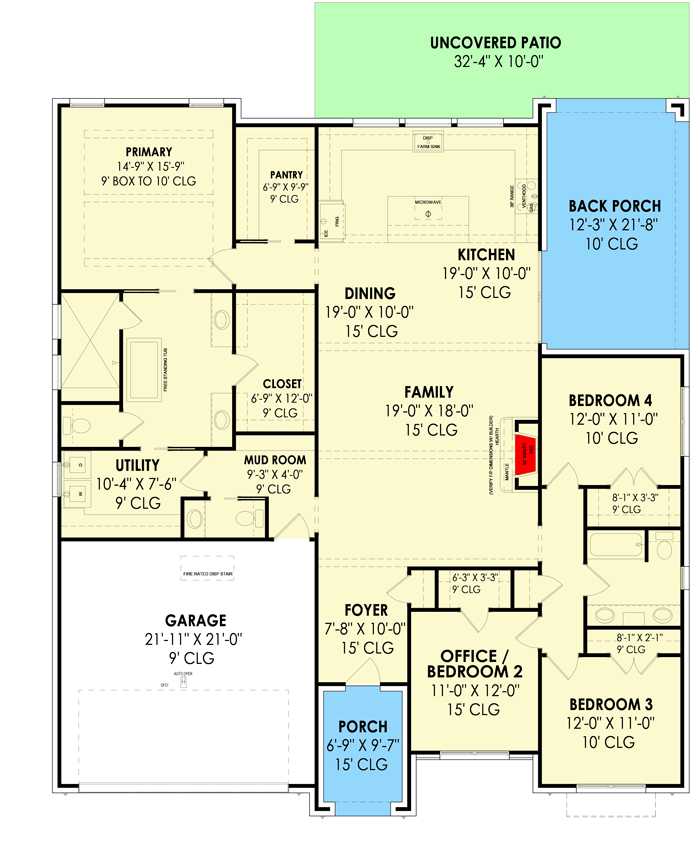

Split-Bed Transitional Home Plan with Open Living Space - 2308 Sq Ft - 818001JSS floor plan - Main Level

Split-Bed Transitional Home Plan with Open Living Space - 2308 Sq Ft

  • 2,308

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,308 sq. ft.
  • 1st Floor: 2,308 sq. ft.

Dimensions

  • Width: 55' 0"
  • Depth: 62' 0"
  • Max ridge height: 24' 2"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 484 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Monolithic Slab
    • Optional Foundations: Walkout, Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Stick
