Plan 59402ND
Split-Bedroom House Plan
Heated S.F.
1,538
Beds
3
Baths
2
Stories
1
Cars
2
What's Included
Plan Details
  • This country home plan effectively separates the master suite from the family bedrooms. A tray ceiling tops the master bedroom, while a skylight brightens the master bath. Here, the thoughtful extras include twin walk-in closets and twin vanities separated by make-up space.
  • The spacious great room features a 9' boxed ceiling, a fireplace and backyard access. Off the foyer, the bayed dining room is open to the kitchen. Nearby are a pantry closet and a mudroom-laundry room.
  • In the family wing, a vaulted ceiling expands the front-facing bedroom.
  • Note the storage room off the two-car garage.
  • Ceilings: 8' standard.
  • Related Plans: Need less space? See house plans 5952ND and 59221ND.
  • Get more room with house plan 59266ND.
What's Included
  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Split-Bedroom House Plan

  • 1,538

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

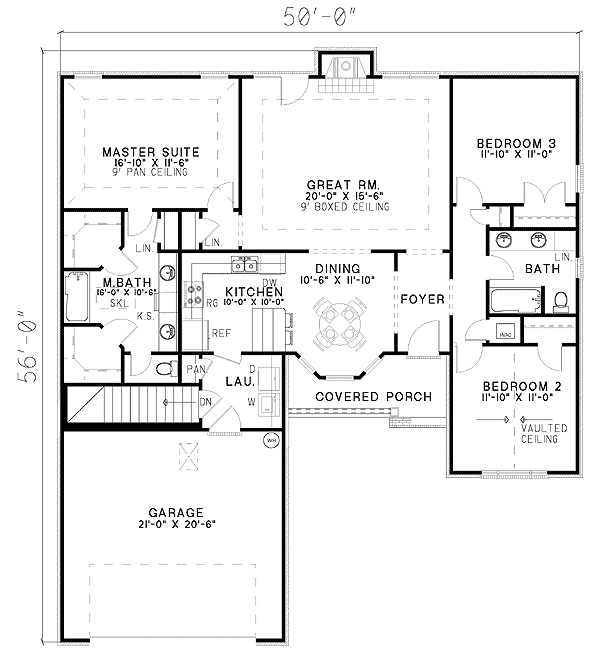

Floor Plan
