Plan 59819ND

Split Bedroom House Plan with Carport - 1100 Sq Ft

Heated S.F.
1,100
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 59819ND

Main Level
Main Level

Plan 59819ND

M-F 9am-5pm EST |

1-203-761-8500

Main Level

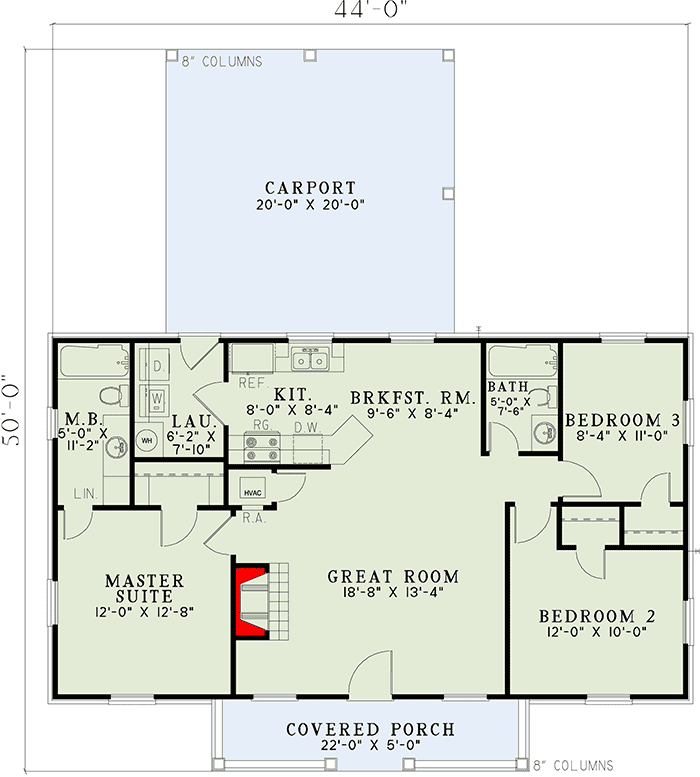

Plan 59819ND: Split Bedroom House Plan with Carport - 1100 Sq Ft - Floor Plan - Main Level - Country, Ranch, Traditional

Plan Details

  • Greet the neighbors from the quaint covered porch of this economical split bedroom home plan.
  • Enjoy family movie night in the great room with fireplace.
  • Preparing and serving meals will be easy with this kitchen and adjoining breakfast room.
  • This split bedroom house plan allows privacy for all family members with the master suite on one side of the home and two additional bedrooms on the other side.
  • Related Plan: Get a contemporary farmhouse exterior with house plan 70543MK.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,100 sq. ft.

1st Floor

1,100 sq. ft.

Carport

400 sq. ft.

Porch, Combined

110 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

44' 0"

Depth

50' 0"

Max Ridge Height

17' 0"

Garage

Type

Carport, Attached

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

7 on 12

Framing Type

Stick

Architectural Style

Country

Ranch

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
